WLE625WA — 940001818 25
WESTINGHOUSE — Cooker Electric
Parts for WLE625WA

W0011232 KNOB WEST 540 WHT RC ELEC FRES
W0011297 BLADE FAN
W0011400 DISH GRILL ENAM SEP GRILL
$68.20

W0011404 TRAY SCONE
$19.90
W0011909 HANDLE GRILL DISH
$9.90

W0011995 NUT M6 LH FAN MOTOR
W0012254 ELEMENT C/HEAT 1800W SS321

W0012262 ELEMENT FAN RING 2200W
W0012570 END CAP HANDLE BLK WEST NGD
$14.05
.jpg)
W0012990 SPACER HANDLE BLK FRESCO
$10.25
W0013596 SWITCH THERMAL CUT OUT 190 DEG

W0013702 TIMER 120 MINUTE WESTLAKE
W0014040 SCREW 3/16X28 PAN PH TRILOB ZY

W0022807 HINGE DOOR OVEN

W0023241 HOLDER LAMP ASSY BIOS

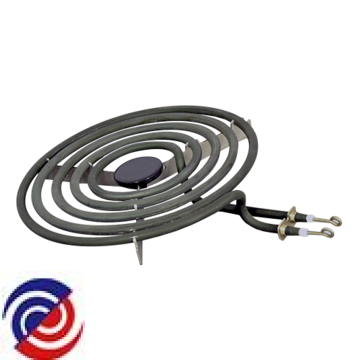

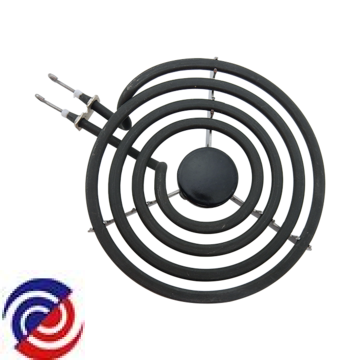

W0046269 ELEMENT 160MM NZ TOP HEATER

W0046270 ELEMENT 200MM NZ TOP HEATER
W0046406 CLIP MOUNTING ELEMENT
W0050403 MOTOR FAN OVEN

W0053461 RACK GRILL INSERT
W0053487 SHELF OVEN 473 X 378MM
W0057210 SWITCH AUXILIARY T/STAT
W0057771 THERMOSTAT OVEN

W0147339 SEAL OVEN MODULAR PROFILE
W0166032 LAMP 25W SES E14 300C CLEAR
$10.00

W0274109 SWITCH INF/HEAT EGO SINGLE

W0011114 TERMINAL BLOCK W/EARTH BIOS

W0011264 PLATE CVR TERM ELEC BIOS
$13.85

W0011267 PLATE ANTI-TILT 600 UR MK2
$15.90

W0011383 BRACKET SUPPORT GRILL BOX R/H
$14.30

W0011384 BRACKET SUPPORT GRILL BOX L/H
$14.30

W0011389 BRACKET STABIL. BOLT ASSY FRES
$19.85

W0011409 TRAY SPILL 600UP SG FRESCO
$97.60

W0011457 PNL OUT OV DR ASSY 600 WHT FR
$177.90

W0011458 PNL OUT GR DR ASS 600 LG WHT F

W0011513 PANEL SIDE WHITE FRESCO
$89.30

W0011523 PANEL COVER WIRE 600 S/G FRESC
$39.10

W0011525 PANEL S/BACK WIRE COVER 600RC
$79.95

W0011651 PANEL CNT SCR WLE625WA
$141.00

W0011666 COVER FAN & ELEMENT
$95.75

W0011699 PANEL KICK 600 SEP WHT FRESCO
$28.00

W0011845 HINGE GR DOOR 540 FRESCO PH2
$7.70

W0011929 HNDL DOOR WEST 7820 WHITE
$60.95

W0012315 CLIP THERMOSTAT BIOS
$9.00

W0012417 SUPPORT COUNTER FRESCO
$7.05

W0012521 SCREW M4 X 4 PAN #1PH SMALL HD
$4.50

W0012880 GLASS OV DR INNER 600 FRESCO
$96.35

W0013260 SHIELD WIRING
$11.95

W0013328 INSULATION OVEN BACK - KNAUF
$20.30

W0013467 OVEN BRACE 600UP ASSY FRESCO
$24.85

W0013628 TRIM DOOR TOP VENT 600 FRESCO
$31.90

W0013730 BUMPER STOP BLK
$6.55

W0013731 BUMPER STOP GREY
$5.05

W0013770 HOB 600RC RAD ENAM FRESCO
$302.20

W0013868 LIGHT IND RED 240V 600 KIT
$11.20

W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50

W0014026 SCREW #8 X 5/16 CSK #2PH AB BK
$4.50

W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK

W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50

W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50

W0014065 CLIP AMP 1217108-1

W0022171 FOOT LEVELING
$16.35

W0029619 BOWL SPILL ENAM 160 NZ FRESCO
$50.00

W0029927 BRACE LOWER ASSEMBLY 600UP
$30.15

W0029958 F/FRONT PAINT 600UP S/G FRSC

W0038838 BRACKET PLUGIN ELEMENT FRESCO

W0038839 BRACKET SUPPORT HOB 600RC LHS

W0038840 BRACKET SUPPORT HOB 600RC RHS

W0043118 PANEL REFLECTOR GRILL TOP

W0043323 BOWL SPILL 200MM

W0044830 FLUE DUCT OVEN ELEC 540 BIOS

W0045532 BOLT STABILISING

W0045912 GUARD ELEMENT RADIANT

W0046537 SLEEVE SILICONE 10/8 50MM LONG

W0047180 SUPPORT GRILL ELEMENT

W0047469 SCREW M4 X 5 PAN #2 PH SML HD
$4.50

W0048107 ENDCAP REAR C/P 600 RHS

W0048108 ENDCAP REAR C/P 600 LHS
$14.30

W0052543 CONNECTOR BLK AMP 770500-1

W0053471 RACK SIDE GRILL LH/RH
$59.10

W0054672 INSULATION OVEN WRAP - KNAUF
$63.85

W0056278 BRACE LOWER ASSY 600UP MK2
$24.90

W0059836 DUCT GRILL BOX 540 R/C BIOS

W0064454 SCREW #10 X 3/8 PAN ZC

W0064527 SCREW NO 8 X 12 MM PD
$4.50

W0065133 RIVET POP 3.2 X 4.8
