WVE615WH — 944031720 33

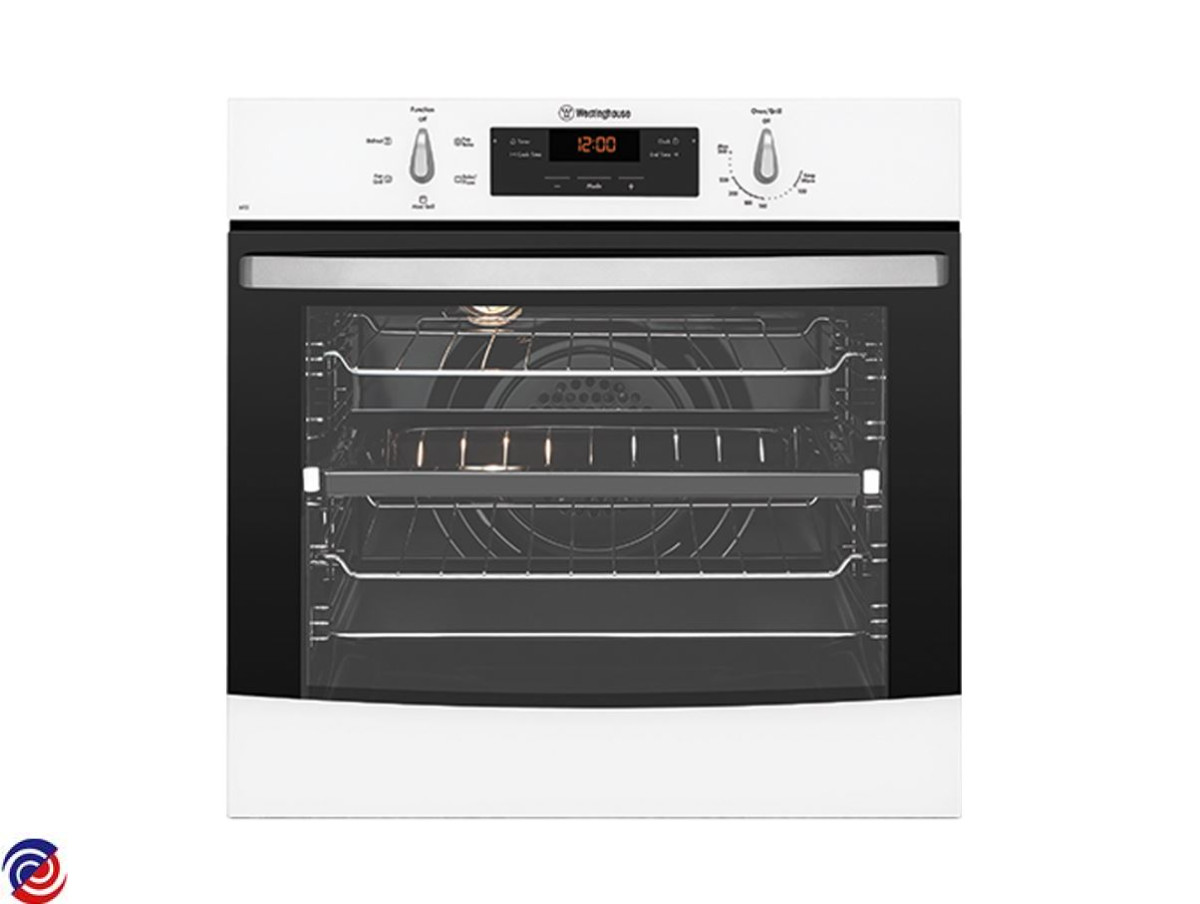

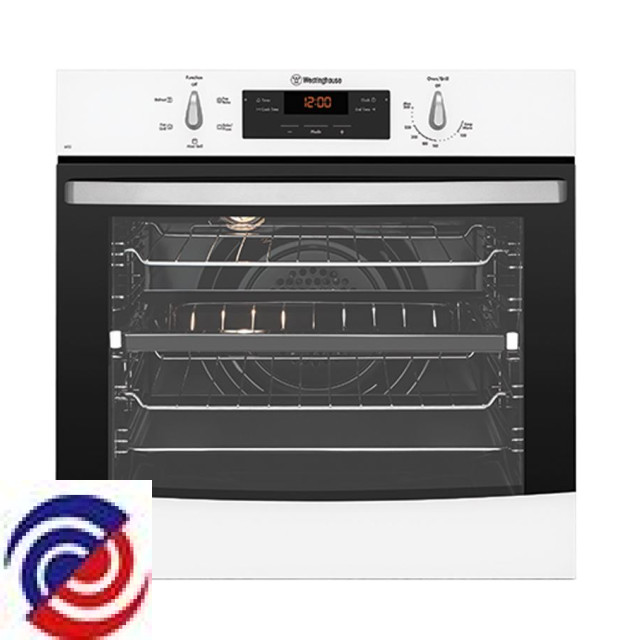

WESTINGHOUSE — Cooker Electric

Parts for WVE615WH

W0011237 KNOB ASSY WH BLDE SILVER FORTE
W0011319 COVER GRILL DISH
W0011401 DISH GRILL ENAM F/WIDTH BIOS
W0011406 TRAY BAKING SCONE - 468MM X 360MM
W0011932 HANDLE DR NP WEST ANOD FORTE
W0011995 NUT M6 LH FAN MOTOR
W0012256 ELEMENT GRILL/BOOST 3000W
W0012262 ELEMENT FAN RING 2200W
W0012326 CLIP MOUNTING ELEMENT
W0012886 GLASS OV DR IN WEST FORTE
W0013564 SWITCH MULTI 5
W0013596 SWITCH THERMAL CUT OUT 190 DEG
W0013597 THERMAL CUTOUT 120 DEG N/C 16A
W0013966 WESTINGHOUSE OVEN CLOCK PCB 3 BUTTON TOUCH BF11
$126.00
W0014032 SCREW #8 X 45 PAN QUADREX
W0022966 HINGE DOOR
W0030130 TRIM DOOR TOP CAP NGD
W0030434 SEAL OVEN MODULAR PROFILE
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
W0050403 MOTOR FAN OVEN
W0057771 THERMOSTAT OVEN
W0271174 IMPELLER OVEN FAN 160 MM
W0275063 LAMP OVEN ROUND PYRO BIOS
No image available
W0011114 TERMINAL BLOCK W/EARTH BIOS
No image available
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
No image available
W0011321 COVER BASE PANEL SHIELD BIOS
$29.70
No image available
W0011479 PANEL TOP PYRO NGP
$43.20
No image available
W0011484 PANEL SIDE RH
$28.00
No image available
W0011485 PANEL SIDE LH
$27.50
No image available
W0011515 PANEL COVER WIRE UB 40MM
$24.20
No image available
W0011666 COVER FAN & ELEMENT
$95.75
No image available
W0011856 SUPPORT ELEMENT
No image available
W0011882 CHANNEL FRONT NGP UB RH
$16.90
No image available
W0012519 SCREW M4X5 HEX1/4' PH2 BLK ZP
$4.50
No image available
W0012578 STAND-OFF NON-PYRO WEST FORTE
No image available
W0013260 SHIELD WIRING
$11.95
No image available
W0013461 BRACE OVEN REAR B/I BIOS
$24.85
No image available
W0013730 BUMPER STOP BLK
$6.55
No image available
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
No image available
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
No image available
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
No image available
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
No image available
W0022643 SCREW M4 X 4
No image available
W0027190 FRAME FRONT PAINTED ELE UB NGP
$62.95
No image available
W0027370 SCREW M4 X 25 PAN MTS PHIL BLK
$1.70
No image available
W0030193 PLATE MTG SW CLOCK CHEF SELECT
$72.55
No image available
W0030352 FAN COOLING ASSY RADIAL 11W
No image available
W0030606 INSULATION OVEN BACK - KNAUF
$15.55
No image available
W0030649 GLASS & CLIPS WVE615W SELECT
$131.00
No image available
W0038118 COVER RETAINING LATCH
$10.95
No image available
W0039639 BASEPLATE
No image available
W0042653 CHANNEL FRONT NGP UB LH
No image available
W0042768 PLUG DOME MDP16
No image available
W0053533 RACK INSERT ROASTING WIRE
No image available
W0054672 INSULATION OVEN WRAP - KNAUF
$63.85
No image available
W0064527 SCREW NO 8 X 12 MM PD
$4.50
No image available
W0147404 LIGHT INDICATOR AMBER LENS
No image available
W0154077 ENDCAP CONTROL PANEL CHEF LHS
No image available
W0154078 ENDCAP CONTROL PANEL CHEF RHS
No image available
W0154119 PNL OV DR OUT ASS WHITE FORTE
No image available
W0283441 COVER CLEAN HEAT
$9.65
No image available
W0283731 RACK SHELF OVEN W/HOUSE SLIDES
No image available
W0284067 CLIP THERMOSTAT BIOS
$4.50
No image available
W0284366 SLIDE SINGLE EXT 1 SET
No image available
W0284438 RACK PACK WH UB V1 E100
$116.30
No image available
W0284441 ELEMENT BASE 1000W E100
No image available
W0284726 RACK SIDE OVN W/HOUSE STEAM RH
$39.00
