WVE616S — 944031686 32

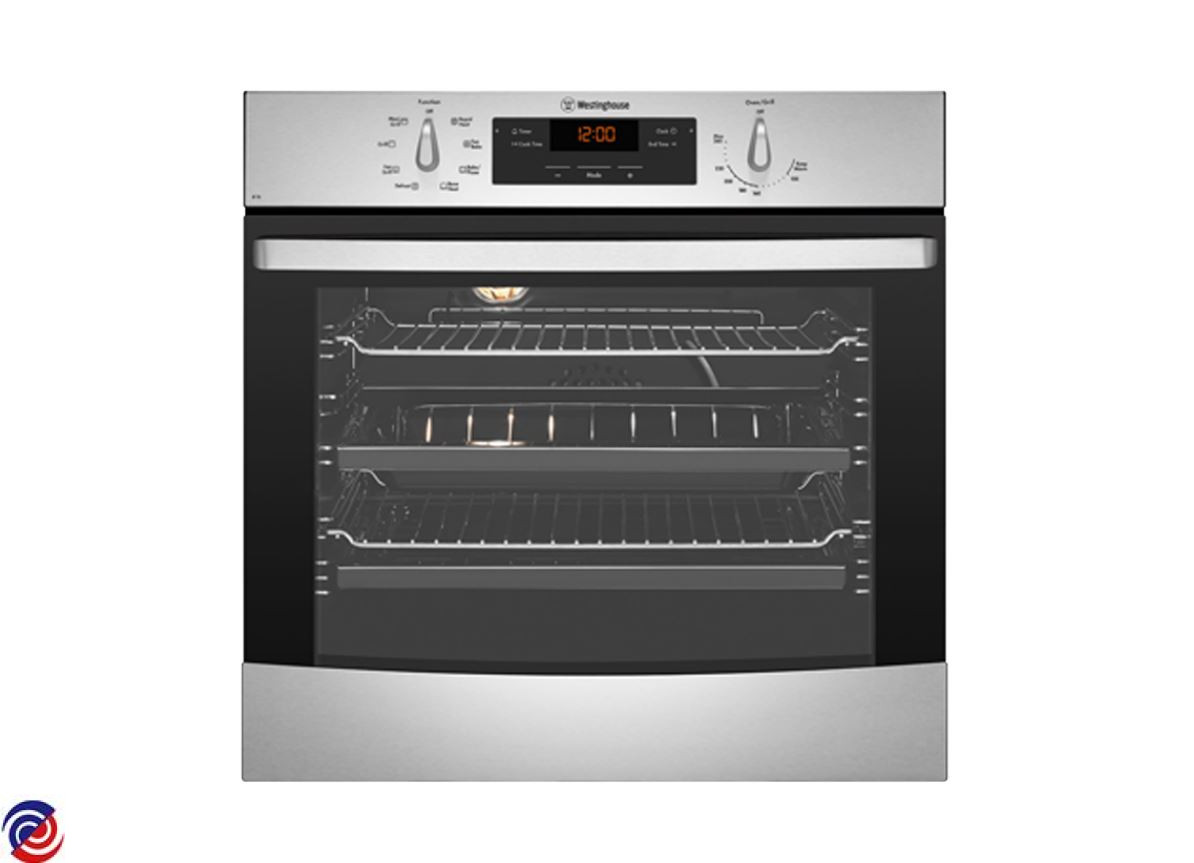

WESTINGHOUSE — Cooker Electric

Parts for WVE616S

W0011237 KNOB ASSY WH BLDE SILVER FORTE
W0011297 BLADE FAN
W0011319 COVER GRILL DISH
W0011401 DISH GRILL ENAM F/WIDTH BIOS
W0011932 HANDLE DR NP WEST ANOD FORTE
W0011995 NUT M6 LH FAN MOTOR
W0012256 ELEMENT GRILL/BOOST 3000W
W0012262 ELEMENT FAN RING 2200W
W0012326 CLIP MOUNTING ELEMENT
W0012886 GLASS OV DR IN WEST FORTE
W0013565 SWITCH MULTI 8
W0013597 THERMAL CUTOUT 120 DEG N/C 16A
W0013966 WESTINGHOUSE OVEN CLOCK PCB 3 BUTTON TOUCH BF11
$126.00
W0014025 SCREW #8-10X35 PAN PH2 P/B BK
$4.50
W0014040 SCREW 3/16X28 PAN PH TRILOB ZY
W0022966 HINGE DOOR
W0022968 HINGE DOOR
W0023201 HOLDER LAMP REAR HALOGEN BIOS
W0030434 SEAL OVEN MODULAR PROFILE
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
W0046406 CLIP MOUNTING ELEMENT
W0050403 MOTOR FAN OVEN
W0053514 SHELF OVEN
W0057771 THERMOSTAT OVEN
W0058493 TRIM DOOR UPPER VENTED
No image available
W0011114 TERMINAL BLOCK W/EARTH BIOS
No image available
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
No image available
W0011293 SLIDE OVEN HETTICH LHS
No image available
W0011294 SLIDE OVEN HETTICH RHS
No image available
W0011321 COVER BASE PANEL SHIELD BIOS
$29.70
No image available
W0011479 PANEL TOP PYRO NGP
$43.20
No image available
W0011484 PANEL SIDE RH
$28.00
No image available
W0011485 PANEL SIDE LH
$27.50
No image available
W0011515 PANEL COVER WIRE UB 40MM
$24.20
No image available
W0011667 PANEL FAN COVER CAT BIOS
No image available
W0011856 SUPPORT ELEMENT
No image available
W0011882 CHANNEL FRONT NGP UB RH
$16.90
No image available
W0012315 CLIP THERMOSTAT BIOS
$9.00
No image available
W0012519 SCREW M4X5 HEX1/4' PH2 BLK ZP
$4.50
No image available
W0012578 STAND-OFF NON-PYRO WEST FORTE
No image available
W0012849 DOOR OVEN INNER GLASS MIDDLE
No image available
W0013260 SHIELD WIRING
$11.95
No image available
W0013328 INSULATION OVEN BACK - KNAUF
$20.30
No image available
W0013461 BRACE OVEN REAR B/I BIOS
$24.85
No image available
W0013730 BUMPER STOP BLK
$6.55
No image available
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
No image available
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
No image available
W0014023 SCREW #8 X 5/8 CSK #2PH AB BK
$4.50
No image available
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
No image available
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
No image available
W0014081 BUSH MOUNT F/FRAME V2 NGD
$5.05
No image available
W0022643 SCREW M4 X 4
No image available
W0027190 FRAME FRONT PAINTED ELE UB NGP
$62.95
No image available
W0030193 PLATE MTG SW CLOCK CHEF SELECT
$72.55
No image available
W0030352 FAN COOLING ASSY RADIAL 11W
No image available
W0038118 COVER RETAINING LATCH
$10.95
No image available
W0039242 TRAY BAKING PREMIUM ENAM BIOS
No image available
W0039639 BASEPLATE
No image available
W0042653 CHANNEL FRONT NGP UB LH
No image available
W0042768 PLUG DOME MDP16
No image available
W0053515 SIDE OVEN SLIDE ELUX LHS
No image available
W0053516 SIDE OVEN SLIDE ELUX RHS
No image available
W0053533 RACK INSERT ROASTING WIRE
No image available
W0054672 INSULATION OVEN WRAP - KNAUF
$63.85
No image available
W0063342 LINER OVEN PAIR NO LIGHT
$99.90
No image available
W0064527 SCREW NO 8 X 12 MM PD
$4.50
No image available
W0147404 LIGHT INDICATOR AMBER LENS
No image available
W0154077 ENDCAP CONTROL PANEL CHEF LHS
No image available
W0154078 ENDCAP CONTROL PANEL CHEF RHS
No image available
W0154118 PNL OV DR OUT ASS S/S FORTE
No image available
W0275712 PNL CNT & CLIPS WVE616S SELECT
$164.20
No image available
W0283441 COVER CLEAN HEAT
$9.65
No image available
W0284441 ELEMENT BASE 1000W E100
