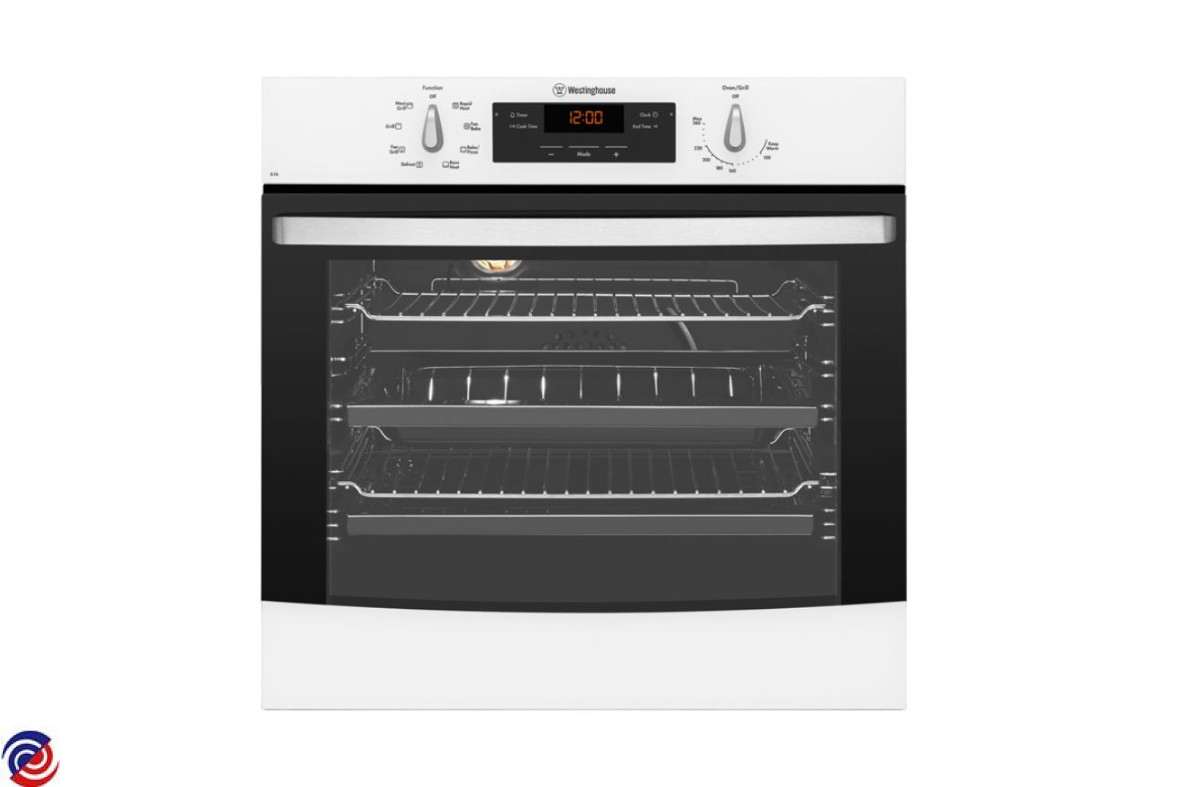

WVE616W — 944031687 00
WESTINGHOUSE — Cooker Electric
Parts for WVE616W
W0011237 KNOB ASSY WH BLDE SILVER FORTE
.JPG)
W0011297 BLADE FAN
W0011319 COVER GRILL DISH
W0011401 DISH GRILL ENAM F/WIDTH BIOS
W0011932 HANDLE DR NP WEST ANOD FORTE
W0011995 NUT M6 LH FAN MOTOR
.JPG)
W0012256 ELEMENT GRILL/BOOST 3000W
W0012262 ELEMENT FAN RING 2200W
W0012263 ELEMENT C/HEAT 1800W NO EARTH
$95.00
.JPG)
W0012326 CLIP MOUNTING ELEMENT
W0012886 GLASS OV DR IN WEST FORTE
W0013565 SWITCH MULTI 8
.JPG)
W0013966 WESTINGHOUSE OVEN CLOCK PCB 3 BUTTON TOUCH BF11
$126.00
W0014025 SCREW #8-10X35 PAN PH2 P/B BK
$4.50
W0014032 SCREW #8 X 45 PAN QUADREX
W0014040 SCREW 3/16X28 PAN PH TRILOB ZY
.JPG)
W0022966 HINGE DOOR
.JPG)
W0022968 HINGE DOOR
W0023241 HOLDER LAMP ASSY BIOS
.JPG)
W0046406 CLIP MOUNTING ELEMENT
_1.JPG)
W0050403 MOTOR FAN OVEN
.JPG)
W0052585 CANOPY FAN ASSY U/B NGD
W0053514 SHELF OVEN
.JPG)
W0057771 THERMOSTAT OVEN
W0058493 TRIM DOOR UPPER VENTED
W0147339 SEAL OVEN MODULAR PROFILE
W0166032 LAMP 25W SES E14 300C CLEAR
$10.00
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011262 PLATE MOUNTING SWITCH
$14.90
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011293 SLIDE OVEN HETTICH LHS
W0011294 SLIDE OVEN HETTICH RHS
W0011321 COVER BASE PANEL SHIELD BIOS
$29.70
W0011479 PANEL TOP PYRO NGP
$43.20
W0011484 PANEL SIDE RH
$28.00
W0011485 PANEL SIDE LH
$27.50
W0011515 PANEL COVER WIRE UB 40MM
$24.20
W0011667 PANEL FAN COVER CAT BIOS
W0011856 SUPPORT ELEMENT
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012519 SCREW M4X5 HEX1/4' PH2 BLK ZP
$4.50
W0012562 MOUNT CAP F/FRAME R/H NGD
$5.80
W0012563 MOUNT CAP F/FRAME L/H NGD
$7.55
W0012578 STAND-OFF NON-PYRO WEST FORTE
W0012849 DOOR OVEN INNER GLASS MIDDLE
W0012887 GLASS & CLIPS WVE616W
$49.50
W0013260 SHIELD WIRING
$11.95
W0013328 INSULATION OVEN BACK - KNAUF
$20.30
W0013461 BRACE OVEN REAR B/I BIOS
$24.85
W0013625 FRAME CONTROL PANEL
W0013730 BUMPER STOP BLK
$6.55
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014023 SCREW #8 X 5/8 CSK #2PH AB BK
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014081 BUSH MOUNT F/FRAME V2 NGD
$5.05
W0027190 FRAME FRONT PAINTED ELE UB NGP
$62.95
W0027384 FLUE DUCT OVEN U/B ELEC NGD
$8.70
W0038118 COVER RETAINING LATCH
$10.95
W0038121 COVER CLEAN HEAT FULL GALV BIO
W0039242 TRAY BAKING PREMIUM ENAM BIOS
W0039603 PAN OV DR OUT ASS WHT FORTE
$300.90
W0039639 BASEPLATE
W0039640 PANEL UPPER
W0042653 CHANNEL FRONT NGP UB LH
W0042654 CHANNEL FRONT NGP UB RH
W0042768 PLUG DOME MDP16
W0047469 SCREW M4 X 5 PAN #2 PH SML HD
$4.50
W0053515 SIDE OVEN SLIDE ELUX LHS
W0053516 SIDE OVEN SLIDE ELUX RHS
W0053533 RACK INSERT ROASTING WIRE
W0054672 INSULATION OVEN WRAP - KNAUF
$63.85
W0057755 SWITCH THERMAL CUT OUT 120 DEG
W0063342 LINER OVEN PAIR NO LIGHT
$99.90
W0147404 LIGHT INDICATOR AMBER LENS
