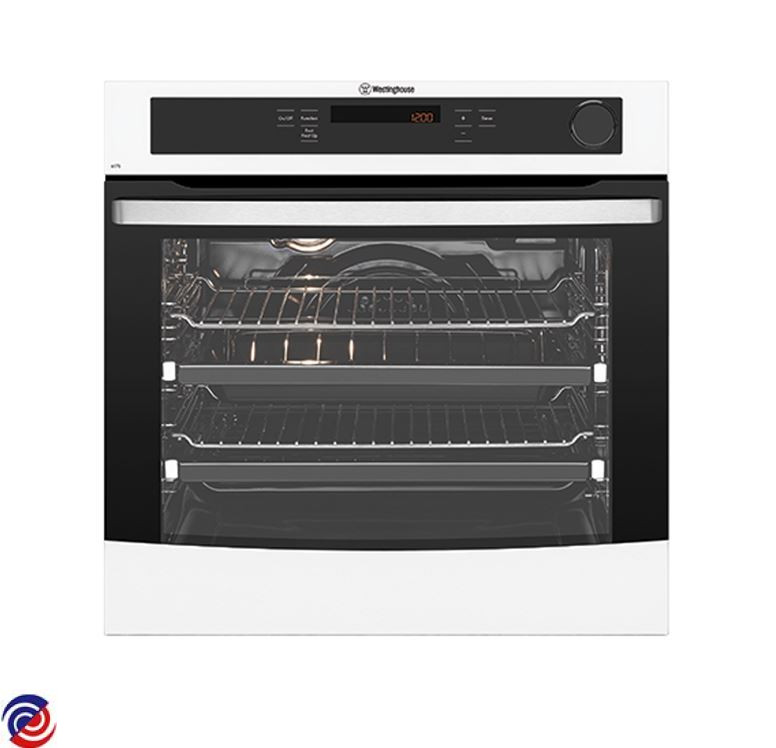

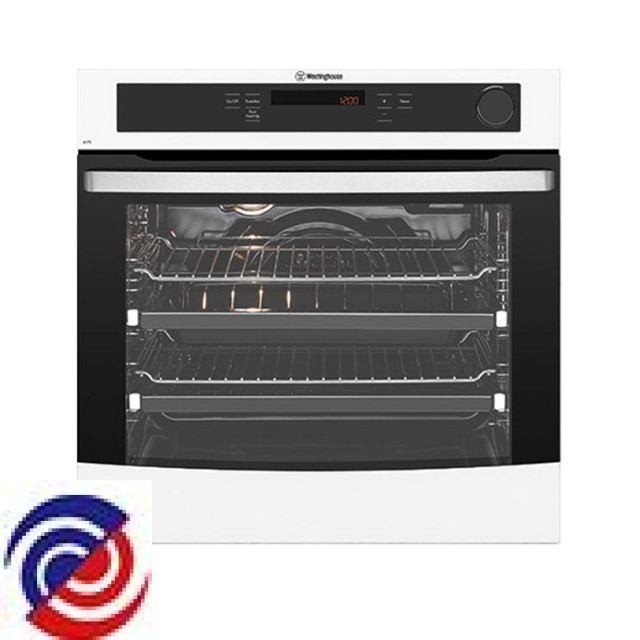

WVE617W — 944031691 34
WESTINGHOUSE — Cooker Electric
Parts for WVE617W
.JPG)
W0011297 BLADE FAN
W0011319 COVER GRILL DISH
W0011930 WESTINGHOUSE OVEN DOOR HANDLE
W0011995 NUT M6 LH FAN MOTOR
W0012261 ELEMENT G/BOOST 3000W - PYRO
W0012262 ELEMENT FAN RING 2200W
W0012886 GLASS OV DR IN WEST FORTE
.JPG)
W0013596 SWITCH THERMAL CUT OUT 190 DEG
.JPG)
W0013597 THERMAL CUTOUT 120 DEG N/C 16A
W0013629 TRIM VENT DOOR ASSY NGP UB
$53.20
W0013970 RELAY 30A SINGLE POLE 240V
W0022510 GENERATOR STEAM
$368.00
W0023144 POWERBOARD OVC3000 - EOS
$271.70
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
.JPG)
W0046406 CLIP MOUNTING ELEMENT
_1.JPG)
W0050403 MOTOR FAN OVEN
W0011145 CAP WATER FILLER DR ASSY FORTE
$17.00
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011321 COVER BASE PANEL SHIELD BIOS
$29.70
W0011368 BRACKET HINGE SUPT APOLLO
$22.90
W0011369 BRACKET PT500 PROBE STEAM
$4.00
W0011376 BRACKET DOOR SWITCH STEAM
W0011402 DISH ROASTING DEEP ENAM NGD
W0011471 PNL OV DR OUT AS WEST WH FORTE
W0011479 PANEL TOP PYRO NGP
$43.20
W0011484 PANEL SIDE RH
$28.00
W0011485 PANEL SIDE LH
$27.50
W0011515 PANEL COVER WIRE UB 40MM
$24.20
W0011666 COVER FAN & ELEMENT
$95.75
W0011857 SUPPORT ELEMENT
$12.80
W0012036 FRAME FRONT PAINT 40MM STEAM
$68.20
W0012419 HOUSING DR LOCK CAST PYRO NGP
$30.45
W0012519 SCREW M4X5 HEX1/4' PH2 BLK ZP
$4.50
W0012579 STAND-OFF BLK PYRO WEST FORTE
W0012632 HARNESS WIRE
W0012639 SENSOR CABLE - 500MM
W0012645 WIRE HARNESS RELAY STEAM
$17.60
W0012648 WIRE HARNESS NGP DOOR SW
W0012752 HOLDER LAMP REAR PYRO BIOS
$56.40
W0012864 GLASS OVEN DOOR MID PYRO NGP
W0012997 SPACER RUBBER GLASS NGP
$8.15
W0013184 JUG MEASURING STEAM
$16.60
W0013236 PIPE STEAM INLET RUBY
W0013238 PIPE OVERFILL RUBY
$24.85
W0013242 PIPE WATER DRAIN ASSY
$29.05
W0013328 INSULATION OVEN BACK - KNAUF
$20.30
W0013448 BUTTON PUSH DOOR SWITCH
W0013466 BRACE OVEN REAR HOT STEAM RUBY
W0013579 SWITCH DOOR LIGHT MICRO LEVER
W0013630 TRIM SURROUND C/P 40MM NGP
W0013666 DUCT PLATE TOP PYRO NGP
$14.85
W0013667 DUCT PLATE BOTTOM PYRO NGP
W0013668 DUCT PLATE MID PYRO UB NGP
$18.00
W0013730 BUMPER STOP BLK
$6.55
W0013865 KIT PNL CNTRL WVE617W
$180.55
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50
W0014041 SCREW #8 x1/2 PH2 MUSH WASHER
$4.50
W0014136 NUT STEAM
$7.70
W0014137 WASHER STEAM
$5.50
W0022508 SENSOR WATER LEVEL
W0023146 PROBE FOOD MODULE STEAM
$288.30
W0026482 CONTROLLER KRONOS2 UPDATE PROG
W0026511 COVER STEAM HOLE GLASS
$10.90
W0027300 COOLING FAN MOTOR ASSEMBLY
W0027370 SCREW M4 X 25 PAN MTS PHIL BLK
$1.70
W0029631 CAP MOUNT F/FRAME 40MM RUBY LH
$4.50
W0029632 CAP MOUNT F/FRAME 40MM RUBY RH
$17.00
W0029781 SEAL OVEN NON-PYRO STEAM FORTE
W0038118 COVER RETAINING LATCH
$10.95
W0039242 TRAY BAKING PREMIUM ENAM BIOS
W0039639 BASEPLATE
W0042646 CHANNEL FRONT UB RH BIOS WELD
W0042648 CHANNEL FRONT UB LH BIOS WELD
W0042768 PLUG DOME MDP16
W0053533 RACK INSERT ROASTING WIRE
W0063371 CLIP STANDOFF POWERBOARD
W0064627 SCREW #4 X16 T25 W/HD PHIL#2
W0103157 SWITCH DOOR LIGHT MICRO
W0106039 OUTLET VALVE ASSY STEAM
$39.00
W0106041 TANK ASSY WATER/STEAM
$176.00
W0109058 SPRING HOSE PIPE DIA 20.0
W0110107 PIPE RAMP STEAM L=377
W0114700 SENSOR TEMPERATURE PT500
W0153998 HINGE 40MM 4 LAYER NGP
W0275625 OUTLET VALVE ASSY
$49.05
W0275649 PIPE WATER OUTLET
$29.05
W0283441 COVER CLEAN HEAT
$9.65
W0283731 RACK SHELF OVEN W/HOUSE SLIDES
W0284438 RACK PACK WH UB V1 E100
$116.30
W0284441 ELEMENT BASE 1000W E100
W0284492 SLIDE SINGLE EXT 2 SETS
$184.10
W0284726 RACK SIDE OVN W/HOUSE STEAM RH
$39.00
