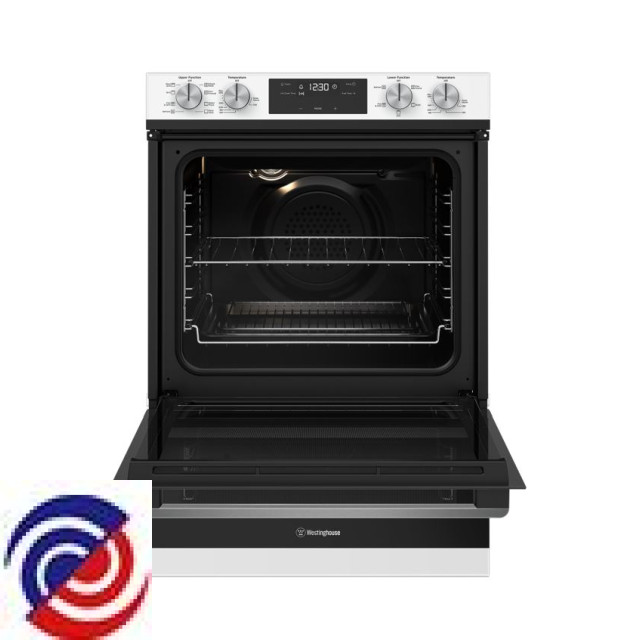

WVE625WC — 944031865 00
WESTINGHOUSE — Cooker Electric
Parts for WVE625WC
.JPG)
W0011297 BLADE FAN
W0011406 TRAY BAKING SCONE - 468MM X 360MM
W0011995 NUT M6 LH FAN MOTOR
.JPG)
W0012255 ELEMENT GRILL 2200W SS321
.JPG)
W0012256 ELEMENT GRILL/BOOST 3000W
W0012262 ELEMENT FAN RING 2200W
.JPG)
W0012326 CLIP MOUNTING ELEMENT
W0012728 SEAL DUO OVEN BIOS
W0012886 GLASS OV DR IN WEST FORTE
W0013564 SWITCH MULTI 5
W0013565 SWITCH MULTI 8
.JPG)
W0013590 SWITCH THERMAL CUT OUT 145 DEG
.JPG)
W0013596 SWITCH THERMAL CUT OUT 190 DEG
.JPG)
W0022966 HINGE DOOR
.JPG)
W0022968 HINGE DOOR
W0023085 HINGE DOOR GRILL
$64.25
.JPG)
W0030130 TRIM DOOR TOP CAP NGD
W0030434 SEAL OVEN MODULAR PROFILE
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
_1.JPG)
W0050403 MOTOR FAN OVEN
.JPG)
W0057771 THERMOSTAT OVEN
.JPG)
W0065076 CLIP BULB THERMOSTAT ELEC
$6.70
W0271174 IMPELLER OVEN FAN 160 MM
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011201 SUPPORT ELEMENT GRILL VULCAN
$25.20
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011666 COVER FAN & ELEMENT
$95.75
W0011686 PANEL FAN COVER DUO PYRO RUBY
$59.55
W0011837 HINGE DOOR
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012838 DOOR OVEN INNER GLASS
$121.85
W0012849 DOOR OVEN INNER GLASS MIDDLE
W0013260 SHIELD WIRING
$11.95
W0013325 INSUL OVEN BACK DUO 13MM THICK
W0013328 INSULATION OVEN BACK - KNAUF
$20.30
W0013461 BRACE OVEN REAR B/I BIOS
$24.85
W0013464 OVEN BRACE BI ASSY
W0013631 TRIM DOUBLE WALL OVEN PAINTED
W0013730 BUMPER STOP BLK
$6.55
W0013967 CLOCK 3 BTN TOUCH 'BF11' WHT
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50
W0014081 BUSH MOUNT F/FRAME V2 NGD
$5.05
W0022643 SCREW M4 X 4
W0027190 FRAME FRONT PAINTED ELE UB NGP
$62.95
W0027197 F/FRONT PAINT D/O LOWER NGP
$85.80
W0030004 SUPPORT ELEMENT GRILL BIOS
$7.00
W0030352 FAN COOLING ASSY RADIAL 11W
W0030494 PANEL BASE BIOS 0.5MM
$38.35
W0038807 BRACKET CLEANHEAT MNT DUO BIOS
W0039689 PNL GRILL TOP DUO ENAM BIOS
W0042657 CHANNEL FRONT DWO ASSY RH NGP
W0042658 CHANNEL FRONT DWO ASSY LH NGP
W0052282 GLASS DUO DR IN WEST FORTE
W0054658 INSULATION OVEN CABINET
W0054672 INSULATION OVEN WRAP - KNAUF
$63.85
W0057758 THERMAL CUTOUT 100 DEG N.O.
W0059831 DUCT GRILL W/O BIOS
W0064527 SCREW NO 8 X 12 MM PD
$4.50
W0154077 ENDCAP CONTROL PANEL CHEF LHS
W0154078 ENDCAP CONTROL PANEL CHEF RHS
W0282068 HOLDER LAMP SIDE ASSY G9
$20.55
W0283213 SCREW M4 X 44 PAN T20
W0283384 SCREW #8 4.2 X 28 HILO PAN PH
$4.50
W0283401 PANEL SIDE SGWO R/H NGD
W0283402 PANEL SIDE SGWO L/H NGD
$43.10
W0283440 COVER CLEAN HEAT DUO
W0283441 COVER CLEAN HEAT
$9.65
W0283454 THERMAL CUTOUT 145 DEG N.C.
W0283463 BAG CONTAINING SCREWS BUILTINS
$4.50
W0283485 RACK SIDE OVEN EASY RH E100
W0283486 RACK SIDE OVEN EASY LH E100
W0283645 PANEL C/WIRE DUO E100
$47.75
W0283732 HOLDER LAMP SIDE ASSY G9 PYRO
W0284064 CLIP SIDEGRIDS
$4.50
W0284351 DISH GRILL ENAM E100
$78.10
W0284424 RACK PACK DUO ELUX
W0284441 ELEMENT BASE 1000W E100
W0361835 LENS SQUARE BLACK TRANSPARENT
$4.50
W0361860 LAMP OVEN ROUND DIA 48
W0361992 KNOB ASSY CHROME ASPIRE
W0361997 SPACER HANDLE ASPIRE
W0362001 HANDLE DR ANODISED ASPIRE
W0362013 PLATE MTG SWTCH SLCT CLOCK ASP
$31.35
W0362084 PNL OV DR OUT ASS WHT ASPIRE
W0362090 PNL ASSY DUO DR OUT WHT ASPIRE
W0362097 GLASS & CLIPS WVE625WC
$96.20
W0362115 RACK SHELF OVEN W/HOUSE
W0362116 RACK SHELF STEP DOWN W/HOUSE
W0362140 RACK INSERT GRILL DISH ASPIRE
W0362185 RACK PACK WH DUO ASPIRE
$109.50
W0362237 MI SIGNAL LAMP 200/600MM SPARE
$17.20
