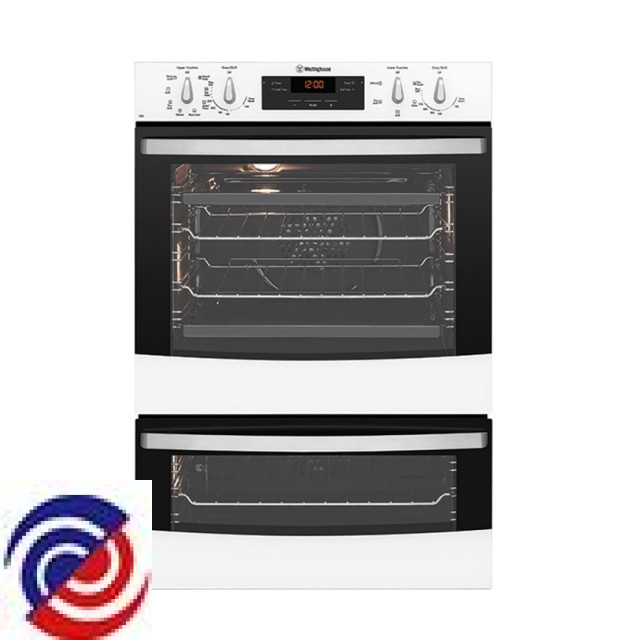

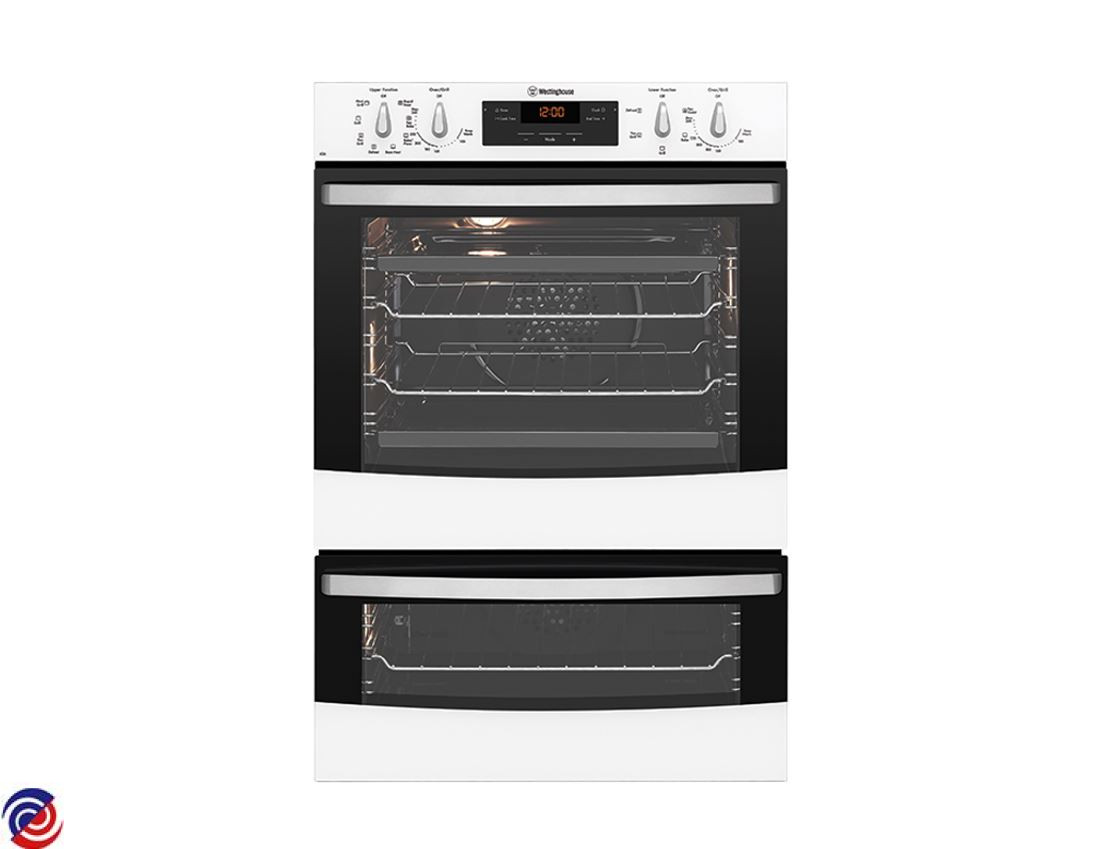

WVE626W — 944031701 30
WESTINGHOUSE — Cooker Electric
Parts for WVE626W
W0011237 KNOB ASSY WH BLDE SILVER FORTE
.JPG)
W0011297 BLADE FAN
W0011319 COVER GRILL DISH
W0011401 DISH GRILL ENAM F/WIDTH BIOS
W0011932 HANDLE DR NP WEST ANOD FORTE
W0011995 NUT M6 LH FAN MOTOR
.JPG)
W0012256 ELEMENT GRILL/BOOST 3000W
W0012262 ELEMENT FAN RING 2200W
W0012263 ELEMENT C/HEAT 1800W NO EARTH
$95.00
.JPG)
W0012326 CLIP MOUNTING ELEMENT
W0012728 SEAL DUO OVEN BIOS
W0012886 GLASS OV DR IN WEST FORTE
W0013564 SWITCH MULTI 5
W0013565 SWITCH MULTI 8
.JPG)
W0013590 SWITCH THERMAL CUT OUT 145 DEG
.JPG)
W0013596 SWITCH THERMAL CUT OUT 190 DEG
.JPG)
W0013597 THERMAL CUTOUT 120 DEG N/C 16A
W0013619 TRIM DOOR LOWER
.JPG)
W0013966 WESTINGHOUSE OVEN CLOCK PCB 3 BUTTON TOUCH BF11
$126.00
W0014025 SCREW #8-10X35 PAN PH2 P/B BK
$4.50
W0014040 SCREW 3/16X28 PAN PH TRILOB ZY
.JPG)
W0022966 HINGE DOOR
.JPG)
W0022968 HINGE DOOR
W0023085 HINGE DOOR GRILL
$64.25
W0023201 HOLDER LAMP REAR HALOGEN BIOS
W0030434 SEAL OVEN MODULAR PROFILE
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
_1.JPG)
W0050403 MOTOR FAN OVEN
.JPG)
W0053530 SHELF OVEN
.JPG)
W0057771 THERMOSTAT OVEN
W0058493 TRIM DOOR UPPER VENTED
.JPG)
W0065076 CLIP BULB THERMOSTAT ELEC
$6.70
W0147339 SEAL OVEN MODULAR PROFILE
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011667 PANEL FAN COVER CAT BIOS
W0011856 SUPPORT ELEMENT
W0011883 CHANNEL FRONT DUO RH
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012519 SCREW M4X5 HEX1/4' PH2 BLK ZP
$4.50
W0012578 STAND-OFF NON-PYRO WEST FORTE
W0012838 DOOR OVEN INNER GLASS
$121.85
W0012849 DOOR OVEN INNER GLASS MIDDLE
W0013260 SHIELD WIRING
$11.95
W0013328 INSULATION OVEN BACK - KNAUF
$20.30
W0013337 INSULATION OVEN WRAP DUO BIOS
$40.00
W0013341 INSUL OVEN BACK DUO 13MM THICK
$11.00
W0013461 BRACE OVEN REAR B/I BIOS
$24.85
W0013464 OVEN BRACE BI ASSY
W0013595 THERMAL CUT OUT 90 DEG N.O.
W0013662 DUCT GRILL DUO ASSY NGD
$7.70
W0013730 BUMPER STOP BLK
$6.55
W0013934 LINER GRILL LCD KIT OF 2
$76.00
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014023 SCREW #8 X 5/8 CSK #2PH AB BK
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014041 SCREW #8 x1/2 PH2 MUSH WASHER
$4.50
W0014079 BUSH MOUNT F/FRAME NGD
$7.25
W0022643 SCREW M4 X 4
W0027201 FRAME FRONT ENAM DUO NGP
$79.20
W0027370 SCREW M4 X 25 PAN MTS PHIL BLK
$1.70
W0030193 PLATE MTG SW CLOCK CHEF SELECT
$72.55
W0030352 FAN COOLING ASSY RADIAL 11W
W0036213 SUPPORT ELEMENT GRILL
W0038118 COVER RETAINING LATCH
$10.95
W0038121 COVER CLEAN HEAT FULL GALV BIO
W0038807 BRACKET CLEANHEAT MNT DUO BIOS
W0039242 TRAY BAKING PREMIUM ENAM BIOS
W0039639 BASEPLATE
W0039686 PANEL CHASSIS TOP
$27.50
W0041122 PANEL FAN COVER DUO CAT BIOS
$45.05
W0042655 CHANNEL FRONT NGP DUO LH
W0046264 ELEMENT 1000W CLEAN HEAT
W0052282 GLASS DUO DR IN WEST FORTE
W0053529 RACK SIDE SUPPORT OVEN EVOLVE
W0053531 RACK SIDE SUPPORT GRILL W/O
W0054672 INSULATION OVEN WRAP - KNAUF
$63.85
W0059831 DUCT GRILL W/O BIOS
W0063343 LINER OVEN PR INC LIGHT C/OUT
W0147404 LIGHT INDICATOR AMBER LENS
W0154077 ENDCAP CONTROL PANEL CHEF LHS
W0154078 ENDCAP CONTROL PANEL CHEF RHS
W0154119 PNL OV DR OUT ASS WHITE FORTE
W0154126 PNL ASSY DUO DR OUT WHT WEST
W0275725 GLASS & CLIPS WVE626W SELECT
$184.50
W0282068 HOLDER LAMP SIDE ASSY G9
$20.55
