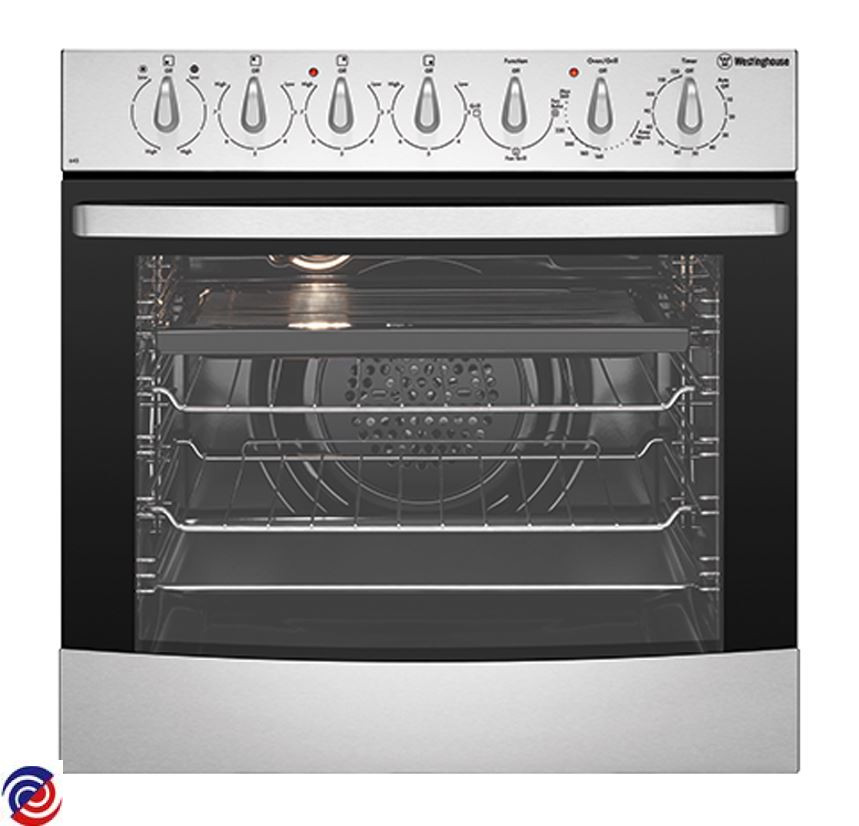

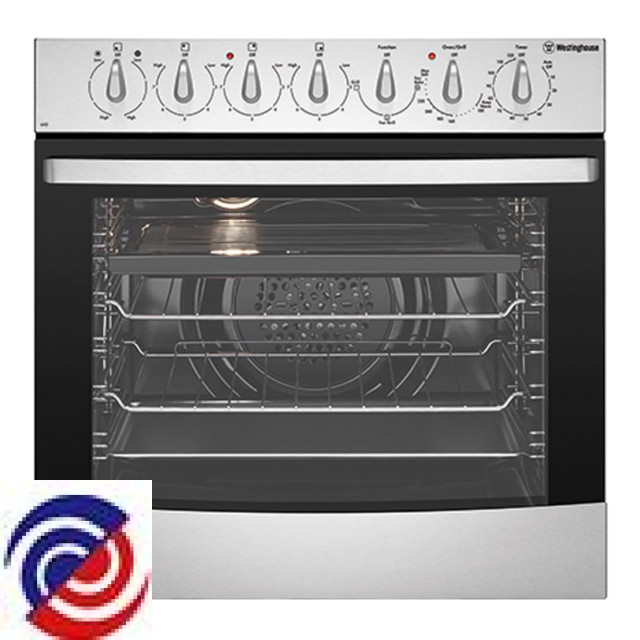

WVE645S — 944031694 33
WESTINGHOUSE — Cooker Electric
Parts for WVE645S
W0011237 KNOB ASSY WH BLDE SILVER FORTE
W0011319 COVER GRILL DISH
W0011401 DISH GRILL ENAM F/WIDTH BIOS
W0011406 TRAY BAKING SCONE - 468MM X 360MM
W0011932 HANDLE DR NP WEST ANOD FORTE
W0011995 NUT M6 LH FAN MOTOR
.JPG)
W0012255 ELEMENT GRILL 2200W SS321
W0012262 ELEMENT FAN RING 2200W
.JPG)
W0012326 CLIP MOUNTING ELEMENT
W0012886 GLASS OV DR IN WEST FORTE
W0013562 SWITCH MULTI 4 EL BIOS
$41.20
.JPG)
W0013596 SWITCH THERMAL CUT OUT 190 DEG
.JPG)
W0013597 THERMAL CUTOUT 120 DEG N/C 16A
W0014032 SCREW #8 X 45 PAN QUADREX
.JPG)
W0022966 HINGE DOOR
W0023201 HOLDER LAMP REAR HALOGEN BIOS
W0027377 LIGHT IND AMB 200MM
$17.60
W0030434 SEAL OVEN MODULAR PROFILE
W0030638 TIMER 2HR CUTOFF WESTLAKE
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
_1.JPG)
W0050403 MOTOR FAN OVEN
.JPG)
W0057166 CHEF SIMPSON WESTINGHOUSE COOKTOP CONTROL SWITCH MP101
W0057168 SWITCH INF HEAT ISOLATED PILOT
$68.05
.JPG)
W0057771 THERMOSTAT OVEN
W0058493 TRIM DOOR UPPER VENTED
.JPG)
W0112556 ELEMENT D145/1200W/230V
.JPG)
W0112562 ELEMENT D180/1800W/230V
.JPG)
W0112572 ELEMENT HEATING
W0271174 IMPELLER OVEN FAN 160 MM
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011260 PLATE MOUNTING SWITCH
$14.95
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011480 PANEL TOP COMBO NGP
W0011484 PANEL SIDE RH
$28.00
W0011485 PANEL SIDE LH
$27.50
W0011666 COVER FAN & ELEMENT
$95.75
W0011882 CHANNEL FRONT NGP UB RH
$16.90
W0011993 NUT METRIC M10 X 0.75MM
$4.50
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012519 SCREW M4X5 HEX1/4' PH2 BLK ZP
$4.50
W0012578 STAND-OFF NON-PYRO WEST FORTE
W0013260 SHIELD WIRING
$11.95
W0013328 INSULATION OVEN BACK - KNAUF
$20.30
W0013730 BUMPER STOP BLK
$6.55
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0021483 WIRING LOOM 564 (SW ASSY)
$113.55
W0022643 SCREW M4 X 4
W0023044 LAMP RESIDUAL HEAT
$16.70
W0023045 SPRING BASE
$11.95
W0023101 PROTECTION BOX COMBO
W0027190 FRAME FRONT PAINTED ELE UB NGP
$62.95
W0027370 SCREW M4 X 25 PAN MTS PHIL BLK
$1.70
W0029328 HOUSING LENS IND BIOS AMBER
$20.90
W0029387 HOB GLASS FRAME ASSY WVE645S
W0030352 FAN COOLING ASSY RADIAL 11W
W0030646 PNL CNT & CLIPS WVES613S
W0036213 SUPPORT ELEMENT GRILL
W0038817 BRACKET TOP PANEL
W0039639 BASEPLATE
W0042653 CHANNEL FRONT NGP UB LH
W0052948 SPACER CONTROL PANEL BIOS
$6.00
W0054672 INSULATION OVEN WRAP - KNAUF
$63.85
W0056272 BRACE OVEN REAR BI BIOS
W0064527 SCREW NO 8 X 12 MM PD
$4.50
W0154077 ENDCAP CONTROL PANEL CHEF LHS
W0154078 ENDCAP CONTROL PANEL CHEF RHS
W0154118 PNL OV DR OUT ASS S/S FORTE
W0156785 HARNESS EXTENSION LOOM 15 PIN
