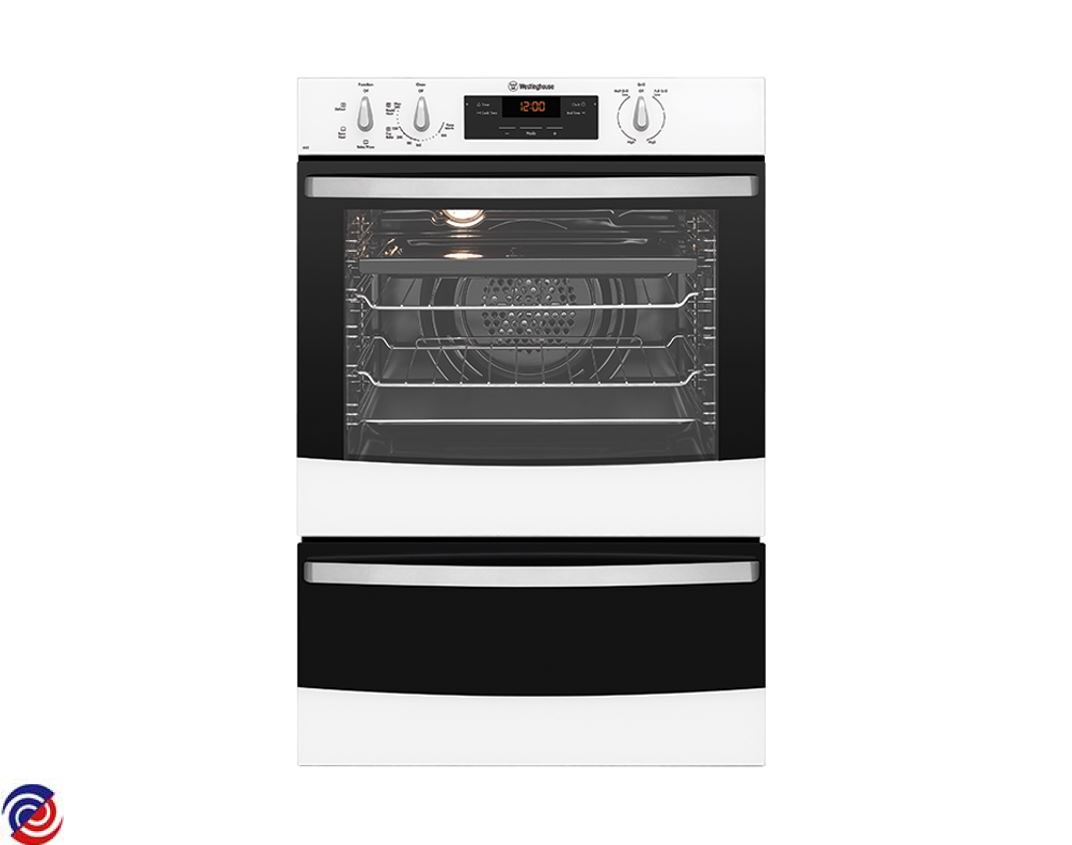

WVE665W — 944031699 01
WESTINGHOUSE — Cooker Electric
Parts for WVE665W
W0011237 KNOB ASSY WH BLDE SILVER FORTE
.JPG)
W0011297 BLADE FAN
W0011319 COVER GRILL DISH
W0011401 DISH GRILL ENAM F/WIDTH BIOS
W0011406 TRAY BAKING SCONE - 468MM X 360MM
W0011932 HANDLE DR NP WEST ANOD FORTE
W0011995 NUT M6 LH FAN MOTOR
W0012258 ELEMENT BOOST ASSY 800W - BIOS
W0012262 ELEMENT FAN RING 2200W
W0012263 ELEMENT C/HEAT 1800W NO EARTH
$95.00
.JPG)
W0012326 CLIP MOUNTING ELEMENT
W0012840 DOOR GRILL INNER GLASS
W0012886 GLASS OV DR IN WEST FORTE
W0013566 SWITCH MULTI 5
.JPG)
W0013590 SWITCH THERMAL CUT OUT 145 DEG
.JPG)
W0013596 SWITCH THERMAL CUT OUT 190 DEG
W0013619 TRIM DOOR LOWER
.JPG)
W0013966 WESTINGHOUSE OVEN CLOCK PCB 3 BUTTON TOUCH BF11
$126.00
W0014025 SCREW #8-10X35 PAN PH2 P/B BK
$4.50
W0014032 SCREW #8 X 45 PAN QUADREX
W0014040 SCREW 3/16X28 PAN PH TRILOB ZY
.JPG)
W0022966 HINGE DOOR
W0023085 HINGE DOOR GRILL
$64.25
W0029658 ELEMENT SPLITGRILL 1100W SS321
.JPG)
W0050309 LAMP
_1.JPG)
W0050403 MOTOR FAN OVEN
.JPG)
W0052585 CANOPY FAN ASSY U/B NGD
.JPG)
W0053530 SHELF OVEN
.JPG)
W0057184 SWITCH INF HEAT MDP 102 EA
.JPG)
W0057771 THERMOSTAT OVEN
W0058493 TRIM DOOR UPPER VENTED
W0147339 SEAL OVEN MODULAR PROFILE
W0166032 LAMP 25W SES E14 300C CLEAR
$10.00
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011197 SUPORT ELEMENT SPLIT BIOS
$4.50
W0011262 PLATE MOUNTING SWITCH
$14.90
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011666 COVER FAN & ELEMENT
$95.75
W0011856 SUPPORT ELEMENT
W0011881 CHANNEL FRONT PYRO DUO NGP RH
$27.50
W0011931 HANDLE DOOR WEST SILVER FORTE
W0011993 NUT METRIC M10 X 0.75MM
$4.50
W0012083 FLUE OVEN VENT ELEC U/B NGD
$16.50
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012519 SCREW M4X5 HEX1/4' PH2 BLK ZP
$4.50
W0012562 MOUNT CAP F/FRAME R/H NGD
$5.80
W0012563 MOUNT CAP F/FRAME L/H NGD
$7.55
W0012578 STAND-OFF NON-PYRO WEST FORTE
W0012894 GLASS & CLIPS WVE665W
W0013260 SHIELD WIRING
$11.95
W0013328 INSULATION OVEN BACK - KNAUF
$20.30
W0013341 INSUL OVEN BACK DUO 13MM THICK
$11.00
W0013461 BRACE OVEN REAR B/I BIOS
$24.85
W0013625 FRAME CONTROL PANEL
W0013730 BUMPER STOP BLK
$6.55
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014023 SCREW #8 X 5/8 CSK #2PH AB BK
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014079 BUSH MOUNT F/FRAME NGD
$7.25
W0027199 FRAME FRONT ENAM ELE SGWO NGP
$79.20
W0027370 SCREW M4 X 25 PAN MTS PHIL BLK
$1.70
W0038118 COVER RETAINING LATCH
$10.95
W0038121 COVER CLEAN HEAT FULL GALV BIO
W0039603 PAN OV DR OUT ASS WHT FORTE
$300.90
W0039607 PAN SGWO DR OUT ASS WHT NGD FO
$105.00
W0039639 BASEPLATE
W0039640 PANEL UPPER
W0039686 PANEL CHASSIS TOP
$27.50
W0042655 CHANNEL FRONT NGP DUO LH
W0047469 SCREW M4 X 5 PAN #2 PH SML HD
$4.50
W0053529 RACK SIDE SUPPORT OVEN EVOLVE
W0053531 RACK SIDE SUPPORT GRILL W/O
W0054672 INSULATION OVEN WRAP - KNAUF
$63.85
W0054673 INSULATION GRILL SGWO BIOS
$22.00
W0057755 SWITCH THERMAL CUT OUT 120 DEG
W0147404 LIGHT INDICATOR AMBER LENS
