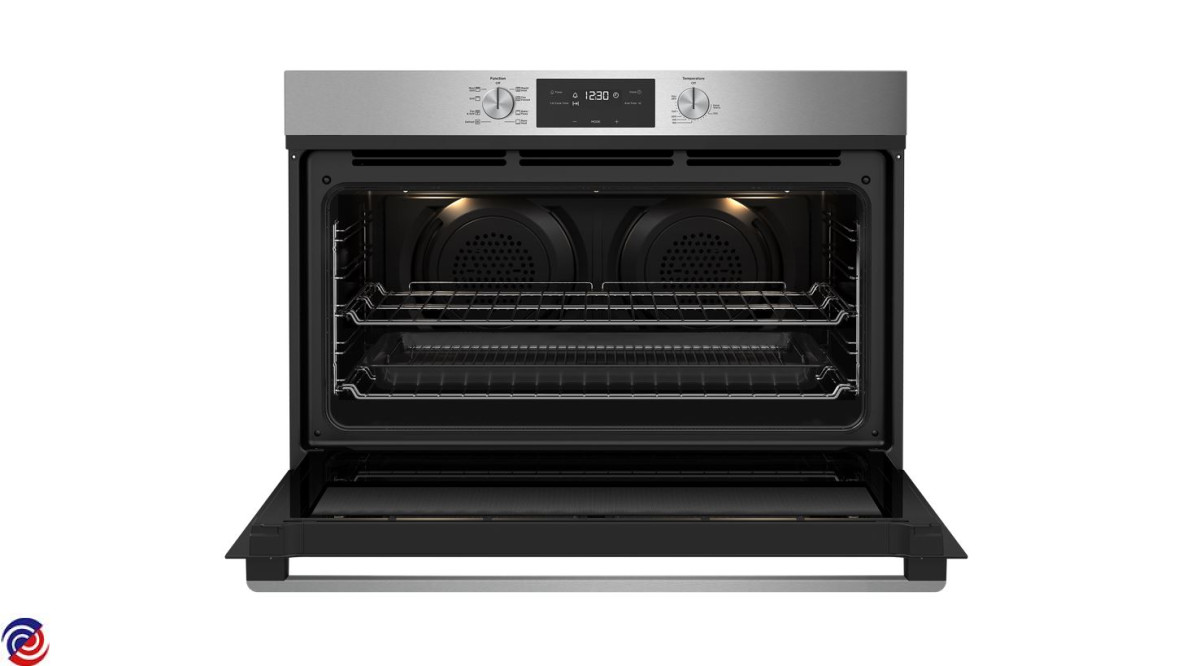

WVE915SC — 944031844 00
WESTINGHOUSE — Cooker Electric
Parts for WVE915SC
W0011995 NUT M6 LH FAN MOTOR
W0012266 ELEMENT FAN RING 1200W VULCAN
.JPG)
W0012326 CLIP MOUNTING ELEMENT
W0012730 GASKET CAVITY OVEN
W0012755 MOTOR FAN OVEN
W0013565 SWITCH MULTI 8
.JPG)
W0013596 SWITCH THERMAL CUT OUT 190 DEG
W0013970 RELAY 30A SINGLE POLE 240V
W0014025 SCREW #8-10X35 PAN PH2 P/B BK
$4.50
W0026431 SPRING DAMPER MOTOR
$12.55
W0030169 ELEMENT GRILL SPLIT ELUX VUL
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
_1.JPG)
W0050403 MOTOR FAN OVEN
.JPG)
W0057771 THERMOSTAT OVEN
W0271174 IMPELLER OVEN FAN 160 MM
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011201 SUPPORT ELEMENT GRILL VULCAN
$25.20
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011477 PNL DECK GLUE 35W MOTOR VULCAN
$87.90
W0011502 PANEL BOTTOM BUILTIN VULCAN
$49.50
W0011507 PANELTOP BUILTIN VULCAN
$58.55
W0011695 PANEL FAN COVER
$112.55
W0011996 NUT M6 R/H FAN MOTOR
$5.30
W0012415 SUPPORT COUNTER LH
$9.35
W0012416 SUPPORT COUNTER RH
$9.35
W0012519 SCREW M4X5 HEX1/4' PH2 BLK ZP
$4.50
W0012667 INSTALL ANTI TILT HOOK
$13.90
W0012806 STOP ANTI TILT
$3.30
W0013260 SHIELD WIRING
$11.95
W0013463 BRACE OVEN REAR VULCAN
$27.50
W0013598 THERMAL CUTOUT 50? N.O.
$17.90
W0013649 GROMMET BUILTIN VULCAN
$8.00
W0013730 BUMPER STOP BLK
$6.55
W0013967 CLOCK 3 BTN TOUCH 'BF11' WHT
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50
W0014079 BUSH MOUNT F/FRAME NGD
$7.25
W0026349 HOUSING CENTRERING HELP
W0029800 MOTOR FAN COOLING VULCAN
$101.70
W0029930 GLASS OV DR MID 2 COBRA
W0047469 SCREW M4 X 5 PAN #2 PH SML HD
$4.50
W0275756 PANEL RH SIDE BUILTIN VULCAN
$24.85
W0275757 PANEL LH SIDE BUILTIN VULCAN
$24.85
W0275765 IMPELLER OVEN FAN VULCAN R/H
$24.85
W0276525 VENT DOOR TOP CAP ASSY VULCAN
W0283213 SCREW M4 X 44 PAN T20
W0283381 INSULATION OVEN WRAP STD COBRA
$42.40
W0283384 SCREW #8 4.2 X 28 HILO PAN PH
$4.50
W0283485 RACK SIDE OVEN EASY RH E100
W0283486 RACK SIDE OVEN EASY LH E100
W0283609 CLEAN HEAT COVER E100 90CM
W0283672 INSULATION OVEN BACK E100 90CM
$16.65
W0283877 HANDLE PEDES TAUR+ 90CM ASPIRE
W0283878 HANDLE TAUR+ 90 ASPIRE BETTER
W0284064 CLIP SIDEGRIDS
$4.50
W0284292 HINGE STD 11.9 KG 3 LAY VULCAN
$52.55
W0284345 ELEMENT C/H 1800W VULCAN E100
W0284381 GLASS OV DR INNER VULCAN
W0295025 LAMP OVEN HALOGEN 25W
$26.05
W0361835 LENS SQUARE BLACK TRANSPARENT
$4.50
W0361882 PANEL BACK BUILTIN E100 90CM
$34.40
W0361992 KNOB ASSY CHROME ASPIRE
W0362081 PNL CNT & CLIPS WVE915SC ASPIR
W0362083 PLATE MTG SWT SET&HEX ASPIRE
$71.60
W0362088 PNL OV DR OUT ASS W/H BI NPYRO
W0362141 RACK INSERT ASPIRE 90CM
W0362176 F/FRAME VULCAN U/B PRE-PAINT
$77.85
W0362179 RACK PACK ASPIRE 90CM
$139.30
W0362180 DISH GRILL ENAM DEEP ASPIRE 90
$81.60
W0362237 MI SIGNAL LAMP 200/600MM SPARE
$17.20
