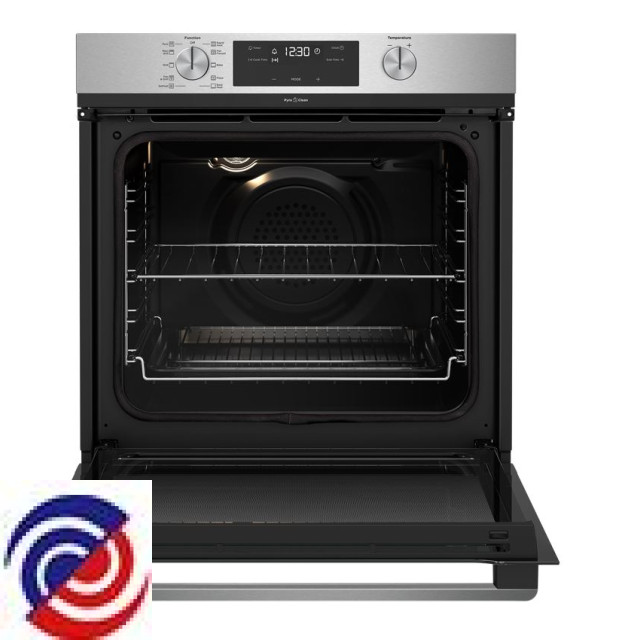

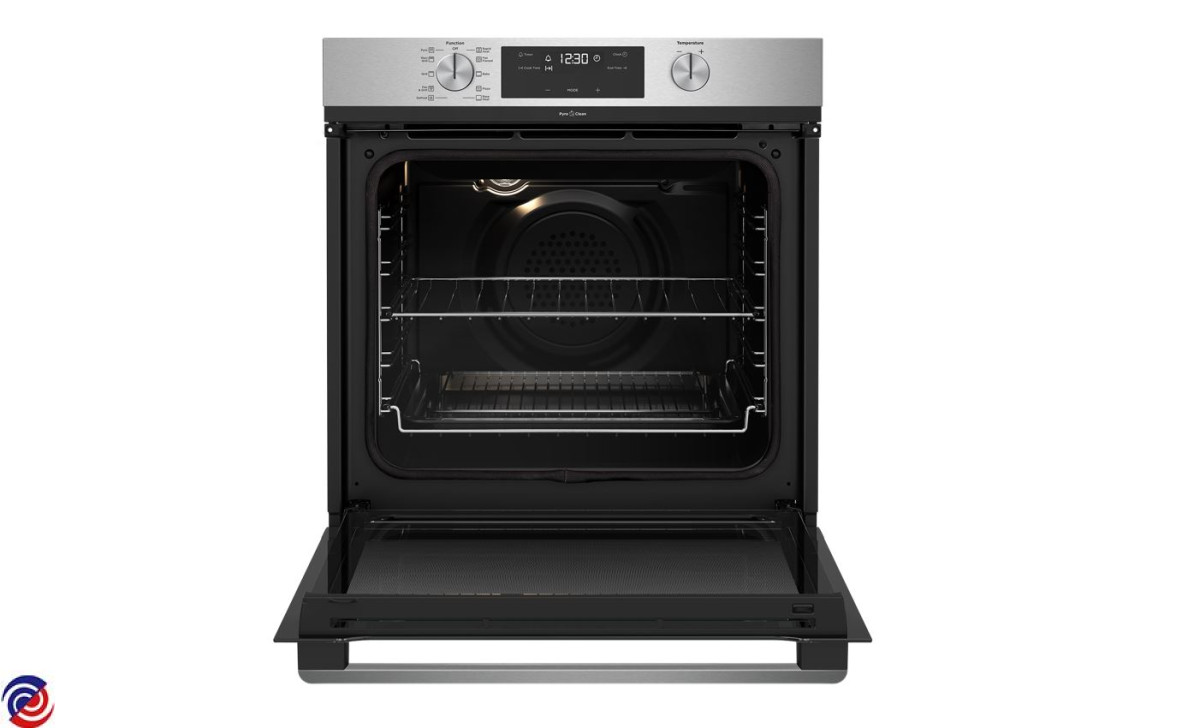

WVEP615SC — 944031820 02
WESTINGHOUSE — Cooker Electric
Parts for WVEP615SC
W0011406 TRAY BAKING SCONE - 468MM X 360MM
W0011995 NUT M6 LH FAN MOTOR

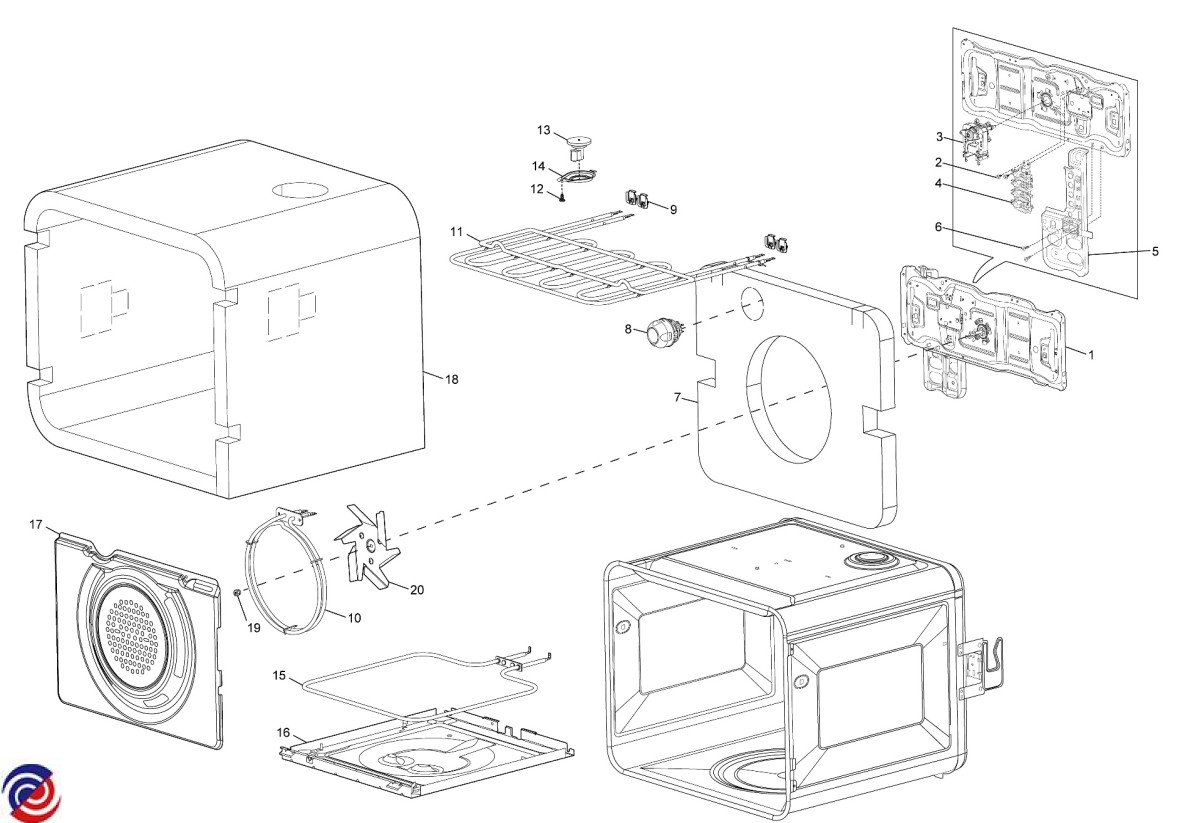

W0012261 ELEMENT G/BOOST 3000W - PYRO
W0012262 ELEMENT FAN RING 2200W
.JPG)
W0012326 CLIP MOUNTING ELEMENT
.JPG)
W0013597 THERMAL CUTOUT 120 DEG N/C 16A
W0023144 POWERBOARD OVC3000 - EOS
$271.70
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
_1.JPG)

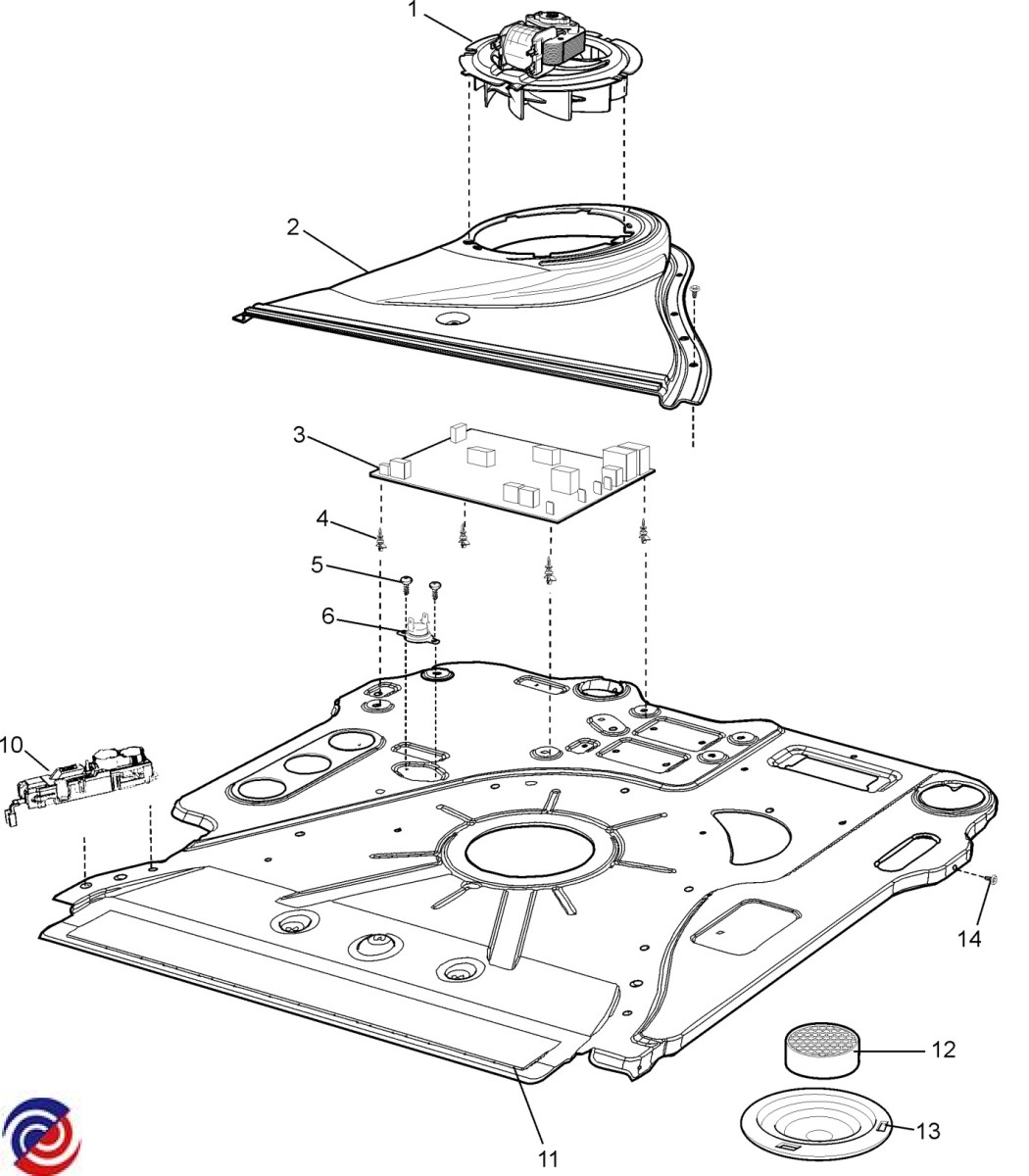

W0050403 MOTOR FAN OVEN
W0271174 IMPELLER OVEN FAN 160 MM

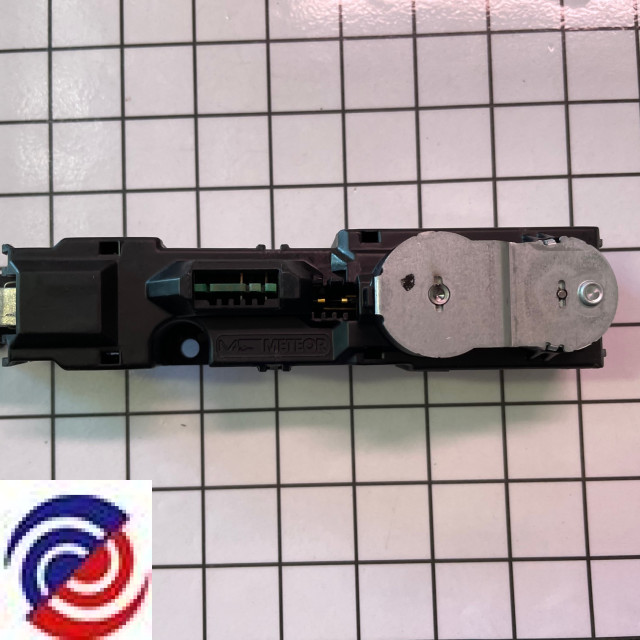

W0361856 DOOR LOCK ASSEMBLY (GLOBAL)
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011321 COVER BASE PANEL SHIELD BIOS
$29.70
W0011345 BRACKET KRONOS PROBE MOUNT BIO
$12.60
W0011368 BRACKET HINGE SUPT APOLLO
$22.90
W0011666 COVER FAN & ELEMENT
$95.75
W0011857 SUPPORT ELEMENT
$12.80

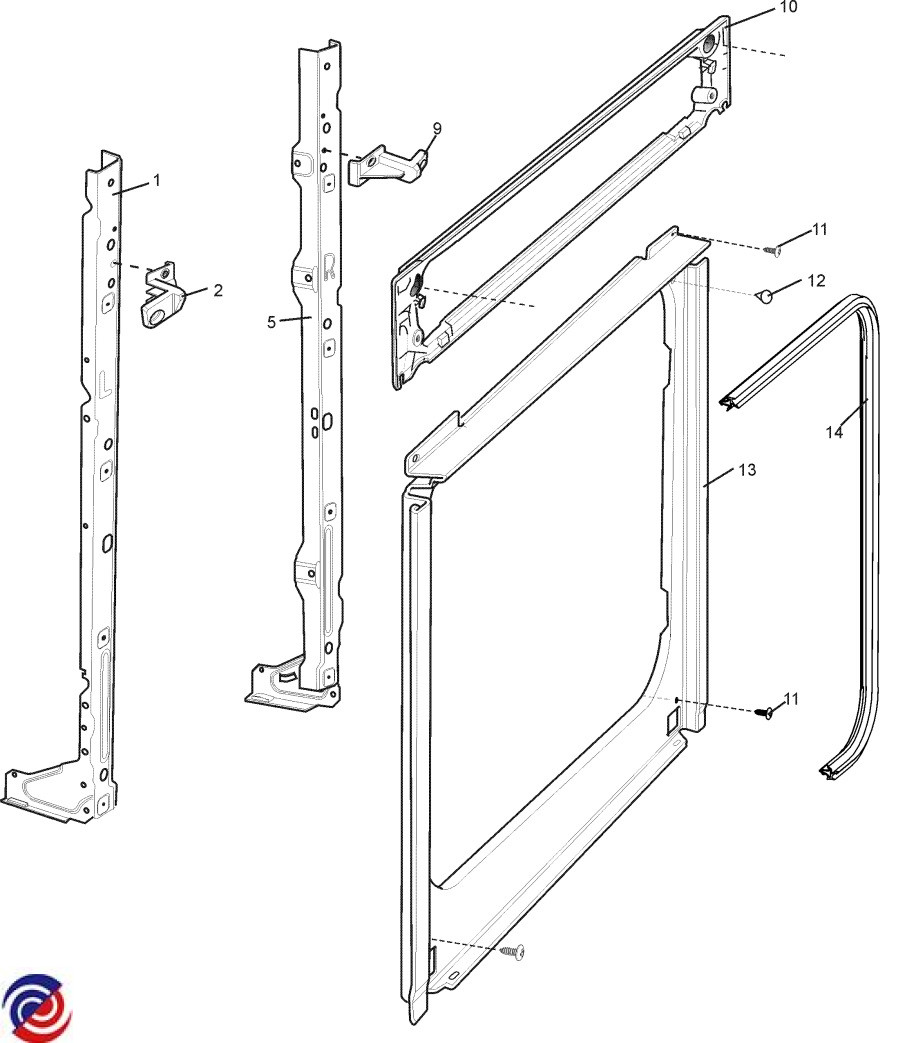

W0011882 CHANNEL FRONT NGP UB RH
$16.90
W0012325 RETAINER PYRO CATALYSE NGP
$11.30
W0012636 HARNESS OVC3000 USER INT-F
$17.65
W0012639 SENSOR CABLE - 500MM
W0012648 WIRE HARNESS NGP DOOR SW
W0012726 SEAL OVEN DOOR PYRO BIOS

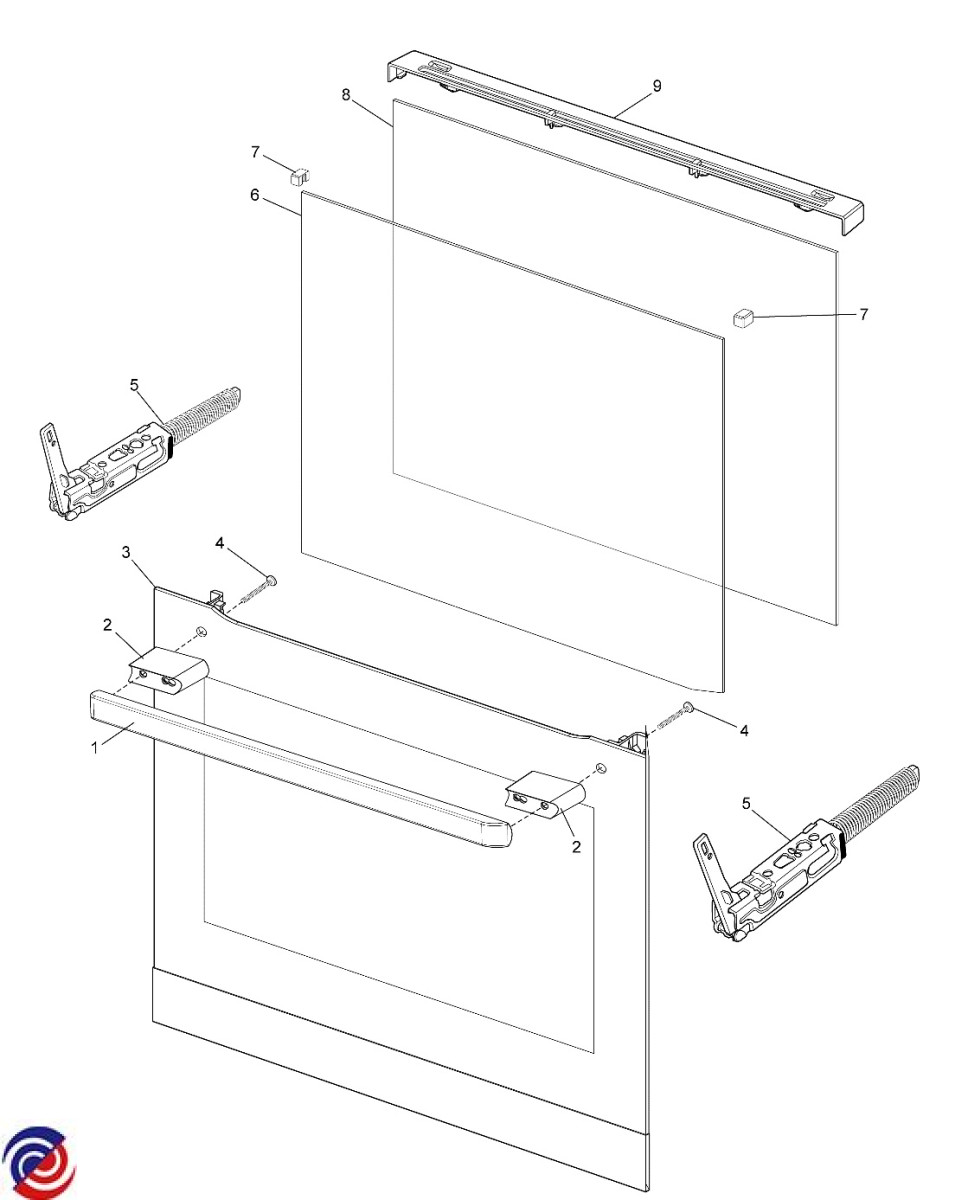

W0012863 GLASS OVEN DOOR INNER PYRO NGP
W0012864 GLASS OVEN DOOR MID PYRO NGP
W0012997 SPACER RUBBER GLASS NGP
$8.15
W0013260 SHIELD WIRING
$11.95
W0013343 INSULATION OVEN BACK PYRO BIOS
W0013461 BRACE OVEN REAR B/I BIOS
$24.85
W0013630 TRIM SURROUND C/P 40MM NGP
W0013666 DUCT PLATE TOP PYRO NGP
$14.85
W0013667 DUCT PLATE BOTTOM PYRO NGP
W0013668 DUCT PLATE MID PYRO UB NGP
$18.00
W0013730 BUMPER STOP BLK
$6.55
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50
W0014081 BUSH MOUNT F/FRAME V2 NGD
$5.05
W0022980 SHUTTLE +/-
$10.90
W0026349 HOUSING CENTRERING HELP
W0027300 COOLING FAN MOTOR ASSEMBLY
W0029631 CAP MOUNT F/FRAME 40MM RUBY LH
$4.50
W0029632 CAP MOUNT F/FRAME 40MM RUBY RH
$17.00

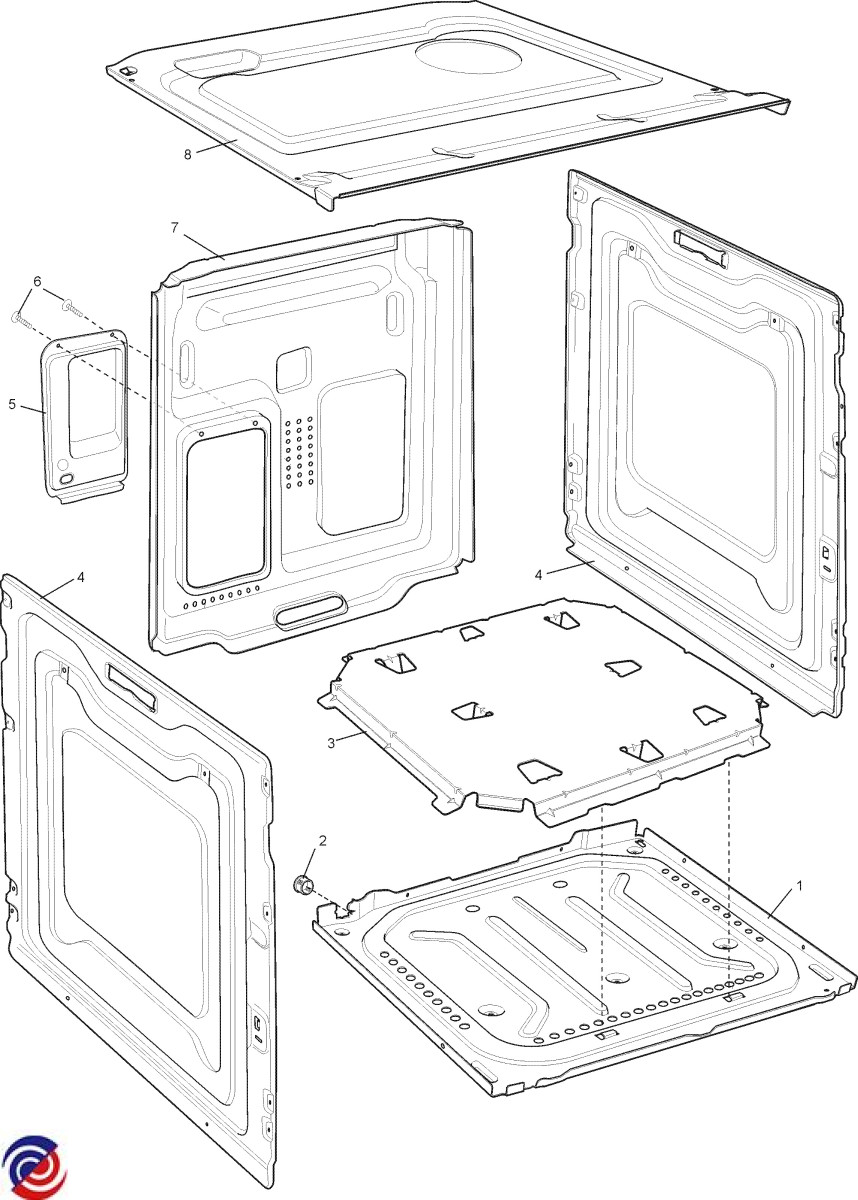

W0030457 PANEL SIDE UB BIOS RH
$49.15
W0030458 PANEL SIDE UB BIOS LH
$49.15
W0030494 PANEL BASE BIOS 0.5MM
$38.35
W0030563 SCREW M4X0.7-25 TX20 BLK FLANG
$4.00
W0038118 COVER RETAINING LATCH
$10.95
W0042653 CHANNEL FRONT NGP UB LH
W0063371 CLIP STANDOFF POWERBOARD
W0105875 FILTER CATALYST
W0114700 SENSOR TEMPERATURE PT500
W0275662 INSULATN INSERT BACK PYRO BIOS
$14.30
W0283096 SCREW M4 X 7 T20 ZINCSCREW M4
$4.50
W0283127 SWITCH 0+10 POSITION
$30.45
W0283384 SCREW #8 4.2 X 28 HILO PAN PH
$4.50
W0283441 COVER CLEAN HEAT
$9.65
W0283463 BAG CONTAINING SCREWS BUILTINS
$4.50
W0283485 RACK SIDE OVEN EASY RH E100
W0283486 RACK SIDE OVEN EASY LH E100
W0284064 CLIP SIDEGRIDS
$4.50
W0284107 HINGE STD 8.8-9.5 KG 4 LAY BI
W0284351 DISH GRILL ENAM E100
$78.10
W0284369 INSULATION OVEN WRAP PYRO E100
$59.95
W0284441 ELEMENT BASE 1000W E100
W0361860 LAMP OVEN ROUND DIA 48
W0361887 F/FRONT UB ENAM PYRO WH GLOBAL
$69.95
W0361967 TRIM VENT DOOR ASY PYRO GLOBAL
W0361976 CNTRLLR HEX WHT TOUCH PRG 615
W0361981 PLATE MTG SWTCH CLOCK ASPIRE
$5.95

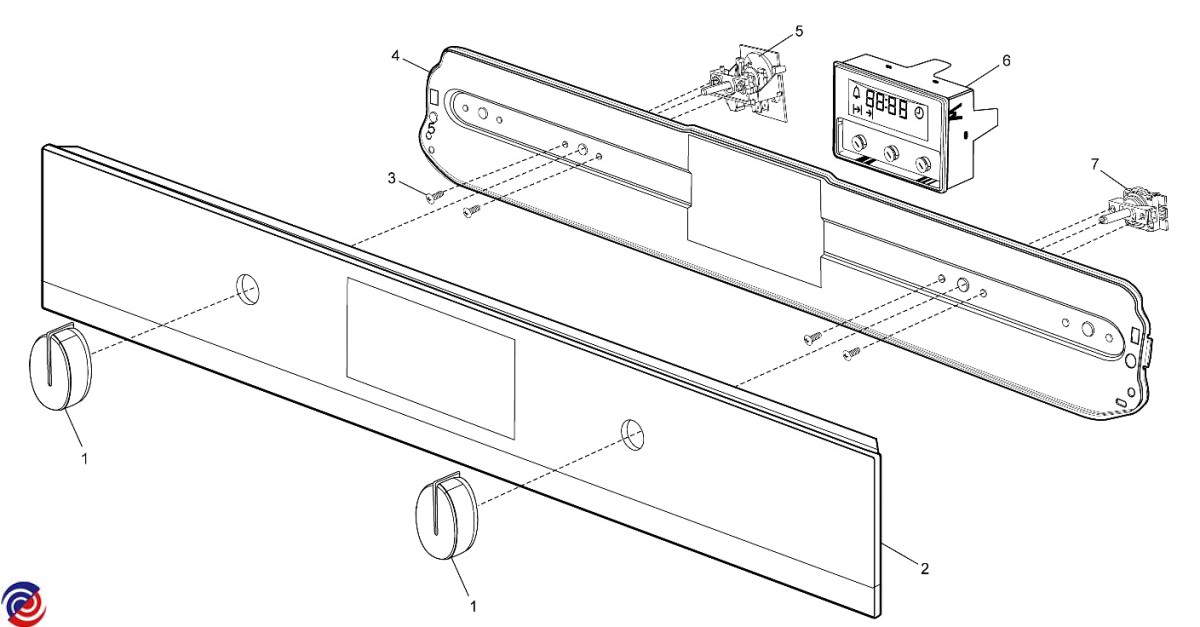

W0361984 PNL CNT & CLIPS WVEP615SC
$200.80
W0361992 KNOB ASSY CHROME ASPIRE
W0361998 SPACER HANDLE PYRO ASPIRE
$10.15
W0362000 PNL OV DR OUT AS PYRO SS ASPIR
W0362001 HANDLE DR ANODISED ASPIRE
W0362017 HARNESS HEXAGON CTRL INPUT
$4.60
W0362046 PANEL TOP BUILT-IN ASPIRE
$35.40

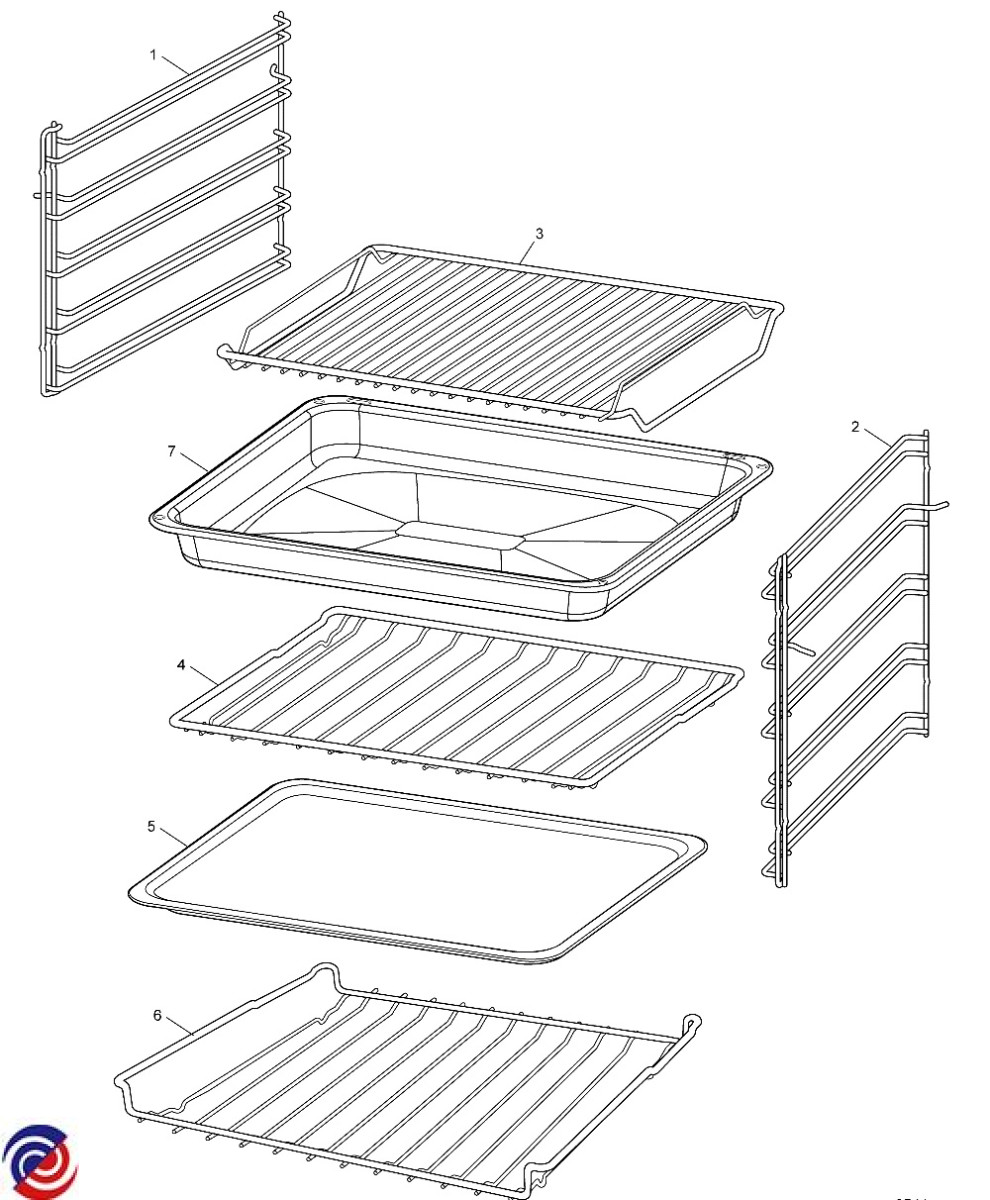

W0362115 RACK SHELF OVEN W/HOUSE
W0362116 RACK SHELF STEP DOWN W/HOUSE
W0362140 RACK INSERT GRILL DISH ASPIRE
W0362143 HARNESS UB DR LOCK GLOBAL
$7.20
W0362353 RACK PACK UB V3 ASPIRE
