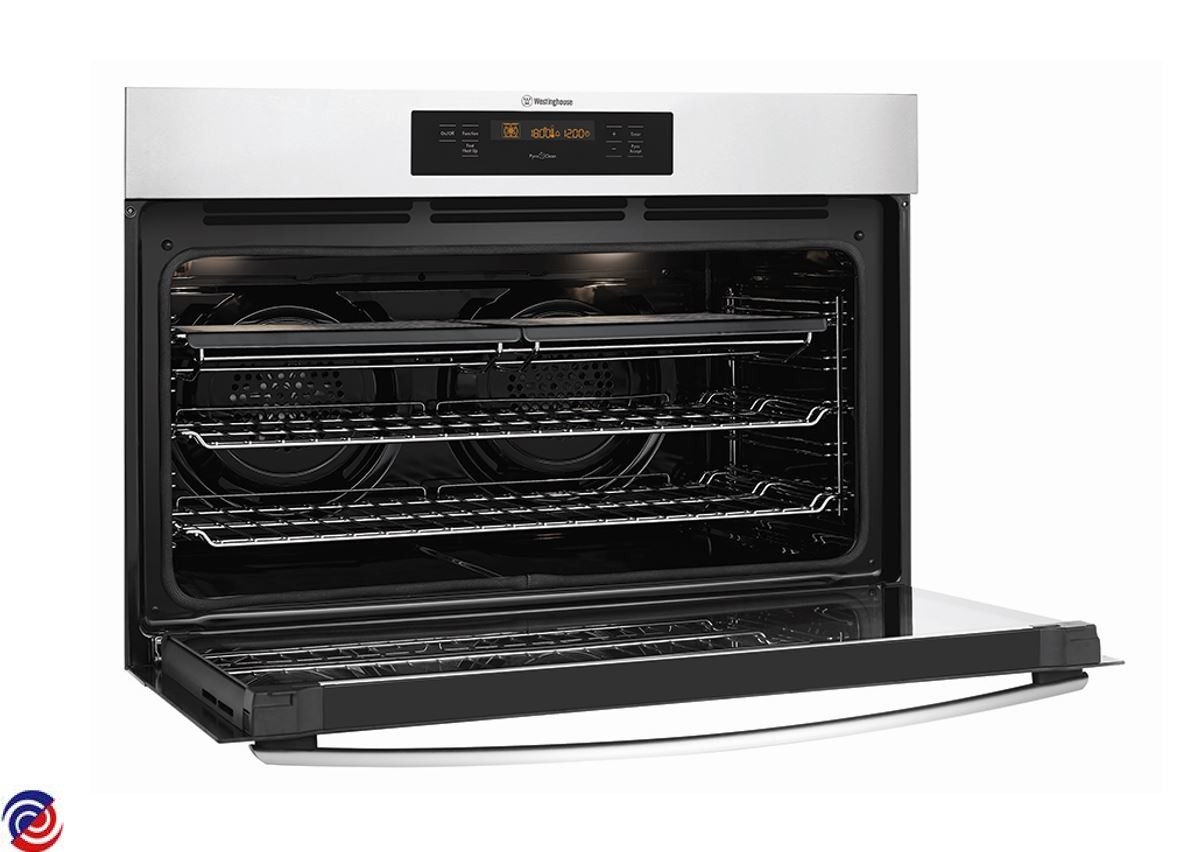

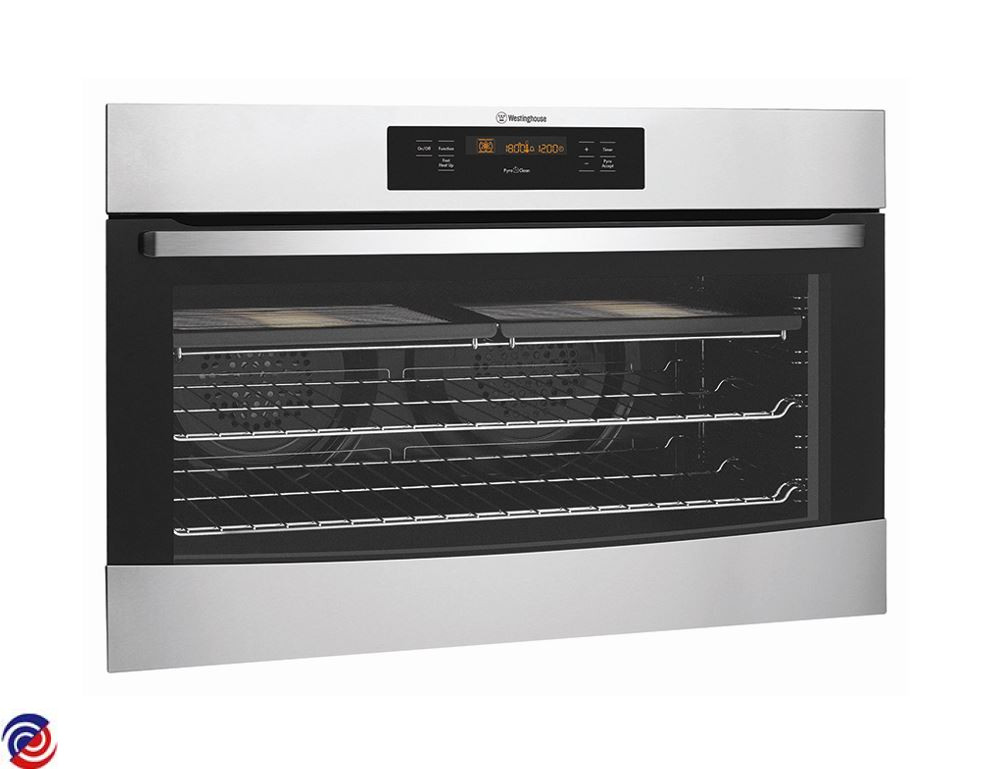

WVEP916SB — 940001855 08
WESTINGHOUSE — Cooker Electric
Parts for WVEP916SB

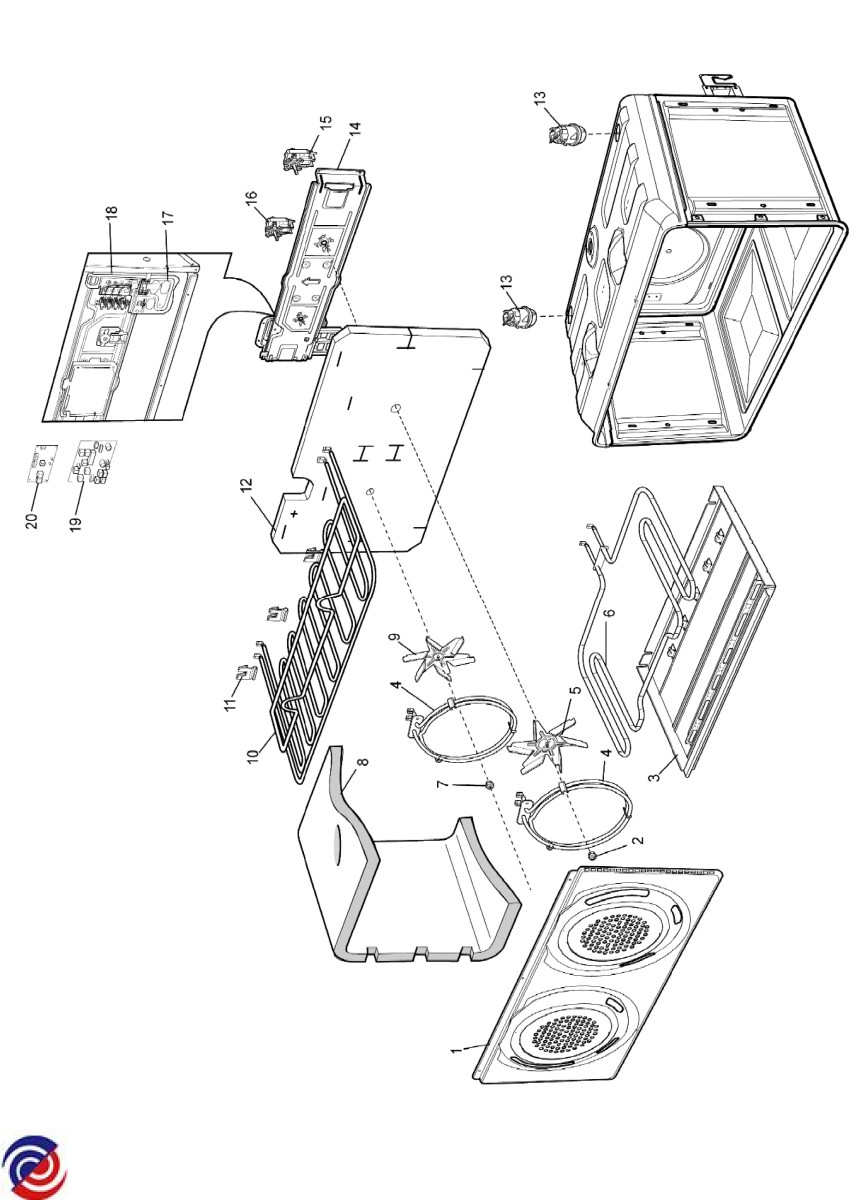

W0011995 NUT M6 LH FAN MOTOR
W0012266 ELEMENT FAN RING 1200W VULCAN
.JPG)
W0012326 CLIP MOUNTING ELEMENT
W0012755 MOTOR FAN OVEN
.JPG)
W0013590 SWITCH THERMAL CUT OUT 145 DEG
W0013970 RELAY 30A SINGLE POLE 240V
W0023144 POWERBOARD OVC3000 - EOS
$271.70
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
_1.JPG)
W0050403 MOTOR FAN OVEN
W0271174 IMPELLER OVEN FAN 160 MM
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011201 SUPPORT ELEMENT GRILL VULCAN
$25.20
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011345 BRACKET KRONOS PROBE MOUNT BIO
$12.60
W0011403 DISH GRILL ENAMELLED VULCAN
$75.70
W0011476 PANEL DECK GLUE ASS PYRO COBRA
$139.00

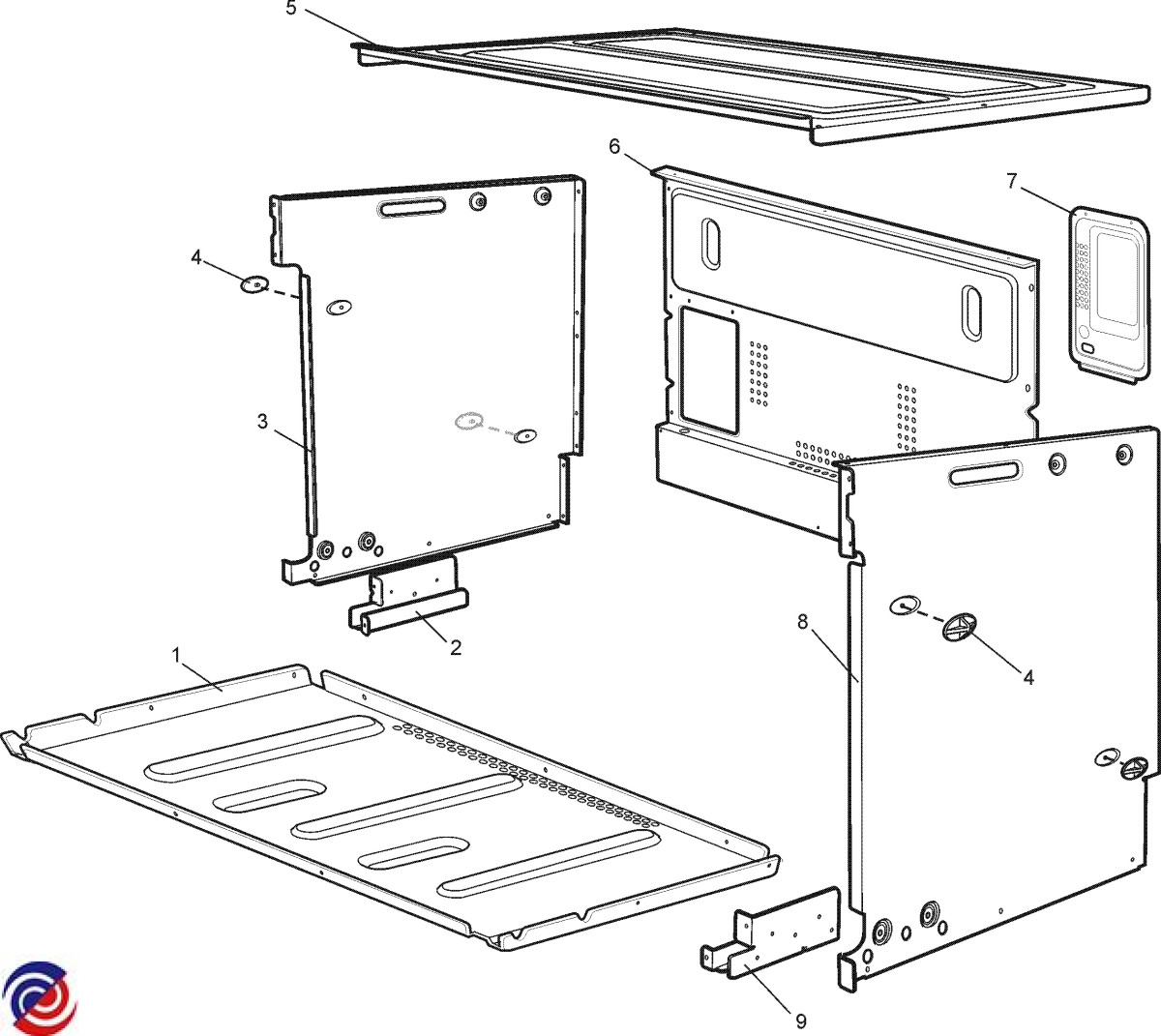

W0011497 PANEL LH SIDE BUILTIN VULCAN
$28.00
W0011498 PANEL RH SIDE BUILTIN VULCAN
$28.00
W0011502 PANEL BOTTOM BUILTIN VULCAN
$49.50
W0011507 PANELTOP BUILTIN VULCAN
$58.55
W0011508 PANEL BACK BUILTIN VULCAN
$59.55
W0011703 PNL FAN COVER ENAM PYRO COBRA
$235.25
W0011996 NUT M6 R/H FAN MOTOR
$5.30

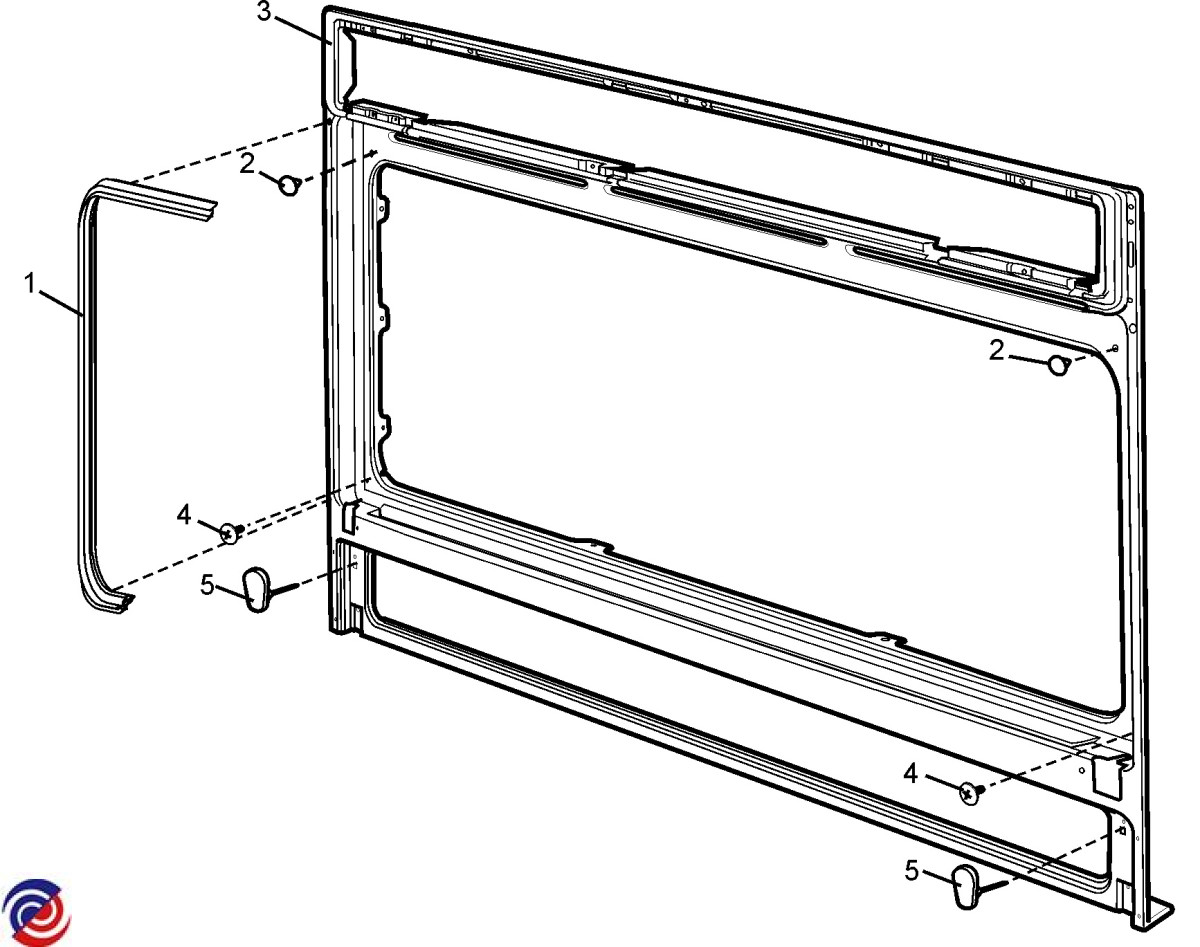

W0012067 FRAME FR ENA PYRO VULC BUILTIN
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012415 SUPPORT COUNTER LH
$9.35
W0012416 SUPPORT COUNTER RH
$9.35
W0012519 SCREW M4X5 HEX1/4' PH2 BLK ZP
$4.50
W0012632 HARNESS WIRE
W0012639 SENSOR CABLE - 500MM
W0012642 HARNESS K2 INTERFACE VULCAN
W0012734 SEAL OVEN VULCAN PYRO
$69.90

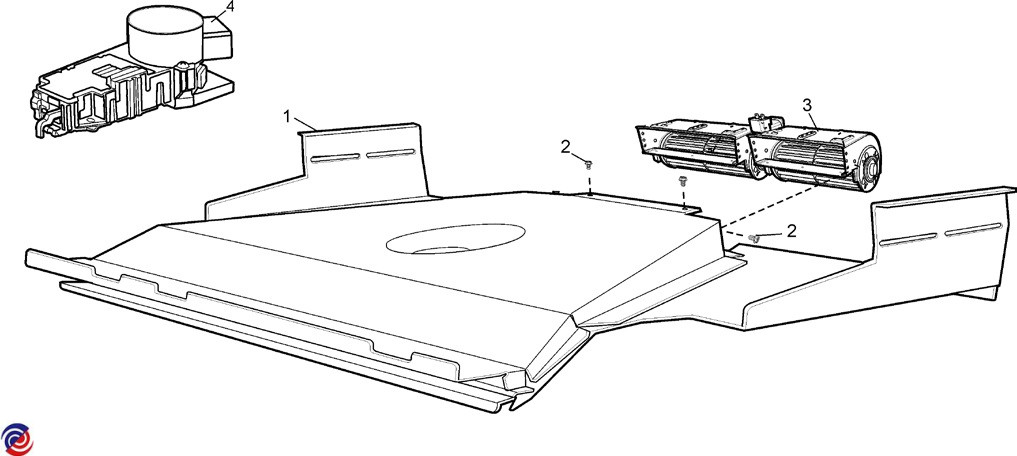

W0012757 MOTOR FAN COOLING PYRO VULCAN
W0013214 RACK PACK
W0013260 SHIELD WIRING
$11.95
W0013463 BRACE OVEN REAR VULCAN
$27.50
W0013649 GROMMET BUILTIN VULCAN
$8.00
W0013730 BUMPER STOP BLK
$6.55
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50
W0014079 BUSH MOUNT F/FRAME NGD
$7.25
W0026349 HOUSING CENTRERING HELP
W0029305 CATALYSER 77DIA,12.5H, 64 CSI
$23.10
W0029677 INSULATION OVEN WRAP PYRO
W0029848 RETAINER PYRO CATALYSE VULCAN
W0029882 CAP VENT DOOR TOP ASSY COBRA
$87.05

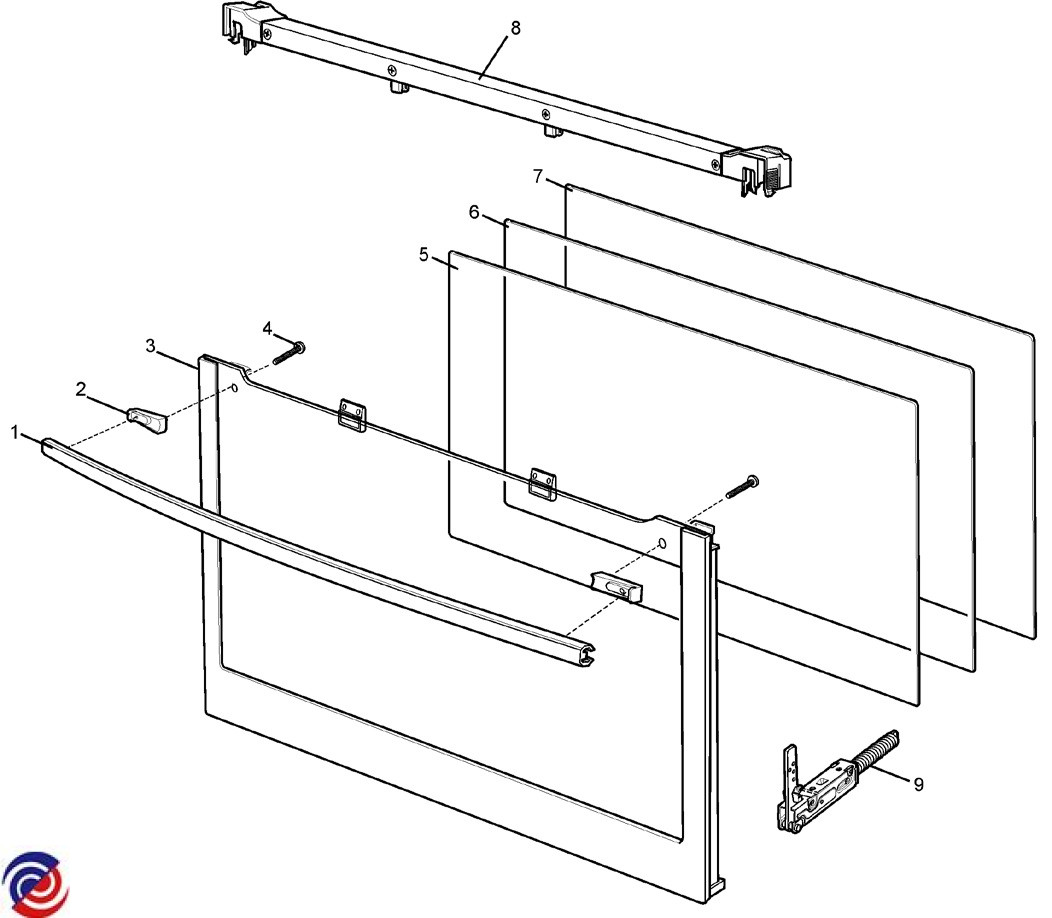

W0029930 GLASS OV DR MID 2 COBRA
W0030054 HANDLE DOOR WEST ANOD COBRA
W0030055 SPACER HANDLE W/HOUSE COBRA
W0030165 ELEMENT GRILL SPLIT ELUX VUL
$90.20
W0030413 SCREW M4x0.7x53 PAN TX20
$4.50
W0030421 LAMP OVEN HALOGEN 25W COBRA
$10.00
W0030507 WIRE HARNESS K16 FOODPROBE MOD
$13.20
W0030571 PANEL CONTROL WVEP916SB
$199.90
W0030615 GLASS OV DR INNER BOROSILICATE
W0030616 GLASS OV DR MID1 REFL VULCAN

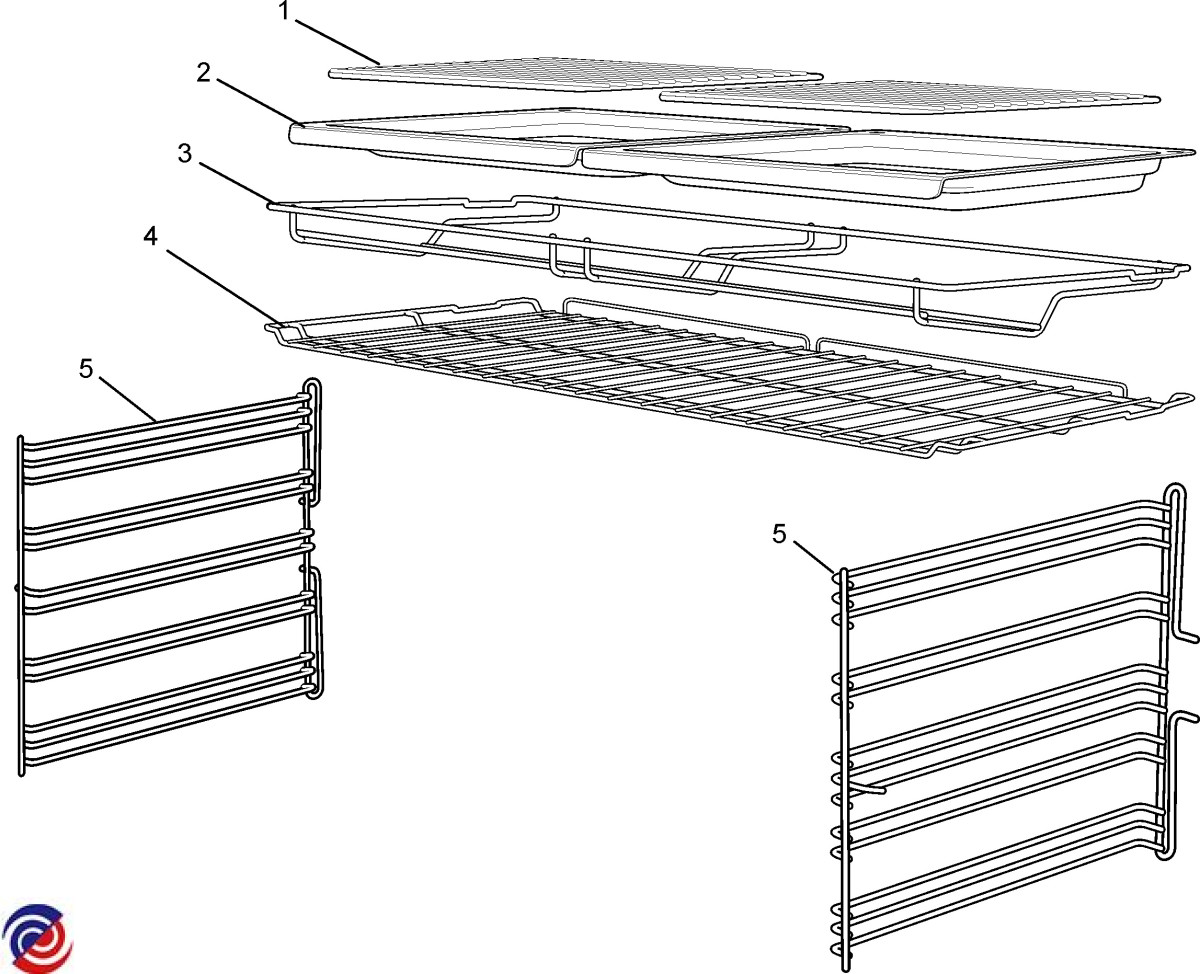

W0053529 RACK SIDE SUPPORT OVEN EVOLVE
W0053535 RACK INSERT GRILL DISH VULCAN
W0053538 RACK GRILL DISH SUPPORT VULCAN
W0053539 RACK SHELF OVEN VULCAN
$106.00
W0114251 DOOR LOCK ASSEMBLY
W0114700 SENSOR TEMPERATURE PT500
W0275660 HINGE SOFT CLOSE GENESYS
W0275765 IMPELLER OVEN FAN VULCAN R/H
$24.85
W0275774 BRACKET REAR OVN ELECS. GENESY
$74.00
