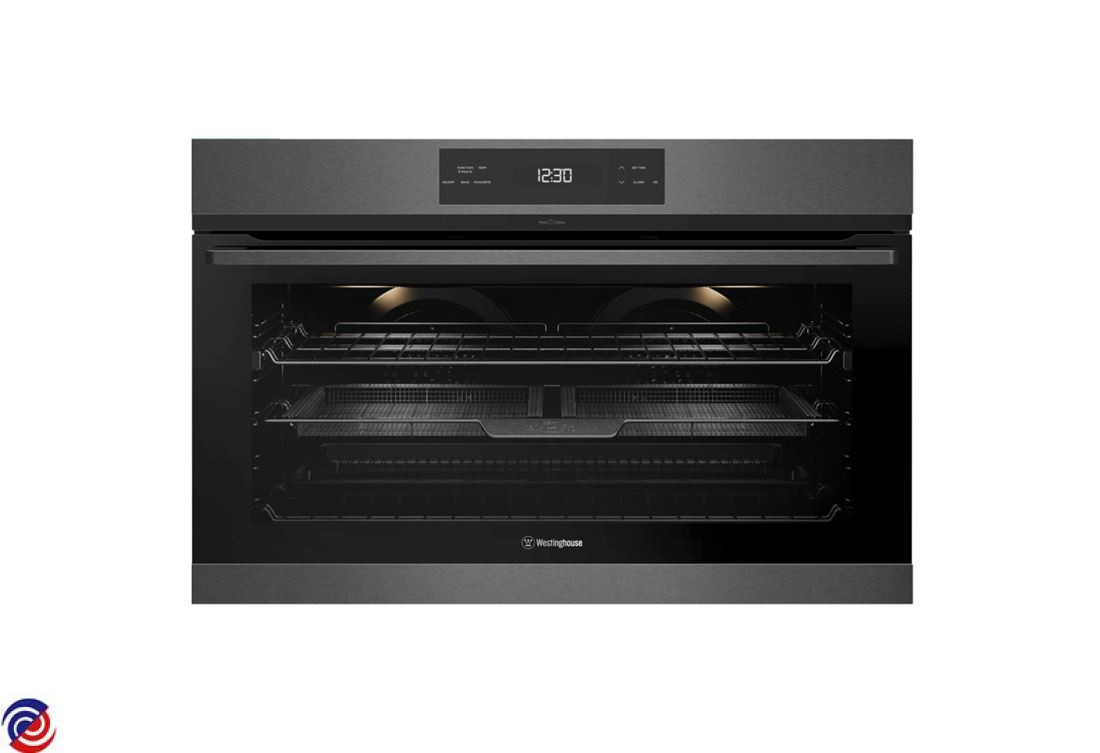

WVEP917DSC — 944031847 00
WESTINGHOUSE — Cooker Electric
Parts for WVEP917DSC
W0011995 NUT M6 LH FAN MOTOR
W0012266 ELEMENT FAN RING 1200W VULCAN
.JPG)
W0012326 CLIP MOUNTING ELEMENT
W0012755 MOTOR FAN OVEN
W0013970 RELAY 30A SINGLE POLE 240V
W0014025 SCREW #8-10X35 PAN PH2 P/B BK
$4.50
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
_1.JPG)
W0050403 MOTOR FAN OVEN
W0271174 IMPELLER OVEN FAN 160 MM
W0274167 SENSOR TEMPERATURE PT500 575MM
W0283888 POWERBOARD OVC-R5000 SC
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011345 BRACKET KRONOS PROBE MOUNT BIO
$12.60
W0011476 PANEL DECK GLUE ASS PYRO COBRA
$139.00
W0011502 PANEL BOTTOM BUILTIN VULCAN
$49.50
W0011507 PANELTOP BUILTIN VULCAN
$58.55
W0011703 PNL FAN COVER ENAM PYRO COBRA
$235.25
W0011996 NUT M6 R/H FAN MOTOR
$5.30
W0012415 SUPPORT COUNTER LH
$9.35
W0012416 SUPPORT COUNTER RH
$9.35
W0012519 SCREW M4X5 HEX1/4' PH2 BLK ZP
$4.50
W0012642 HARNESS K2 INTERFACE VULCAN
W0012667 INSTALL ANTI TILT HOOK
$13.90
W0012734 SEAL OVEN VULCAN PYRO
$69.90
W0012757 MOTOR FAN COOLING PYRO VULCAN
W0012806 STOP ANTI TILT
$3.30
W0013260 SHIELD WIRING
$11.95
W0013463 BRACE OVEN REAR VULCAN
$27.50
W0013649 GROMMET BUILTIN VULCAN
$8.00
W0013730 BUMPER STOP BLK
$6.55
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50
W0014041 SCREW #8 x1/2 PH2 MUSH WASHER
$4.50
W0014079 BUSH MOUNT F/FRAME NGD
$7.25
W0022974 RESISTOR 1050 OHM 20W PYRO
$58.40
W0026349 HOUSING CENTRERING HELP
W0029305 CATALYSER 77DIA,12.5H, 64 CSI
$23.10
W0029848 RETAINER PYRO CATALYSE VULCAN
W0029882 CAP VENT DOOR TOP ASSY COBRA
$87.05
W0029930 GLASS OV DR MID 2 COBRA
W0030165 ELEMENT GRILL SPLIT ELUX VUL
$90.20
W0030615 GLASS OV DR INNER BOROSILICATE
W0030616 GLASS OV DR MID1 REFL VULCAN
W0114251 DOOR LOCK ASSEMBLY
W0275660 HINGE SOFT CLOSE GENESYS
W0275756 PANEL RH SIDE BUILTIN VULCAN
$24.85
W0275757 PANEL LH SIDE BUILTIN VULCAN
$24.85
W0275765 IMPELLER OVEN FAN VULCAN R/H
$24.85
W0283213 SCREW M4 X 44 PAN T20
W0283314 INSULATION OVEN WRAP COBRA
$70.05
W0283384 SCREW #8 4.2 X 28 HILO PAN PH
$4.50
W0283454 THERMAL CUTOUT 145 DEG N.C.
W0283485 RACK SIDE OVEN EASY RH E100
W0283486 RACK SIDE OVEN EASY LH E100
W0283609 CLEAN HEAT COVER E100 90CM
W0283672 INSULATION OVEN BACK E100 90CM
$16.65
W0283877 HANDLE PEDES TAUR+ 90CM ASPIRE
W0284064 CLIP SIDEGRIDS
$4.50
W0284067 CLIP THERMOSTAT BIOS
$4.50
W0284366 SLIDE SINGLE EXT 1 SET
W0284474 ELEMENT C/H STEAM VULCAN E100
$100.85
W0284573 FRAME FR ENA PYRO VULC BUILTIN
W0295025 LAMP OVEN HALOGEN 25W
$26.05
W0361013 KIT PNL CTRL &CLIPS VCU+ PYRO
W0361679 SENSOR TOUCH SELCT NO BACKLIT
$75.00
W0361862 COVER VCU+ SIDE TOUCH
W0361863 HOUSNG RFLCT VCU+ SDE RGHT BLK
$4.50
W0361864 HOUSNG RFLCT VCU+ SDE LEFT BLK
$4.50
W0361882 PANEL BACK BUILTIN E100 90CM
$34.40
W0361884 INSULATOR SPILL IOI VULCAN
$4.50
W0361896 WIRE HARNESS 90CM PR DR LOCK
$17.00
W0362004 HANDLE TAUR+ 90 ASPIRE DARK
$55.40
W0362089 PNL OV DR OUT ASS W/H BI PY DA
$177.70
W0362141 RACK INSERT ASPIRE 90CM
W0362179 RACK PACK ASPIRE 90CM
$139.30
W0362180 DISH GRILL ENAM DEEP ASPIRE 90
$81.60
W0362209 TRAY F/WIDTH ENAM ASPIRE 90
$78.20
W0362231 AIR FRYER ASSY ASPIRE 90CM
$99.80
W0365349 CONTROL VCU+PRG WVEP917DSC
$226.15
