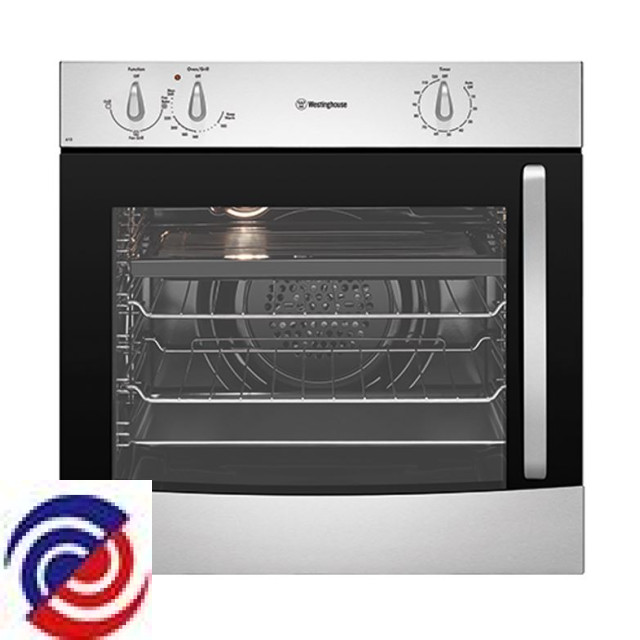

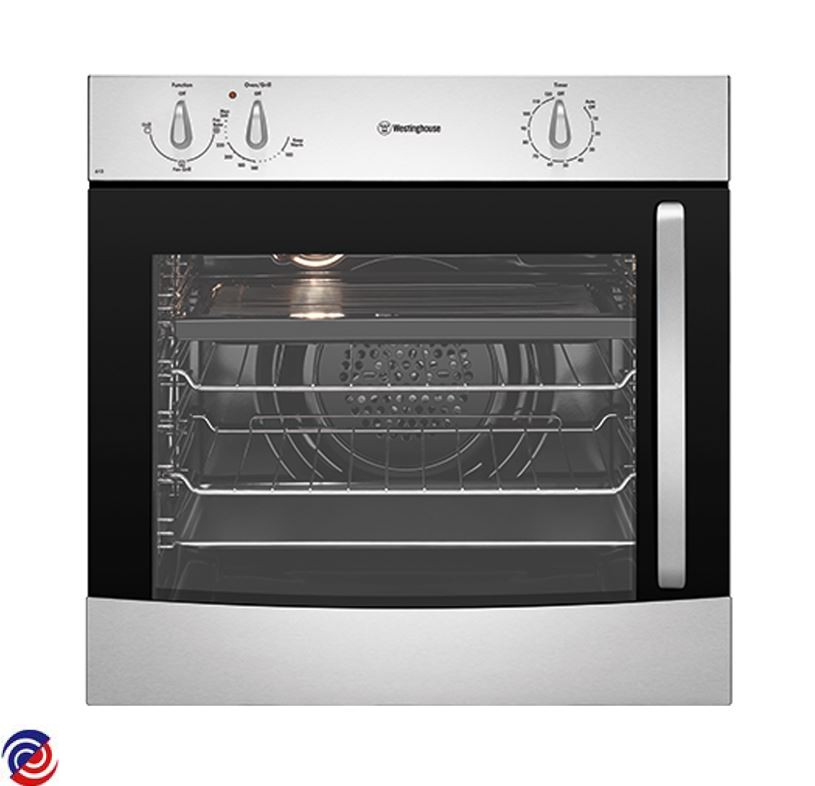

WVES613S-L — 944031682 00
WESTINGHOUSE — Cooker Electric
Parts for WVES613S-L
W0011237 KNOB ASSY WH BLDE SILVER FORTE
.JPG)
W0011297 BLADE FAN
W0011401 DISH GRILL ENAM F/WIDTH BIOS
W0011406 TRAY BAKING SCONE - 468MM X 360MM
W0011995 NUT M6 LH FAN MOTOR
.JPG)
W0012255 ELEMENT GRILL 2200W SS321
W0012262 ELEMENT FAN RING 2200W
.JPG)
W0012326 CLIP MOUNTING ELEMENT
W0013562 SWITCH MULTI 4 EL BIOS
$41.20
.JPG)
W0013596 SWITCH THERMAL CUT OUT 190 DEG
W0014025 SCREW #8-10X35 PAN PH2 P/B BK
$4.50
W0014032 SCREW #8 X 45 PAN QUADREX
W0023241 HOLDER LAMP ASSY BIOS
W0042488 WESTINGHOUSE OVEN DOOR LATCH
$59.95
_1.JPG)
W0050403 MOTOR FAN OVEN
.JPG)
W0052585 CANOPY FAN ASSY U/B NGD
.JPG)
W0053530 SHELF OVEN
.JPG)
W0057771 THERMOSTAT OVEN
W0058493 TRIM DOOR UPPER VENTED
W0060747 TIMER 2 HR CUTOFF PEAPSA
W0147339 SEAL OVEN MODULAR PROFILE
W0166032 LAMP 25W SES E14 300C CLEAR
$10.00
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011199 SUPPORT STRIKER PIN SOD NGD
W0011260 PLATE MOUNTING SWITCH
$14.95
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011275 PLATE HINGE & PIVOT LH SOD NGD
$54.25
W0011479 PANEL TOP PYRO NGP
$43.20
W0011484 PANEL SIDE RH
$28.00
W0011485 PANEL SIDE LH
$27.50
W0011666 COVER FAN & ELEMENT
$95.75
W0011933 HANDLE DR SILVER SOD FORTE
$50.00
W0012083 FLUE OVEN VENT ELEC U/B NGD
$16.50
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012519 SCREW M4X5 HEX1/4' PH2 BLK ZP
$4.50
W0012562 MOUNT CAP F/FRAME R/H NGD
$5.80
W0012565 MOUNT CAP F/FRAME L/H SOD NGD
$6.60
W0012893 GLASS OV DR IN SOD WEST FORTE
$30.80
W0012957 RETAINER PLATE SOD LH LCD
$8.75
W0012971 SPACER HANDLE (SS DOORS)
$6.00
W0013260 SHIELD WIRING
$11.95
W0013328 INSULATION OVEN BACK - KNAUF
$20.30
W0013625 FRAME CONTROL PANEL
W0013730 BUMPER STOP BLK
$6.55
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014023 SCREW #8 X 5/8 CSK #2PH AB BK
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014079 BUSH MOUNT F/FRAME NGD
$7.25
W0014080 BUFFER
$9.30
W0027193 FRAME FRONT PAINTED SOD LH NGP
$79.00
W0027321 STAND-OFF BLK SOD WEST FORTE
W0027371 SCREW M4 X 35 PAN MTS PHIL BLK
W0027378 LIGHT IND AMB 600MM
$8.50
W0029328 HOUSING LENS IND BIOS AMBER
$20.90
W0029821 PNL CNT & CLIPS WVE613S FORTE
W0036213 SUPPORT ELEMENT GRILL
W0039639 BASEPLATE
W0039640 PANEL UPPER
W0042653 CHANNEL FRONT NGP UB LH
W0042654 CHANNEL FRONT NGP UB RH
W0042768 PLUG DOME MDP16
W0047469 SCREW M4 X 5 PAN #2 PH SML HD
$4.50
W0052948 SPACER CONTROL PANEL BIOS
$6.00
W0053490 RACK GRILL INSERT
W0053529 RACK SIDE SUPPORT OVEN EVOLVE
W0054672 INSULATION OVEN WRAP - KNAUF
$63.85
W0056272 BRACE OVEN REAR BI BIOS
W0057755 SWITCH THERMAL CUT OUT 120 DEG
W0060067 STRIKER DOOR CATCH SOD LCD
W0062492 KIT PNL OV DR S/S L/H SOD FORT
W0065137 RIVET POP 3.8 X 10 STL-TEXTRON
