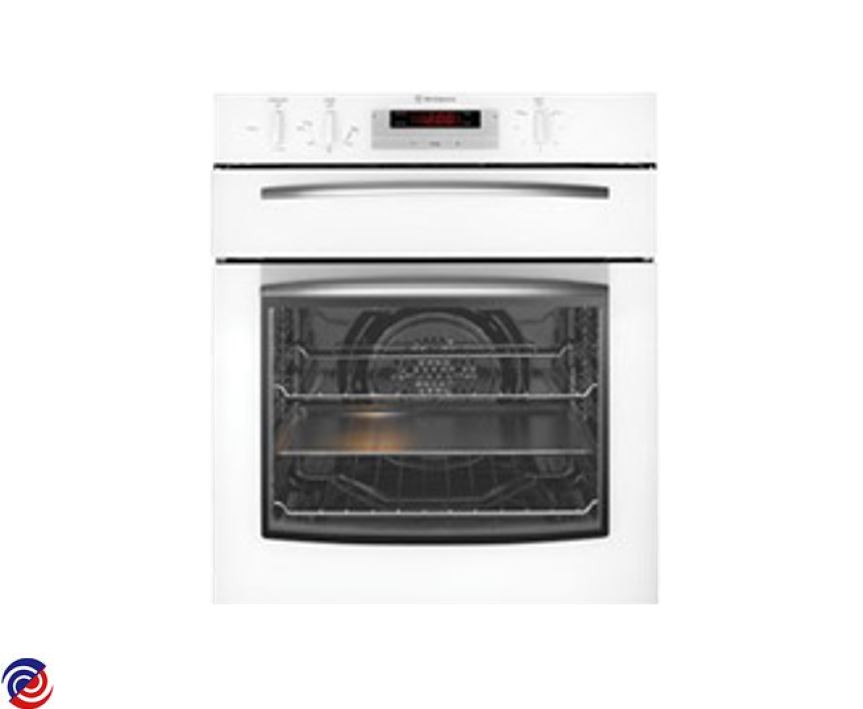

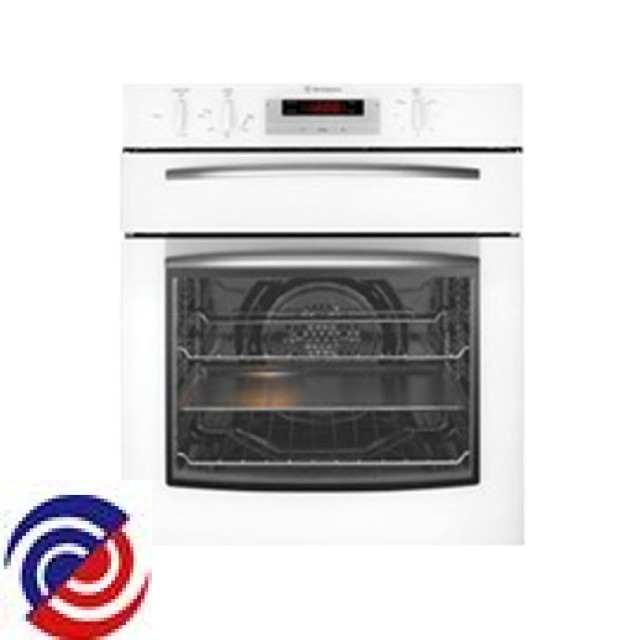

GGP475WLP
WESTINGHOUSE — Cooker Gas
Parts for GGP475WLP
W0011127 BURNER OVEN BI BIOS
.JPG)
W0011297 BLADE FAN
W0011319 COVER GRILL DISH
W0011406 TRAY BAKING SCONE - 468MM X 360MM
W0011888 IGNITOR OVEN
W0012254 ELEMENT C/HEAT 1800W SS321
W0013569 AUXILIARY SW
$54.00
.JPG)
W0013590 SWITCH THERMAL CUT OUT 145 DEG
W0013687 HOSE FLEX 1.7M LONG BIOS-BI
$72.55
W0014032 SCREW #8 X 45 PAN QUADREX
W0036937 KNOB WHT
$20.00
.JPG)

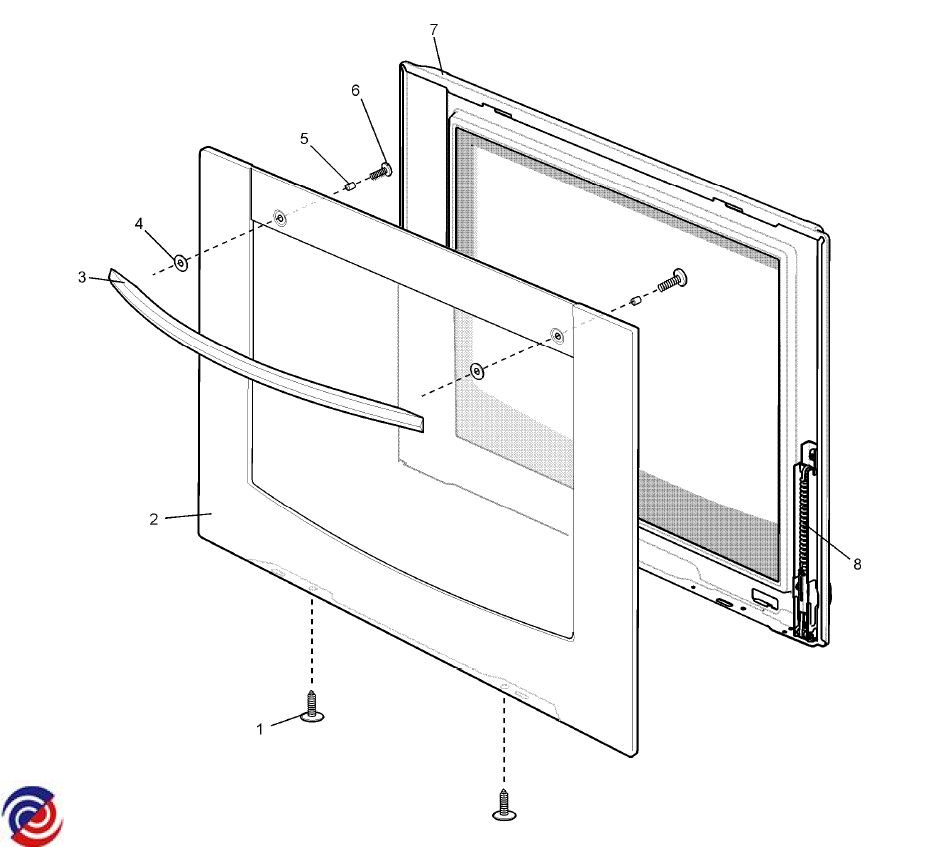

W0039459 DOOR OVEN INNER
.JPG)
W0042314 HINGE DOOR OVEN
.JPG)
W0042767 SENSOR FLAME
W0045365 WASHER SEALING
$4.50
.JPG)
W0046406 CLIP MOUNTING ELEMENT
W0050006 GASKET CAVITY OVEN
_1.JPG)
W0050403 MOTOR FAN OVEN
.JPG)

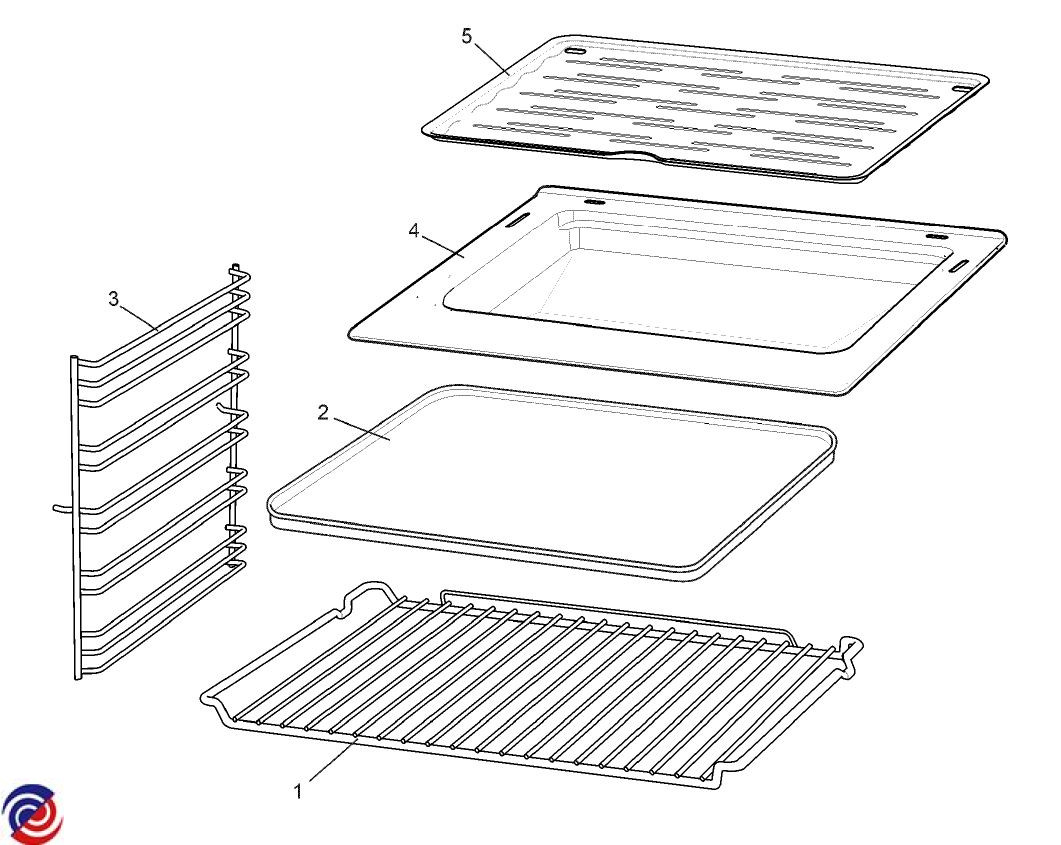

W0053488 SHELF OVEN 469 X 375MM
$70.00
W0053491 RACK SIDE OVEN LH OR RH
.JPG)
W0057166 CHEF SIMPSON WESTINGHOUSE COOKTOP CONTROL SWITCH MP101
.JPG)
W0057771 THERMOSTAT OVEN
.JPG)
W0061169 VALVE SOLENOID GAS-20VDC DBL
W0062420 LIGHT INDICATOR INC LENS
.JPG)
W0063564 CLOCK 3 BUTTON ECOTIME TOUCH
W0063839 BOX IGNITION 1P DSI REIGN.
W0100889 CLIP SPRING KNOB
$9.15
W0166032 LAMP 25W SES E14 300C CLEAR
$10.00
W0011262 PLATE MOUNTING SWITCH
$14.90
W0011289 SLIDE GRILL ASSY DOUBLE ACTION
W0011317 COVER OVEN BURNER
$114.60
W0011346 BRACKET DOOR RUNNER GRILL
$79.90

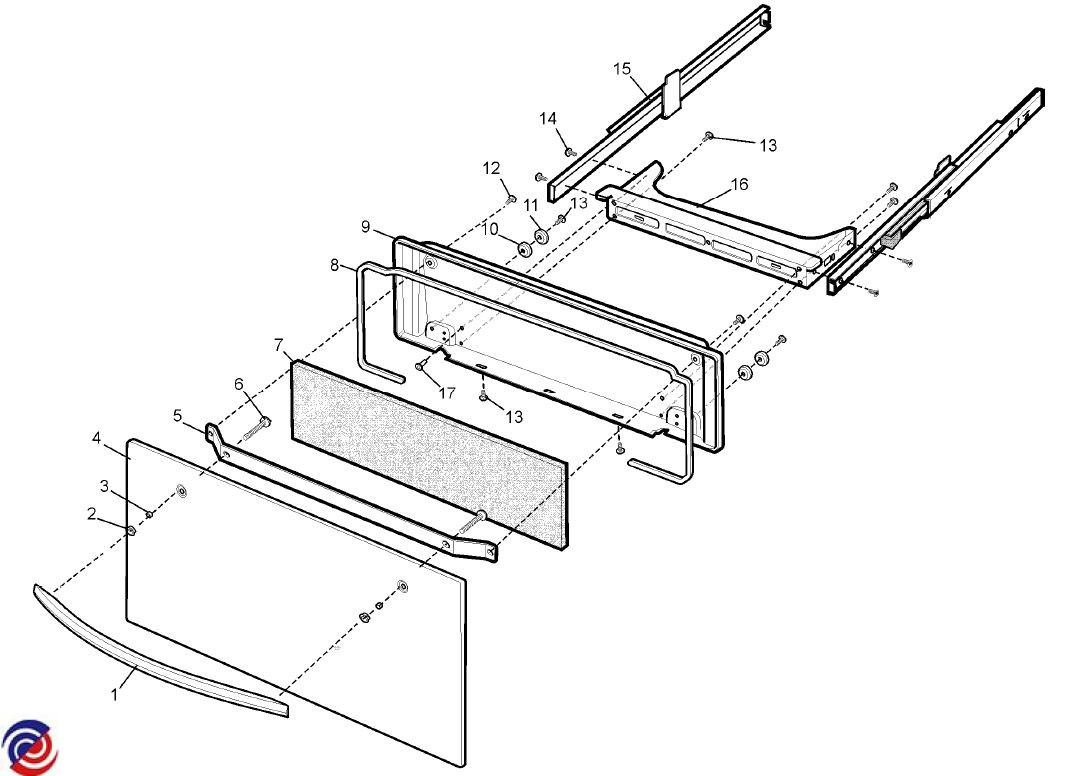

W0011419 DOOR GRILL INNER
$160.00
W0011472 PANEL DECK INTER GAS BIOS
$52.80
W0011671 PANEL FAN COVER
$112.55
W0011863 VENT GRILLE
$17.10
W0011912 HANDLE DOOR
$50.00
W0011993 NUT METRIC M10 X 0.75MM
$4.50
W0012313 CLIP INSTALL RH BIOS
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012317 CLIP INSTALL LH BIOS
$10.00
W0012318 CLIP STAND-OFF 22MM-GAS BIOS
$11.70
W0012749 HOLDER INJECTOR OVEN BURNER
$12.20
W0012970 SPACER HANDLE
W0012971 SPACER HANDLE (SS DOORS)
$6.00
W0013563 SWITCH MULTI 4 GAS BIOS
$45.00
W0013732 BUMPER STOP MAGNET
$4.50
W0013733 STOP RUNNER
$8.15
W0013937 MAGNET GRILL DOOR
$8.80
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014023 SCREW #8 X 5/8 CSK #2PH AB BK
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014038 SCREW 3/16X16 PAN PH TRILOB ZY
W0014042 SCREW #8 X 1/2 #2PH TC BLK
$4.50
W0036213 SUPPORT ELEMENT GRILL
W0037470 PLATE AERATION BUILT-IN
W0037478 PLATE CVR TERM GAS B/I BIOS
W0037480 PLATE SUPPORT VALVE BIOS
W0039212 DISH GRILL ENAM BIOS
$81.60
W0039564 DOOR OVEN GLASS OUTER WHT
W0039639 BASEPLATE
W0039686 PANEL CHASSIS TOP
$27.50
W0039690 PNL GRILL TOP SGUB ALUM BIOS
W0039783 PANEL SIDE SGUB BIOS
W0039895 PANEL CABINET REAR
W0042611 CHANNEL FRONT SGUB RH BIOS
W0042612 CHANNEL FRONT SGUB LH BIOS
W0043579 TUBE OVEN SUPPLY BIOS
W0044064 NUT M6 LH FAN MOTOR ECM
W0044615 FRAME FRONT ENAM GAS SGUB BIOS
W0044829 FLUE DUCT OVEN SGUB BIOS
W0046735 INJECTOR H/P 0.82MM
W0047143 INSULATOR HANDLE GLASS SIMPSON
W0047469 SCREW M4 X 5 PAN #2 PH SML HD
$4.50
W0047803 ADAPTOR TEST POINT LP UC20
W0048258 WIRE ASSY H/S 9081-12-12-1050
W0049225 SEAL DOOR INNER GLASS
W0052241 DOOR OUTER GRILL GLASS & CLIPS
$160.00
W0052253 GLASS & CLIPS GGP475W

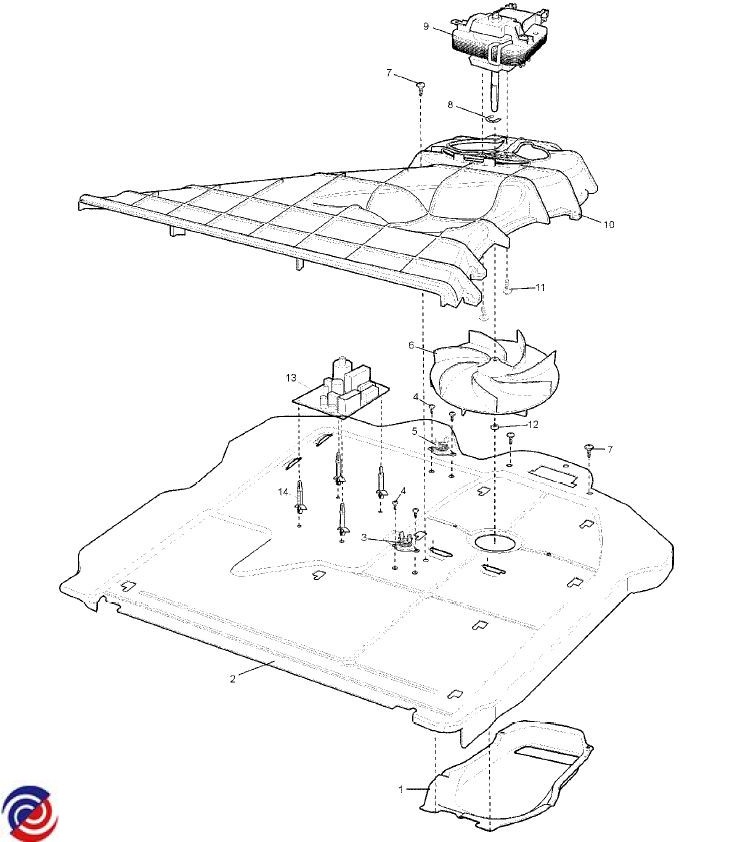

W0052584 CANOPY FAN ASSY SGUB BIOS
W0052940 SPACER HANDLE SGUB GLASS
W0053310 STICKER GAS TYPE LPG
$4.50
W0054086 SHIELD THERMO BULB BIOS
W0054646 INSULATION OVEN BACK BIOS
W0054656 INSULATION GRILL DOOR
$7.20
W0054657 INSULATION OVEN CABINET
W0054665 INSULATION GRILL SGUB BIOS

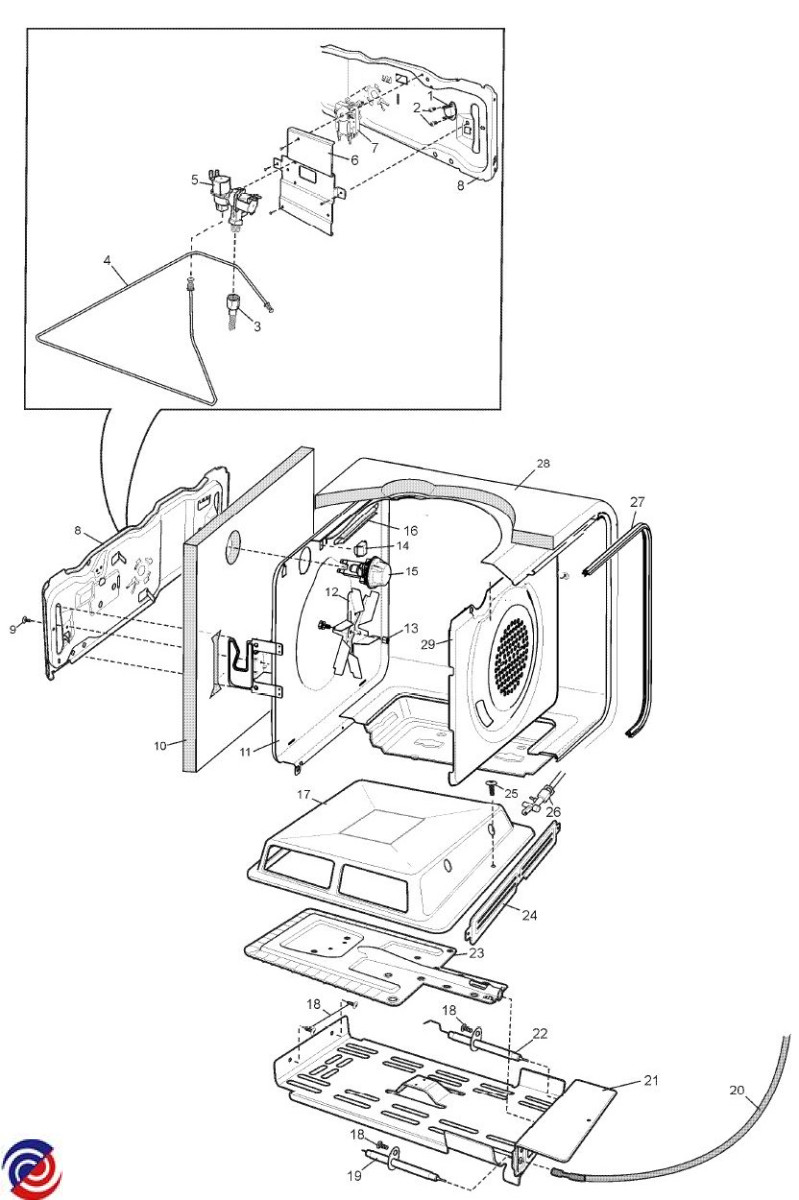

W0054943 OVEN ENAM GAS F/F S/G BIOS

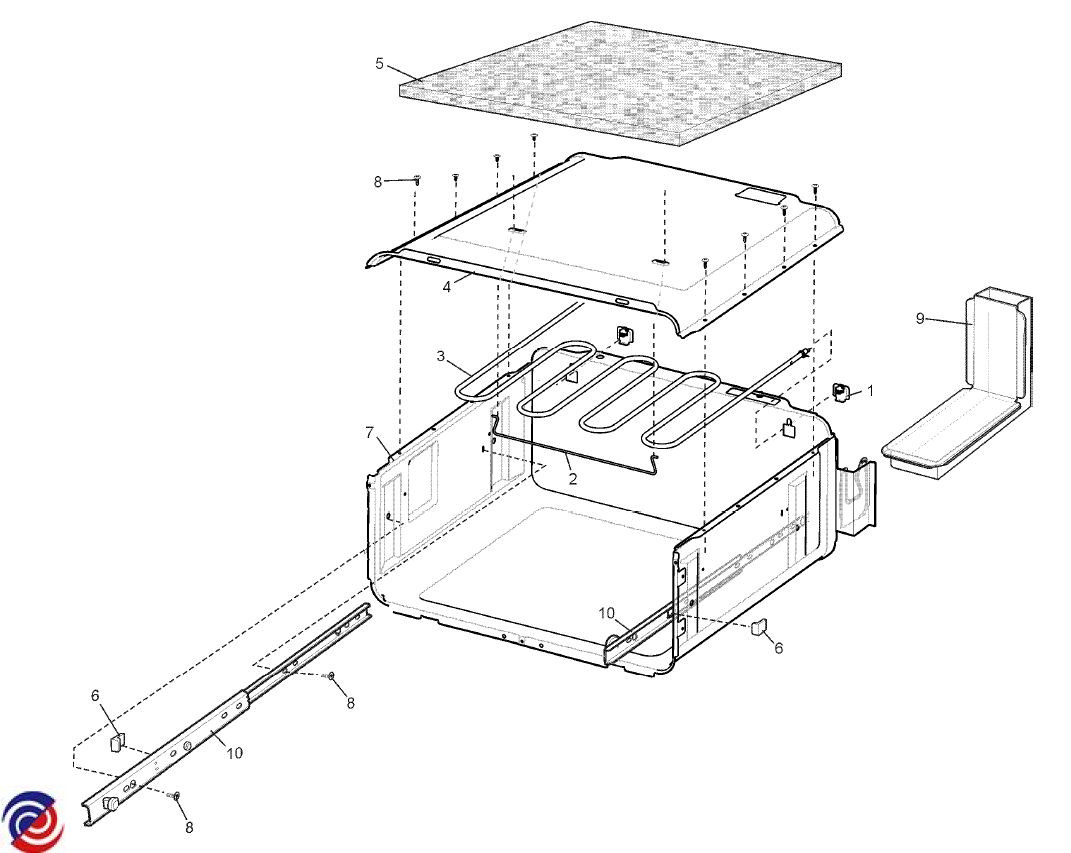

W0056174 GRILL BOX ENAM SHALLOW BIOS
W0056272 BRACE OVEN REAR BI BIOS
W0057758 THERMAL CUTOUT 100 DEG N.O.

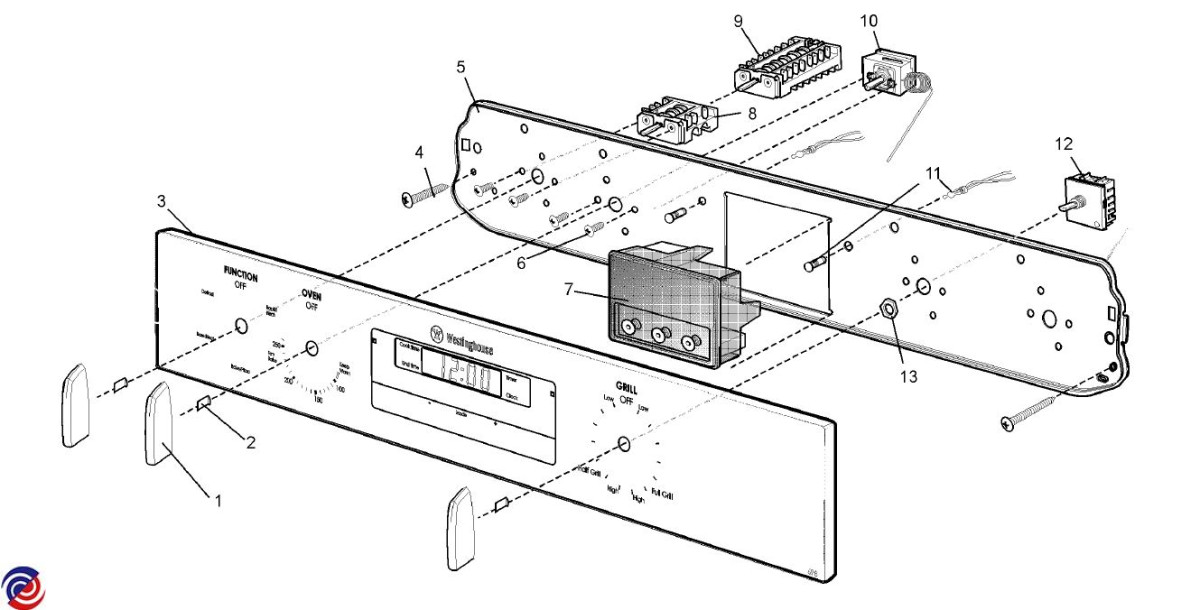

W0058480 FRAME CONTROL PANEL
$223.35
W0058482 PLATE HINGE BTM RH BIOS
W0058483 TRIM HINGE BTM LH BIOS
W0059838 DUCT OVEN SGUB ASSY BIOS-GAS
W0064532 SCREW #8 X 9/16 B/HD S/PT BKOX
$4.00
W0064587 SCREW 3/16X12 PAN PH TRILOB
W0064626 SCREW #4 X12 T25 W/HD PHIL#2
W0065058 CLIP SPEED #8 8526 17 320
W0065129 RIVET - 4.8MM X 9.65MM
W0065406 SCREW #8 X 3/4 STEPPED PAN BLK
W0065420 SCREW M4 X0.7X10 MUSH QUADRERX
W0114680 HOLDER LAMP ASSY BIOS
W0150818 SCREW M4 X 16 PAN X/R MTS Z/P
