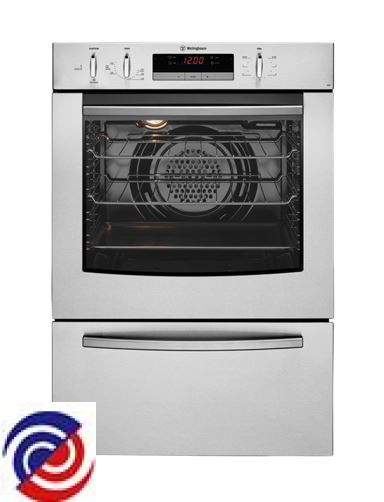

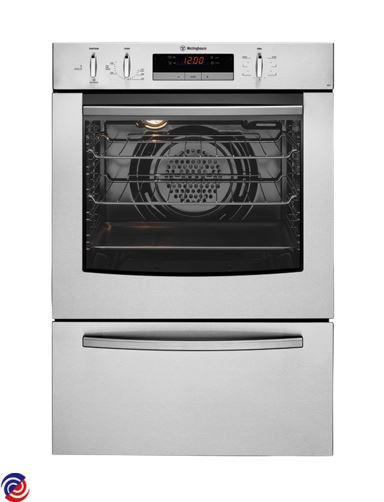

GXR650SNG — 944031478 73
WESTINGHOUSE — Cooker Gas

W0011127 BURNER OVEN BI BIOS

W0011297 BLADE FAN

W0011319 COVER GRILL DISH

W0011401 DISH GRILL ENAM F/WIDTH BIOS

W0011406 TRAY BAKING SCONE - 468MM X 360MM

W0011891 IGNITOR OVEN

W0011892 SENSOR FLAME

W0011922 HANDLE DOOR

$32.10

W0011995 NUT M6 LH FAN MOTOR

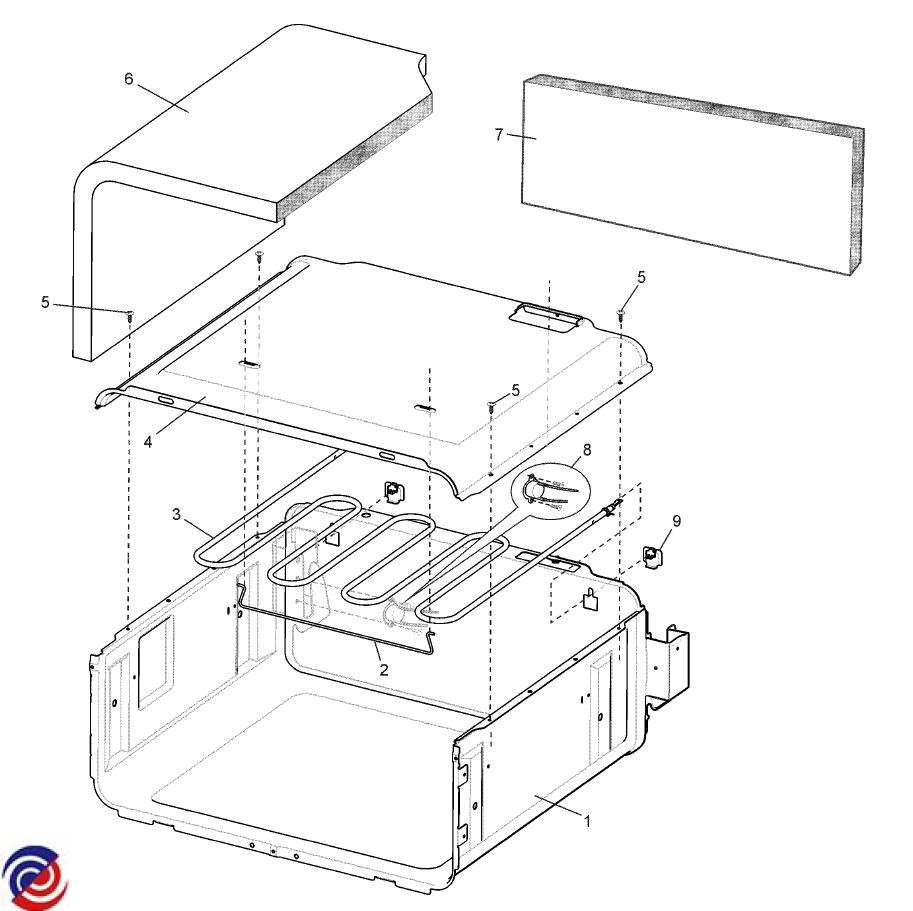

W0012255 ELEMENT GRILL 2200W SS321

W0012570 END CAP HANDLE BLK WEST NGD

$14.05

W0012626 WIRE ASSY H/S DSI HV IGNITION

$36.20

W0012840 DOOR GRILL INNER GLASS

W0012988 SPACER HANDLE GLS DR NGD

W0013569 AUXILIARY SW

$54.00

W0013590 SWITCH THERMAL CUT OUT 145 DEG

W0013619 TRIM DOOR LOWER

W0013687 HOSE FLEX 1.7M LONG BIOS-BI

$72.55

W0014025 SCREW #8-10X35 PAN PH2 P/B BK

$4.50

W0014032 SCREW #8 X 45 PAN QUADREX

W0014040 SCREW 3/16X28 PAN PH TRILOB ZY

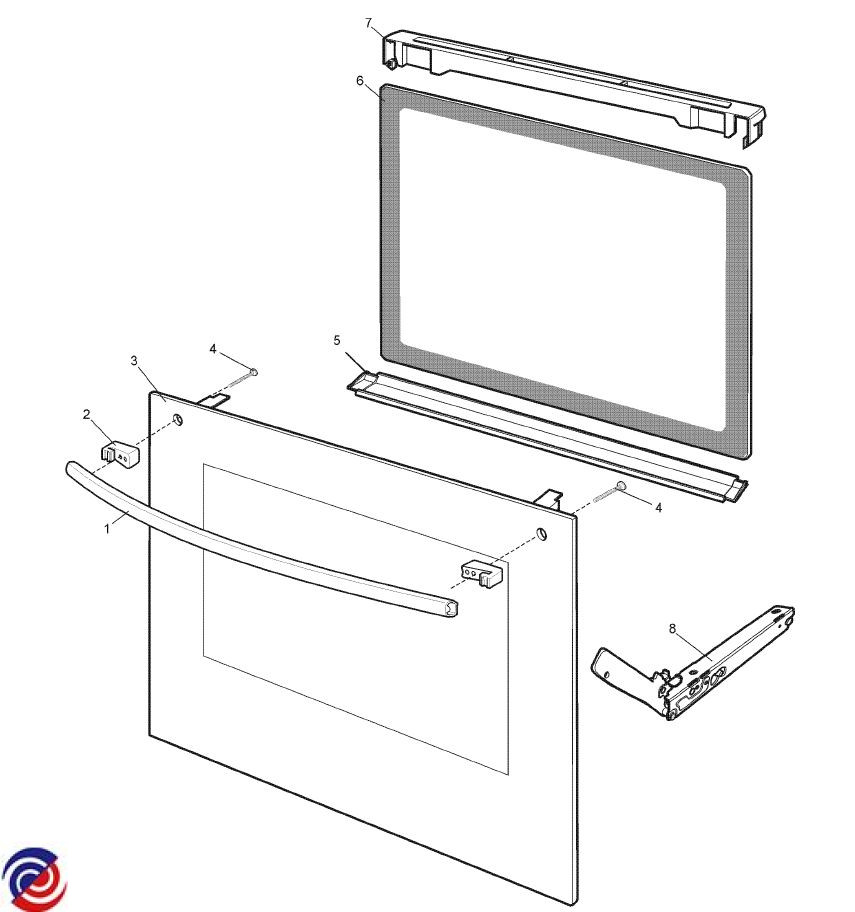

W0022966 HINGE DOOR

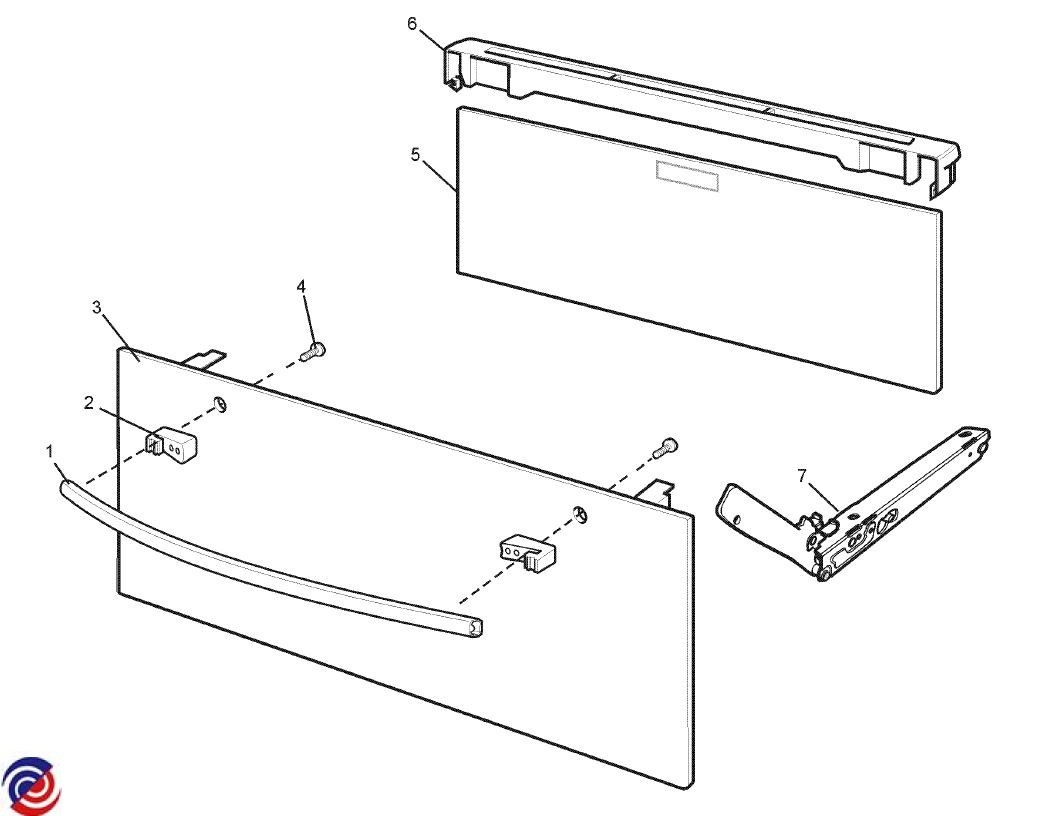

W0023085 HINGE DOOR GRILL

$64.25

W0045365 WASHER SEALING

$4.50

W0046406 CLIP MOUNTING ELEMENT

W0050309 LAMP

W0050403 MOTOR FAN OVEN

W0052258 DOOR OVEN INNER GLASS

W0052585 CANOPY FAN ASSY U/B NGD

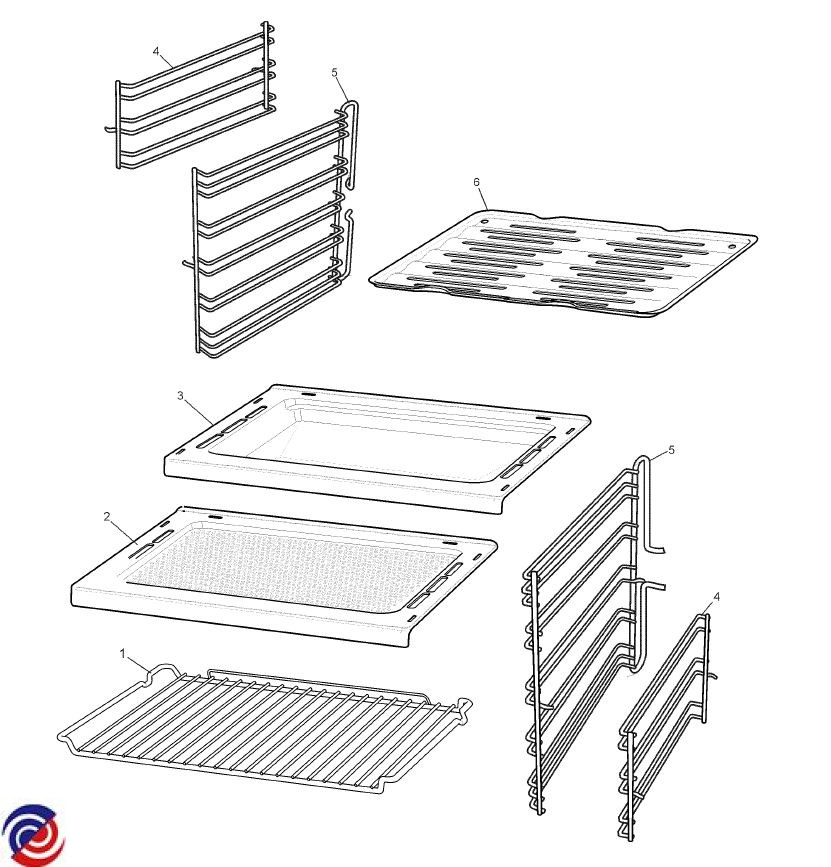

W0053530 SHELF OVEN

W0057166 CHEF SIMPSON WESTINGHOUSE COOKTOP CONTROL SWITCH MP101

W0057771 THERMOSTAT OVEN

W0058493 TRIM DOOR UPPER VENTED

W0061169 VALVE SOLENOID GAS-20VDC DBL

W0062420 LIGHT INDICATOR INC LENS

W0063564 CLOCK 3 BUTTON ECOTIME TOUCH

W0063839 BOX IGNITION 1P DSI REIGN.

W0147339 SEAL OVEN MODULAR PROFILE

W0166032 LAMP 25W SES E14 300C CLEAR

$10.00

W0011198 SUPPORT IGNITION B/I BIOS

$15.55

W0011262 PLATE MOUNTING SWITCH

$14.90

W0011271 PLATE AERATION OVEN BURNER

$25.70

W0011317 COVER OVEN BURNER

$114.60

W0011438 DOOR GRILL OUTER S/STEEL

$164.00

W0011472 PANEL DECK INTER GAS BIOS

$52.80

W0011479 PANEL TOP PYRO NGP

$43.20

W0011671 PANEL FAN COVER

$112.55

W0011863 VENT GRILLE

$17.10

W0011993 NUT METRIC M10 X 0.75MM

$4.50

W0012315 CLIP THERMOSTAT BIOS

$9.00

W0012318 CLIP STAND-OFF 22MM-GAS BIOS

$11.70

W0012562 MOUNT CAP F/FRAME R/H NGD

$5.80

W0012563 MOUNT CAP F/FRAME L/H NGD

$7.55

W0012621 WIRE ELECTRICAL FLAME SENSE

W0012749 HOLDER INJECTOR OVEN BURNER

$12.20

W0012774 CORD SERVICE 10 A BIOS 1500MM

$34.90

W0013320 INSULATION OVEN BACK DUO BIOS

$11.00

W0013563 SWITCH MULTI 4 GAS BIOS

$45.00

W0013625 FRAME CONTROL PANEL

W0013730 BUMPER STOP BLK

$6.55

W0014018 SCREW #6 X 9.5MM PAN PHIL ZC

$4.50

W0014019 SCREW #6X3.5X28 HILO PAN PH

$4.50

W0014023 SCREW #8 X 5/8 CSK #2PH AB BK

$4.50

W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK

W0014030 SCREW #8 X 8MM HEX/MULTI

$4.50

W0014031 SCREW #8 X 3/8 MUSH #2PH TC BK

$4.50

W0014079 BUSH MOUNT F/FRAME NGD

$7.25

W0027200 FRAME FRONT ENAM GAS SGWO NGP

$84.25

W0036213 SUPPORT ELEMENT GRILL

W0036953 KNOB CONTROL SILVER

W0037478 PLATE CVR TERM GAS B/I BIOS

W0037480 PLATE SUPPORT VALVE BIOS

W0039590 DOOR OVEN GLASS OUTER SS

W0039639 BASEPLATE

W0039691 PANEL GRILL TOP SGWO ENAM BIOS

W0040609 PANEL CONTROL & CLIPS

W0042640 CHANNEL FRONT SGWO RH NGD

W0042642 CHANNEL FRONT SGWO LH NGD

W0043579 TUBE OVEN SUPPLY BIOS

W0044827 FLUE DUCT OVEN U/B GAS BIOS

W0047469 SCREW M4 X 5 PAN #2 PH SML HD

$4.50

W0053262 REG GAS NG INTEG T/PT & SEAT

$27.50

W0053308 STICKER GAS TYPE NG

$4.00

W0053529 RACK SIDE SUPPORT OVEN EVOLVE

W0053531 RACK SIDE SUPPORT GRILL W/O

W0054086 SHIELD THERMO BULB BIOS

W0054657 INSULATION OVEN CABINET

W0054663 INSULATION GRILL SGWO BIOS

W0054671 INSULATION OVEN REAR

$18.70

W0056272 BRACE OVEN REAR BI BIOS

W0064592 SCREW TORQ #4 X 12 # PAN HEAD

W0065406 SCREW #8 X 3/4 STEPPED PAN BLK

W0065420 SCREW M4 X0.7X10 MUSH QUADRERX
