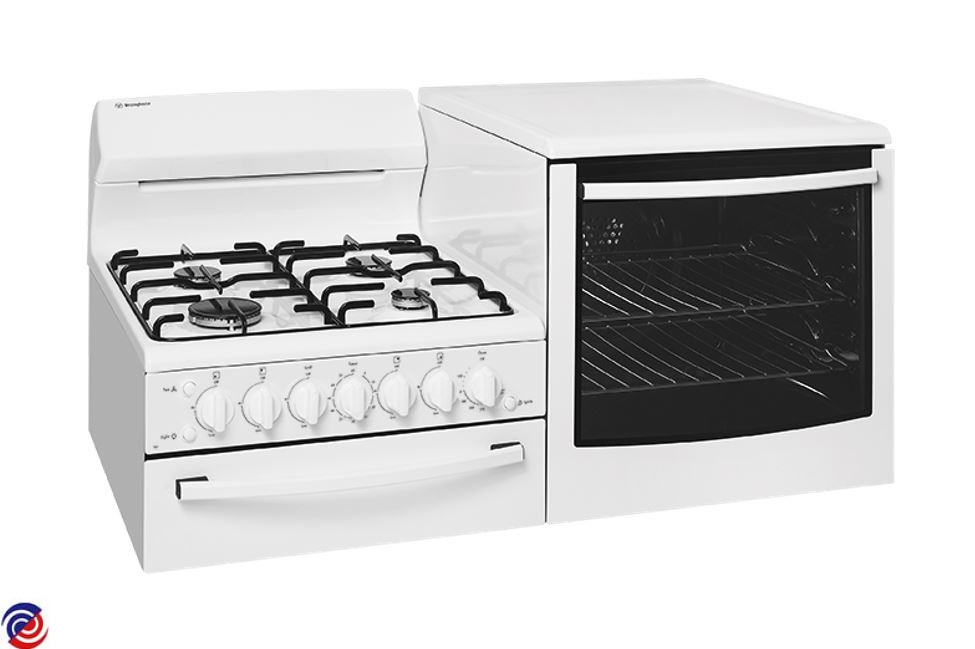

WDG103WBNG-L — 940001864 00
WESTINGHOUSE — Cooker Gas

W0011123 BURNER GRILL

W0011297 BLADE FAN

W0011400 DISH GRILL ENAM SEP GRILL

$68.20

W0011404 TRAY SCONE

$19.90

W0011899 IGNITOR OVEN BURNER

W0011909 HANDLE GRILL DISH

$9.90

W0011995 NUT M6 LH FAN MOTOR

W0012326 CLIP MOUNTING ELEMENT

W0012570 END CAP HANDLE BLK WEST NGD

$14.05

W0012724 SEAL VALVE SOURDILLON

W0012861 DOOR OVEN INNER GLASS

W0012990 SPACER HANDLE BLK FRESCO

$10.25

W0013199 SHELF OVEN

W0013627 TRIM DOOR UPPER VENTED

W0014040 SCREW 3/16X28 PAN PH TRILOB ZY

W0022616 BURNER CROWN RAPID CYLIND NAT

$44.00

W0022621 BURNER CROWN MEDIUM

W0022623 BURNER CROWN AUX CYLINDER NAT

$44.00

W0022807 HINGE DOOR OVEN

W0023241 HOLDER LAMP ASSY BIOS

W0027390 IGN BOX 6P - 220.240V JAVA

W0030552 THERMOCOUPLE OVEN BURNER

W0042758 SPARK PLUG GRILL DERLITE

W0046406 CLIP MOUNTING ELEMENT

W0050403 MOTOR FAN OVEN

W0053461 RACK GRILL INSERT

W0057776 THERMOCOUPLE 540 OVEN BURNER

W0060755 TIMER 60 MINUTE WESTLAKE

W0108991 BURNER CAP ENAM RAPID CYLINDER

W0108992 BURNER CAP ENAM SEMI-R CYLIND

W0108993 BURNER CAP ENAM AUX CYLINDER

W0147339 SEAL OVEN MODULAR PROFILE

W0011233 KNOB WEST 540 WHT FC GAS FRESC

W0011323 COVER OVEN BURNER

$73.75

W0011363 BRACKET GAS VALVE MOUNTING

$14.30

W0011366 BRACKET HOB SUPPORT FRESCO

$9.90

W0011374 BRKT IGNITION GRILL H/T 540

$12.60

W0011607 PNL CNT S/B SCR 510/511 BIOS

W0011674 PNL FAN COV GAS ENAM 540 BIOS

$23.15

W0011845 HINGE GR DOOR 540 FRESCO PH2

$7.70

W0011846 HINGE GR DOOR 540 FREE FRESCO

$53.85

W0011873 CHANNEL SPILL VENT 540 GIO

$22.00

W0011929 HNDL DOOR WEST 7820 WHITE

$60.95

W0012362 TRIVET ENAMEL STANDARD

W0012403 INJECTOR 1.75 ELUX WOK NG

$8.80

W0012521 SCREW M4 X 4 PAN #1PH SMALL HD

$4.50

W0012692 SKIRT KNOB GAS WHT FRESCO

W0012748 HOLDER INJECTOR OVEN

$10.45

W0012778 CORD SERVICE 10A

$10.05

W0013025 REGULATOR GAS NG INTEG TEST PT

W0013267 SHIELD WIRING HOB RC GAS FRES

$30.00

W0013268 SHIELD GRLL GAS BURNR FRSCO LH

W0013269 SHIELD GRLL GAS BURNR FRSCO RH

W0013331 INSULATION OVEN GAS 540 BIOS

$35.85

W0013342 INSUL GRILL CANOPY TOP FRESCO

$14.30

W0013446 JET BYPASS COPRECI 0.73

$8.30

W0013587 SHUTTER AERATION GRILL NG BIOS

$6.25

W0013599 THERMOSTAT COPRECI 1800MM COAX

W0013603 THERMOCOUPLE 540 GRILL BURNER

$44.90

W0013686 HOSE FLEX 1.7M GHW W/SWIVEL

$62.75

W0013731 BUMPER STOP GREY

$5.05

W0013861 SWITCH TOGGLE WHT

W0013862 SWITCH KIT MOMENTARY WHT

W0013897 INSTRUCTION GAS CONVERSION

W0013989 GRILL INJECT BLOCK FF FRESCO

$13.20

W0014026 SCREW #8 X 5/16 CSK #2PH AB BK

$4.50

W0014028 SCREW NO 8 X 8MM W/HD PD NI

$4.50

W0014030 SCREW #8 X 8MM HEX/MULTI

$4.50

W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK

$4.50

W0014064 CLIP BULB THERMOSTAT GAS (4MM)

$10.00

W0014129 SCREW M4 X 16MM HEX ZC

$4.50

W0021570 VALVE BSI FSG AUX

W0021571 VALVE BSI FSG SEMI RAPID

W0021572 VALVE BSI FSG RAPID

W0021574 VALVE BSI FSG GRILL

W0022644 SCREW 2.9 X 13 PAN T10 ZP PTFE

$4.50

W0022974 RESISTOR 1050 OHM 20W PYRO

$58.40

W0024929 INJECTOR GRILL 1.50MM

W0029628 PLUG SPARK 600 MM ENAMELLED

W0029629 PLUG SPARK 900 MM ENAMELLED

W0029931 PANEL CROWN ELEV ENAM FRESCO

$155.95

W0029932 F/FRONT PAINT ELEV GRILL FRESC

$70.00

W0029933 F/FRONT PAINT ELEV OVEN FRESCO

W0029940 PNL SIDE GRILL OUT R/H ELV FRE

$52.80

W0029941 PNL SIDE GRILL IN L/H ELEV FRE

W0029943 PNL SIDE OVEN OUT L/H ELEV FRE

$155.95

W0029946 PNL SIDE OVEN INN R/H ELEV FRE

W0029949 SUPPORT HINGE LH OVEN ELEV FRS

W0029950 SUPPORT HINGE RH OVEN ELEV FRS

W0030010 PNL SHIELD OVEN ENAM ELEV FRES

W0030023 DUCT OVEN ASSY ELEV ELEC FRESC

$10.00

W0030025 PANEL BACK WIRING GRILL ELEV F

$22.00

W0030026 PANEL BACK WIRING OVEN ELEV

W0030027 ANGLE STIFFENER OUTER BACK ELE

W0030037 TUBE OVEN LH LONG ELEVATED FRE

$36.05

W0030049 TUBE OVEN ELEVATED FRESCO

W0030093 PNL OUT OV DR ASS 540 WEST PRE

W0030106 PNL OUT GR DR ASSY 540 SMALL P

W0030114 PANEL HEAT SHIELD END CAP RH

W0030115 PANEL HEAT SHIELD END CAP LH

W0030188 BRACKET ANTI TILT ELEVATED

$12.60

W0030417 T'COUPLE TT ELUX BURNER 275

W0030418 T'COUPLE TT ELUX BURNER 500

W0030429 TUBE BURNER 540 R/F F

W0030430 TUBE BURNER 540 R/R

$20.00

W0030431 TUBE BURNER 540 L/R FF

$20.00

W0030440 TUBE BURNER GRILL FF

W0030448 BURNER BODY ASSY SEMI RAP NG

$34.75

W0030452 BURNER BODY ASSY RAPID NG

$24.95

W0030550 TUBE BURNER 540 L/F FF

W0030561 HOB 540R ENAM GAS STD FF

$250.00

W0030580 PIPE MANIFOLD ELEVATED FF

W0030583 PNL CNT FRONT SCR WDG103WA

$158.10

W0035457 BURNER NG

$24.85

W0035498 BURNER OVEN COMP ASSY 540 BIOS

W0038742 BRACKET MOUNTING GRILL UC20

W0038839 BRACKET SUPPORT HOB 600RC LHS

W0038840 BRACKET SUPPORT HOB 600RC RHS

W0046413 CLIP SPARK PLUG E/LUX

W0046720 NIPPLE INJ OVEN 1_60MM NG

W0046736 INJECTOR 1.00 H/P

$8.80

W0046737 INJECTOR 1.35 H/P

W0048101 ENDCAP REAR CONTROL PANEL RHS

W0048102 ENDCAP REAR CONTROL PANEL LHS

W0049998 SEAL HOB SIDE 855MM ELEV

$43.40

W0052926 SPACER FOOT UC20

W0053308 STICKER GAS TYPE NG

$4.00

W0053471 RACK SIDE GRILL LH/RH

$59.10

W0056283 OVEN BRACE 540 ASSY

$24.85

W0056765 FOOT BASE ELEVATED

W0056771 FOOT RUBBER COSMA TRIVET

W0064486 SCREW 3/16X28 PAN PH TRILOB BK

W0064528 SCREW NO 8 X 10MM W/HD

W0064532 SCREW #8 X 9/16 B/HD S/PT BKOX

$4.00

W0065458 NUT HEX M6

$4.50

W0151406 SCREW M4 X 10 PAN PHIL

W0154128 CANOPY GRILL GAS ASSY RC FF
