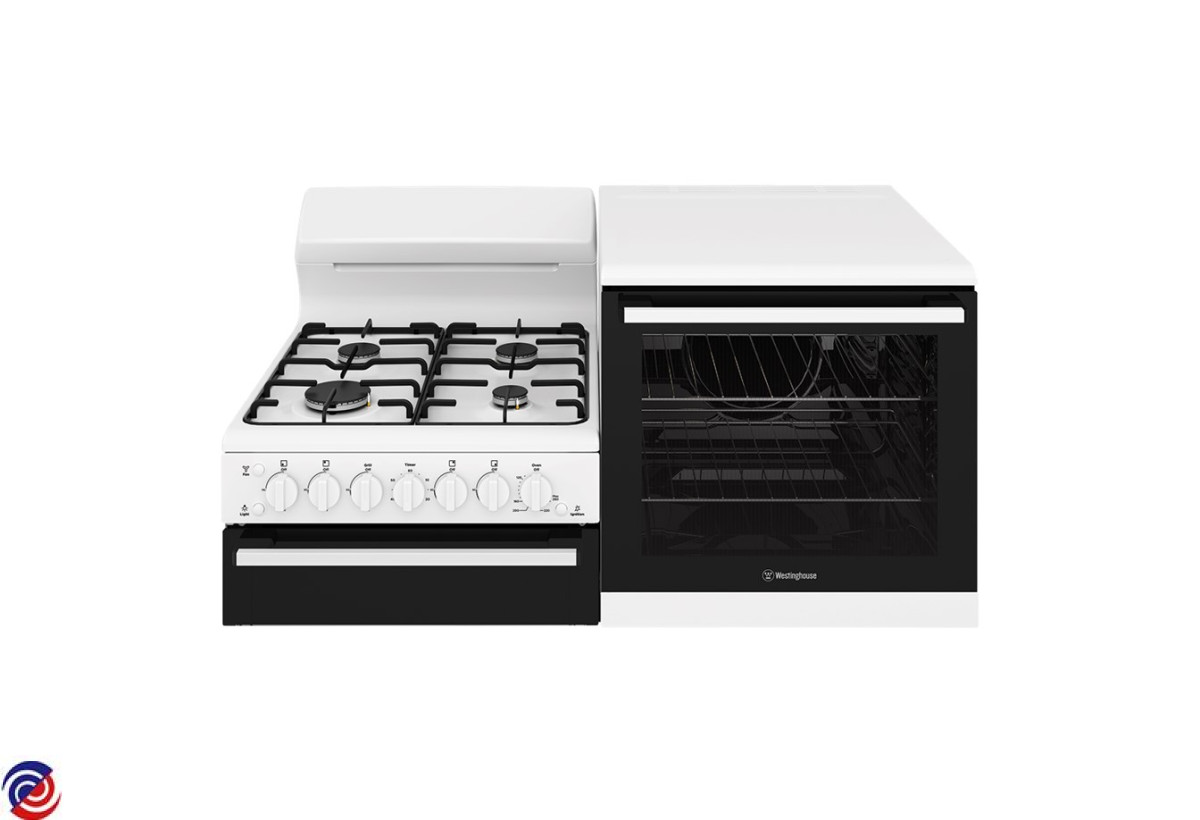

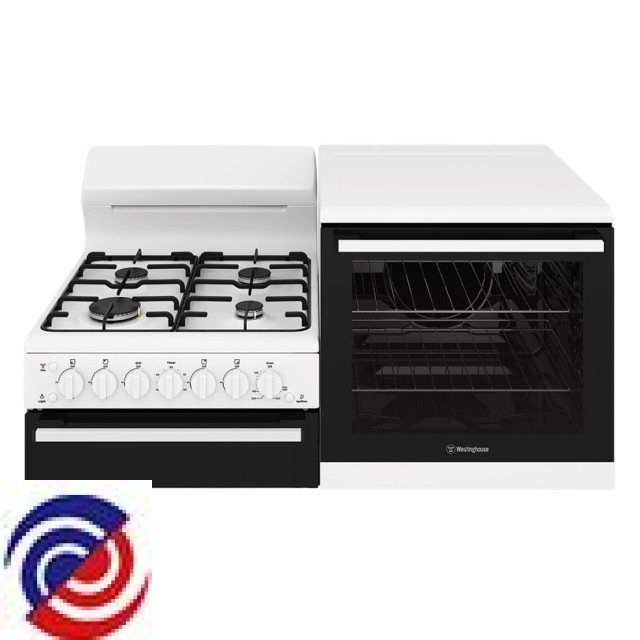

WDG110WCNG-R — 940598532 37
WESTINGHOUSE — Cooker Gas
Parts for WDG110WCNG-R
W0365466 DISH GRILL ENAMEL
$105.00
W0365467 RACK GRILL INSERT
$69.05
W0365487 CHEF ELECTROLUX WESTINGHOUSE OVEN DOOR SEAL GASKET
W0365529 CLIP MOUNTING ELEMENT
$10.00
W0365567 SHELF OVEN
$78.00
W0365624 CHEF ELECTROLUX WESTINGHOUSE BURNER OVEN FREESTANDING
$126.00
W0366269 THERMOCOUPLE TO SUIT ELECTROLUX AND WESTINGHOUSE GAS BURNERS
$57.95
W0368470 CAP TOP PAIR DOOR JONAH
$37.00
W0365519 DOOR OVEN INNER GLASS
$116.00
W0365676 THERMOCOUPLE OVEN BURNER
$62.00
W0365725 CHEF WESTINGHOUSE COOKTOP GAS PIEZO IGNITOR WHITE
$33.00
W0365728 BURNER CAP ENAM RAPID CYLINDER
$40.00
W0365755 SPARK PLUG GRILL DERLITE
$21.30
W0365758 BURNER GRILL
$130.00
W0365842 GRILL INJECT BLOCK FF FRESCO
$13.20
W0365868 WIRE IGNITION GRILL 300MM
$14.60
W0365880 HINGE GR DOOR 540 FRESCO PH2
$7.00
W0365893 WIRE IGNITION H/S PIEZO 1500MM
$18.00
W0365911 CONVERSION KIT LPG
$19.00
W0365922 BRACKET ANTI TILT ELEVATED
$5.50
W0365927 BRKT IGNITION GRILL H/T 540
$4.00
W0365962 DOOR HANDLE ASPIRE
$23.00
W0365977 PANEL BACK WIRING GRILL ELEV F
$24.00
W0365993 BURNER CAP ENAM SEMI-R CYLIND
$28.00
W0365997 ENDCAP CNTRL PANEL FRESCO PAIR
$24.00
W0366022 BURNER CAP ENAM AUX CYLINDER
$30.00
W0366038 VALVE COPRECCI FSG GRILL
$49.00
W0366059 BRACE OVEN REAR 540 BIOS
$29.05
W0366062 VALVE COPRECCI FSG AUX
$49.00
W0366063 VALVE COPRECCI FSG SEMIRAPID
$49.00
W0366064 VALVE COPRECCI FSG RAPID
$49.00
W0366095 PANEL BACK WIRING OVEN ELEV
$32.55
W0366110 SHIELD WIRING HOB RC GAS FRES
$36.00
W0366151 TRIVET ENAMEL STANDARD
$46.00
W0366174 INSULATION OVEN GAS 540 BIOS
$46.00
W0366184 BURNER CROWN AUX CYLINDER NAT
$47.00
W0366201 RACK,PACK
$48.05
W0366207 THERMOCOUPLE GRILL BURNER 400
$52.00
W0366217 BURNER CROWN RAPID CYLIND NAT
$57.00
W0366218 BURNER CROWN SEMI-RAP CYL NAT
$56.00
W0366221 SEAL HOB SIDE 855MM ELEV
$51.00
W0366259 RACK SIDE GRILL LH/RH
$58.05
W0366265 T'COUPLE TT ELUX BURNER 275
$61.00
W0366284 HOSE FLEX 1.7M GHW W/SWIVEL
$79.05
W0366287 HINGE GR DOOR 540 FREE FRESCO
$67.00
W0366290 PNL SIDE GRILL OUT L/H ELV FRE
$64.10
W0366343 COVER OVEN BURNER
$93.00
W0366358 CONTROL PANEL,REAR,NO LOGO
$99.00
W0366372 PNL SIDE OVEN OUT R/H ELEV FRE
$118.00
W0366491 PANEL CROWN ELEV ENAM FRESCO
$200.00
W0366498 THERMOSTAT COPRECI 1800MM COAX
$221.00
W0366523 HOB 540R ENAM GAS STD FF
$283.00
W0366675 FRONT FRAME,GRILL,PAINT
$24.75
W0366677 PNL SIDE GRILL IN R/H ELEV FRE
W0366678 PNL SIDE OVEN INN L/H ELEV FRE
W0366680 BASE PANEL,COOKER
$77.00
W0366690 STIFFENER,ANGLE BRACKET,OUTER,
$6.45
W0366691 BRACKET HOB SUPPORT 540 BENCHL
$11.00
W0366694 TUBE OVEN ELEVATED FRESCO
$9.30
W0366695 TUBE OVEN RH ELEVATED SHORT FR
W0366771 PIPE MANIFOLD ELEVATED FF
W0366849 TUBE BURNER GRILL FF
W0367011 PANEL,OUTER,GRILL,ASSEMBLY 540
$33.50
W0367054 CONTROL PANEL,SCREEN,WLG510WC
$73.00
W0367630 SHIELD GRLL GAS BURNR FRSCO LH
W0367631 SHIELD GRLL GAS BURNR FRSCO RH
W0367633 NIPPLE,INJECTOR,NG,1.50, H/P
W0367928 NUT HEX M6
$4.00
W0367942 SCREW #8 x1/2 PH2 MUSH WASHER
$5.50
W0367961 SCREW M4 X 4 PAN #1PH SMALL HD
$4.00
W0367983 SCREW PF K40X 20 T20 ROUND
$5.50
W0367997 SPACER,HANDLE,BLACK,ASPIRE
$5.50
W0368025 SCREW M4 X 16MM HEX ZC
$4.00
W0368028 SCREW #8 X 8MM HEX/MULTI
$5.50
W0368029 SCREW #8 X 1/2 MUSH #2PH AB BK
$5.50
W0368064 BRACKET MOUNTING GRILL
$5.50
W0368075 KNOB,WHITE,FREE-STANDING,COOKE
$6.00
W0368084 ENDCAP HANDLE EXTRUDED ASPIRE
$6.00
W0368094 BUMPER STOP GREY
$5.80
W0368095 TUBE BURNER 540 L/F FF
$5.90
W0368103 SHUTTER AERATION GRILL NG BIOS
$6.25
W0368194 IGNITOR OVEN BURNER
$11.00
W0368199 CLIP BULB THERMOSTAT GAS (4MM)
$10.00
W0368212 HOLDER INJECTOR OVEN
$11.00
W0368215 BRACKET F/FAIL GAS RAIL FF
$10.60
W0370083 SHIELD, HEAT PROTECTION, END C
$4.00
W0370324 BURNER BODY, RAPID
W0370325 BURNER BODY, SEMI-RAPID
W0370326 BURNER BODY, AUXILIARY
W0370396 BURNER PIPE, RIGHT, FRONT, 540
$7.80
W0370425 BURNER PIPE, REAR, LEFT, 540
$8.45
W0370427 BURNER PIPE, REAR, RIGHT, 540
$8.15
W0370502 HINGE OVEN DOOR 5.2-5.8KG
$41.00
W0370510 HINGE RECEIVER 540/600 FS
$5.50
W0370605 FF ELEV PP GLOBAL HINGE
$5.50
W0370775 DOOR PANEL, OUTER, ASSEMBLY
$69.00
W0370901 SCREW, M4 X 8.5 T20 ZINC
$5.50
W0370950 CONVERSION KIT, LPG, FRESCO ST
$14.95
W0372739 BRACKET SUPP HOB 600RC LHS/RHS
$16.00
W0372835 ENDCAP REAR C/PANEL 540 PAIR
$22.00
