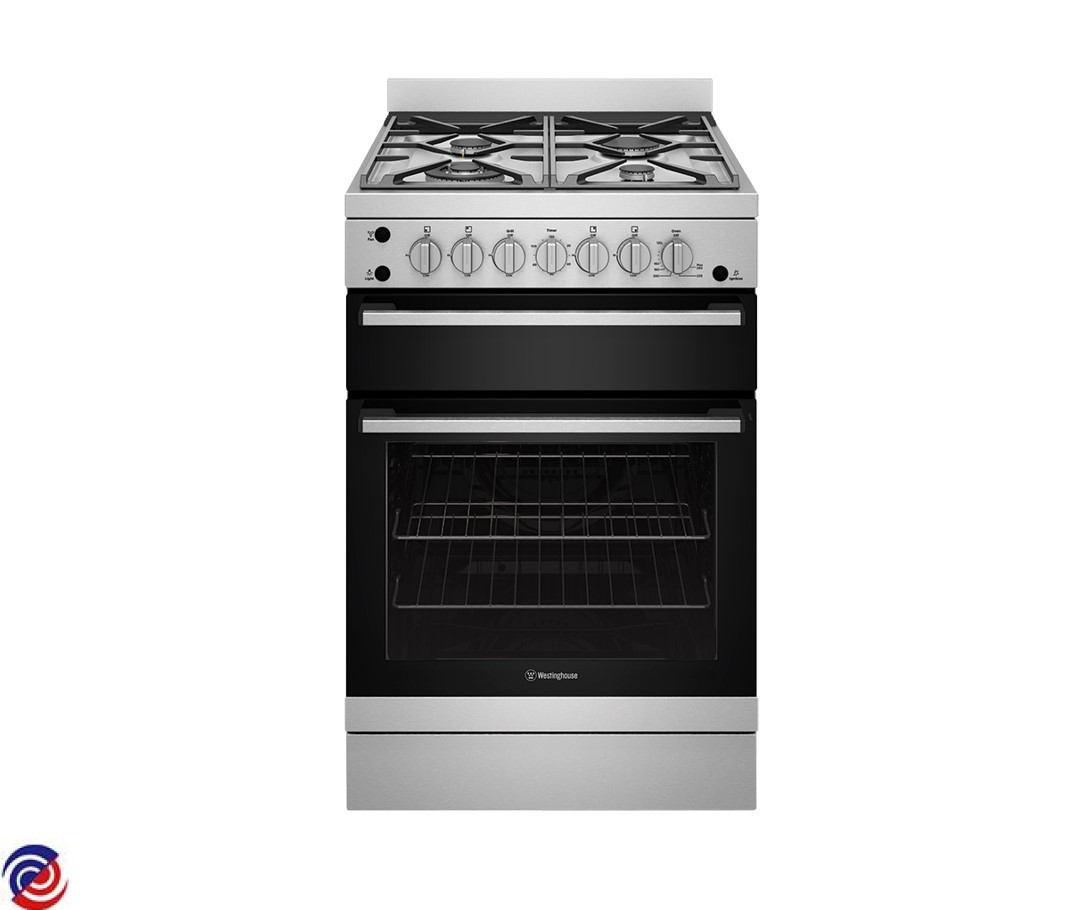

WFG612SCLP — 940598522 00
WESTINGHOUSE — Cooker Gas
Parts for WFG612SCLP

W0365477 IMPELLER OVEN FAN 160 MM
$29.95

W0365480 ELECTROLUX WESTINGHOUSE OVEN HALOGEN GLOBE 25W G9
$27.00

W0365487 CHEF ELECTROLUX WESTINGHOUSE OVEN DOOR SEAL GASKET

W0365529 CLIP MOUNTING ELEMENT
$10.00

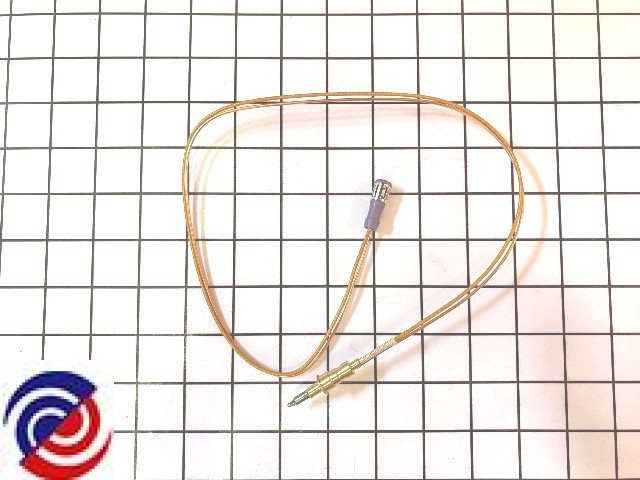

W0366269 THERMOCOUPLE TO SUIT ELECTROLUX AND WESTINGHOUSE GAS BURNERS
$57.95

W0366276 COVER GRILL DISH
$64.00

W0274430 BURNER BODY AUXILIARY
$37.00

W0274431 BURNER BODY SEMI-RAPID
$25.00

W0274432 BURNER BODY TRIPLE CROWN BURNE
$81.00

W0282683 BURNER BODY RAPID
$22.80

W0365485 TIMER 120 MINUTE WESTLAKE
$69.00

W0365490 HINGE DOOR OVEN
$80.00

W0365638 DISH ROASTING DEEP ENAM
$100.00

W0365676 THERMOCOUPLE OVEN BURNER
$62.00

W0365720 PLUG SPARK WOK 900MM ENAMELLED
$9.95

W0365727 PLUG SPARK 900 MM ENAMELLED
$24.00

W0365755 SPARK PLUG GRILL DERLITE
$21.30

W0365811 HANDLE DOOR EXTRUDED ASPIRE
$12.00

W0365842 GRILL INJECT BLOCK FF FRESCO
$13.20

W0365856 BRACKET SUPPORT GRILL BOX L/H
$14.30

W0365857 BRACKET SUPPORT GRILL BOX R/H
$14.30

W0365872 PLATE CVR TERM GAS 540 BIOS
$16.00

W0365880 HINGE GR DOOR 540 FRESCO PH2
$7.00

W0365917 ANTI TILT PLATE
$20.00

W0365927 BRKT IGNITION GRILL H/T 540
$4.00

W0365934 FOOT LEVELING
$20.00

W0365941 TRAY SCONE
$19.20

W0365947 BRACKET STABIL. BOLT ASSY FRES
$21.00

W0365971 SHIELD SPILLAGE
$24.00

W0365994 BURNER CAP MATTE AUX CYLINDER
$27.00

W0365995 BURNER CAP MATTE SEMI-R CYLIND
$24.00

W0366005 PNL FAN COV GAS ENAM 540 BIOS
$23.15

W0366030 LAMP OVEN HALOGEN 25W 35.5MM
$28.00

W0366038 VALVE COPRECCI FSG GRILL
$49.00

W0366062 VALVE COPRECCI FSG AUX
$49.00

W0366063 VALVE COPRECCI FSG SEMIRAPID
$49.00

W0366064 VALVE COPRECCI FSG RAPID
$49.00

W0366065 VALVE COPRECCI FSG TC WO
$31.00

W0366111 SERVICE CORD (10A) MOULDED GRO
$34.95

W0366134 OVEN BRACE 600UP ASSY FRESCO
$24.20

W0366174 INSULATION OVEN GAS 540 BIOS
$46.00

W0366179 PANEL SPLASHBACK 600 SS FRESCO
$47.00

W0366207 THERMOCOUPLE GRILL BURNER 400
$52.00

W0366220 T'COUPLE TT ELUX BRNR WOK 275
$54.00

W0366265 T'COUPLE TT ELUX BURNER 275
$61.00

W0366287 HINGE GR DOOR 540 FREE FRESCO
$67.00

W0366291 PANEL SIDE GREY PRE PAINT
$81.00

W0366343 COVER OVEN BURNER
$93.00

W0366367 PANEL KICK 600 RFP FRESCO COLO
$111.00

W0366394 GLASS OV DR INNER 600 FRESCO
$111.00

W0366458 TRIVET WOK,600 ASPIRE PAIR
$106.00

W0366594 HOB ASSY GAS S/S 600 FF FC WES
$473.00

W0366683 COVER PANEL,WIRING PROTECTION,
$37.00

W0366686 F/FRONT PAINT 600FC FRESCO S/G

W0366849 TUBE BURNER GRILL FF

W0366854 TUBE BURNER 600 R/L FRESCO FF

W0366855 TUBE BURNER 540 R/F F
$7.00

W0366856 TUBE OVEN SUPPLY 600SI FRESCO

W0366998 KNOB,GREY,GAS,ASSEMBLY,ASPIRE
$12.00

W0367006 DOOR PANEL,OUTER,OVEN,ASSEMBLY
$71.00

W0367009 DOOR PANEL,OUTER,GRILL,ASSEMBL
$35.80

W0367060 CONTROL PANEL,SCREEN,WFG612SC
$110.00

W0367433 GASKET VALVE COPRICI

W0367639 MANIFOLD,PIPE,ASSEMBLY,600FC

W0367640 SCREW M4X16 PAN PHIL ZC HZ

W0367641 BRACKET F/FAIL GAS RAIL FRESCO

W0367928 NUT HEX M6
$4.00

W0367935 SCREW #8 X 5/16 CSK #2PH AB BK
$5.50

W0367936 SCREW #10-16X5/8 PAN PH2 BLK
$4.00

W0367938 SCREW NO 8 X 8MM W/HD PD NI
$4.00

W0367939 SCREW M4 X 15 HEX ZC
$4.00

W0367961 SCREW M4 X 4 PAN #1PH SMALL HD
$4.00

W0367997 SPACER,HANDLE,BLACK,ASPIRE
$5.50

W0368028 SCREW #8 X 8MM HEX/MULTI
$5.50

W0368029 SCREW #8 X 1/2 MUSH #2PH AB BK
$5.50

W0368030 NUT M6 LH FAN MOTOR
$4.50

W0368050 WASHER R-FIT SWITCH FRESCO
$4.00

W0368064 BRACKET MOUNTING GRILL
$5.50

W0368089 EVEREL SWITCH MOMENTARY 90
$6.00

W0368094 BUMPER STOP GREY
$5.80

W0368103 SHUTTER AERATION GRILL NG BIOS
$6.25

W0368130 SUPPORT COUNTER FRESCO
$9.00

W0368139 SCREW
$8.00

W0368140 EVEREL SWITCH TOGGLE 90
$8.00

W0368150 TUBE BURNER 540 R/R
$7.75

W0368156 TUBE BURNER 540 L/F FRESCO FF
$9.00

W0368159 FOOT TRIVET
$9.00

W0368173 SWITCH BUTTON BLACK
$10.00

W0368175 SWITCH BODY BLACK
$10.00

W0368194 IGNITOR OVEN BURNER
$11.00

W0368199 CLIP BULB THERMOSTAT GAS (4MM)
$10.00

W0368212 HOLDER INJECTOR OVEN
$11.00

W0373300 RACK PACK CFG504 JONAH
$72.00

W0373415 T'STAT COPRECI 1000 MM COAX
$97.00
