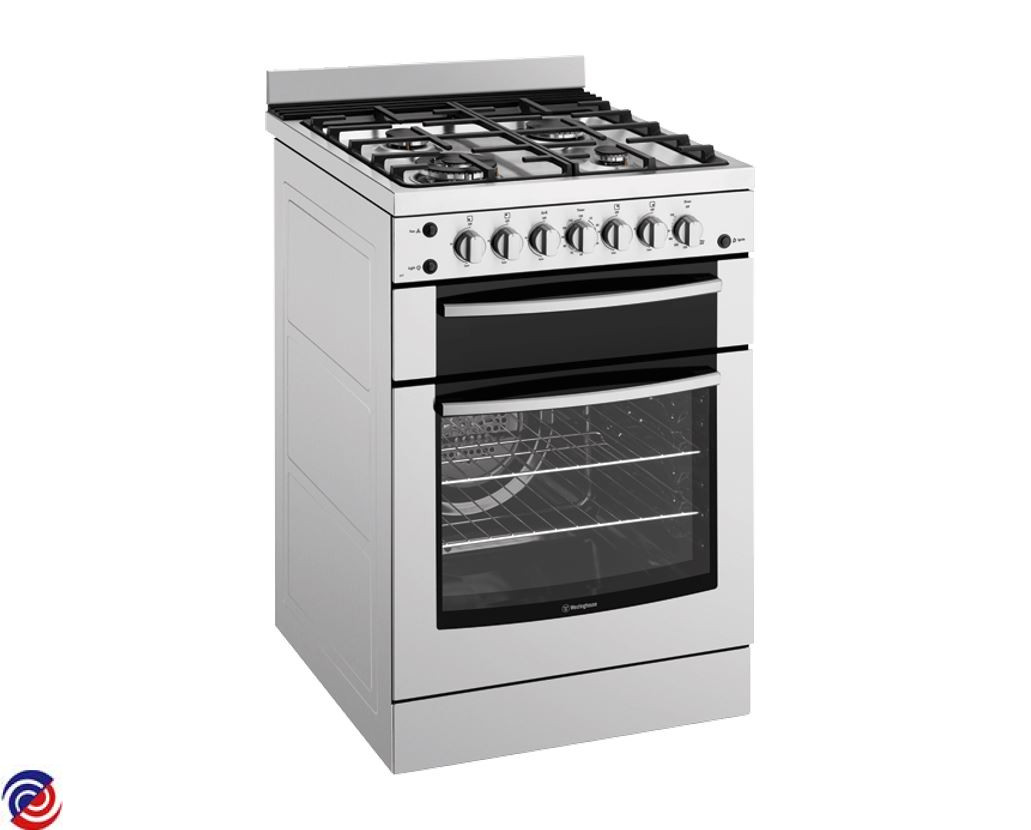

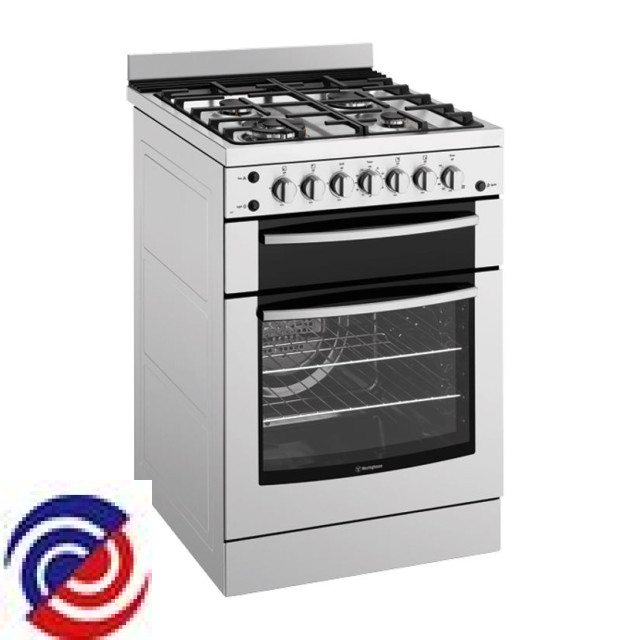

WFG617SANG — 940001832 19
WESTINGHOUSE — Cooker Gas

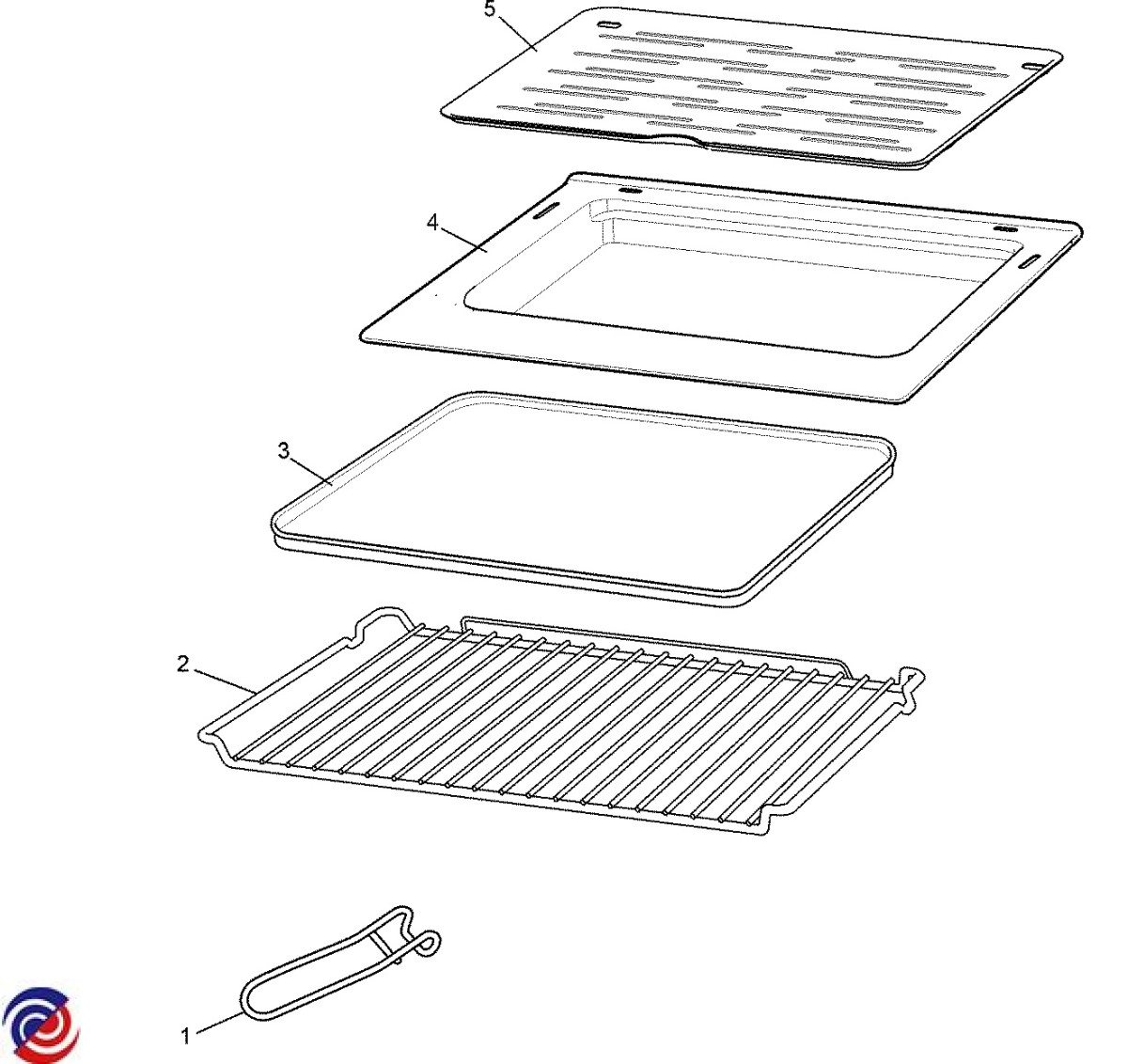

Parts for WFG617SANG

W0011123 BURNER GRILL
W0011297 BLADE FAN

W0011319 COVER GRILL DISH

W0011404 TRAY SCONE
$19.90
.jpg)
W0011899 IGNITOR OVEN BURNER

W0011922 HANDLE DOOR
$32.10

W0011995 NUT M6 LH FAN MOTOR
W0012326 CLIP MOUNTING ELEMENT
W0012570 END CAP HANDLE BLK WEST NGD
$14.05

W0012724 SEAL VALVE SOURDILLON
.jpg)
W0012990 SPACER HANDLE BLK FRESCO
$10.25

W0013199 SHELF OVEN

W0013702 TIMER 120 MINUTE WESTLAKE

W0013859 KIT SWITCH TOGGLE BLACK
.jpg)
W0013860 SWITCH KIT MOMENTARY BLK
W0014040 SCREW 3/16X28 PAN PH TRILOB ZY

W0022617 BURNER CROWN RAPID CYLINDER

W0022619 BURNER SEMI-RAPID CYLIND
$40.00

W0022624 BURNER CROWN AUX CYLINDER

W0022742 SPARK PLUG IGNITOR 600 MM

W0022807 HINGE DOOR OVEN
W0027342 GRILL DISH GIO ENAMEL
$105.45
W0027390 IGN BOX 6P - 220.240V JAVA
W0029488 GRILL GRABBER FORTE
$4.50
W0029889 PNL OUT OV DR ASY 600FC SS WES
W0042758 SPARK PLUG GRILL DERLITE
W0046406 CLIP MOUNTING ELEMENT
W0050403 MOTOR FAN OVEN

W0057757 T'STAT COPRECI 1000 MM COAX

W0057776 THERMOCOUPLE 540 OVEN BURNER

W0147339 SEAL OVEN MODULAR PROFILE
W0166032 LAMP 25W SES E14 300C CLEAR
$10.00

W0011126 BASE BURNER AUX IGN NG
$29.05

W0011264 PLATE CVR TERM ELEC BIOS
$13.85

W0011323 COVER OVEN BURNER
$73.75

W0011364 BRACKET GAS PIPE 540 FRESCO

W0011374 BRKT IGNITION GRILL H/T 540
$12.60

W0011383 BRACKET SUPPORT GRILL BOX R/H
$14.30

W0011384 BRACKET SUPPORT GRILL BOX L/H
$14.30

W0011389 BRACKET STABIL. BOLT ASSY FRES
$19.85

W0011456 PNL OUT GR DR ASSY 600 SM WHT
$162.00

W0011514 PANEL SIDE SS VINYL FRESCO
$125.30

W0011523 PANEL COVER WIRE 600 S/G FRESC
$39.10

W0011630 PANEL CONTROL SCREEN WFG617SA
$175.00

W0011700 PANEL SPLASHBACK 600 SS FRESCO
$36.95

W0011845 HINGE GR DOOR 540 FRESCO PH2
$7.70

W0011846 HINGE GR DOOR 540 FREE FRESCO
$53.85

W0011972 TUBE BURNER 540 L/F FRESCO FF

W0011976 TUBE BURNER 600 F/R FRESCO FFG
$24.20

W0011977 TUBE BURNER 600 R/R FRESCO FFG
$24.20

W0011978 TUBE BURNER 600 GRILL FRESCO
$24.20

W0011979 TUBE BURNER 600 R/L FRESCO FF
$33.00

W0012082 FLUE DUCT OVEN 540 GAS BIOS
$6.05

W0012403 INJECTOR 1.75 ELUX WOK NG
$8.80

W0012417 SUPPORT COUNTER FRESCO
$7.05

W0012521 SCREW M4 X 4 PAN #1PH SMALL HD
$4.50

W0012748 HOLDER INJECTOR OVEN
$10.45

W0012778 CORD SERVICE 10A
$10.05

W0012880 GLASS OV DR INNER 600 FRESCO
$96.35

W0012913 CANOPY GRILL GAS FF FRESCO
$27.50

W0013025 REGULATOR GAS NG INTEG TEST PT

W0013243 PIPE MANIFOLD 600ALL GASFRESCO

W0013263 SHIELD SPILLAGE
$17.45

W0013342 INSUL GRILL CANOPY TOP FRESCO
$14.30

W0013446 JET BYPASS COPRECI 0.73
$8.30

W0013467 OVEN BRACE 600UP ASSY FRESCO
$24.85

W0013587 SHUTTER AERATION GRILL NG BIOS
$6.25

W0013603 THERMOCOUPLE 540 GRILL BURNER
$44.90

W0013628 TRIM DOOR TOP VENT 600 FRESCO
$31.90

W0013731 BUMPER STOP GREY
$5.05

W0013897 INSTRUCTION GAS CONVERSION

W0013989 GRILL INJECT BLOCK FF FRESCO
$13.20

W0014022 SCREW #10-16X5/8 PAN PH2 BLK
$4.50

W0014026 SCREW #8 X 5/16 CSK #2PH AB BK
$4.50

W0014028 SCREW NO 8 X 8MM W/HD PD NI
$4.50

W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK

W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50

W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50

W0014064 CLIP BULB THERMOSTAT GAS (4MM)
$10.00

W0014129 SCREW M4 X 16MM HEX ZC
$4.50

W0021433 FOOT TRIVET
$7.05

W0021570 VALVE BSI FSG AUX

W0021571 VALVE BSI FSG SEMI RAPID

W0021572 VALVE BSI FSG RAPID

W0021573 VALVE BSI FSG T/C

W0021774 HOB ASSY GAS S/S 600 FF FC WES
$280.45

W0022171 FOOT LEVELING
$16.35

W0022626 BURNER CAP MATT RAPID CYLINDER

W0022627 BURNER CAP MATTE SEMI-R CYLIND
$22.35

W0022628 BURNER CAP MATTE AUX CYLINDER
$22.35

W0022744 SPARK PLUG IGNITOR 900 MM

W0029662 ANTI TILT PLATE
$15.65

W0029802 TUBE OVEN SUPPLY 600SI FRESCO
$24.20

W0029831 BRACE LOWER 600UP

W0029884 WIRE HIGH VOLTAGE WFG617 650MM
$14.50

W0029885 WIRE HIGH VOLTAGE WF617 1100MM
$16.50

W0029960 F/FRONT PAINT 600FC FRESCO S/G

W0035498 BURNER OVEN COMP ASSY 540 BIOS

W0035788 DEFLECTOR HEAT GRILL UC20

W0038742 BRACKET MOUNTING GRILL UC20

W0041124 PANEL FAN COVER GAS ENAM BIOS

W0041134 PANEL KICK 600 RFP FRESCO

W0045366 WASHER R-FIT SWITCH FRESCO
$4.50

W0046663 TRIVET STD/WOK FC 600 FRSCO

W0046720 NIPPLE INJ OVEN 1_60MM NG

W0046736 INJECTOR 1.00 H/P
$8.80

W0046737 INJECTOR 1.35 H/P

W0053308 STICKER GAS TYPE NG
$4.00

W0054664 INSULATION OVEN CABINET

W0064592 SCREW TORQ #4 X 12 # PAN HEAD

W0065406 SCREW #8 X 3/4 STEPPED PAN BLK

W0065458 NUT HEX M6
$4.50

W0102393 SPARK PLUG WOK 900MM

W0109033 CLIP SPARK PLUG ELUX 125-8-356

W0109968 T'COUPLE TT ELUX BURNER 275

W0109970 THERMOCOUPLE 500MM

W0110088 BURNER ASSY TRIPLE CROWN WOK

W0110093 BASE BURNER RAPID IGN NG
$13.90

W0110096 BURNER BODY ASSY S/RAP IGN NG

W0110103 BURNER ASSY WOK NG
$40.00

W0114680 HOLDER LAMP ASSY BIOS

W0154046 SLIDER GRILL DOUBLE ACTION LH
$44.00

W0154047 SLIDER GRILL DOUBLE ACTION RH
$44.00

W0154099 KNOB ASSY SILVE WEST GAS FRSCO
