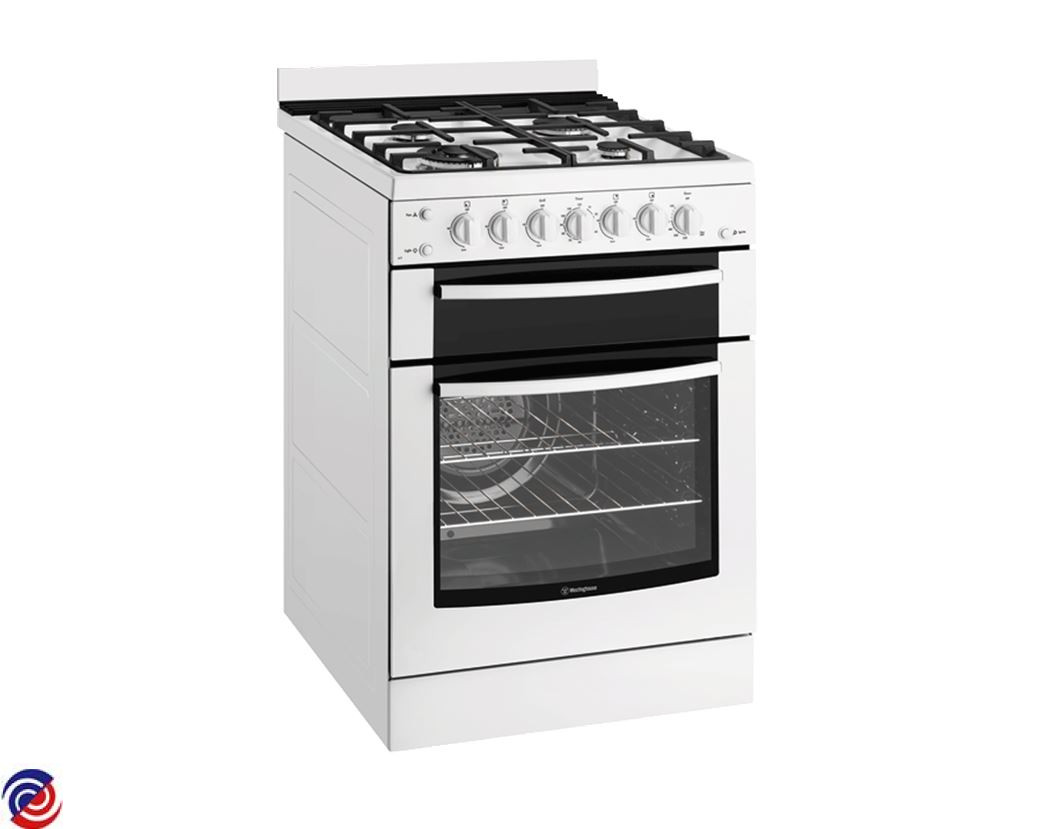

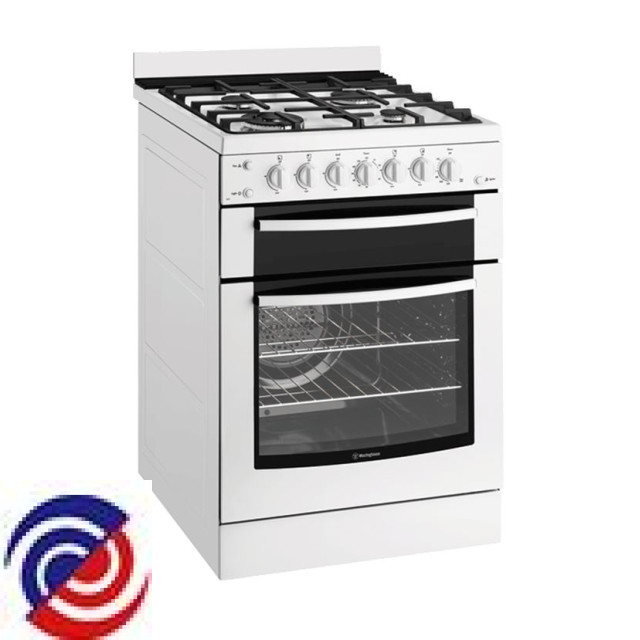

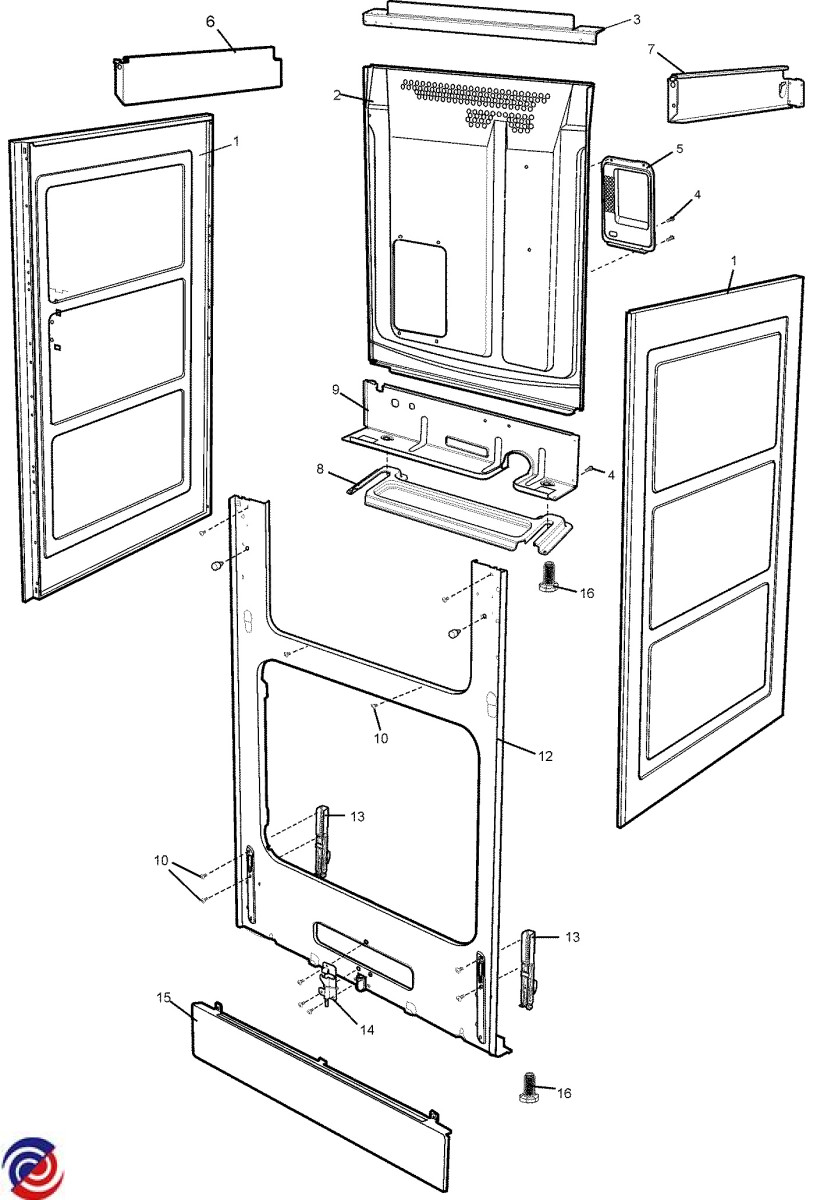

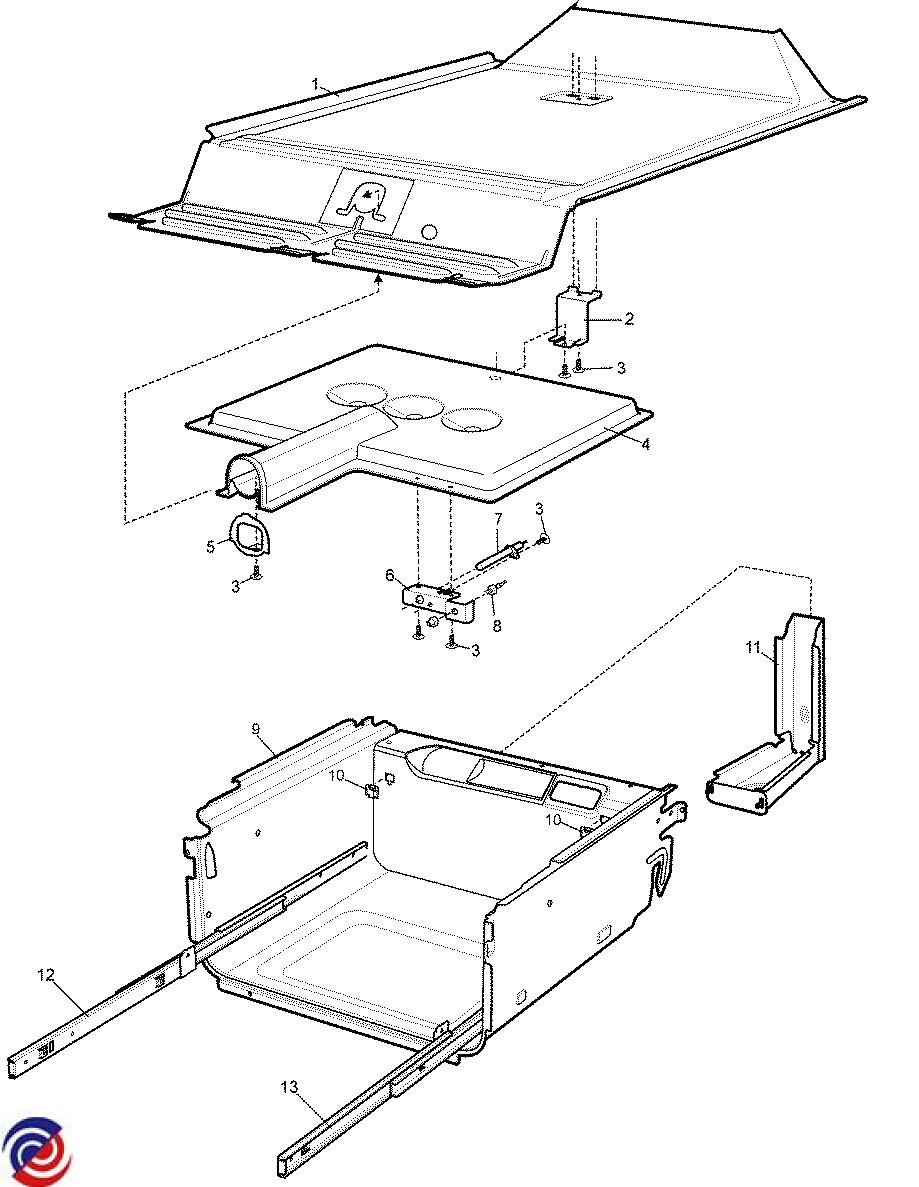

WFG617WALP — 940001835 16
WESTINGHOUSE — Cooker Gas

W0011123 BURNER GRILL

W0011297 BLADE FAN

W0011319 COVER GRILL DISH

W0011404 TRAY SCONE

$19.90

W0011899 IGNITOR OVEN BURNER

W0011995 NUT M6 LH FAN MOTOR

W0012326 CLIP MOUNTING ELEMENT

W0012570 END CAP HANDLE BLK WEST NGD

$14.05

W0012724 SEAL VALVE SOURDILLON

W0012990 SPACER HANDLE BLK FRESCO

$10.25

W0013199 SHELF OVEN

W0013702 TIMER 120 MINUTE WESTLAKE

W0014040 SCREW 3/16X28 PAN PH TRILOB ZY

W0022617 BURNER CROWN RAPID CYLINDER

W0022619 BURNER SEMI-RAPID CYLIND

$40.00

W0022624 BURNER CROWN AUX CYLINDER

W0022742 SPARK PLUG IGNITOR 600 MM

W0022807 HINGE DOOR OVEN

W0027342 GRILL DISH GIO ENAMEL

$105.45

W0027390 IGN BOX 6P - 220.240V JAVA

W0029488 GRILL GRABBER FORTE

$4.50

W0042758 SPARK PLUG GRILL DERLITE

W0046406 CLIP MOUNTING ELEMENT

W0050403 MOTOR FAN OVEN

W0057757 T'STAT COPRECI 1000 MM COAX

W0057776 THERMOCOUPLE 540 OVEN BURNER

W0147339 SEAL OVEN MODULAR PROFILE

W0166032 LAMP 25W SES E14 300C CLEAR

$10.00

W0011126 BASE BURNER AUX IGN NG

$29.05

W0011264 PLATE CVR TERM ELEC BIOS

$13.85

W0011323 COVER OVEN BURNER

$73.75

W0011364 BRACKET GAS PIPE 540 FRESCO

W0011374 BRKT IGNITION GRILL H/T 540

$12.60

W0011383 BRACKET SUPPORT GRILL BOX R/H

$14.30

W0011384 BRACKET SUPPORT GRILL BOX L/H

$14.30

W0011389 BRACKET STABIL. BOLT ASSY FRES

$19.85

W0011456 PNL OUT GR DR ASSY 600 SM WHT

$162.00

W0011513 PANEL SIDE WHITE FRESCO

$89.30

W0011523 PANEL COVER WIRE 600 S/G FRESC

$39.10

W0011632 PANEL CONTROL SCREEN WFG617WA

$185.65

W0011699 PANEL KICK 600 SEP WHT FRESCO

$28.00

W0011702 PANEL SPLASHBACK 600 WHT

$36.95

W0011845 HINGE GR DOOR 540 FRESCO PH2

$7.70

W0011846 HINGE GR DOOR 540 FREE FRESCO

$53.85

W0011929 HNDL DOOR WEST 7820 WHITE

$60.95

W0011972 TUBE BURNER 540 L/F FRESCO FF

W0011976 TUBE BURNER 600 F/R FRESCO FFG

$24.20

W0011977 TUBE BURNER 600 R/R FRESCO FFG

$24.20

W0011978 TUBE BURNER 600 GRILL FRESCO

$24.20

W0011979 TUBE BURNER 600 R/L FRESCO FF

$33.00

W0012064 F/FRONT PAINT 600FC FRESCO S/G

$66.00

W0012082 FLUE DUCT OVEN 540 GAS BIOS

$6.05

W0012394 INJECTOR INJ OVEN 0.95MM LP

W0012401 INJECTOR AUX LP 0.62

W0012417 SUPPORT COUNTER FRESCO

$7.05

W0012527 ADAPTOR TEST POINT LP

W0012692 SKIRT KNOB GAS WHT FRESCO

W0012748 HOLDER INJECTOR OVEN

$10.45

W0012778 CORD SERVICE 10A

$10.05

W0012880 GLASS OV DR INNER 600 FRESCO

$96.35

W0012913 CANOPY GRILL GAS FF FRESCO

$27.50

W0013243 PIPE MANIFOLD 600ALL GASFRESCO

W0013263 SHIELD SPILLAGE

$17.45

W0013342 INSUL GRILL CANOPY TOP FRESCO

$14.30

W0013447 JET BYPASS COPRECI 0.45 LPG

W0013467 OVEN BRACE 600UP ASSY FRESCO

$24.85

W0013587 SHUTTER AERATION GRILL NG BIOS

$6.25

W0013588 SHUTTER AERATION GRILL LP BIOS

$6.25

W0013603 THERMOCOUPLE 540 GRILL BURNER

$44.90

W0013628 TRIM DOOR TOP VENT 600 FRESCO

$31.90

W0013731 BUMPER STOP GREY

$5.05

W0013861 SWITCH TOGGLE WHT

W0013862 SWITCH KIT MOMENTARY WHT

W0013897 INSTRUCTION GAS CONVERSION

W0013989 GRILL INJECT BLOCK FF FRESCO

$13.20

W0014022 SCREW #10-16X5/8 PAN PH2 BLK

$4.50

W0014026 SCREW #8 X 5/16 CSK #2PH AB BK

$4.50

W0014028 SCREW NO 8 X 8MM W/HD PD NI

$4.50

W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK

W0014030 SCREW #8 X 8MM HEX/MULTI

$4.50

W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK

$4.50

W0014064 CLIP BULB THERMOSTAT GAS (4MM)

$10.00

W0014129 SCREW M4 X 16MM HEX ZC

$4.50

W0021433 FOOT TRIVET

$7.05

W0021570 VALVE BSI FSG AUX

W0021571 VALVE BSI FSG SEMI RAPID

W0021572 VALVE BSI FSG RAPID

W0021573 VALVE BSI FSG T/C

W0021771 HOB ASSY GAS WHITE 600 FC WES

$272.55

W0022626 BURNER CAP MATT RAPID CYLINDER

W0022627 BURNER CAP MATTE SEMI-R CYLIND

$22.35

W0022628 BURNER CAP MATTE AUX CYLINDER

$22.35

W0022744 SPARK PLUG IGNITOR 900 MM

W0029802 TUBE OVEN SUPPLY 600SI FRESCO

$24.20

W0029884 WIRE HIGH VOLTAGE WFG617 650MM

$14.50

W0029885 WIRE HIGH VOLTAGE WF617 1100MM

$16.50

W0029890 PNL OUT OV DR ASSY 600FC WHT

W0035498 BURNER OVEN COMP ASSY 540 BIOS

W0035788 DEFLECTOR HEAT GRILL UC20

W0037482 PLATE ANTI TILT UPRIGHTS

W0038742 BRACKET MOUNTING GRILL UC20

W0041124 PANEL FAN COVER GAS ENAM BIOS

W0045366 WASHER R-FIT SWITCH FRESCO

$4.50

W0046663 TRIVET STD/WOK FC 600 FRSCO

W0046735 INJECTOR H/P 0.82MM

W0047469 SCREW M4 X 5 PAN #2 PH SML HD

$4.50

W0053309 STICKER GAS TYPE PROPANE

W0054664 INSULATION OVEN CABINET

W0056277 BRACE LOWER 600UP MK2

W0056770 FOOT LEVELLING UPRIGHT

W0064592 SCREW TORQ #4 X 12 # PAN HEAD

W0065406 SCREW #8 X 3/4 STEPPED PAN BLK

W0065458 NUT HEX M6

$4.50

W0102393 SPARK PLUG WOK 900MM

W0109033 CLIP SPARK PLUG ELUX 125-8-356

W0109968 T'COUPLE TT ELUX BURNER 275

W0109970 THERMOCOUPLE 500MM

W0110088 BURNER ASSY TRIPLE CROWN WOK

W0110093 BASE BURNER RAPID IGN NG

$13.90

W0110096 BURNER BODY ASSY S/RAP IGN NG

W0110103 BURNER ASSY WOK NG

$40.00

W0114680 HOLDER LAMP ASSY BIOS

W0154037 KNOB W/HOUSE 600FC WHITE GAS

$18.00

W0154046 SLIDER GRILL DOUBLE ACTION LH

$44.00

W0154047 SLIDER GRILL DOUBLE ACTION RH

$44.00
