WHG638BC — 943254149 00
WESTINGHOUSE — Cooker Gas

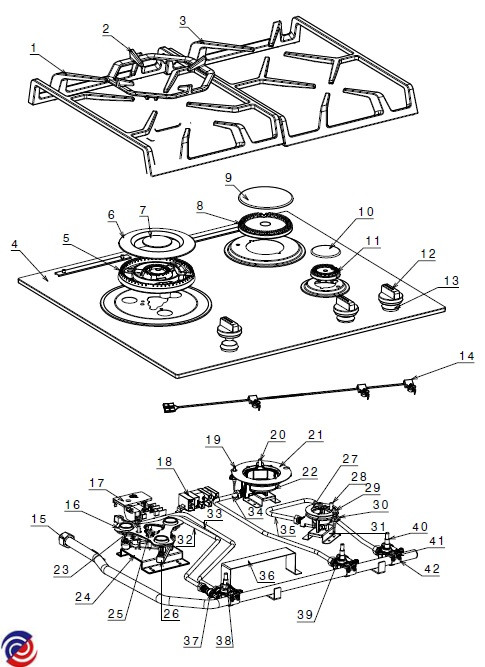

Parts for WHG638BC
W0013367 TAPE FOAM 1.5MM X 9MM ( 1M )
W0021331 SCREW 3/4X8 PAN Z/P (LP HP AER
$4.50
W0022617 BURNER CROWN RAPID CYLINDER
W0022624 BURNER CROWN AUX CYLINDER
W0045365 WASHER SEALING
$4.50
W0054725 SCRAPER CERAMIC GLASS
W0102440 TRIVET CAST WOK SUPPORT FORTE
$39.90
W0283367 T'COUPLE TT ELUX BURNER 275
W0283368 T'COUPLE TT ELUX BURNER 500
W0021316 SCREW M4X16 PAN PHIL ZC HZ
W0021320 SCREW M3.5X6
W0021399 CORD SERVICE 7.5A 1200MM 250V
$11.40
W0021476 ELBOW GAS INLET 1/2' MALE/MALE
$20.10
W0021524 IGNITION BOX EARTH LEAD
$6.60
W0021651 VALVE DUAL COPRECI C/TOP
$126.05
W0021669 VALVE ADAPTOR COPRECI HOB
$12.40
W0022718 TERMINAL BOX
$16.90
W0029626 PLUG SPARK 250 MM ENAMELLE
$7.45
W0029627 PLUG SPARK 400 MM 260C - ELUX
$7.45
W0030443 BURNER BODY ASSY AUX IGN NG
$43.00
W0030451 BURNER BODY ASSY RAPID IGN NG
W0030588 WIRE
W0102092 SCREW M4 X 8 PHIL
W0109046 SCREW TORQ #4 X 12 #6 PAN HEAD
W0153991 REGULATOR GAS NG INTEG TEST PT
$41.00
W0154001 CLAMP BURNER BOX CORAL/GAIL HZ
W0274935 BURNER CAP RAP MATT BLACK ENAM
$22.35
W0274937 BURNER CAP AUX MATT BLACK ENAM
$22.35
W0283042 SCREW ST4.2:6.5
$4.50
W0283044 SCREW ST3.918
$4.50
W0283049 SEAL SKIRT AUX
$15.75
W0283051 SEAL SKIRT RAP
$18.80
W0283118 GAS TAP FIXING BRACKET
$4.00
W0283412 SPRING NIP
$5.50
W0283881 HEAT SHILED BOX
$19.10
W0284310 COPRECI SGL VALVE AUX GN
W0284312 COPRECI SGL VALVE RAPID RED
$44.90
W0284317 IGN BOX 4 POINT
$59.55
W0361371 RETAINER-WIRE ATTACH
$4.50
W0361842 HOB CERAMIC WHG638BC
$363.35
W0361893 SWITCH HARNESS
$23.65
W0362035 BIC BURNER BRACKET
$4.50
W0362036 SP BURNER BRACKET GL
$4.50
W0362054 BIC BURNER BODY 19MJ
$72.40
W0362056 BIC BURNER CROWN 17/19 MJ
W0362058 BIC BURNER CAP INNER
$19.85
W0362059 TRIVET SUPPORT
$7.55
W0362060 ASPIRE 3B GAS RAIL
$38.55
W0362086 BIC BURNER CAP OUTER
$62.00
W0362092 BIC THERMOCOUPLE
$18.15
W0362093 BIC SPARK PLUG
$6.45
W0362156 ASPIRE TRIVET 60/90 LH GL
$108.65
W0362157 TRIVET RH
$98.45
W0362175 BIC BURNER SEAL
$24.85
W0362191 GROMMET GL
$4.50
W0362193 BURNER TUBE GL 60/90 INNER
$7.45
W0362194 BURNER TUBE GL 60/90 OUTER
$7.85
W0362195 BURNER TUBE GL 60 RF
$7.05
W0362196 BURNER TUBE GL 60 RR
$6.95
W0362210 RUBBER FOOT CAST TRIVET
$8.10
W0362316 KIT CONVERSION NG 19MJ
W0362346 KNOB GL
$14.75
