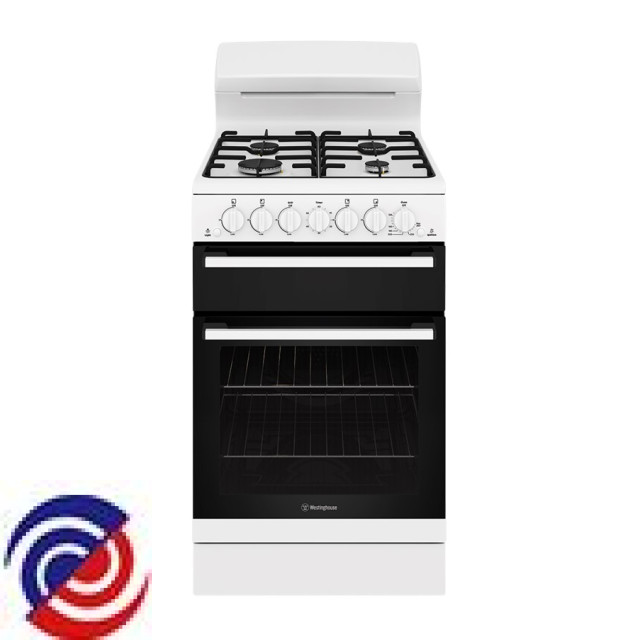

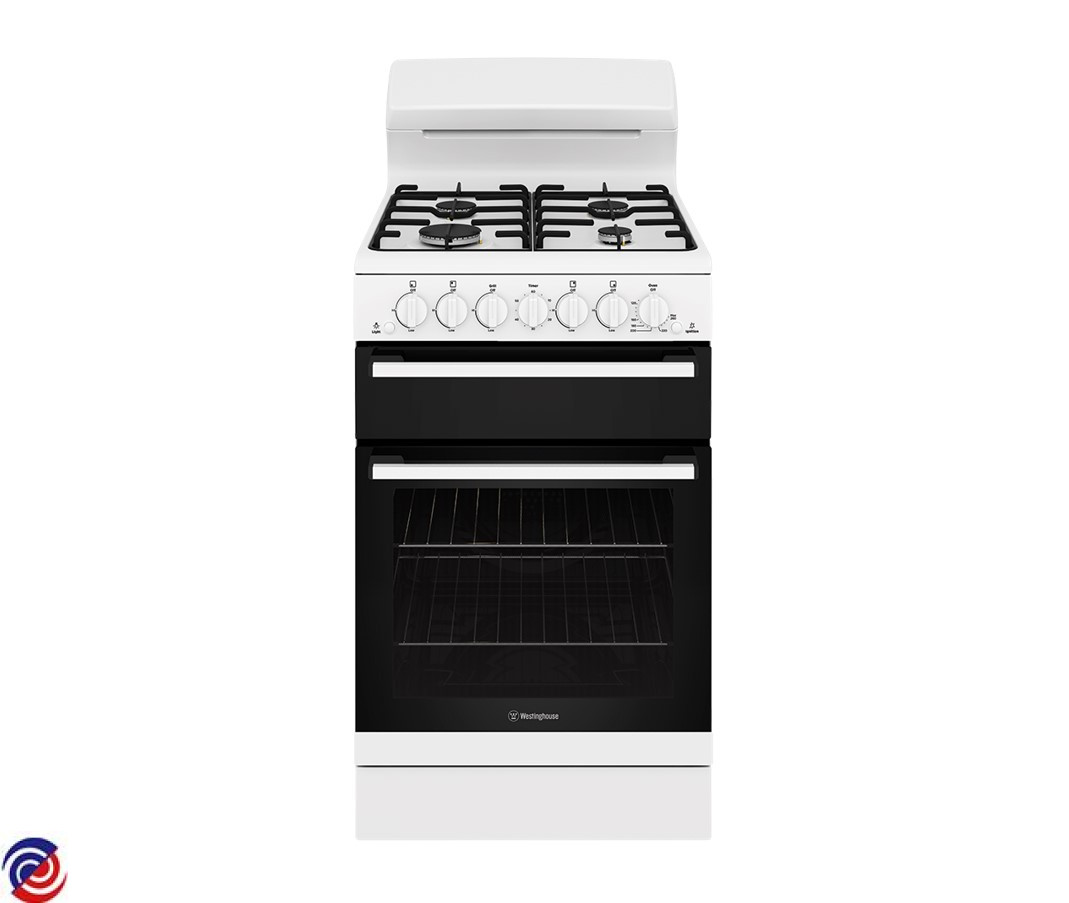

WLG510WCANG — 940598504 37
WESTINGHOUSE — Cooker Gas
Parts for WLG510WCANG
W0147344 LAMP HALOGEN BULB 25W G9 230V
W0365466 DISH GRILL ENAMEL
$105.00
W0365467 RACK GRILL INSERT
$69.05
W0365487 CHEF ELECTROLUX WESTINGHOUSE OVEN DOOR SEAL GASKET
W0365529 CLIP MOUNTING ELEMENT
$10.00
W0365567 SHELF OVEN
$78.00
W0365624 CHEF ELECTROLUX WESTINGHOUSE BURNER OVEN FREESTANDING
$126.00
W0366269 THERMOCOUPLE TO SUIT ELECTROLUX AND WESTINGHOUSE GAS BURNERS
$57.95
W0368470 CAP TOP PAIR DOOR JONAH
$37.00
W0365519 DOOR OVEN INNER GLASS
$116.00
W0365676 THERMOCOUPLE OVEN BURNER
$62.00
W0365727 PLUG SPARK 900 MM ENAMELLED
$24.00
W0365728 BURNER CAP ENAM RAPID CYLINDER
$40.00
W0365755 SPARK PLUG GRILL DERLITE
$21.30

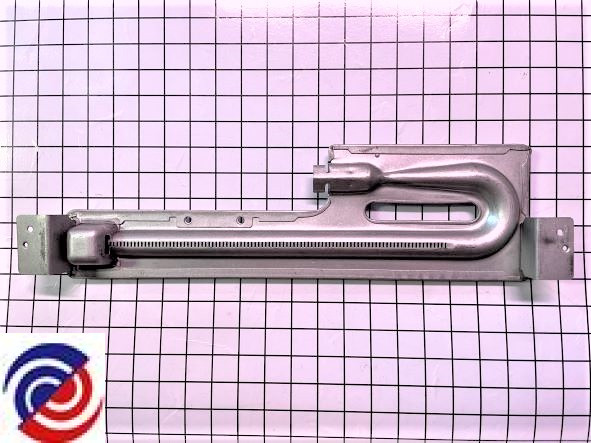

W0365758 BURNER GRILL
$130.00
W0365828 540 LOWER REAR BRACE
$14.00
W0365872 PLATE CVR TERM GAS 540 BIOS
$16.00
W0365880 HINGE GR DOOR 540 FRESCO PH2
$7.00
W0365917 ANTI TILT PLATE
$20.00
W0365927 BRKT IGNITION GRILL H/T 540
$4.00
W0365930 WIRE IGNITION H/S 540MM
$20.00
W0365934 FOOT LEVELING
$20.00
W0365962 DOOR HANDLE ASPIRE
$23.00
W0365993 BURNER CAP ENAM SEMI-R CYLIND
$28.00
W0366022 BURNER CAP ENAM AUX CYLINDER
$30.00
W0366030 LAMP OVEN HALOGEN 25W 35.5MM
$28.00
W0366038 VALVE COPRECCI FSG GRILL
$49.00
W0366061 PANEL KICK 540 SML WHT PREPAIN
$31.00
W0366062 VALVE COPRECCI FSG AUX
$49.00
W0366063 VALVE COPRECCI FSG SEMIRAPID
$49.00
W0366064 VALVE COPRECCI FSG RAPID
$49.00
W0366110 SHIELD WIRING HOB RC GAS FRES
$36.00
W0366111 SERVICE CORD (10A) MOULDED GRO
$34.95
W0366133 OVEN BRACE 540 ASSY
$26.00
W0366151 TRIVET ENAMEL STANDARD
$46.00
W0366174 INSULATION OVEN GAS 540 BIOS
$46.00
W0366184 BURNER CROWN AUX CYLINDER NAT
$47.00
W0366201 RACK,PACK
$48.05
W0366207 THERMOCOUPLE GRILL BURNER 400
$52.00
W0366217 BURNER CROWN RAPID CYLIND NAT
$57.00
W0366218 BURNER CROWN SEMI-RAP CYL NAT
$56.00
W0366259 RACK SIDE GRILL LH/RH
$58.05
W0366265 T'COUPLE TT ELUX BURNER 275
$61.00
W0366287 HINGE GR DOOR 540 FREE FRESCO
$67.00
W0366343 COVER OVEN BURNER
$93.00
W0366358 CONTROL PANEL,REAR,NO LOGO
$99.00
W0366381 PANEL SIDE WHITE FRESCO
$111.00
W0366523 HOB 540R ENAM GAS STD FF
$283.00
W0366849 TUBE BURNER GRILL FF
W0366856 TUBE OVEN SUPPLY 600SI FRESCO
W0367011 PANEL,OUTER,GRILL,ASSEMBLY 540
$33.50
W0367055 CONTROL PANEL,SCREEN,FRONT,WLG
$85.90
W0367629 SEALING PANEL,GAS,540 BIOS
$8.05
W0367630 SHIELD GRLL GAS BURNR FRSCO LH
W0367631 SHIELD GRLL GAS BURNR FRSCO RH
W0367928 NUT HEX M6
$4.00
W0367961 SCREW M4 X 4 PAN #1PH SMALL HD
$4.00
W0367983 SCREW PF K40X 20 T20 ROUND
$5.50
W0367997 SPACER,HANDLE,BLACK,ASPIRE
$5.50
W0368025 SCREW M4 X 16MM HEX ZC
$4.00
W0368028 SCREW #8 X 8MM HEX/MULTI
$5.50
W0368029 SCREW #8 X 1/2 MUSH #2PH AB BK
$5.50
W0368050 WASHER R-FIT SWITCH FRESCO
$4.00
W0368064 BRACKET MOUNTING GRILL
$5.50
W0368075 KNOB,WHITE,FREE-STANDING,COOKE
$6.00
W0368084 ENDCAP HANDLE EXTRUDED ASPIRE
$6.00
W0368094 BUMPER STOP GREY
$5.80
W0368095 TUBE BURNER 540 L/F FF
$5.90
W0368101 EVEREL SWITCH TOGGLE
$7.00
W0368102 EVEREL SWITCH MOMENTARY
$7.00
W0368103 SHUTTER AERATION GRILL NG BIOS
$6.25
W0368122 PLATE FOOT MOUNTING
$6.60
W0368172 SWITCH BUTTON WHITE
$10.00
W0368174 SWITCH BODY WHITE
$10.00
W0368178 INJECTOR RAPID NG 1.60
$8.80
W0368194 IGNITOR OVEN BURNER
$11.00
W0368199 CLIP BULB THERMOSTAT GAS (4MM)
$10.00
W0368212 HOLDER INJECTOR OVEN
$11.00
W0370396 BURNER PIPE, RIGHT, FRONT, 540
$7.80
W0370425 BURNER PIPE, REAR, LEFT, 540
$8.45
W0370427 BURNER PIPE, REAR, RIGHT, 540
$8.15
W0370502 HINGE OVEN DOOR 5.2-5.8KG
$41.00
W0370511 HINGE SUPPORT, 540/600 FS
$6.00
W0370604 F/FRONT 540FC SG GLOBAL HINGE
$5.25
W0370685 WIRING PROTECTION, COVER, BACK
$12.30
W0370775 DOOR PANEL, OUTER, ASSEMBLY
$69.00
W0370901 SCREW, M4 X 8.5 T20 ZINC
$5.50
W0372549 BURNER BODY ASSY AUX IGN NG
$8.00
W0372567 BURNER BODY ASSY S/RAP IGN NG
$9.00
W0372680 BURNER BODY ASSY RAP IGN NG
$13.00
W0372701 INSTALL ANTI TILT KIT
$14.00
W0372835 ENDCAP REAR C/PANEL 540 PAIR
$22.00
W0373164 PANEL COVER WIRE GAS 540 BIOS
$50.00
W0373415 T'STAT COPRECI 1000 MM COAX
$97.00
