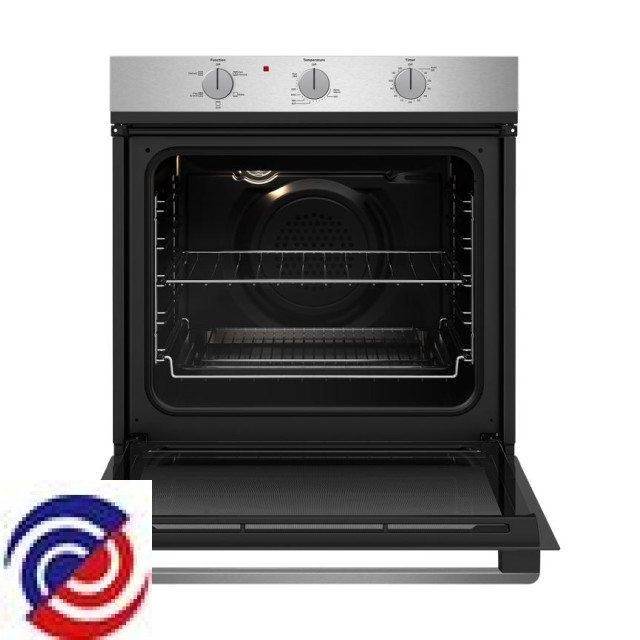

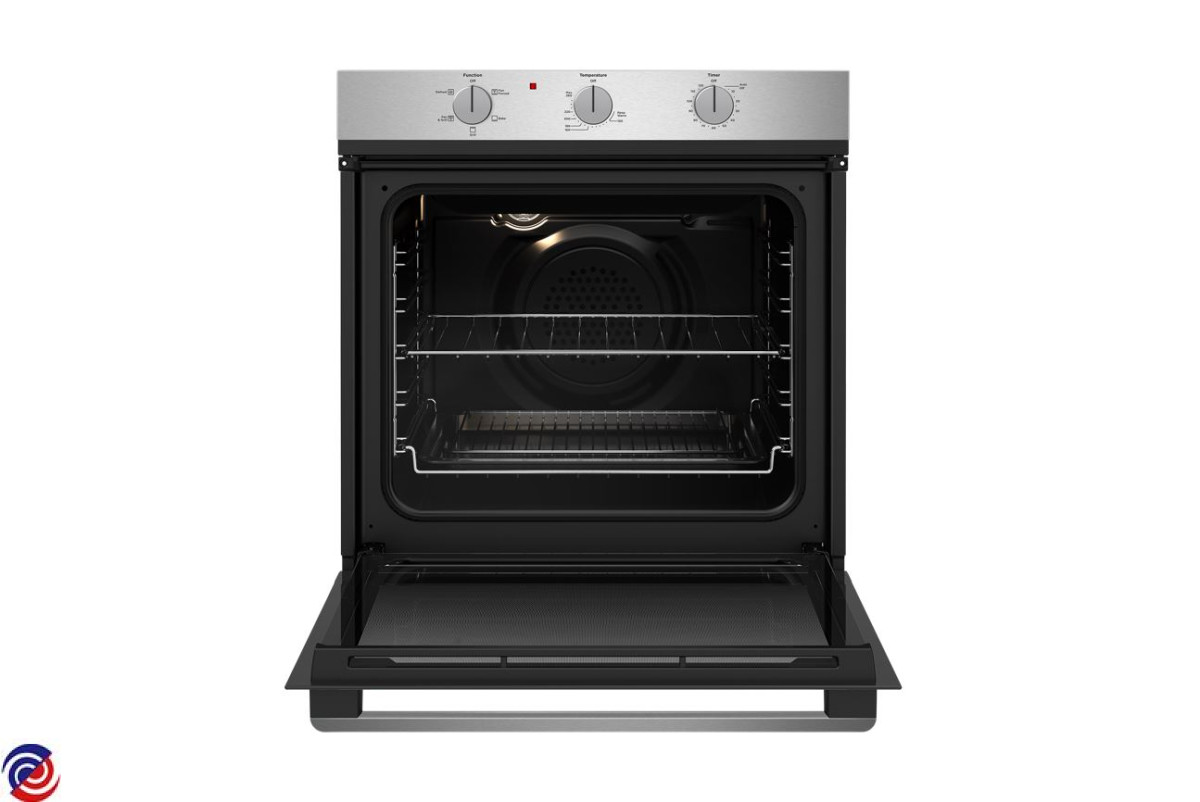

WVG613SCLP — 944031837 00
WESTINGHOUSE — Cooker Gas
Parts for WVG613SCLP
W0011127 BURNER OVEN BI BIOS
W0011406 TRAY BAKING SCONE - 468MM X 360MM
W0011891 IGNITOR OVEN
.JPG)
W0011892 SENSOR FLAME
W0011995 NUT M6 LH FAN MOTOR
.JPG)
W0012255 ELEMENT GRILL 2200W SS321
.JPG)
W0012326 CLIP MOUNTING ELEMENT
W0012626 WIRE ASSY H/S DSI HV IGNITION
$36.20
W0012886 GLASS OV DR IN WEST FORTE
W0013564 SWITCH MULTI 5
.JPG)
W0013590 SWITCH THERMAL CUT OUT 145 DEG
W0013687 HOSE FLEX 1.7M LONG BIOS-BI
$72.55
.JPG)
W0022966 HINGE DOOR
W0027133 VALVE SOLENOID GAS-20VDC DBL
.JPG)
W0030130 TRIM DOOR TOP CAP NGD
W0030434 SEAL OVEN MODULAR PROFILE
W0030638 TIMER 2HR CUTOFF WESTLAKE
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
W0045365 WASHER SEALING
$4.50
_1.JPG)
W0050403 MOTOR FAN OVEN
.JPG)
W0052585 CANOPY FAN ASSY U/B NGD
.JPG)
W0057771 THERMOSTAT OVEN
W0063839 BOX IGNITION 1P DSI REIGN.
W0271174 IMPELLER OVEN FAN 160 MM
W0011198 SUPPORT IGNITION B/I BIOS
$15.55
W0011271 PLATE AERATION OVEN BURNER
$25.70
W0011317 COVER OVEN BURNER
$114.60
W0011472 PANEL DECK INTER GAS BIOS
$52.80
W0011671 PANEL FAN COVER
$112.55
W0011863 VENT GRILLE
$17.10
W0011882 CHANNEL FRONT NGP UB RH
$16.90
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012318 CLIP STAND-OFF 22MM-GAS BIOS
$11.70
W0012562 MOUNT CAP F/FRAME R/H NGD
$5.80
W0012563 MOUNT CAP F/FRAME L/H NGD
$7.55
W0012621 WIRE ELECTRICAL FLAME SENSE
W0012749 HOLDER INJECTOR OVEN BURNER
$12.20
W0013328 INSULATION OVEN BACK - KNAUF
$20.30
W0013330 INSULATION OVEN WRAP GAS BIOS
$41.80
W0013464 OVEN BRACE BI ASSY
W0013730 BUMPER STOP BLK
$6.55
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014023 SCREW #8 X 5/8 CSK #2PH AB BK
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50
W0022643 SCREW M4 X 4
W0027192 FRAME FRONT PAINTED GAS UB NGP
W0029339 INDICATOR LIGHT- 600MM PIGGY
$15.65
W0030004 SUPPORT ELEMENT GRILL BIOS
$7.00
W0030457 PANEL SIDE UB BIOS RH
$49.15
W0030458 PANEL SIDE UB BIOS LH
$49.15
W0030490 PANEL TOP
$44.90
W0030494 PANEL BASE BIOS 0.5MM
$38.35
W0037478 PLATE CVR TERM GAS B/I BIOS
W0037480 PLATE SUPPORT VALVE BIOS
W0042653 CHANNEL FRONT NGP UB LH
W0043579 TUBE OVEN SUPPLY BIOS
W0044827 FLUE DUCT OVEN U/B GAS BIOS
W0046735 INJECTOR H/P 0.82MM
W0047803 ADAPTOR TEST POINT LP UC20
W0053310 STICKER GAS TYPE LPG
$4.50
W0054086 SHIELD THERMO BULB BIOS
W0064527 SCREW NO 8 X 12 MM PD
$4.50
W0064592 SCREW TORQ #4 X 12 # PAN HEAD
W0065406 SCREW #8 X 3/4 STEPPED PAN BLK
W0065420 SCREW M4 X0.7X10 MUSH QUADRERX
W0283213 SCREW M4 X 44 PAN T20
W0283463 BAG CONTAINING SCREWS BUILTINS
$4.50
W0283485 RACK SIDE OVEN EASY RH E100
W0283486 RACK SIDE OVEN EASY LH E100
W0284064 CLIP SIDEGRIDS
$4.50
W0284351 DISH GRILL ENAM E100
$78.10
W0296464 LENS NEON FRONT MOUNT (RED)
W0296547 PANEL COVER WIRE UB E100
$34.75
W0360861 PNL OV DR OUT ASS S/S ASPIRE
W0361824 CABLE SERVICE CORD (10 A) BIOS
$18.45
W0361834 LENS SQUARE RED
$4.70
W0361860 LAMP OVEN ROUND DIA 48
W0361991 KNOB ASSY PAINTED ASPIRE
$17.40
W0362015 TRIM SURROUND C/PANEL ASPIRE
$32.45
W0362115 RACK SHELF OVEN W/HOUSE
W0362117 ENDCAP HANDLE EXTRUDED ASPIRE
$17.40
W0362118 HANDLE DOOR EXTRUDED ASPIRE
$9.60
W0362140 RACK INSERT GRILL DISH ASPIRE
W0362221 PNL CNT & CLIPS WVG613SC
$199.40
