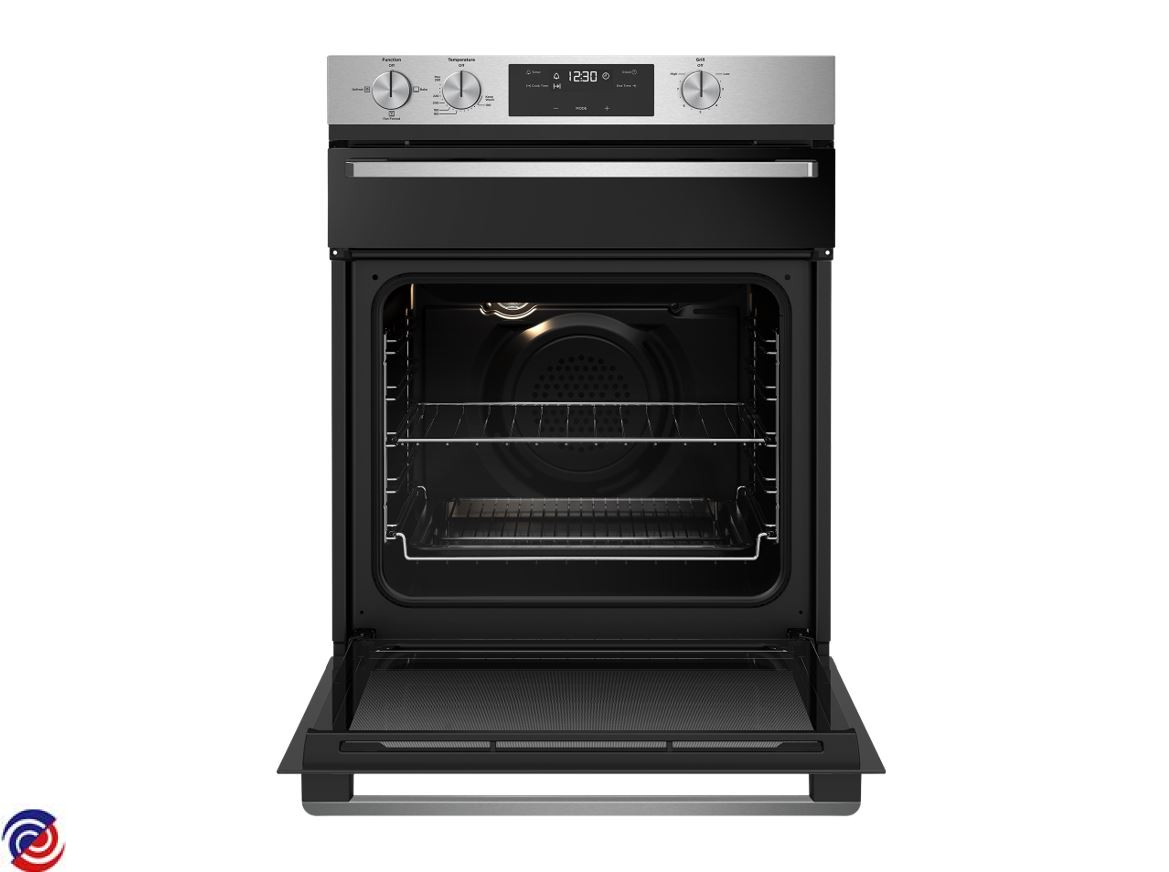

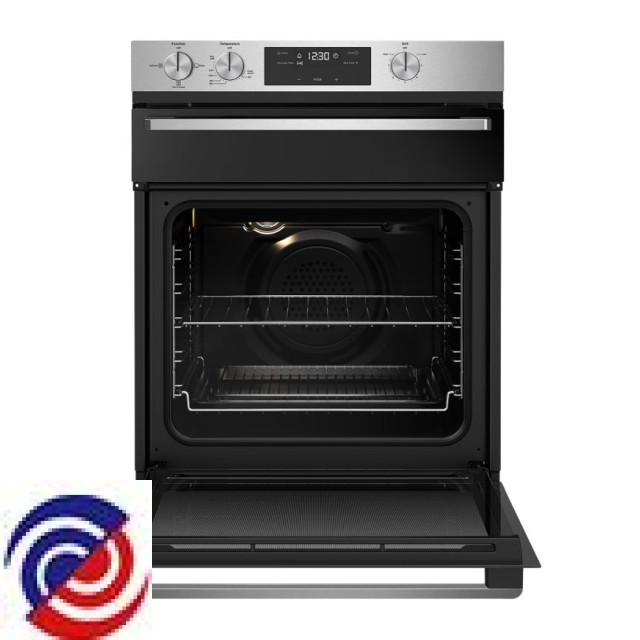

WVG655SCNG — 944031855 00
WESTINGHOUSE — Cooker Gas
Parts for WVG655SCNG
W0011127 BURNER OVEN BI BIOS
W0011319 COVER GRILL DISH
W0011406 TRAY BAKING SCONE - 468MM X 360MM
W0011891 IGNITOR OVEN
.JPG)
W0011892 SENSOR FLAME
W0011995 NUT M6 LH FAN MOTOR
W0012254 ELEMENT C/HEAT 1800W SS321
.JPG)
W0012326 CLIP MOUNTING ELEMENT
W0012626 WIRE ASSY H/S DSI HV IGNITION
$36.20
W0012886 GLASS OV DR IN WEST FORTE
W0013569 AUXILIARY SW
$54.00
.JPG)
W0013590 SWITCH THERMAL CUT OUT 145 DEG
W0013687 HOSE FLEX 1.7M LONG BIOS-BI
$72.55
.JPG)
W0022966 HINGE DOOR
W0027133 VALVE SOLENOID GAS-20VDC DBL
W0029488 GRILL GRABBER FORTE
$4.50
W0029743 SLIDER GRILL DBLE ACTION PAIR
$119.05
.JPG)
W0030130 TRIM DOOR TOP CAP NGD
W0030434 SEAL OVEN MODULAR PROFILE
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
W0045365 WASHER SEALING
$4.50
_1.JPG)
W0050403 MOTOR FAN OVEN
.JPG)
W0057771 THERMOSTAT OVEN
.JPG)
W0063847 BOX IGNITION 1P DSI REIGN
W0271174 IMPELLER OVEN FAN 160 MM
W0274109 SWITCH INF/HEAT EGO SINGLE
W0011198 SUPPORT IGNITION B/I BIOS
$15.55
W0011271 PLATE AERATION OVEN BURNER
$25.70
W0011317 COVER OVEN BURNER
$114.60
W0011390 SLIDE BKT SGUB GRILL FORTE
$37.75
W0011472 PANEL DECK INTER GAS BIOS
$52.80
W0011516 PANEL COVER WIRE SGUB 36MM
$59.40
W0011671 PANEL FAN COVER
$112.55
W0011845 HINGE GR DOOR 540 FRESCO PH2
$7.70
W0011846 HINGE GR DOOR 540 FREE FRESCO
$53.85
W0011863 VENT GRILLE
$17.10
W0011879 CHANNEL FRONT SGUB RH FORTE
$14.30
W0011880 CHANNEL FRONT SGUB LH FORTE
$14.30
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012318 CLIP STAND-OFF 22MM-GAS BIOS
$11.70
W0012562 MOUNT CAP F/FRAME R/H NGD
$5.80
W0012563 MOUNT CAP F/FRAME L/H NGD
$7.55
W0012621 WIRE ELECTRICAL FLAME SENSE
W0012749 HOLDER INJECTOR OVEN BURNER
$12.20
W0013330 INSULATION OVEN WRAP GAS BIOS
$41.80
W0013333 INSULATION GRILL SGUB NGD
$14.30
W0013464 OVEN BRACE BI ASSY
W0013563 SWITCH MULTI 4 GAS BIOS
$45.00
W0013625 FRAME CONTROL PANEL
W0013730 BUMPER STOP BLK
$6.55
W0013733 STOP RUNNER
$8.15
W0013967 CLOCK 3 BTN TOUCH 'BF11' WHT
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014023 SCREW #8 X 5/8 CSK #2PH AB BK
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014031 SCREW #8 X 3/8 MUSH #2PH TC BK
$4.50
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50
W0014041 SCREW #8 x1/2 PH2 MUSH WASHER
$4.50
W0014061 WASHER NYLON BLACK 3.7X 8X 0.8
$4.00
W0022643 SCREW M4 X 4
W0024929 INJECTOR GRILL 1.50MM
W0027177 PLATE CVR TERM GAS B/I BIOS
$9.15
W0027318 FRAME FNT ENAM GAS SGUB FORTE
$79.20
W0029323 REG GAS NG INTEG T/ PT & SEAT
$36.50
W0030004 SUPPORT ELEMENT GRILL BIOS
$7.00
W0030490 PANEL TOP
$44.90
W0030494 PANEL BASE BIOS 0.5MM
$38.35
W0030606 INSULATION OVEN BACK - KNAUF
$15.55
W0037480 PLATE SUPPORT VALVE BIOS
W0039212 DISH GRILL ENAM BIOS
$81.60
W0043579 TUBE OVEN SUPPLY BIOS
W0044829 FLUE DUCT OVEN SGUB BIOS
W0052586 CANOPY FAN ASSY SGUB NGD
W0053308 STICKER GAS TYPE NG
$4.00
W0054086 SHIELD THERMO BULB BIOS
W0057728 THERMOSTAT
W0057758 THERMAL CUTOUT 100 DEG N.O.
W0059838 DUCT OVEN SGUB ASSY BIOS-GAS
W0064443 SCREW #8 X 3/8 #2PH AB
W0064592 SCREW TORQ #4 X 12 # PAN HEAD
W0065406 SCREW #8 X 3/4 STEPPED PAN BLK
W0065420 SCREW M4 X0.7X10 MUSH QUADRERX
W0283213 SCREW M4 X 44 PAN T20
W0283454 THERMAL CUTOUT 145 DEG N.C.
W0283463 BAG CONTAINING SCREWS BUILTINS
$4.50
W0283485 RACK SIDE OVEN EASY RH E100
W0283486 RACK SIDE OVEN EASY LH E100
W0284064 CLIP SIDEGRIDS
$4.50
W0360861 PNL OV DR OUT ASS S/S ASPIRE
W0361824 CABLE SERVICE CORD (10 A) BIOS
$18.45
W0361835 LENS SQUARE BLACK TRANSPARENT
$4.50
W0361860 LAMP OVEN ROUND DIA 48
W0361981 PLATE MTG SWTCH CLOCK ASPIRE
$5.95
W0361992 KNOB ASSY CHROME ASPIRE
W0361997 SPACER HANDLE ASPIRE
W0362001 HANDLE DR ANODISED ASPIRE
W0362019 PNL CNT & CLIPS WVG655SC/665SC
$208.65
W0362053 PANEL DOOR OUTER SGUB ASPIRE
$55.90
W0362115 RACK SHELF OVEN W/HOUSE
W0362186 RACK PACK SGUB ASPIRE
$60.00
W0362237 MI SIGNAL LAMP 200/600MM SPARE
$17.20
