WVG655SNG — 944031710 19

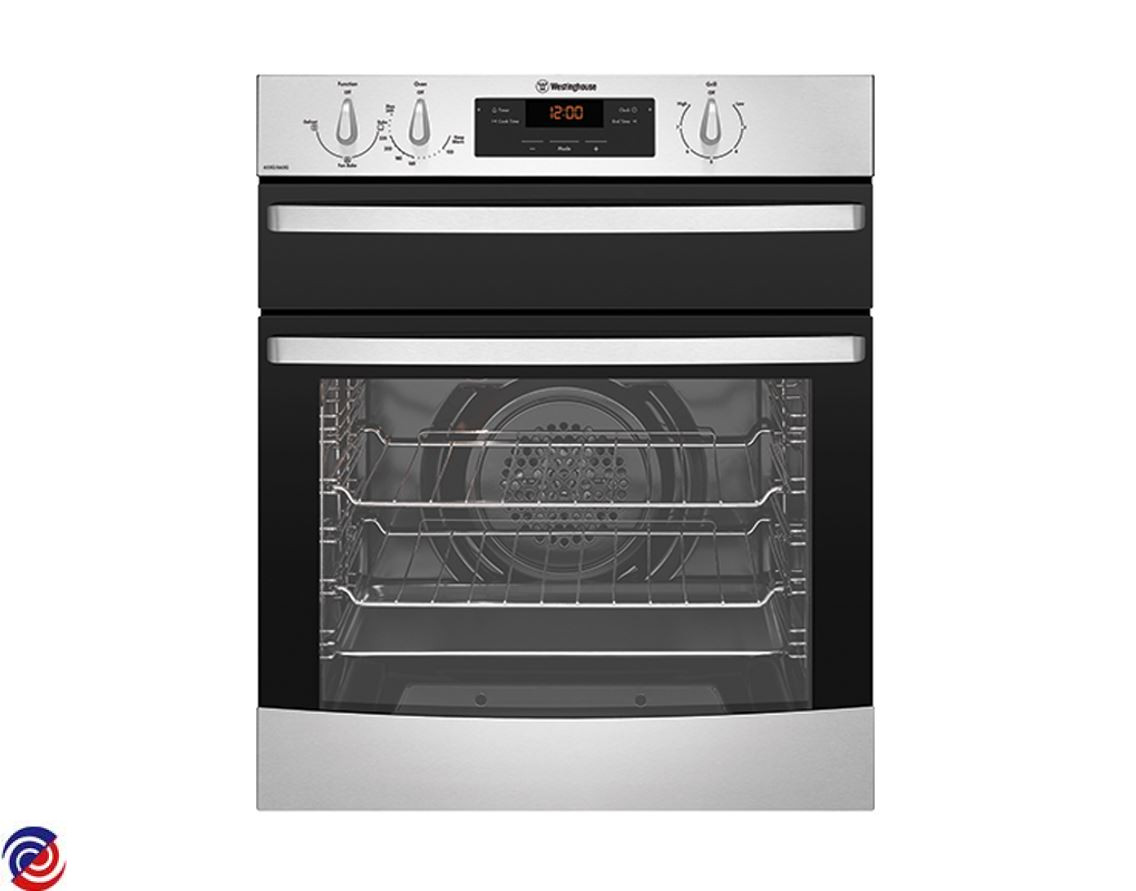

WESTINGHOUSE — Cooker Gas

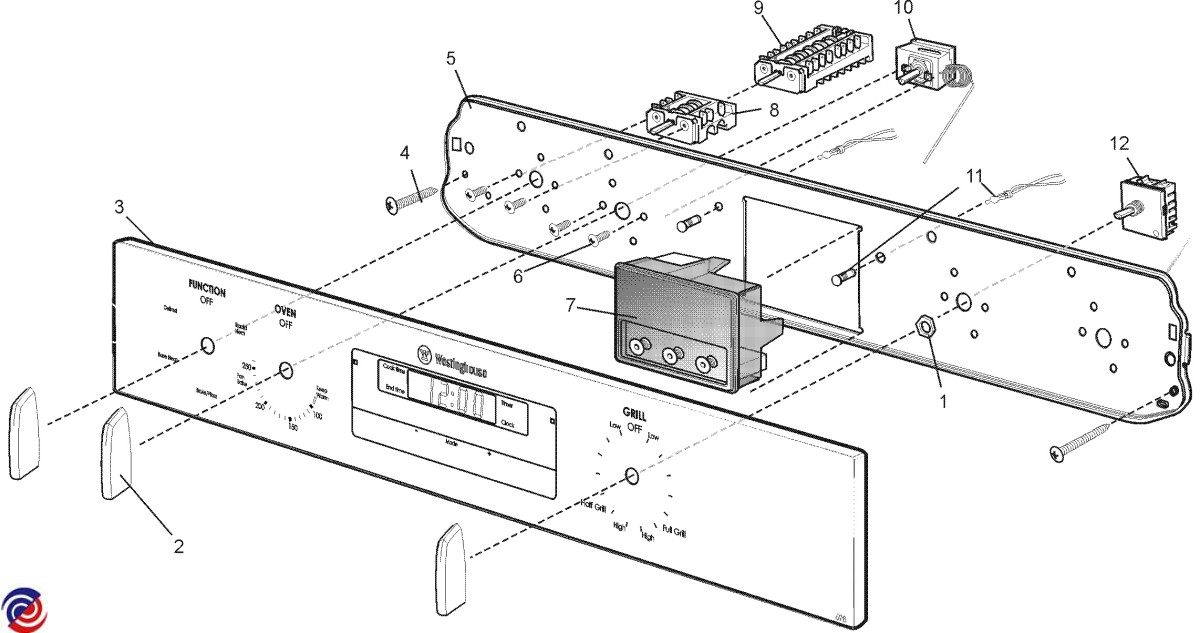

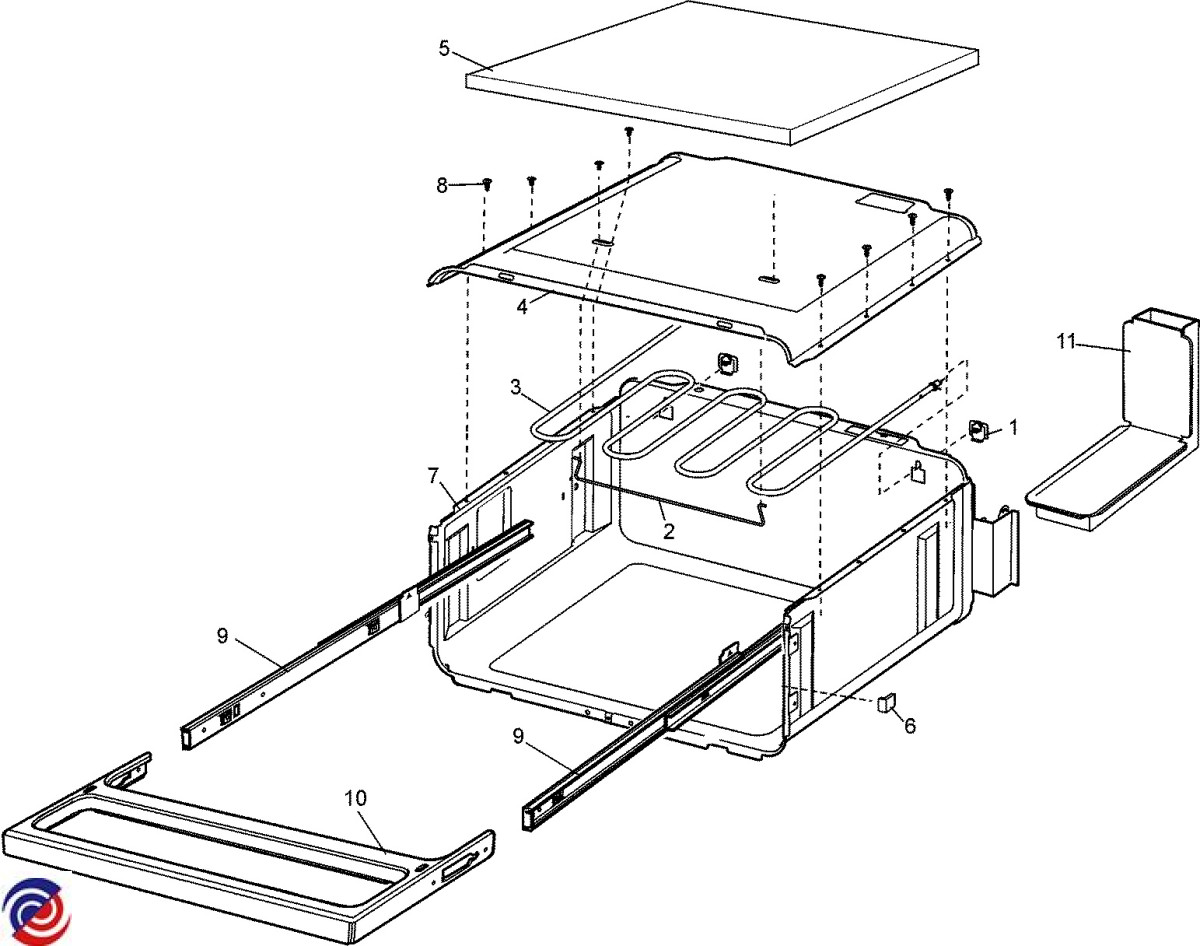

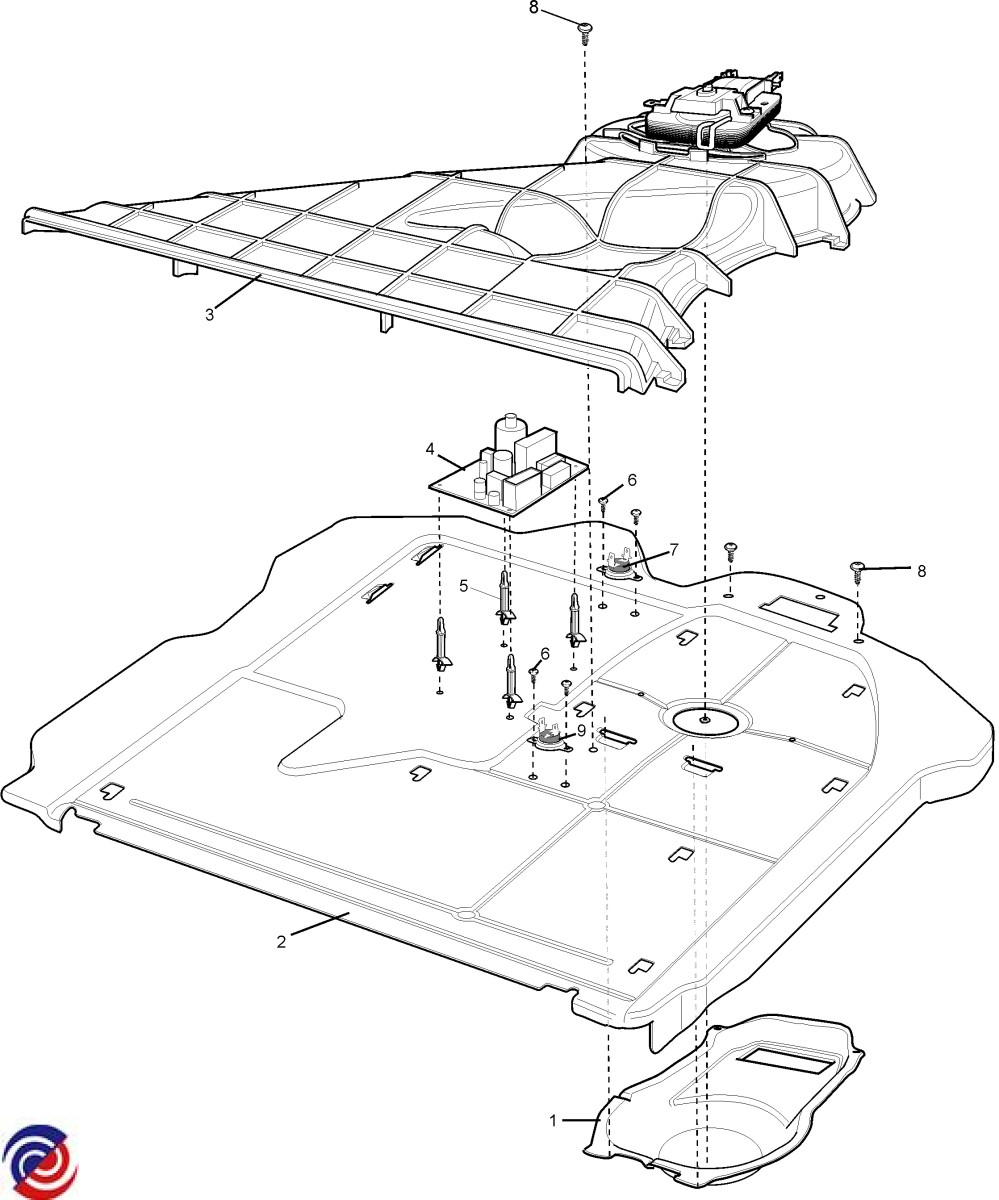

Parts for WVG655SNG
W0011127 BURNER OVEN BI BIOS
W0011237 KNOB ASSY WH BLDE SILVER FORTE
.JPG)
W0011297 BLADE FAN
W0011319 COVER GRILL DISH
W0011406 TRAY BAKING SCONE - 468MM X 360MM
W0011891 IGNITOR OVEN
.JPG)
W0011892 SENSOR FLAME
W0011932 HANDLE DR NP WEST ANOD FORTE
W0011995 NUT M6 LH FAN MOTOR
W0012254 ELEMENT C/HEAT 1800W SS321
.JPG)
W0012326 CLIP MOUNTING ELEMENT
W0012626 WIRE ASSY H/S DSI HV IGNITION
$36.20
W0012886 GLASS OV DR IN WEST FORTE
W0013569 AUXILIARY SW
$54.00
.JPG)
W0013590 SWITCH THERMAL CUT OUT 145 DEG
W0013687 HOSE FLEX 1.7M LONG BIOS-BI
$72.55
.JPG)
W0013966 WESTINGHOUSE OVEN CLOCK PCB 3 BUTTON TOUCH BF11
$126.00
W0014032 SCREW #8 X 45 PAN QUADREX
.JPG)
W0022966 HINGE DOOR
W0023201 HOLDER LAMP REAR HALOGEN BIOS
W0027133 VALVE SOLENOID GAS-20VDC DBL
W0029488 GRILL GRABBER FORTE
$4.50
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
W0045365 WASHER SEALING
$4.50
_1.JPG)
W0050403 MOTOR FAN OVEN
.JPG)
W0053530 SHELF OVEN
W0053532 RACK PACK
.JPG)
W0057166 CHEF SIMPSON WESTINGHOUSE COOKTOP CONTROL SWITCH MP101
.JPG)
W0057771 THERMOSTAT OVEN
W0058493 TRIM DOOR UPPER VENTED
W0063839 BOX IGNITION 1P DSI REIGN.
W0147339 SEAL OVEN MODULAR PROFILE
W0011198 SUPPORT IGNITION B/I BIOS
$15.55
W0011262 PLATE MOUNTING SWITCH
$14.90
W0011271 PLATE AERATION OVEN BURNER
$25.70
W0011289 SLIDE GRILL ASSY DOUBLE ACTION
W0011317 COVER OVEN BURNER
$114.60
W0011390 SLIDE BKT SGUB GRILL FORTE
$37.75
W0011472 PANEL DECK INTER GAS BIOS
$52.80
W0011479 PANEL TOP PYRO NGP
$43.20
W0011516 PANEL COVER WIRE SGUB 36MM
$59.40
W0011639 PNL CNT & CLIPS WVG655S
$161.00
W0011671 PANEL FAN COVER
$112.55
W0011845 HINGE GR DOOR 540 FRESCO PH2
$7.70
W0011846 HINGE GR DOOR 540 FREE FRESCO
$53.85
W0011863 VENT GRILLE
$17.10
W0011879 CHANNEL FRONT SGUB RH FORTE
$14.30
W0011880 CHANNEL FRONT SGUB LH FORTE
$14.30
W0011993 NUT METRIC M10 X 0.75MM
$4.50
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012318 CLIP STAND-OFF 22MM-GAS BIOS
$11.70
W0012519 SCREW M4X5 HEX1/4' PH2 BLK ZP
$4.50
W0012562 MOUNT CAP F/FRAME R/H NGD
$5.80
W0012563 MOUNT CAP F/FRAME L/H NGD
$7.55
W0012578 STAND-OFF NON-PYRO WEST FORTE
W0012621 WIRE ELECTRICAL FLAME SENSE
W0012749 HOLDER INJECTOR OVEN BURNER
$12.20
W0012774 CORD SERVICE 10 A BIOS 1500MM
$34.90
W0012885 GLASS OT SGUB GLUED WEST FORTE
$210.00
W0013321 INSULATION OVEN BACK - KNAUF
$41.80
W0013330 INSULATION OVEN WRAP GAS BIOS
$41.80
W0013333 INSULATION GRILL SGUB NGD
$14.30
W0013464 OVEN BRACE BI ASSY
W0013563 SWITCH MULTI 4 GAS BIOS
$45.00
W0013625 FRAME CONTROL PANEL
W0013730 BUMPER STOP BLK
$6.55
W0013733 STOP RUNNER
$8.15
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014023 SCREW #8 X 5/8 CSK #2PH AB BK
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014031 SCREW #8 X 3/8 MUSH #2PH TC BK
$4.50
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50
W0014041 SCREW #8 x1/2 PH2 MUSH WASHER
$4.50
W0014061 WASHER NYLON BLACK 3.7X 8X 0.8
$4.00
W0024929 INJECTOR GRILL 1.50MM
W0027318 FRAME FNT ENAM GAS SGUB FORTE
$79.20
W0027370 SCREW M4 X 25 PAN MTS PHIL BLK
$1.70
W0036213 SUPPORT ELEMENT GRILL
W0037478 PLATE CVR TERM GAS B/I BIOS
W0037480 PLATE SUPPORT VALVE BIOS
W0039212 DISH GRILL ENAM BIOS
$81.60
W0039639 BASEPLATE
W0043579 TUBE OVEN SUPPLY BIOS
W0044829 FLUE DUCT OVEN SGUB BIOS
W0046533 SLEEVE VIDAFLEX 16ID CUT 380MM
$16.50
W0047469 SCREW M4 X 5 PAN #2 PH SML HD
$4.50
W0052586 CANOPY FAN ASSY SGUB NGD
W0053262 REG GAS NG INTEG T/PT & SEAT
$27.50
W0053308 STICKER GAS TYPE NG
$4.00
W0053529 RACK SIDE SUPPORT OVEN EVOLVE
W0054086 SHIELD THERMO BULB BIOS
W0057758 THERMAL CUTOUT 100 DEG N.O.
W0059838 DUCT OVEN SGUB ASSY BIOS-GAS
W0064443 SCREW #8 X 3/8 #2PH AB
W0064592 SCREW TORQ #4 X 12 # PAN HEAD
W0065406 SCREW #8 X 3/4 STEPPED PAN BLK
W0065420 SCREW M4 X0.7X10 MUSH QUADRERX
W0147404 LIGHT INDICATOR AMBER LENS
W0154118 PNL OV DR OUT ASS S/S FORTE
