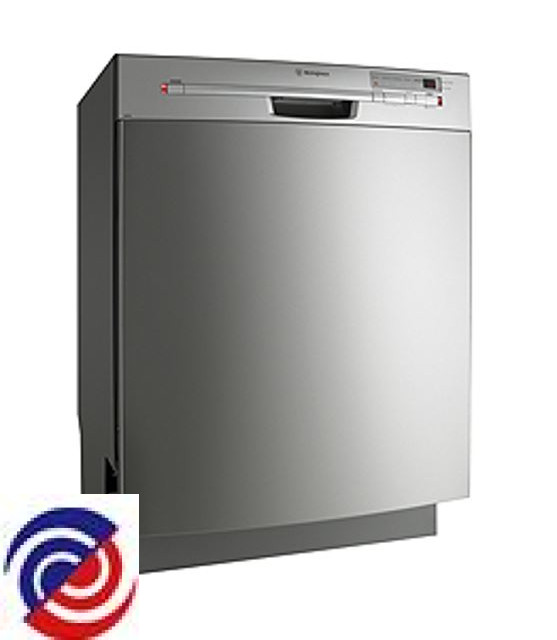

SB926SK — 911946236 00
WESTINGHOUSE — Dishwasher
Parts for SB926SK
W0015721 MOUNT PRESSURE SWITCH
$50.00
W0019083 MANIFOLD OUTER
W0025858 ROLLER KIT LOWER PKT 8
W0071775 RING LOCKING SPRAY ARM UPPER
W0072679 BASKET CUTLERY
W0090295 CLIP BASKET STOP FRONT
$11.15
W0090412 COUPLING MANIFOLD LIGHT GREY
W0090623 HOSE OUTLET COMPLETE L=1930
W0090747 GASKET DOOR LOWER BLK L=550
$31.00
.JPG)
W0128067 CHANNEL DRAINAGE. COMPLETE
W0149901 NOZZLE SPRAYER LOWER
$34.95
W0149911 STOP BASKET REAR DK GREY
W0015340 PIPE UNION HEATING ELEMENT
W0015742 RAIL BASKET UPPER
W0018965 PLINTH SLIDING GREY
$40.00
W0018988 LATCH DOOR LOCK
W0019019 TUBE AIR CHAMBER
W0019021 SUPPRESSOR INTERFERENCE
$28.00
W0019023 VENT VAPOUR OUTLET
$14.90
W0019029 BASE CABINET
$29.70
W0019033 HOSE INLET WATER BLOCK L=1500
$185.00
W0019034 CORD POWER AUSTRALIA
W0019035 SPRAY ARM UPPER ESL6163
W0019048 LEG ADJUSTABLE CENTRAL
$22.95
W0019054 COG LEG ADJUSTABLE CENTRAL
W0025794 O RING
W0025927 SWITCH MICRO DOOR
$35.00
W0028144 NOZZLE SPRAYER UPPER
$17.15
W0032293 TAPE FOIL KIT STEAM PROTECTION
W0071556 SWITCH MAIN ON/OFF
$63.25
W0071566 WASHING MOTOR TACHOMETRIC
W0071702 VENTILATOR (FAN UNIT)
$316.00
W0071710 TEMPERATURE SENSOR ESL9163
W0071773 SPRAY ARM. UPPER SMALL
W0071814 COLUMN. SUPPORT. LOWER SPRAYAR
W0071820 SEAL TEMPERATURE SENSOR
W0071856 RUBBER DAMPER.CIRCULATION PUMP
W0072582 SWITCH MICRO LAMP
W0072611 BRACKET FIXING TOP
W0072638 CROSSBAR. REAR. UPPER
W0072685 TUBE PRESSURE SWITCH SAFETY
W0072687 TUBE PRESSURE SWITCH LEVEL
W0072745 METAL PANEL UPPER - BLACK
W0072769 CONTROL PANEL ASSY SB926SK
W0072777 HANDLE COMPLETE
W0072794 HARNESS
W0072800 BUTTON WASH MODE
W0072801 BUTTON ON/OFF GREY
$7.70
W0072842 SEALING OUTER X 1730 LONG
W0073013 BASKET LOWER INCLUDES ROLLERS
W0090249 SUPPORT. FLOAT
W0090280 TIE HINGE
W0090331 BRACKET ROLLER REAR SIFFENING
W0090380 COVER WIRING
W0090402 SEALING STRIP
W0090409 HANDLE. OUTER. SILVER ESL4143
W0090410 HANDLE. INNER. SILVER ESL4143
W0090413 SEAL CHANNEL DRAINAGE
W0090423 NUT SPEED CLIP
W0090427 SCREW ADJUSTING CENTRAL FOOT
$7.70
W0090452 GUIDE FOOT
$12.00
W0090465 FILTER. INOX ESL9163
W0090524 CROSSBAR FRONT UPPER BLK
W0090536 DOOR INOX LS60 ARCHED
W0090545 PLATE SIDE - GREY
W0090550 SPRING HANDLE LATCH
W0090562 BASEMENT
W0090565 TANK WATER LONG
$77.00
W0090575 DOOR LOCK. FRONT. BOTTOM. DIVA
W0090577 FOOT SUPPORT. FRONT. LEFT
W0090579 SUPPORT FOOT FRONT RH
$10.00
W0090590 SWITCH PRESSURE. LEVEL 65/45
W0090593 SWITCH PRESSURE. SAFETY 123/98
W0090597 LATCH BRIDGING PLUG COMP
W0090605 MANIFOLD. HORIZONTAL. DIVA/60
W0090612 CLAMP HOSE
W0090613 ELECTRIC CABLE BLOWER
W0090622 GASKET ANTI OVERFLOW
W0090634 SPRAY ARM LOWER LIGHT GREY
W0090636 COVER LATCH HOLE
W0090642 DRAIN FILTER. COMPLETE
W0090645 LEG ADJUSTABLE FRONT 121MM
W0090648 SPRING. HINGE ESL6143
W0090653 TRIM TUB CAB L=1710 WHT
W0090662 FLOAT SWITCH
$10.00
W0090676 PANEL SIDE LEFT BLACK
W0090679 PANEL SIDE RIGHT BLACK
W0090697 ADAPTOR FLANGE DISCHARGE PIPE
$12.00
W0090703 PARTITION FRONT, BACK
$23.10
W0090704 PARTITION FRONT. FRONT
W0090709 RACK DISH
W0090710 RACK DISH
$30.00
W0090722 HANDLE BASKET SILVER
$34.90
W0090726 CROSSBAR FRONT BOTTOM
W0090744 ROLLER BASKET ADJUSTMENT
$11.90
W0090745 ROLLER BASKET ADJUSTMENT
$16.00
W0090746 PLUG DRAIN HOSE
W0090749 SPONGE TURBO DRYING
$4.00
W0090752 MICROSWITCH. ANTIOVERFLOW
W0090762 SUPPORT. CUP. GREY ESL4143
W0090776 HOSE DRYING. L=730 ESL6163
W0090781 SUMP. PIPE UNION. COMPLETE
W0090816 TUBE WATER SPRAYER L=1280
W0090817 SUPPORT CUP
$6.60
W0090827 HARNESS DOOR LAMP
W0090861 LENS LIGHTING COMPLETE
W0090862 COLLAR LENS COMPLETE
W0090864 STIFFENING DOOR 60 - ARCHED
W0090878 BASKET UPPER GREY
W0127221 O RING MANIFOLD INNER
W0127972 NAMEPLATE DOOR
W0128041 HEATER. 230V/2000W 32MM O/LETS
$85.40
W0128074 DOOR PANEL INNER
W0128097 CLIP FIXING STUD (PKT 4)
$4.50
W0128149 KIT. DISPENSER. DETERGENT
W0128153 NUT WATER DISTRIBUTOR
W0128168 HINGE KIT DOOR RIGHT-LEFT
W0128207 DRAIN PUMP 50HZ
W0128208 CAPAC 3UF 450V 2PIN SPIGOT
$20.30
W0128246 SUPPORT ROLLER KIT PKT 4
W0128261 TRIM STEAM PROTECTION
$30.00
W0129222 SEAL AIR CHAMBER
W0149895 O RING SUMP
W0149903 GASKET. SPRAYER ESL6163
W0153312 BOARD PCB CONFIGURED EDW1500
