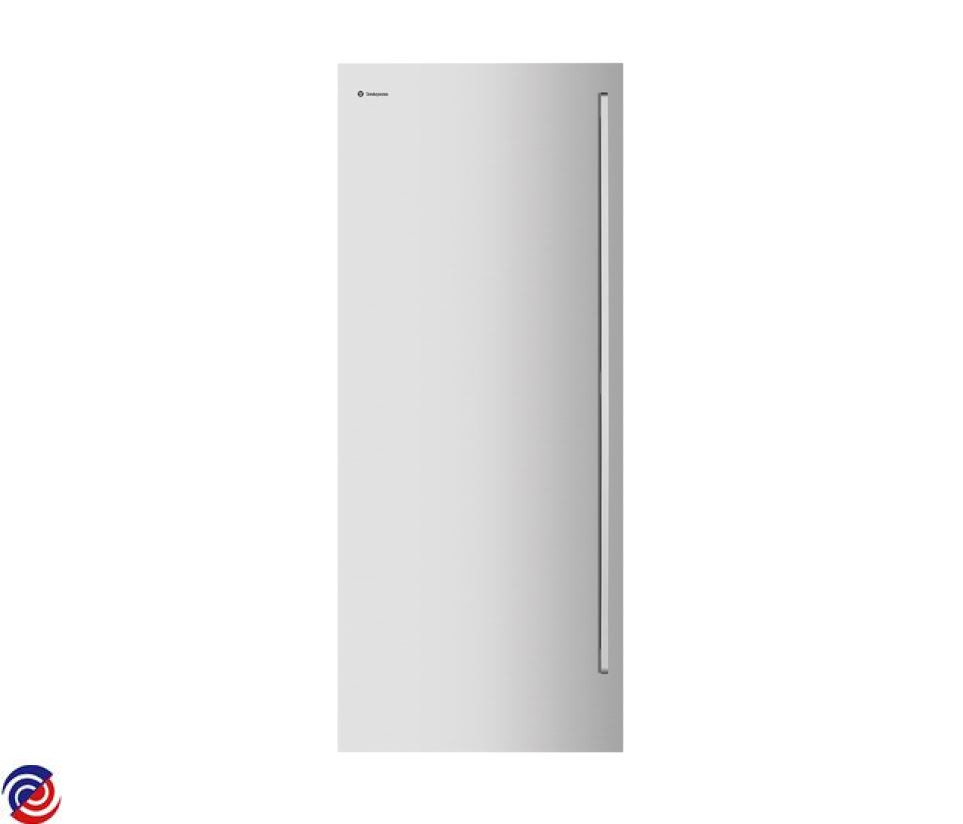

WFB4204SC-R — 925060877 00
WESTINGHOUSE — Freezer
Parts for WFB4204SC-R
.JPG)
W0018582 BADGE NAMEPLATE
W0020667 PCBA 3 LEDS CLUSTER GALAGA
W0027096 BOARD G SSLB WBE4500SA
$179.85
W0027222 TUBE PROCESS
$19.15
W0027439 SCREW TRILOB M5X16
$4.50
W0027460 BIN ICE
W0027522 COVER SCREW
$4.50
W0027560 GROMMET COMPRESSOR
$11.50
W0027562 CLAMP NTC EVAPORATOR
W0029307 DRAWER MIDDLE BODY BF70
W0029559 HEATER RAD DEF R600 240V BF70W
W0029694 SHAFT ROLLER FRONT WTB4600
$7.60
W0029699 FOOT BASE THREAD
$8.75
W0029700 ROLLER FOOT
$17.10
W0029701 FOOT LEVER
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0295505 MOTOR FAN DC 3W
W0020669 LENS 3 LEDS CLUSTER GALAGA
$26.80
W0020676 SWITCH DOOR REED POTTED
W0020712 SCREW M5X0.8 SELF TAPPING
$4.50
W0027411 BLADE FAN,NAT
$32.25
W0027429 POWERCORD RF AU EMBRACO
$26.70
W0027441 SCREW TRUSS 4.2X13
W0027553 VALVE DRAIN ASSY BF
$184.20
W0027605 GASKET SD 70
W0029310 HINGE TOP LEFT
$6.40
W0029467 COVER TOP HINGE LEFT GR
$4.50
W0029538 BEARING AUTO CLOSER L TF SL
W0029539 DRAWER LOWER BODY BF70
$84.10
W0029545 DRAWER FZR FR LWR ASY 70 WH
$63.65
W0029546 DRAWER FZR FR MID ASY 70 WH
$64.00
W0029572 TRAY EVAP DRAIN BM/SD 70W
$16.50
W0029583 SUPPORT SHELF DOUB T&S TF EL
$12.25
W0029586 FRAME T & S TRAY ASSY WHITE
$33.50
W0029599 TWIST&SERVE 2 ICETRAY KIT TOP
$82.70
W0029603 REAR HOUSING PCB COVER
$164.80
W0029604 REAR HOUSING PCB ADAPTER
W0029656 DISPLAY UI SDAF WH ASSY WFB42
W0029698 COVER FOOT RIGHT HINGE GREY
$4.50
W0029703 HINGE BASE LEFT ASSY
$29.00
W0029709 FOOT RIGHT ASSY
$20.10
W0029799 GROMMET FAN PANA DC FAN
$16.05
W0029806 COVER BOTTOM MULTIFLOW SD
$29.40
W0029809 DUCT EPS EVAP BOTTOM ALL SD
$11.15
W0029810 BRACKET SUPPORT FAN MOUNT SD
$24.95
W0029811 SEALING BACK EPS MULTIFLOW SD
$10.00
W0029812 SHELF SHORT SD FZ 70W
$84.30
W0029817 RETAINER CLIP
$4.50
W0029843 TUBE CORRUGATE PF
W0029876 COVER EVAPORATOR ASSY SD FZ
$132.25
W0029877 COVER EVAPORATOR LID SD 70
$5.00
W0030113 SPACER 3 TURN HEATER
$4.50
W0030161 PIN HOLE GREY
W0030162 COVER PIN WHITE
W0030164 DRAIN PAN SD & HEATER TUBE ASY
W0030381 TUBE JUMPER H/X 70W EMBRACO
$8.00
W0087750 WASHER SLINGER NYLON
W0147552 ROLLER REAR WTB4600WA RAYONG
$7.20
W0147553 SHAFT ROLLER
W0275426 COVER BOX REED FZ
$4.50
W0275539 PCB ERF1600 PRGRAMD WFB420SA-X
W0275548 LENS COVER BLUE ASSY
$15.40
W0275569 SHELF LONG FREEZER WFB4204
$77.35
W0275612 CLAMP COMPRESSOR SINGLE
$4.50
W0283022 SENSOR MAGNET REED SW
$5.95
W0283480 HEATER TUBE DRAIN PAN SD LOK
$32.85
W0283849 DOOR SPARE FZR WFB4204SB-R
$696.35
W0284057 SCREW MOUNTING HANDLE MD36
W0284358 SHELF T&S ASSY SD FZ WH
$83.00
W0295884 HANDLE BODY SD WH SS
$143.50
W0296484 PCBA DRIVE EMBRACO FMXA9C
$223.35
W0296590 COMPRESSOR EMBRACO FMXA9C
$248.60
W0361765 COVER DEODORIZER
W0361809 EVAPORATOR ASSY SD FZ 70W FLAT
W0364457 HOUSING SUPPORT SUSPENDED LH
W0364458 HOUSING SUPPORT SUSPENDED RH
W0365822 HARNESS-ASSY M/FLOW SD WEST
$12.20
