WFM1700WE-X — 922001164 00
WESTINGHOUSE — Freezer

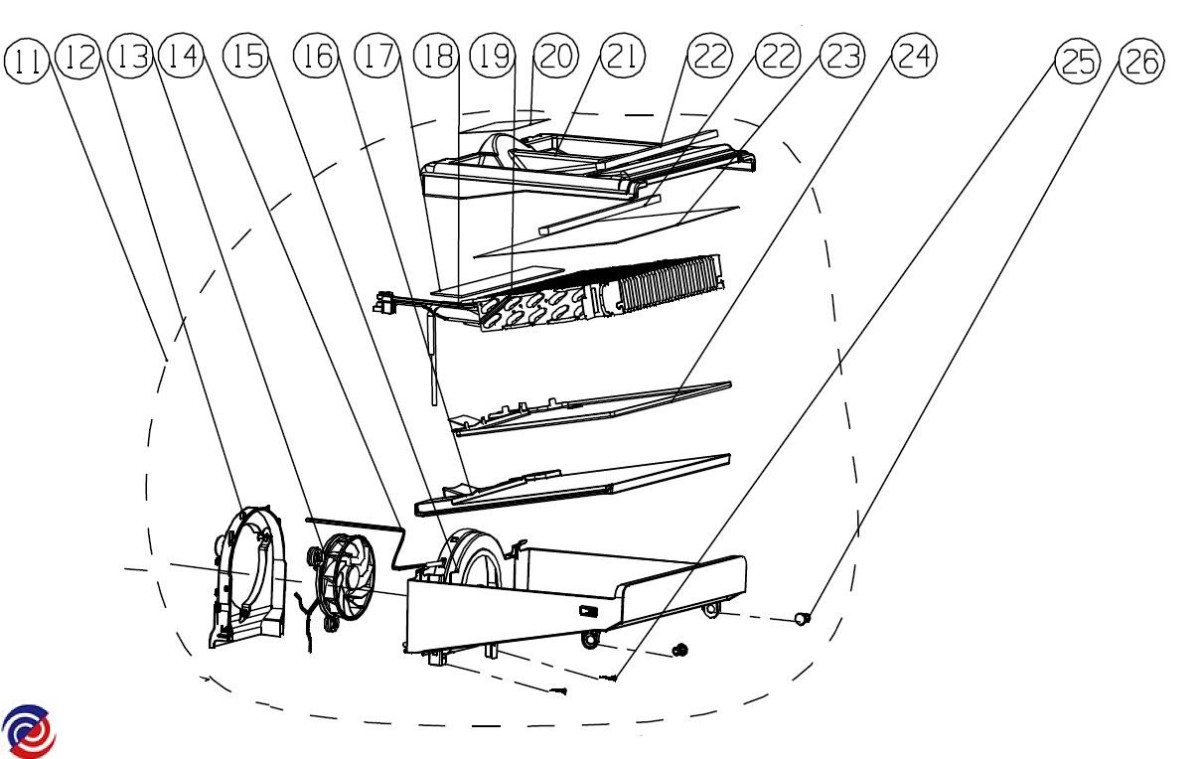

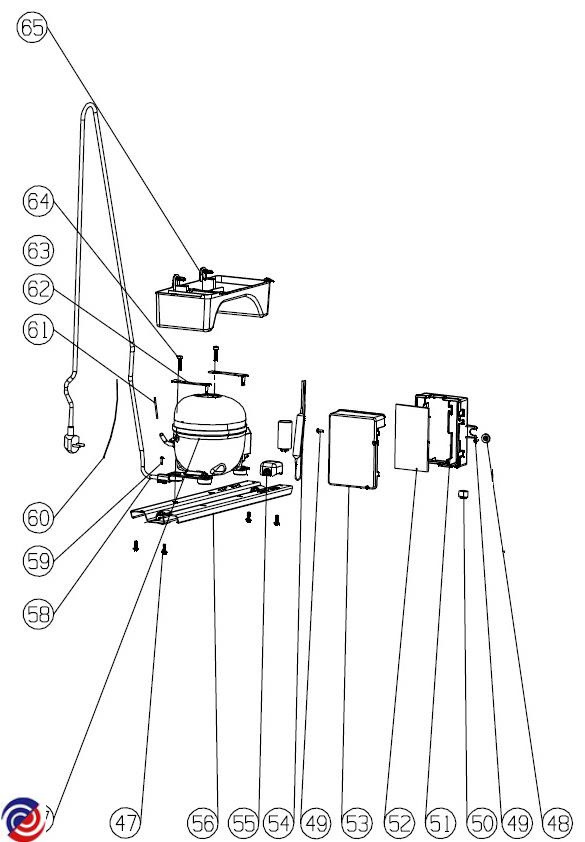

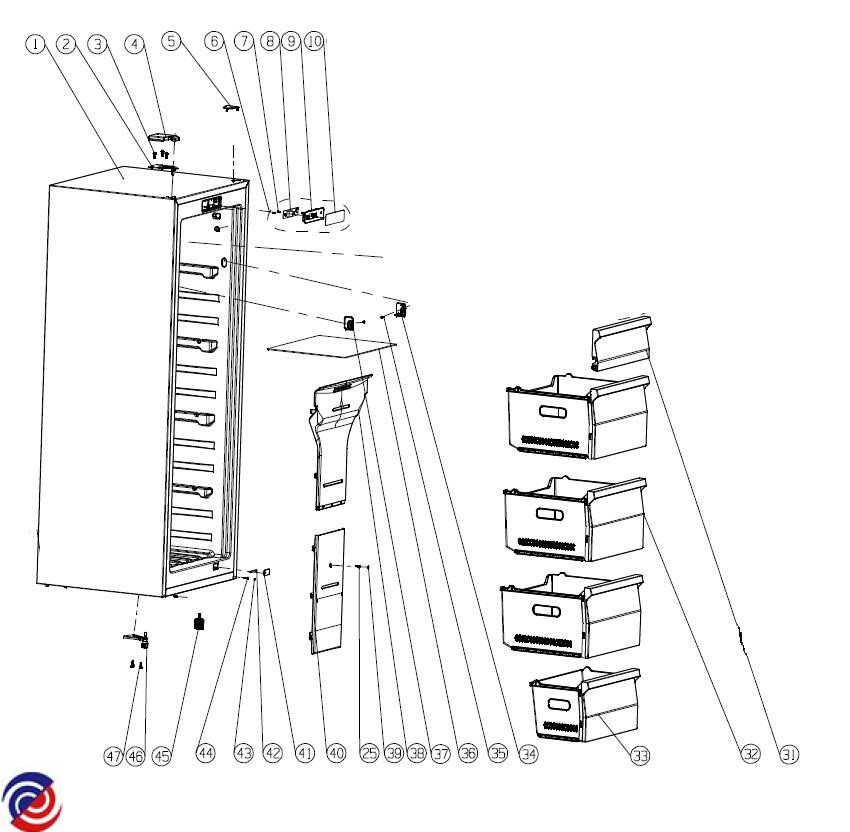

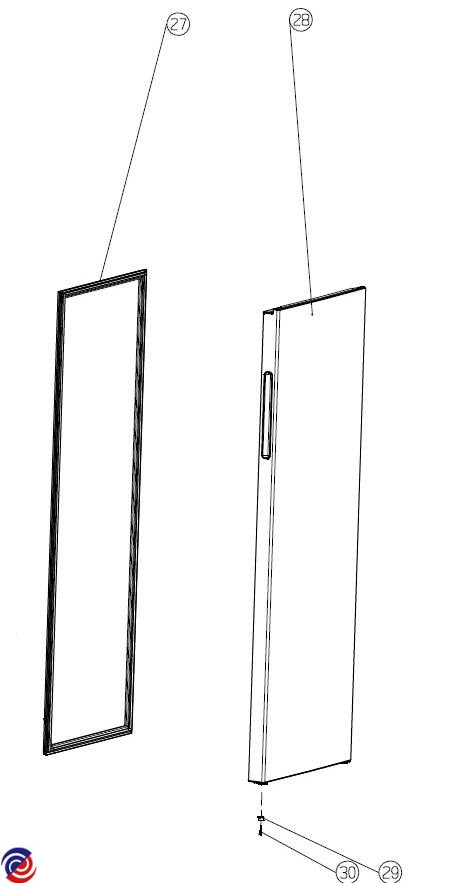

Parts for WFM1700WE-X
W0014735 SCREW COVER WTM1800WA
$5.50
W0014756 HOLDING BLANK RJ182T
$6.60
W0014882 SCREW SELF-TAPPING
W0014892 FLANGE SCREW M5X16
$4.50
W0015088 BUTTON INSTALLATION WRB3504WA
$10.00
W0015108 WATER TUBE COVER WTM1800WA
$8.80
W0015125 HOLDING BLANK RJ182T
$6.60
W0018713 COVER WRB3504WA
$29.45
W0019222 POWER CORD MAIN WRB3504WA
$79.00
W0070842 HEXAGON HEAD TAPPING SCREW
$4.50
W0071874 HANDLE COVER WFM1800
W0076516 DRIER FILTER
W0077441 TRIM & TAPE ASSY-DOOR-TOP-LH
W0274331 BOLT COMPRESSOR
W0274793 COMPRESSOR
$284.95
W0363247 PCB MAIN CONTROL
W0363746 SENSOR TEMPERATURE
$18.51
W0363747 COVER SWITCH REED DOOR
$4.00
W0363752 RELAY PTC STARTING
$38.50
W0363755 BLOCK SPONGE
$14.90
W0363756 TUBE PROCESS
W0363759 TRAY DRAIN
$28.90
W0363762 BLOCK SPONGE
$4.00
W0363765 MOTOR DC FAN
W0363769 FEET ADJUSTABLE BOTTOM
W0363773 GASKET
W0363774 STOPPER DOOR
$4.00
W0363777 CONTROL BOARD BOX
$21.35
W0363778 COVER CONTROL BOARD BOX
$16.25
W0363780 COVER LEFT UPPER HINGE
W0363781 COVER RIGHT UPPER HINGE
W0363782 HINGE LOWER
$31.00
W0363783 COVER COMPRESSOR
W0363784 CLAPBOARD SEAT
$4.00
W0363785 BASE COMPRESSOR
$74.00
W0363786 CHANNEL ASS FRZ WIND
$422.95
W0363787 COVER FRZ WIND CHANNEL
$73.25
W0363788 CHANNEL UPPER WIND
$55.45
W0363789 BASE WIND CHANNEL
$33.35
W0363790 TRAY WATER DRAIN
$60.15
W0363791 CHANNEL FRZ WIND FOAM UPPER
$13.15
W0363792 CHANNEL FRZ WIND FOAM LOWER
$13.50
W0363793 COVER DISPLAY PANEL
$4.60
W0363794 FASCIA DISPLAY PANEL
$26.35
W0363795 DISPLAY PANEL ASSEMBLY
$106.35
W0363796 GLASS SHELF
W0363797 LID DRAWER
W0363798 COVER FAN MOTOR BACK
$17.95
W0363799 COVER HOLE
$4.00
W0363800 PCB DISPLAY PANEL
$85.00
W0363801 DRAWER MIDDLE
W0363802 DRAWER LOWER
W0363803 COVER SENSOR
$9.10
W0363804 HEATER ELECTRIC
W0363805 BAFFLE FIXED FOLDER RIGHT
W0363806 BAFFLE FIXED FOLDER LEFT
W0363807 FIXED HOLDER
W0363808 EVAPORATOR FIN ASSEMBLY
$374.70
W0363817 DOOR FREEZER
W0363820 HINGE UPPER
$30.20
