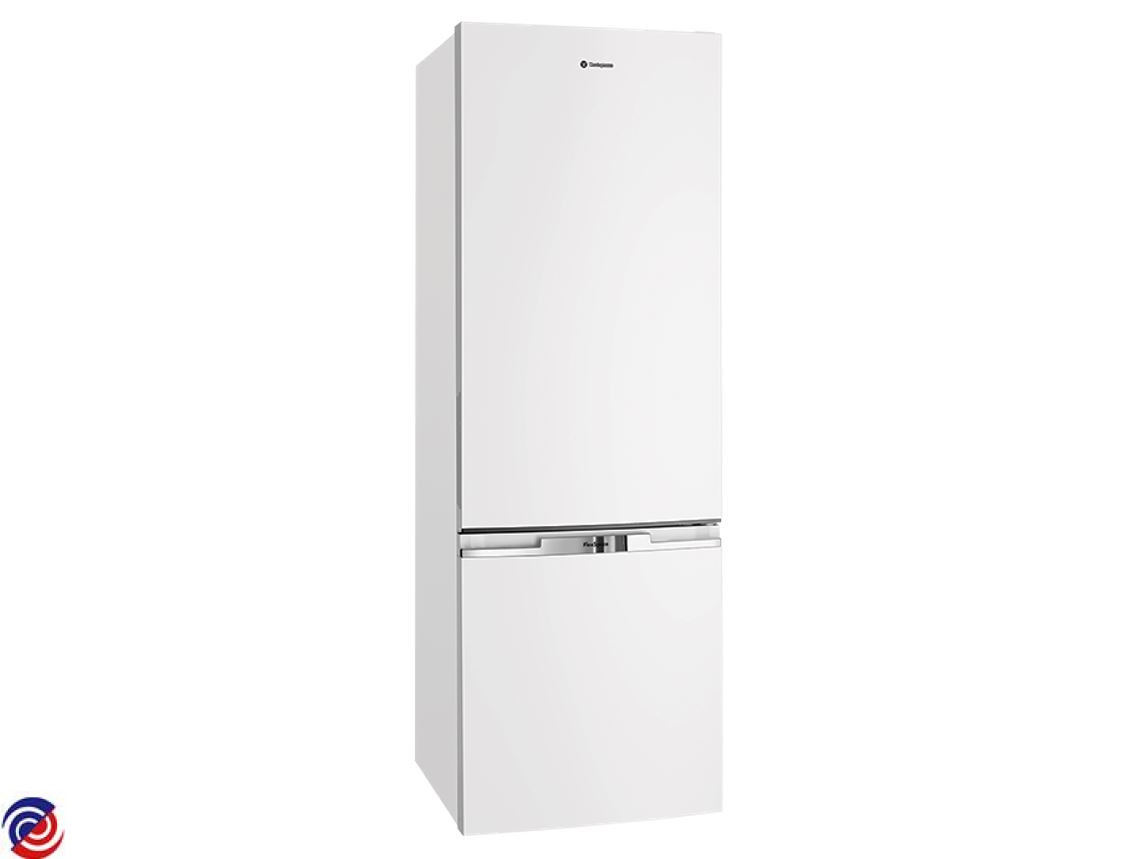

WBB3400WH — 925053187 00
WESTINGHOUSE — Fridge

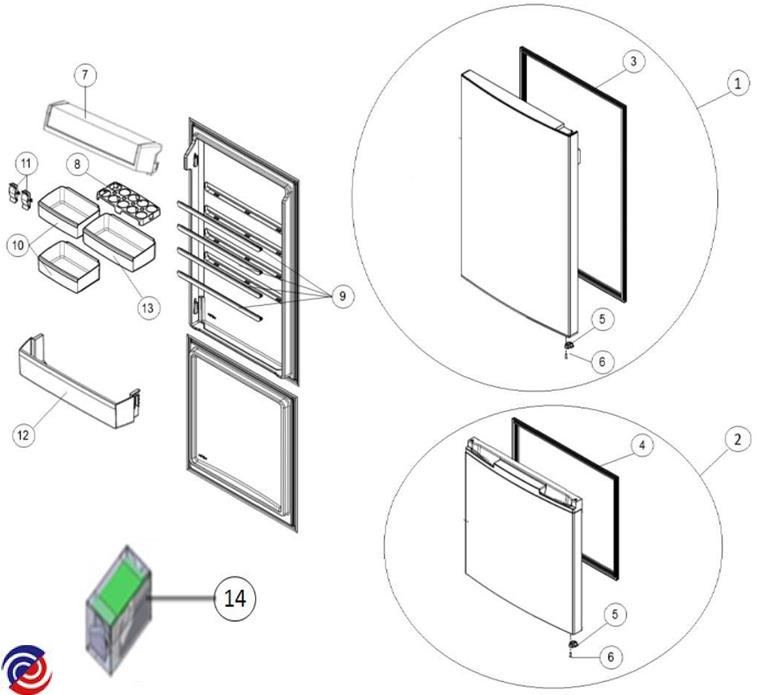

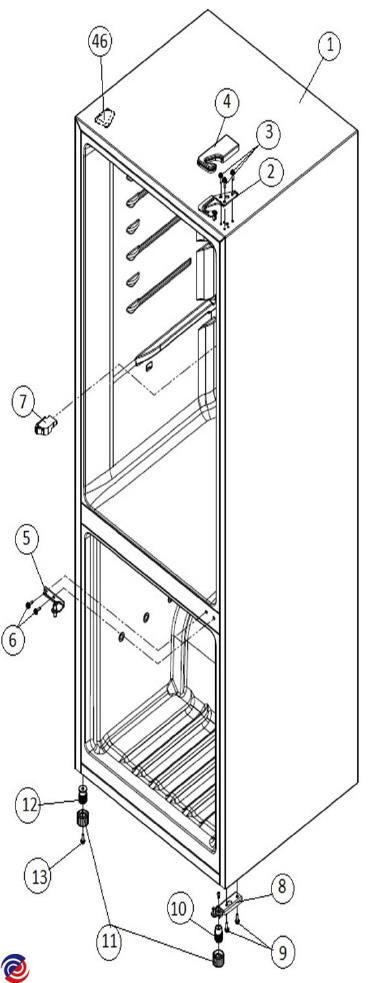

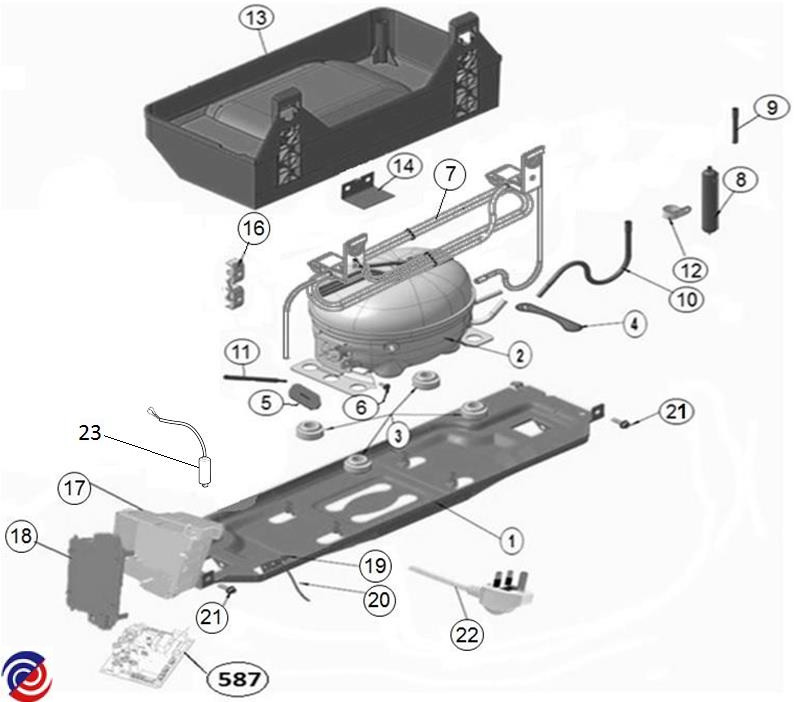

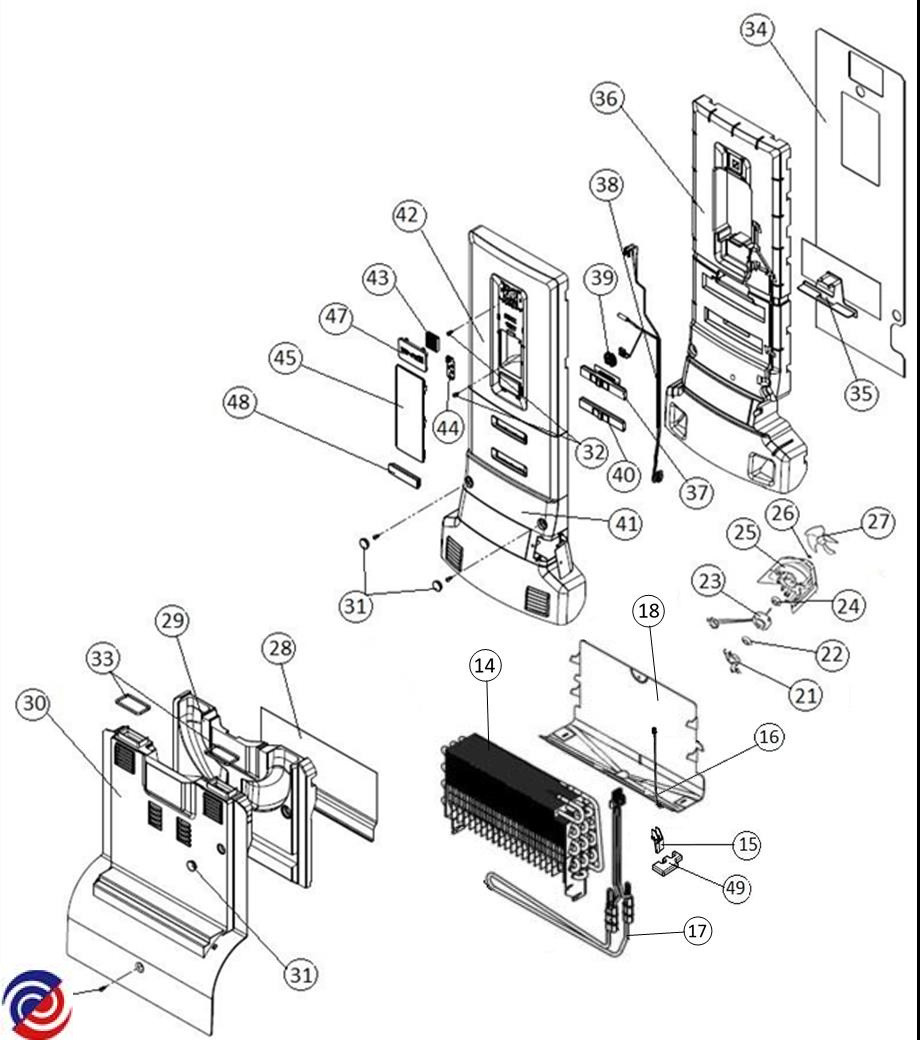

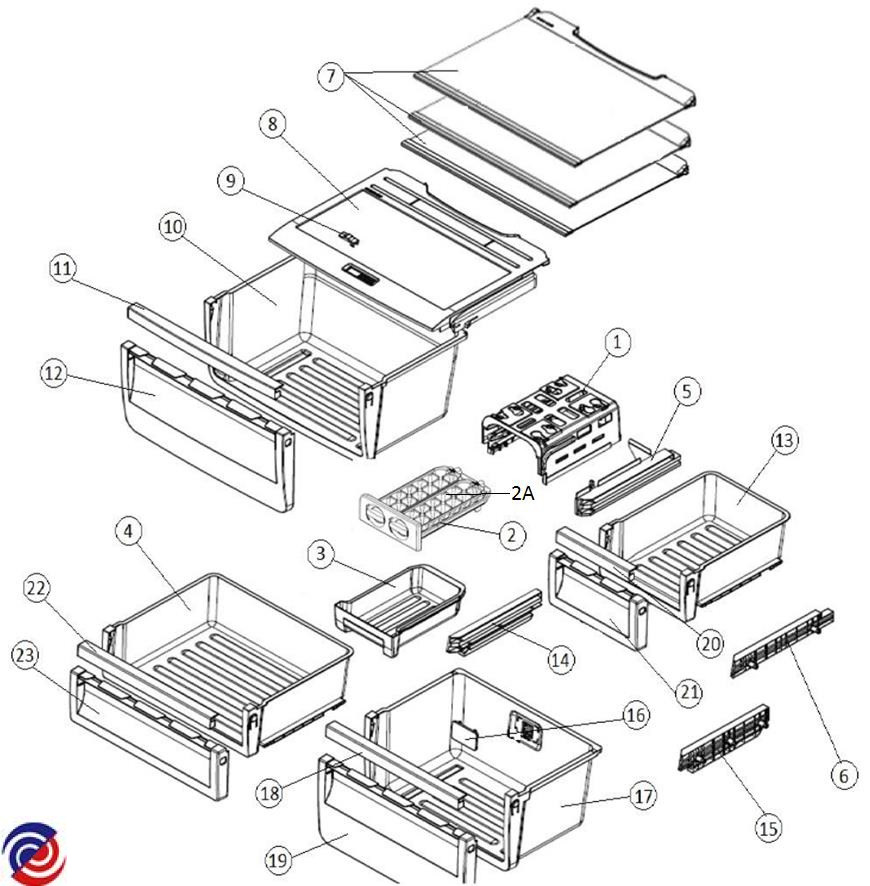

Parts for WBB3400WH
.JPG)
W0018582 BADGE NAMEPLATE
W0027057 TRAY EGG 10
W0027081 SCREW TRILOB M3X6
$4.50
W0027222 TUBE PROCESS
$19.15
W0027229 TUBE DISCHARG EXTENSION WANB
$17.60
W0027322 POWERCORD FRIDGE AU/NZ F
W0027422 COVER DEODORIZER WHITE
$4.50
W0027430 PCB LIGHTING LED HSLB
$107.35
W0027439 SCREW TRILOB M5X16
$4.50
W0027447 DRAWER MID BODY FZR BF60W
$41.60
W0027453 CRISPER FRONT BF60W
W0027454 WESTINGHOUSE FRIDGE VEGE CRISPER BODY 811953801
W0027460 BIN ICE
W0027462 SUPPORT ICE T&S
$15.50
W0027477 CRISPER HANDLE TF 60W
W0027487 CRISPER FRONT ASSY BF60W
W0027507 GEAR CONTROL TEMP
$18.30
W0027521 LENS MULTIFLOW TF
$7.00
W0027522 COVER SCREW
$4.50
W0027529 GROMMET FAN SIDE
$8.75
W0027559 CLAMP DRYER
$4.50
W0027560 GROMMET COMPRESSOR
$11.50
W0027561 CLAMP NTC EVAPORATOR
$4.50
W0027577 RAIL DOOR SUPPORT 60W WHT
$9.35
W0027592 GASKET FC BF320L 549 X 915
W0027608 COVER TOP CABINET WH GR
$6.95
W0027610 CLAMP COMPRESSOR
$4.50
W0027617 HINGE CENTRE RIGHT
$40.50
W0027618 HINGE TOP RIGHT
$37.50
W0029822 HEATER DEFROST R600A 240V
W0029837 BIN DOOR BOTTLE 60W
W0029839 BIN DOOR FLEX 2/3 EL
W0029915 SHELF GLASS ASSY 60W
$66.00
W0029986 PAN DRAIN EMBRACO EMT40
W0030063 COMPRESSOR EM2C40CLT
W0087752 BLADE FAN
W0147485 HOUSING BOX PCB ASSY BF WH
$141.00
W0147530 TRAY TWIST AND SERVE ASSY ICE
W0147537 MOTOR FAN L 240V/50HZ
W0154347 WESTINGHOUSE FRIDGE DOOR HINGE CONVERSION KIT
W0018166 GROMMET FAN MOTOR
$16.45
W0027014 FILTER DEODORIZER
$12.05
W0027015 DEODORIZER BLOCK THIN
$18.00
W0027019 SLIDER FOAM BUFFLE BF
$17.45
W0027153 CRISPER ASSY WBB3400W
W0027239 PLUG HOLE MULLION WHT
W0027248 TUBE SUCTION EXTENSION WANBA
$17.60
W0027416 SEAL FOAM REAR DUCT MF BF
$11.00
W0027425 HARNESS EARTH COMP
$10.00
W0027427 SWITCH DOOR TF SINGLE
W0027436 SEAL FOAM EVC BF
W0027438 SCREW COUNTERSUNK M4.8X19
$4.50
W0027441 SCREW TRUSS 4.2X13
W0027444 SEAL LOWER MULTIFLOW BF
$101.25
W0027445 RAIL T&S SUPPORT BF60W L
W0027446 DRAWER MEAT BODY FZR BF60W
W0027449 DRAWER LOWER BODY FZR BF60
$48.00
W0027450 DRAWER LOWER FRONT FZR BF
W0027451 DRAWER MEAT FRONT FZR ASSY
W0027494 HANDLE MEAT FZR BF60W L
W0027495 HANDLE DRAWER FZR BF60W
W0027496 SLIDE LOWER FZR LEFT BF60W
W0027497 SLIDE LOWER FZR RIGHT BF60W
W0027498 SLIDE MEAT FZR BF60W L
W0027501 COVER BOX PCB
$14.95
W0027502 HOUSING BOX PCB
$27.50
W0027506 SLIDE CONTROL TEMP BF WHT
$6.30
W0027511 DUCT EVAPORATOR MAIN BF
$5.50
W0027514 DUCT MULTIFLOW BF260L/300L
$26.40
W0027516 COVER MULTIFLOW LOWER BF B
W0027517 COVER MULTIFLOW UPPER BF 3
$23.90
W0027545 BAFFLE SLIDER FRONT BF WHT
$5.80
W0027546 BRACKET SHROUD FAN BF
$14.50
W0027547 SHROUD FAN BF
W0027548 BRACKET SENSOR BF
$14.50
W0027549 BAFFLE SLIDER BACK BF
W0027551 CLAMP CABLE PROTECTOR BF
W0027554 EVAPORATOR ASSY 8 PASSES 7.
W0027565 SUPPORT HEATER TF R600A
$28.00
W0027566 RETAINER THERMAL FUSE
$9.00
W0027571 EVAPORATOR ST 8 PASSES
$84.70
W0027573 SUPPORT HEATER BF
$13.45
W0027586 GASKET FZR BF60W 549 X 590
$91.10
W0027606 BEARING AUTO CLOSER R
$10.20
W0027607 FEET ASSY
W0027613 COVER HINGE TOP RIGHT WHT
$14.80
W0027616 HINGE BOTTOM BASE RIGHT
$37.50
W0029571 HARNESS MULTIFLOW BF BASIC
W0029799 GROMMET FAN PANA DC FAN
$16.05
W0029817 RETAINER CLIP
$4.50
W0030536 DOOR SPARE FC WBB3400WG
$375.00
W0085339 DRIER REFRIGERATION 280 LTR
W0087781 SPRING TWIST&SERVE
W0096152 TRAY ICE CUBE
W0096153 KNOB ICE T&S WHITE
W0147487 DOOR FOAMED FZR WH WHT 320
W0147518 HARNESS SENSOR BF
W0147527 PCB MAIN ERF1500 BF WBB3700
W0147531 FRAME ICE T&S
W0147532 BIN DAIRY FULL ASSY BF 60W
W0147533 BIN DAIRY BODY FULL BF 60W
W0147534 BIN DAIRY LID FULL BF 60W W
W0147549 FOOT BASE HINGE
W0147551 ROLLER REAR
W0147553 SHAFT ROLLER
W0147554 BASE COMPRESSOR 60W
W0147555 FOOT LEVER
W0147557 FOOT BASE
W0154058 BIN DOOR FLEX 1/2
W0275440 CLAMP CABLE FLEX DRIVE
$4.00
W0275547 SCREW TAPPING M4X0.7X10
$4.00
W0284332 DRAWER MID FRNT FZR ASSY
