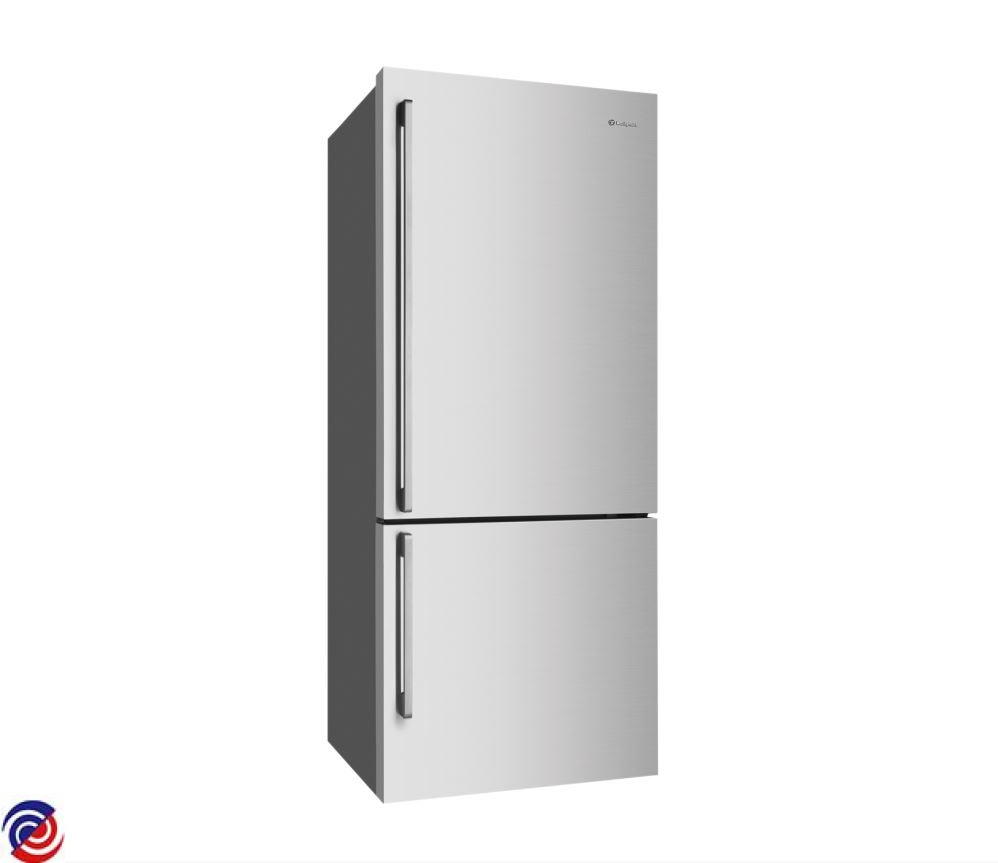

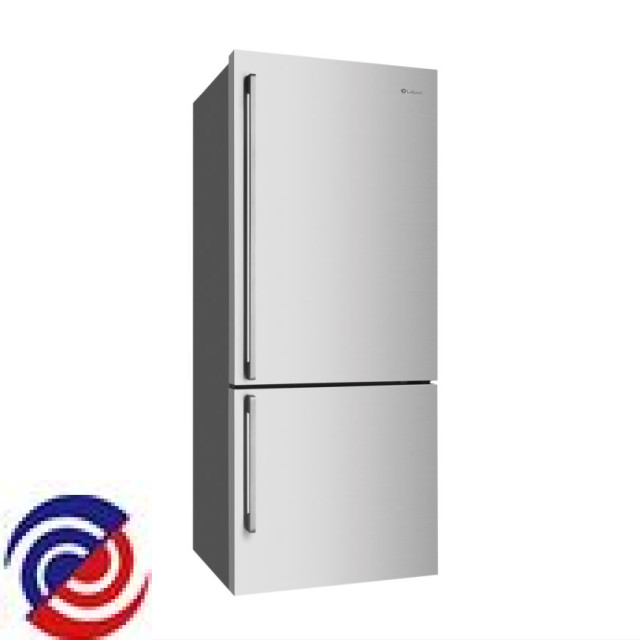

WBE4504SB-L — 925060545 01
WESTINGHOUSE — Fridge
Parts for WBE4504SB-L
.JPG)
W0018582 BADGE NAMEPLATE
W0027081 SCREW TRILOB M3X6
$4.50
W0027096 BOARD G SSLB WBE4500SA
$179.85
W0027222 TUBE PROCESS
$19.15
W0027439 SCREW TRILOB M5X16
$4.50
W0027460 BIN ICE
W0027522 COVER SCREW
$4.50
W0027560 GROMMET COMPRESSOR
$11.50
W0027562 CLAMP NTC EVAPORATOR
W0027610 CLAMP COMPRESSOR
$4.50
W0029307 DRAWER MIDDLE BODY BF70
W0029559 HEATER RAD DEF R600 240V BF70W
W0029694 SHAFT ROLLER FRONT WTB4600
$7.60
W0029699 FOOT BASE THREAD
$8.75
W0029700 ROLLER FOOT
$17.10
W0029701 FOOT LEVER
W0147530 TRAY TWIST AND SERVE ASSY ICE
W0154021 PCB MAIN ERF2003 INTER DISPLAY
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0275558 HINGE BASE ASSY LEFT WITH ADJ
$43.65
W0294684 SHROUD FAN ASSY BF DC 50HZ
W0295504 ELECTROLUX FRIDGE INVERTER PCB
$199.00
W0295505 MOTOR FAN DC 3W
W0018166 GROMMET FAN MOTOR
$16.45
W0020669 LENS 3 LEDS CLUSTER GALAGA
$26.80
W0027119 SCREW TRILOB M6X18
$4.50
W0027401 BAFFLE MOTOR FBZA-1750-3D
W0027411 BLADE FAN,NAT
$32.25
W0027413 SEAL FOAM BOTTOM MF PINOT BF-N
$12.65
W0027441 SCREW TRUSS 4.2X13
W0027547 SHROUD FAN BF
W0027553 VALVE DRAIN ASSY BF
$184.20
W0027579 RAIL DOOR SUPPORT 70W WHT
$8.10
W0027601 GASKET FRZ BF70
$101.55
W0027603 GASKET FC BF70
$116.05
W0029310 HINGE TOP LEFT
$6.40
W0029375 SEALING MFLOW BACK BF 1725
$12.15
W0029376 DRAWER BODY BF70
$34.10
W0029379 DRAWER FRONT BF70 WH ASSY
$64.00
W0029395 BIN DOOR LOCKABLE TF70 SEA ASY
$22.20
W0029410 DOOR BIN FC SHALL 70 WH-HOTFOI
W0029422 BIN DOOR FC BOTTLE TF70W EL
W0029423 DOOR BIN FINGER TF70W WH
$8.90
W0029434 TRAY EGG 70W
W0029467 COVER TOP HINGE LEFT GR
$4.50
W0029472 DRAWER PASTRY BODY BF 70
$41.00
W0029476 COVER GRID AIR RETURN BF
$4.50
W0029480 COVER SCREW MULTIFLOW LH
$4.50
W0029481 COVER SCREW MULTIFLOW RH
$4.50
W0029538 BEARING AUTO CLOSER L TF SL
W0029539 DRAWER LOWER BODY BF70
$84.10
W0029545 DRAWER FZR FR LWR ASY 70 WH
$63.65
W0029546 DRAWER FZR FR MID ASY 70 WH
$64.00
W0029547 DRAWER FZR FR UPR ASY 70 WH
$63.65
W0029572 TRAY EVAP DRAIN BM/SD 70W
$16.50
W0029596 DRAIN PAN SD
W0029597 PAN DRAIN DYN CON
W0029603 REAR HOUSING PCB COVER
$164.80
W0029674 HINGE CENTRE BASE ASSY
$37.75
W0029675 HINGE CENTRE PIN SWING DOOR
$8.15
W0029697 COVER FOOT LEFT HINGE GREY
$12.95
W0029746 CRISPER SUPPORT LH
$17.75
W0029747 CRISPER SUPPORT RH
$17.75
W0029749 CRISPER COVER ASSY BF70 WH
$72.70
W0029761 BRACKET ICE MAKER
$14.50
W0029764 SUPPORT PASTRY SLIDE LH
$18.35
W0029814 SUPPORT PASTRY SLIDE RH
$14.00
W0029817 RETAINER CLIP
$4.50
W0029820 EPS FZ AIR STOPPER
$5.00
W0029843 TUBE CORRUGATE PF
W0029925 CRISPER GASKET 70
$11.40
W0030113 SPACER 3 TURN HEATER
$4.50
W0030287 EVAPORATOR FF BF70
$95.75
W0030381 TUBE JUMPER H/X 70W EMBRACO
$8.00
W0147520 SWITCH DOOR
$26.50
W0147553 SHAFT ROLLER
W0154011 BIN DOOR FLEX 70 1-HOTFOIL
$63.80
W0274142 ROLLER FIXED FOOT ASSY
$10.60
W0274872 PCBA # LED CLUSTEER GALGA
$23.20
W0275285 SCREW (4,8X16 CP/C15)
$4.00
W0275459 MASTIC RUBBER T4MM
$16.05
W0275536 SHELF FC TF70W
W0275544 EXTENSION SLIDE ASSY LH 300MM
W0275545 EXTENSION SLIDE ASSY RH 300MM
W0275548 LENS COVER BLUE ASSY
$15.40
W0275612 CLAMP COMPRESSOR SINGLE
$4.50
W0283480 HEATER TUBE DRAIN PAN SD LOK
$32.85
W0283838 DOOR SPARE FC+FZR WBE4514SB-L
$676.05
W0284057 SCREW MOUNTING HANDLE MD36
W0295964 POWER CORD INV AU/NZ FERITE
$46.45
W0296466 EPS MULTIFLOW BF1725 WEST
W0296478 PCBA UI 2ZONE WH BF INTL WHT
$91.80
W0296512 DISPLAY UI 2ZONE BF INT WHT
$101.55
W0296554 HANDLE TF/BF WH SS KIT
W0359364 COMPRESSOR
W0361765 COVER DEODORIZER
W0361766 MULTIFLOW ASSY WBE4500WB ML01
W0361777 EPS EVAPORATOR BF 70
$7.45
W0361778 COVER EVAPORATOR BF70 ASY 2-Z
$72.70
W0361827 HARNESS-ASSY M/FLOW BF WEST
$36.55
W0361912 SENSOR HARNESS-ASSY FZR DEFROS
W0361970 GROMMET FAN PANA DC FAN
