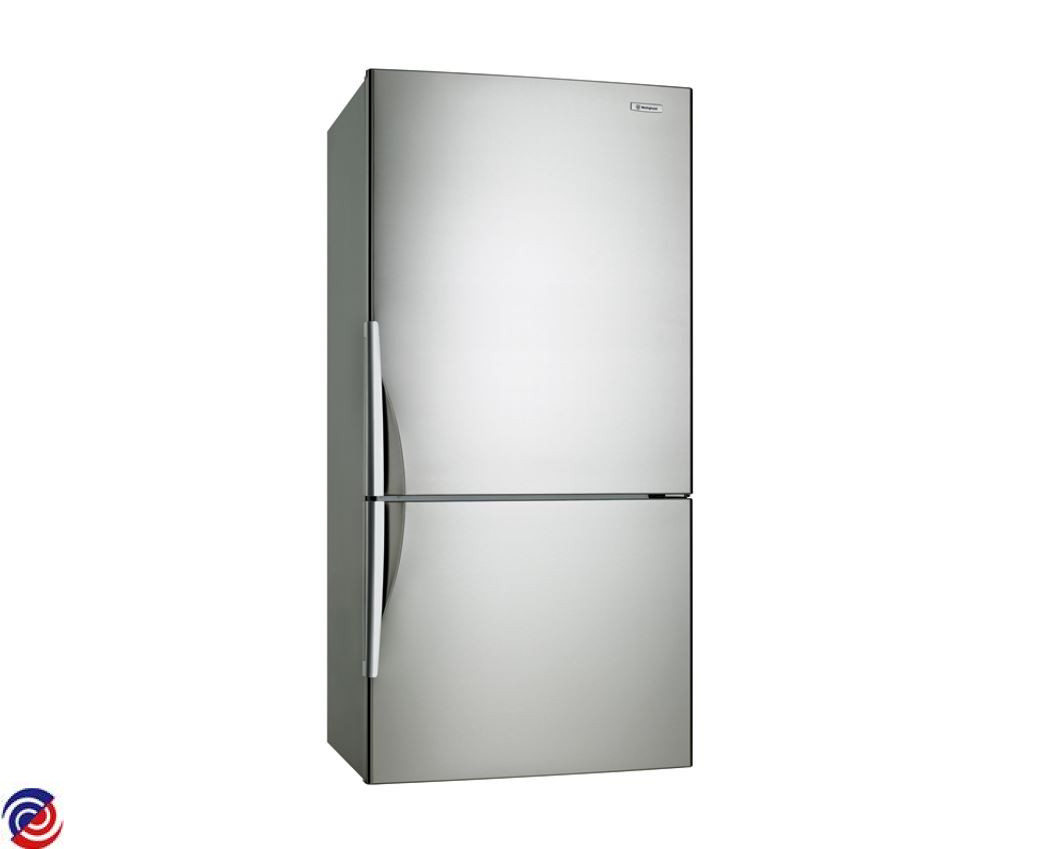

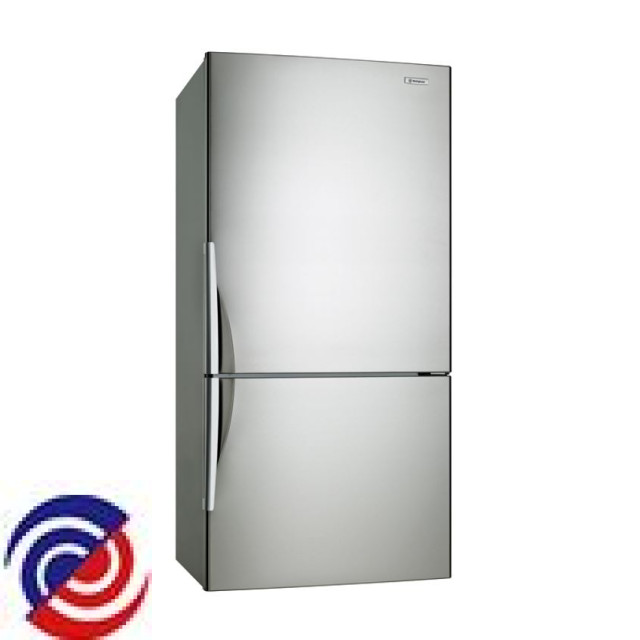

WBE5100SC — 925042726 00
WESTINGHOUSE — Fridge
Parts for WBE5100SC
W0018090 BIN FULL WIDTH
W0018096 BIN HALF WIDTH
W0018275 BIN CRISPER REAR
W0018334 FACIA ASSY BIN FZR
W0018395 COVER HANDLE RH TOP LH BOT
$30.00
W0018396 COVER HANDLE RH BOT LH TOP
$45.85
W0018581 ROLLER ADJUSTABLE
$40.00
W0018582 BADGE NAMEPLATE
W0019131 SCREW COUNTER SUNK THIMBLE
$4.50
W0034671 TRAY ICE CUBE
W0083263 STOP DOOR
W0085600 CAP LEG
$12.90
W0085609 LEG STABILISING
W0086083 BAFFLE KIT MOTORISED
W0086637 HOSE DRAIN (SLIT 130MM)
$11.90
W0086638 BLADE FAN
W0086834 HINGE PLATE BOT LH BLACK ASSY
$34.50
W0087029 BIN UTILITY LH 790
$67.90
W0087161 TRAY EGG
W0087214 HINGE TOP LH
W0087464 ROLLER REAR GREY
W0087741 LAMP 25W SES BLUE 240V E14
W0088096 MOTOR FAN EVAP
W0088199 HEATER DEF & DTT R600A 790W

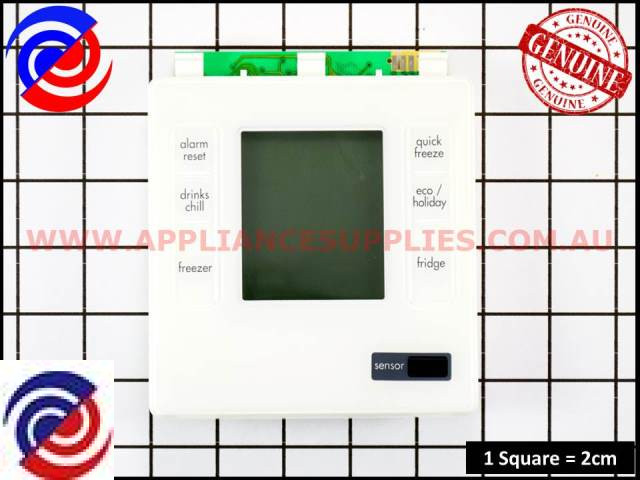

W0088712 WESTINGHOUSE FRIDGE CONTROL DISPLAY PCB 1458932
W0088802 SHELF GLASS EBE NW
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0018042 BRACKET FAN MOTOR
$7.00
W0018049 CLIP SELF ADHESIVE
$9.00
W0018078 SHROUD FAN MOULDED
$16.30
W0018126 RUNNER LH
W0018166 GROMMET FAN MOTOR
$16.45
W0018170 GROMMET COMPRESSOR
W0018233 COVER HINGE LH
$12.65
W0018254 CAP CORNER GREY SYD1212A
$23.80
W0018268 SHIELD LIGHT WFM3000PB
$12.95
W0018277 FACIA ASSY CRISPER
W0018279 RUNNER TRAY FZR
$12.20
W0018292 SUPPORT CENTRE
$14.90
W0018293 RAIL BIN RH FZR
$14.00
W0018294 RAIL BIN LH FZR
$14.05
W0018301 BAFFLE AIR RETURN
$15.40
W0018377 SCREW #8 X 7.5 EBM4307SC
$4.50
W0018383 GASKET LAMP SEALING
$7.70
W0018478 TROUGH DRAIN ASSY EBE5100SC
$11.00
W0018624 PAN DRAIN WANBAO ETZ110
$21.10
W0018633 COM KITEZT110 R600A
W0018641 CORD SERVICE INSUL EBE5100SC
W0018666 BIN DAIRY NW EBE5100SC
$54.50
W0079509 SPACER RJ505EA
W0081199 TIE CABLE 140MM LONG
W0081263 PIN COMPRESSOR MTG RS652M*6
W0082523 RIVET
W0082722 FOAM TAPE RJ393V
W0083235 CLIP-HEATER-ALUMINIUM BJ414Q
W0083869 PLUG DRAIN WHT
W0084342 TAPE (9MM 3M TAPE)
W0084491 SEAL BYPASS PLASTIC N410F
W0084558 DAMPER NOISE
W0084749 CLAMP-CORD BJ385T
W0085461 KNOB LOCK
W0085462 LOCK LATCH
W0085533 DOOR DAIRY RH RJ523V
W0085534 DOOR DAIRY LH RJ523V
W0085599 SPACER ROLLER STRIKESIDE RJ393
W0085624 M/F SEALING NB380J
W0085947 PLUG SCREW
$3.90
W0086004 SENSOR INSULATION
W0086010 BIN BOTTLE RJ523V
W0086053 THIMBLE FILLER ASSY CLOSED
W0086056 THIMBLE CAM ASSY CLOSED RJ393V
W0086339 SCREW M4 X 8 MUSH RJ393V
W0086350 GRILLE AIR
W0086558 RUNNER CENTRE
W0086579 TAPE FOAM SEALING SBM3800MA
W0086654 VENT AIR CURTAIN
$46.20
W0086700 STRAINER DRAIN TUBE NB380J
W0086763 GASKET CONTROL REAR LOWER
W0087168 PAN DRAIN
$24.95
W0087190 OVERLOAD T0366 GVT44
W0087325 CAPAC 4*0UF 400V WIRED CLIP
W0087383 EVAPORATOR ASSY
W0087402 SCREW 8/32 X 3/8 ETM3600WB
W0087403 CLIP MOUNTING COMPRESSOR
W0087405 SCREW 12/14 16MM ETM3600WB
W0087406 SCREW-HINGE/CAM-BTM ETM3600WB
$4.50
W0087407 SCREW 8/32 X 1/2THREAD FORMING
W0087408 SCREW NO8 X 3/4 PAN HD ETM3600
W0087409 SCREW EVAP COVER 8 X 1/2
$4.00
W0087410 SCREW DELI RUNNER RJ393V
W0087411 SCREW HINGE CENTRE
$4.50
W0087412 SCREW ETM3600WB
W0087416 SCREW 8 X 1/2 T/F ETM3600WB
W0087417 NUT ETM3600WB
W0087422 LOCK WASHER ESE6108WA
W0087497 CAP SCREW GREY
W0087504 CAP SNAP ETE3900SA
W0087587 GASKET CONTROL REAR LOWER
W0087656 GASKET DOOR FZR
W0087658 GASKET ASSY OBM F/C 510L
W0087720 COVER EVAP WTM5200PA
W0087730 HEAT SHIELD EVAP COVER
W0087771 TRAY FREEZER 790W W/HOUSE
W0087774 BIN FREEZER TOP WBE5100SB
W0087777 BIN FREEZER BOT WBE5100SB
W0087788 TWIST & SERVE CARRIAGE ASSY
W0087794 SCOOP ICE
W0087809 BIN ICE
W0087846 DOOR ASSY FIP FC LH SS WBE5100
$221.00
W0087847 DOOR ASSY FIP FZ LH SS WBE5100
$188.50
W0087931 CTRL BRD/BOX BUZZER ASSY
W0088073 HOUSING CONTROL ASSY REAR
W0088084 RUBBER BUMPER UNION FC
W0088154 INSULATION COVER EVAP ASSY
W0088156 COVER EVAP ASSY WBE5100SB
W0088385 RACK WINE
W0088403 LENS LIGHT WBE5100SC
W0088431 SHAFT ROLLER
W0088498 LAMPHOLDER & HARNESS WBE5100S
W0088782 COVER COMPRESSOR
$14.90
W0088789 EXTENSION SLIDE ASSY FZR 300MM
W0088844 FINGERS BOTTLE
$9.35
W0088859 LID CRISPER ASSY WITH RAILS
W0088897 HINGE SOLID RH KIT
W0134832 TAPE-FOAM SEAL18X4 14M/RLL.
W0163904 KNOB ICE B6565WTB2800WA-XAU
W0166429 SPRING ICE CUBE TRAY
