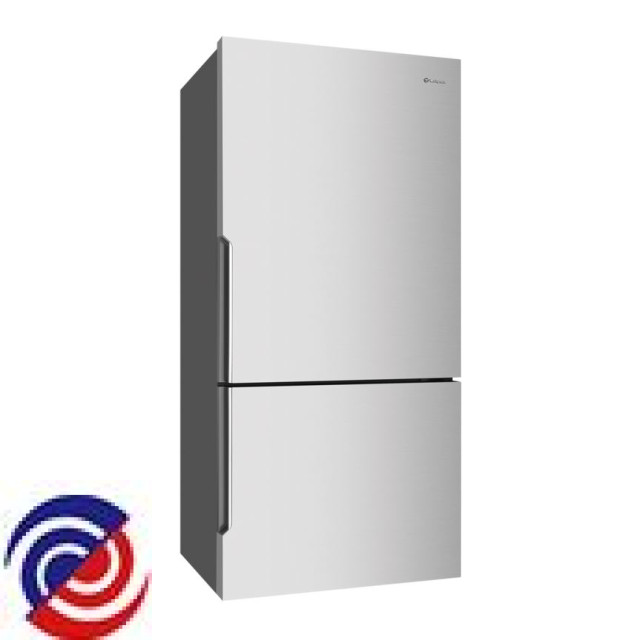

WBE5300SC-R — 925060860 00
WESTINGHOUSE — Fridge
Parts for WBE5300SC-R
.JPG)
W0018582 BADGE NAMEPLATE
W0020667 PCBA 3 LEDS CLUSTER GALAGA
W0027081 SCREW TRILOB M3X6
$4.50
W0027096 BOARD G SSLB WBE4500SA
$179.85
W0027222 TUBE PROCESS
$19.15
W0027439 SCREW TRILOB M5X16
$4.50
W0027460 BIN ICE
W0027522 COVER SCREW
$4.50
W0027560 GROMMET COMPRESSOR
$11.50
W0027562 CLAMP NTC EVAPORATOR
W0027610 CLAMP COMPRESSOR
$4.50
W0029435 TRAY EGG 80W
W0029558 HEATER RAD DEF R600 240V BF80W
W0029694 SHAFT ROLLER FRONT WTB4600
$7.60
W0029699 FOOT BASE THREAD
$8.75
W0029700 ROLLER FOOT
$17.10
W0029701 FOOT LEVER
W0147530 TRAY TWIST AND SERVE ASSY ICE
W0154021 PCB MAIN ERF2003 INTER DISPLAY
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0294684 SHROUD FAN ASSY BF DC 50HZ
W0295504 ELECTROLUX FRIDGE INVERTER PCB
$199.00
W0295505 MOTOR FAN DC 3W
W0295727 HARNESS-ASSY SENSOR FZR DEFROS
W0018166 GROMMET FAN MOTOR
$16.45
W0020669 LENS 3 LEDS CLUSTER GALAGA
$26.80
W0027114 BASE COMP ASSY 70W RAYONG
$44.90
W0027119 SCREW TRILOB M6X18
$4.50
W0027401 BAFFLE MOTOR FBZA-1750-3D
W0027411 BLADE FAN,NAT
$32.25
W0027413 SEAL FOAM BOTTOM MF PINOT BF-N
$12.65
W0027441 SCREW TRUSS 4.2X13
W0027547 SHROUD FAN BF
W0027553 VALVE DRAIN ASSY BF
$184.20
W0027580 RAIL DOOR SUPPORT 80W WHT
$23.60
W0027602 GASKET FRZ BF80
$110.10
W0027604 GASKET FC BF80
$159.55
W0029308 DRAWER MIDDLE BODY BF80
$45.45
W0029309 HINGE TOP RIGHT
$8.65
W0029375 SEALING MFLOW BACK BF 1725
$12.15
W0029377 DRAWER BODY BF80
$92.50
W0029398 DOOR BIN LOCKABLE TF80 WH ASSY
W0029406 DOOR BIN FLEX 80 WH-HOTFOIL
W0029412 DOOR BIN FC SHALL 80 WH-HOTFOI
W0029432 BIN DOOR FC BOTTLE TF80 EL
W0029433 DOOR BIN FINGER TF80 WH
$9.00
W0029446 SHELF FC TF80W
$79.80
W0029465 COVER TOP HINGE RIGHT GR
$4.50
W0029476 COVER GRID AIR RETURN BF
$4.50
W0029479 EPS EVAPORATOR BF 80
$149.15
W0029481 COVER SCREW MULTIFLOW RH
$4.50
W0029483 EVAPORATOR COVER BF80 ASY 2-Z
$79.25
W0029536 BEARING AUTO CLOSER R TF SL
W0029540 DRAWER LOWER BODY BF80
$48.00
W0029548 DRAWER FZR FR LWR ASY 80 WH
$64.00
W0029550 DRAWER FZR FR UPR ASY 80 WH
$63.65
W0029573 TRAY EVAP DRAIN BM/SD 80W
$38.45
W0029596 DRAIN PAN SD
W0029597 PAN DRAIN DYN CON
W0029603 REAR HOUSING PCB COVER
$164.80
W0029674 HINGE CENTRE BASE ASSY
$37.75
W0029675 HINGE CENTRE PIN SWING DOOR
$8.15
W0029698 COVER FOOT RIGHT HINGE GREY
$4.50
W0029702 HINGE BASE RIGHT ASSY
W0029747 CRISPER SUPPORT RH
$17.75
W0029750 CRISPER COVER ASSY BF80 WH
$72.70
W0029761 BRACKET ICE MAKER
$14.50
W0029814 SUPPORT PASTRY SLIDE RH
$14.00
W0029817 RETAINER CLIP
$4.50
W0029820 EPS FZ AIR STOPPER
$5.00
W0029843 TUBE CORRUGATE PF
W0029926 CRISPER GASKET 80
$22.00
W0030112 HEATER TUBE DRAIN PAN SD
$91.30
W0030113 SPACER 3 TURN HEATER
$4.50
W0030288 EVAPORATOR FF BF80
$144.45
W0030382 TUBE JUMPER H/X 80W EMBRACO
$7.25
W0147520 SWITCH DOOR
$26.50
W0147553 SHAFT ROLLER
W0154026 LENS COVER BLUE ASSY
$27.50
W0274142 ROLLER FIXED FOOT ASSY
$10.60
W0275285 SCREW (4,8X16 CP/C15)
$4.00
W0275459 MASTIC RUBBER T4MM
$16.05
W0275545 EXTENSION SLIDE ASSY RH 300MM
W0275612 CLAMP COMPRESSOR SINGLE
$4.50
W0283830 DOOR SPARE FC+FZR WBE5300SB-R
$777.45
W0284262 HARNESS-ASSY M/FLOW BF WEST
W0295964 POWER CORD INV AU/NZ FERITE
$46.45
W0296465 MULTIFLOW ASSY BF FLAT PINOT
$149.15
W0296466 EPS MULTIFLOW BF1725 WEST
W0296467 DRAWER FRONT BF80 FLAT WH ASSY
W0296478 PCBA UI 2ZONE WH BF INTL WHT
$91.80
W0296512 DISPLAY UI 2ZONE BF INT WHT
$101.55
W0358932 DRAWER PASTRY BODY BF 80 FLAT
$40.90
W0359364 COMPRESSOR
W0361765 COVER DEODORIZER
W0361782 DRAWER FZR FR MID ASY 80 WH FT
$68.00
W0361970 GROMMET FAN PANA DC FAN
