WBM4300WB*07
WESTINGHOUSE — Fridge

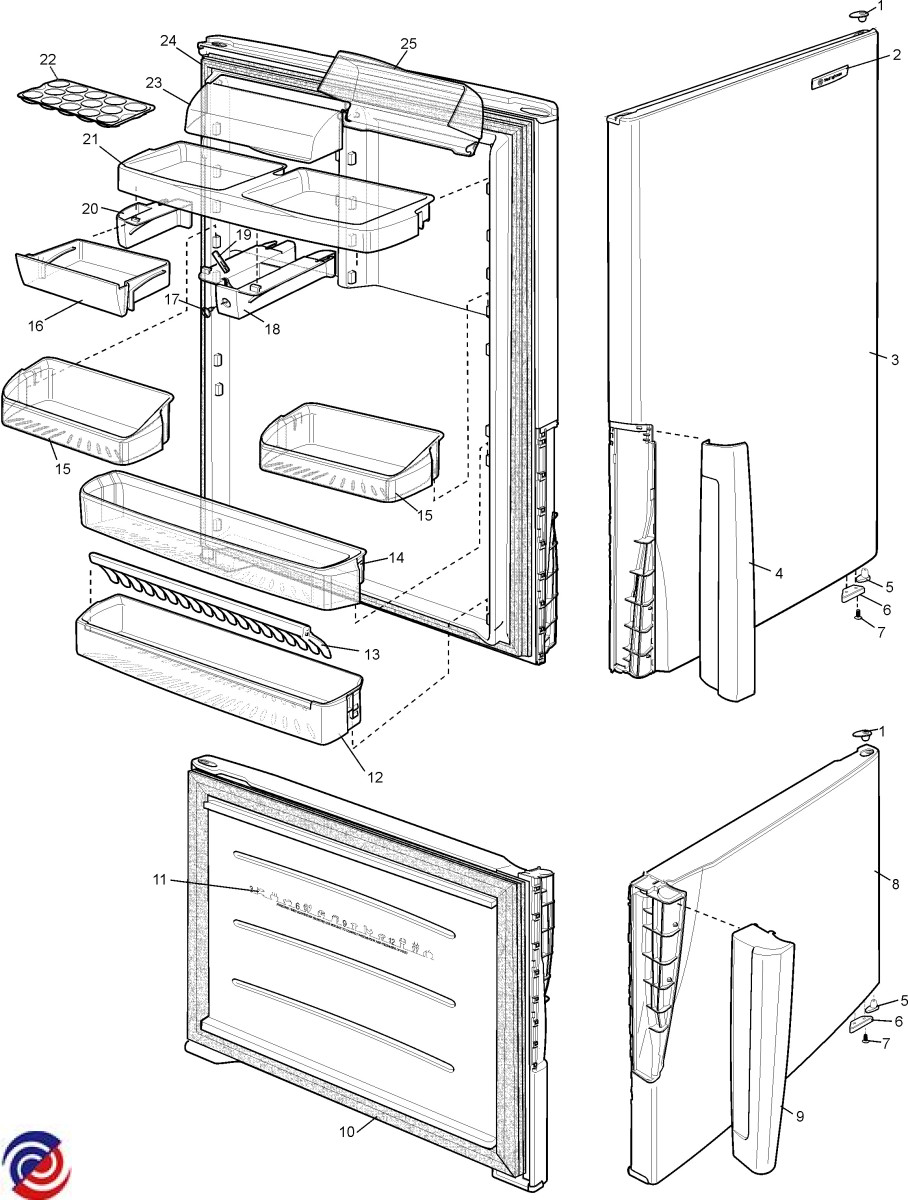

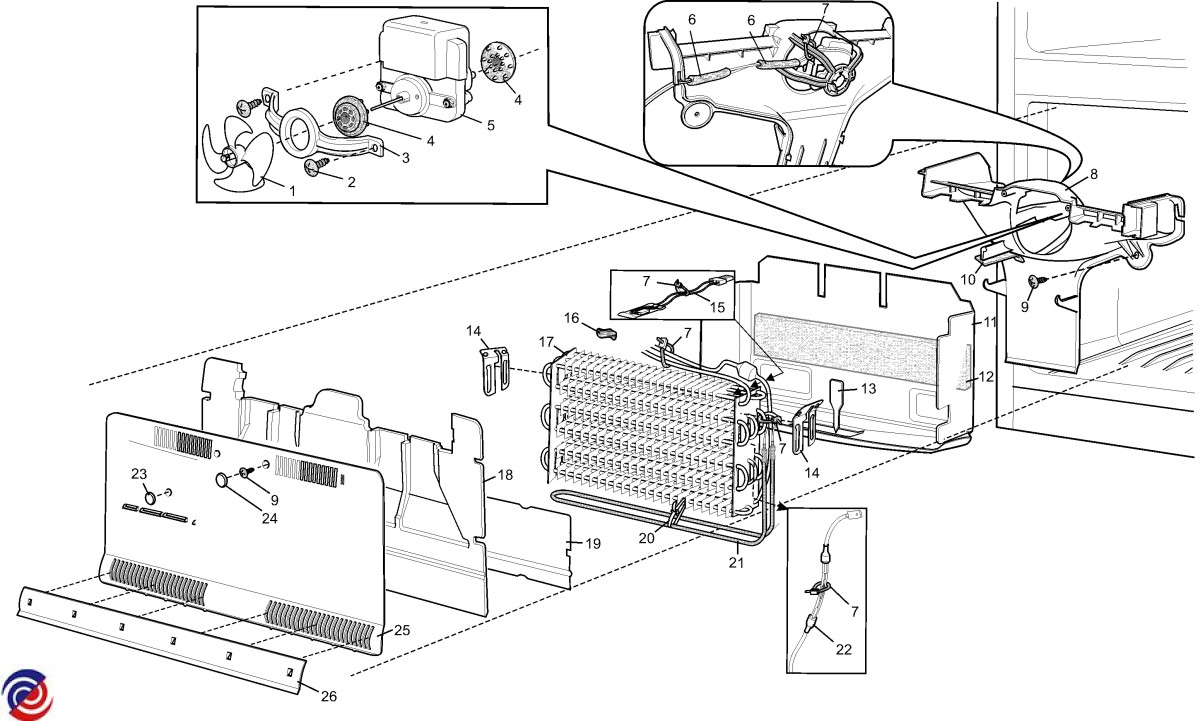

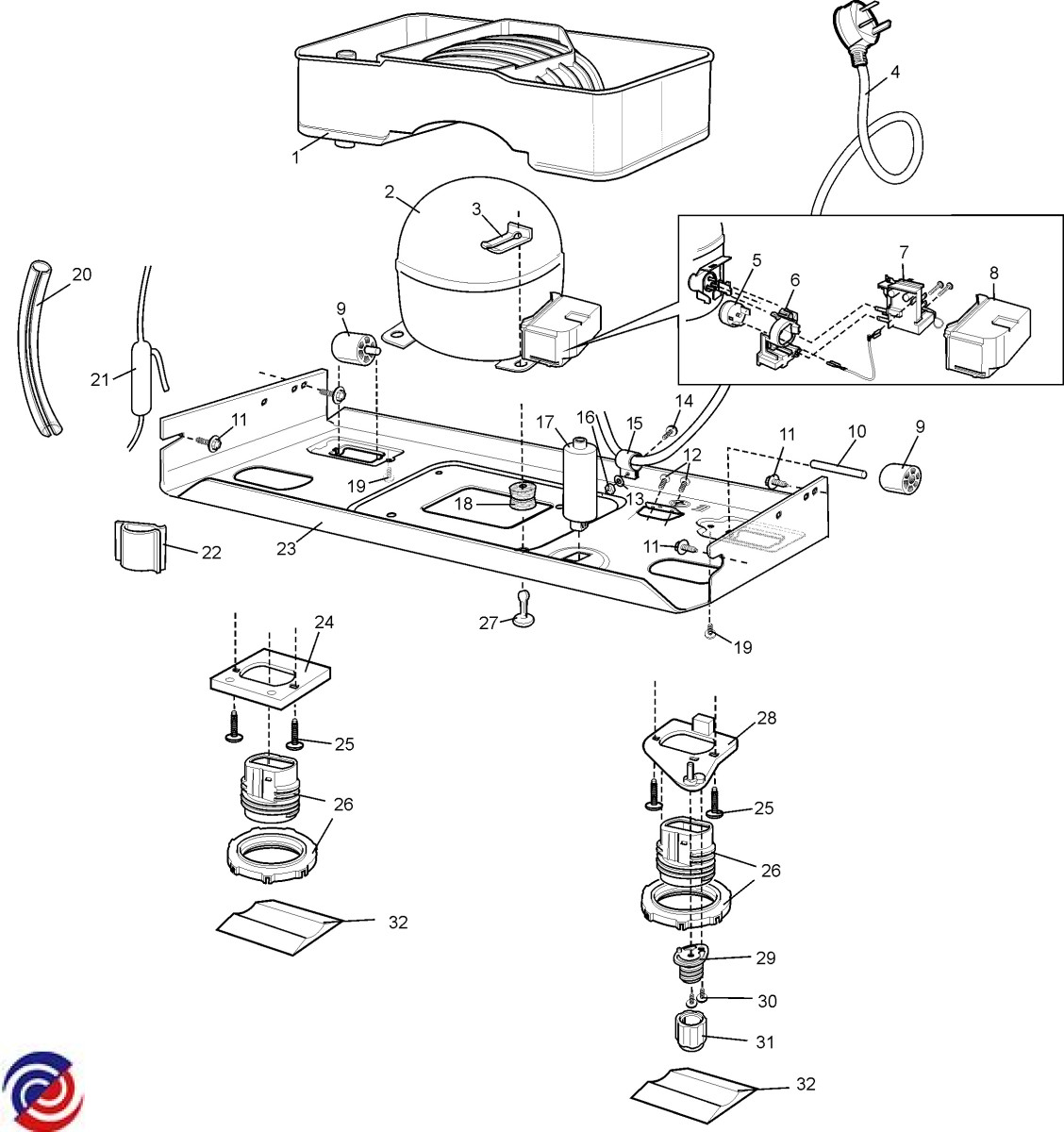

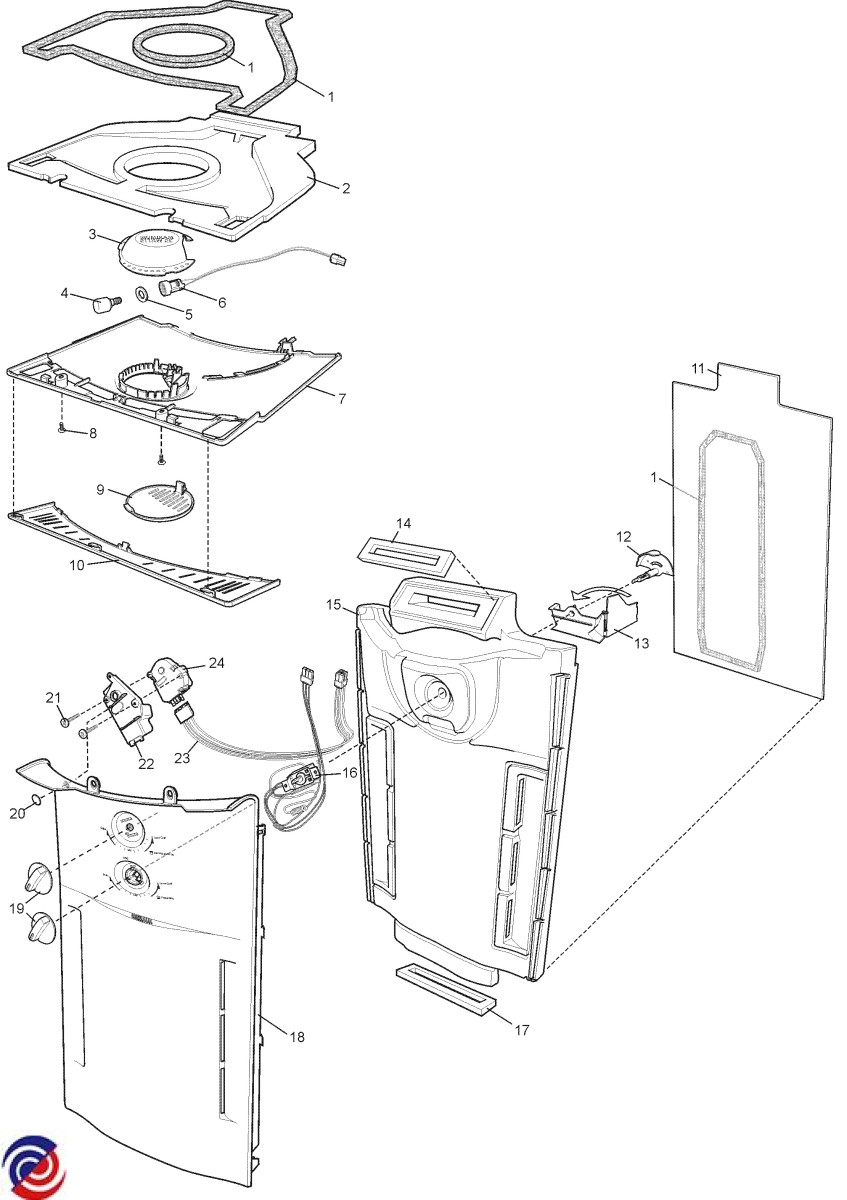

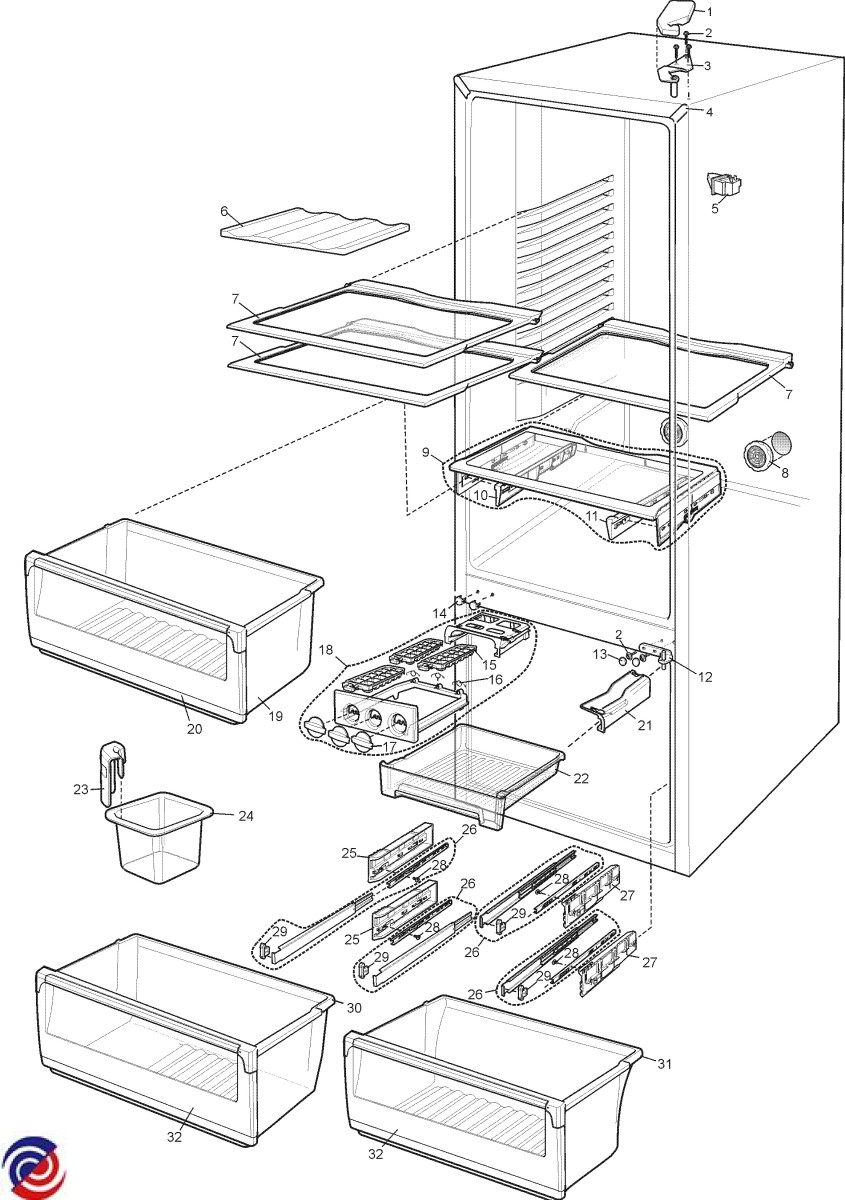

Parts for WBM4300WB*07

W0018091 BIN FULL WIDTH
W0018097 BIN HALF WIDTH
W0018109 COVER HINGE RH
W0018222 FUSE THERMAL ASSY
W0018285 FACIA ASSY CRISPER
W0018288 BIN CRISPER REAR
W0018296 BIN ICE
$26.95
W0018332 FACIA ASSY BIN FZR
W0019131 SCREW COUNTER SUNK THIMBLE
$4.50
W0020709 HOLDER BOTTLE WHT
$10.00
W0034671 TRAY ICE CUBE
W0083263 STOP DOOR
W0085292 WESTINGHOUSE ELECTROLUX FRIDGE DEFROST HEATER ELEMENT
W0085297 RELAY PTC STARTER
$55.00
W0085600 CAP LEG
$12.90
W0085609 LEG STABILISING
W0086637 HOSE DRAIN (SLIT 130MM)
$11.90
W0086638 BLADE FAN
W0086775 SWITCH LAMP
W0086833 WESTINGHOUSE FRIDGE DOOR BOTTOM HINGE PLATE R/H
W0086834 HINGE PLATE BOT LH BLACK ASSY
$34.50
W0086839 PAN DRAIN RJ422V
W0087161 TRAY EGG
W0087213 HINGE TOP RH
W0087214 HINGE TOP LH
W0087302 TIMER DEFROST 8HR ROHS 7 MINUT
W0087327 THERMOSTAT DEFROST TERM
W0087464 ROLLER REAR GREY
W0087701 THERMOSTAT CONTROL
W0087741 LAMP 25W SES BLUE 240V E14
W0088096 MOTOR FAN EVAP
W0088144 BADGE WESTINGHOUSE
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
No image available
W0018042 BRACKET FAN MOTOR
$7.00
No image available
W0018049 CLIP SELF ADHESIVE
$9.00
No image available
W0018081 SHROUD FAN MOULDED RJ393V
No image available
W0018125 COVER HINGE LH
$12.95
No image available
W0018126 RUNNER LH
No image available
W0018166 GROMMET FAN MOTOR
$16.45
No image available
W0018170 GROMMET COMPRESSOR
No image available
W0018253 CAP CORNER WHT
$17.05
No image available
W0018279 RUNNER TRAY FZR
$12.20
No image available
W0018293 RAIL BIN RH FZR
$14.00
No image available
W0018294 RAIL BIN LH FZR
$14.05
No image available
W0018298 COVER HANDLE RH TOP LH BOT
$13.90
No image available
W0018299 COVER HANDLE LH TOP RH BOT
$13.90
No image available
W0018302 BAFFLE AIR RETURN
$15.40
No image available
W0018326 DOOR ASSY FIP FC RH WH WBM4300
$356.45
No image available
W0018327 DOOR ASSY FZR RH WH WBM4300WB
$219.90
No image available
W0018377 SCREW #8 X 7.5 EBM4307SC
$4.50
No image available
W0018383 GASKET LAMP SEALING
$7.70
No image available
W0018491 FINGERS BOTTLE
No image available
W0081199 TIE CABLE 140MM LONG
No image available
W0082722 FOAM TAPE RJ393V
No image available
W0082742 CAP SCREW WHT
No image available
W0083235 CLIP-HEATER-ALUMINIUM BJ414Q
No image available
W0083869 PLUG DRAIN WHT
No image available
W0084342 TAPE (9MM 3M TAPE)
No image available
W0084491 SEAL BYPASS PLASTIC N410F
No image available
W0084558 DAMPER NOISE
No image available
W0084749 CLAMP-CORD BJ385T
No image available
W0085299 BOX TERMINAL
No image available
W0085300 TERMINAL COVER RP342
No image available
W0085461 KNOB LOCK
No image available
W0085462 LOCK LATCH
No image available
W0085497 SHELF FC 599.97MM X 386.90MM
No image available
W0085501 EPS AIR CURTAIN BJ384V
No image available
W0085502 BAFFLE CASING
$4.80
No image available
W0085536 DOOR DAIRY RH RJ393V
No image available
W0085538 DOOR DAIRY LH RJ393V
No image available
W0085595 HOUSING AIR CURTAIN
No image available
W0085599 SPACER ROLLER STRIKESIDE RJ393
No image available
W0085624 M/F SEALING NB380J
No image available
W0085702 ROLLER ADJUSTABLE RJ393V
No image available
W0085947 PLUG SCREW
$3.90
No image available
W0086011 BIN BOTTLE RJ393V
No image available
W0086053 THIMBLE FILLER ASSY CLOSED
No image available
W0086056 THIMBLE CAM ASSY CLOSED RJ393V
No image available
W0086075 EPS HOUSING CONTROL REAR BJ384
No image available
W0086339 SCREW M4 X 8 MUSH RJ393V
No image available
W0086350 GRILLE AIR
No image available
W0086395 KNOB CONTROL
$16.00
No image available
W0086399 SHIELD LIGHT BJ384V
No image available
W0086444 SHIELD TIMER NB380J
No image available
W0086447 CAP
$12.90
No image available
W0086558 RUNNER CENTRE
No image available
W0086579 TAPE FOAM SEALING SBM3800MA
No image available
W0086607 SCREW 6GA 3/4 PAN PH BJ384V
No image available
W0086608 CORD SERVICE INSULATED
No image available
W0086654 VENT AIR CURTAIN
$46.20
No image available
W0086700 STRAINER DRAIN TUBE NB380J
No image available
W0086703 LENS LIGHT
No image available
W0086763 GASKET CONTROL REAR LOWER
No image available
W0086769 EVAPORATOR ASSY
No image available
W0087030 BIN UTILITY LH 690
No image available
W0087190 OVERLOAD T0366 GVT44
No image available
W0087325 CAPAC 4*0UF 400V WIRED CLIP
No image available
W0087334 PAD STOP SKID ROLLER
No image available
W0087402 SCREW 8/32 X 3/8 ETM3600WB
No image available
W0087403 CLIP MOUNTING COMPRESSOR
No image available
W0087405 SCREW 12/14 16MM ETM3600WB
No image available
W0087406 SCREW-HINGE/CAM-BTM ETM3600WB
$4.50
No image available
W0087407 SCREW 8/32 X 1/2THREAD FORMING
No image available
W0087409 SCREW EVAP COVER 8 X 1/2
$4.00
No image available
W0087411 SCREW HINGE CENTRE
$4.50
No image available
W0087412 SCREW ETM3600WB
No image available
W0087416 SCREW 8 X 1/2 T/F ETM3600WB
No image available
W0087417 NUT ETM3600WB
No image available
W0087422 LOCK WASHER ESE6108WA
No image available
W0087457 HARNESS TIMER SBM3800MA
No image available
W0087477 HINGE CENTRE N280J WHITE
No image available
W0087587 GASKET CONTROL REAR LOWER
No image available
W0087593 BASE PLATE COMP ASSY STM4200W
No image available
W0087648 GASKET DOOR FZR
No image available
W0087650 GASKET DOOR FC
No image available
W0087721 COVER EVAP WTM4200PA
No image available
W0087731 HEAT SHIELD EVAP COVER
No image available
W0087739 TROUGH DRAIN ASSY BJ383V *10
No image available
W0087769 COM 134A GTT66 ELECTROLUX
No image available
W0087773 BIN FREEZER REAR TOP WBE4300SB
No image available
W0087776 BIN FREEZER BOT WBE4300SB
No image available
W0087779 RAIL EXTENSION SLIDE ASSY FZR
No image available
W0087780 LID CRISPER ASSY WITH RAILS
No image available
W0087788 TWIST & SERVE CARRIAGE ASSY
No image available
W0087792 BIN ICE
No image available
W0087794 SCOOP ICE
No image available
W0087822 SHAFT ROLLER
$7.00
No image available
W0087829 DOOR ASSY FC LH WBM4300WB
No image available
W0087830 DOOR ASSY FZR LH WH WBM4300WB
$219.90
No image available
W0088047 BAFFLE MF WBM4000SB
No image available
W0088055 BIN DAIRY
$54.95
No image available
W0088084 RUBBER BUMPER UNION FC
No image available
W0088180 LAMPHOLDER & HARNESS FZR
$44.90
No image available
W0088232 COVER EVAP ASSY EBM4307SC
No image available
W0088463 PIN COMPRESSOR MTG WCM1500WC
No image available
W0134832 TAPE-FOAM SEAL18X4 14M/RLL.
No image available
W0163904 KNOB ICE B6565WTB2800WA-XAU
No image available
W0166429 SPRING ICE CUBE TRAY
