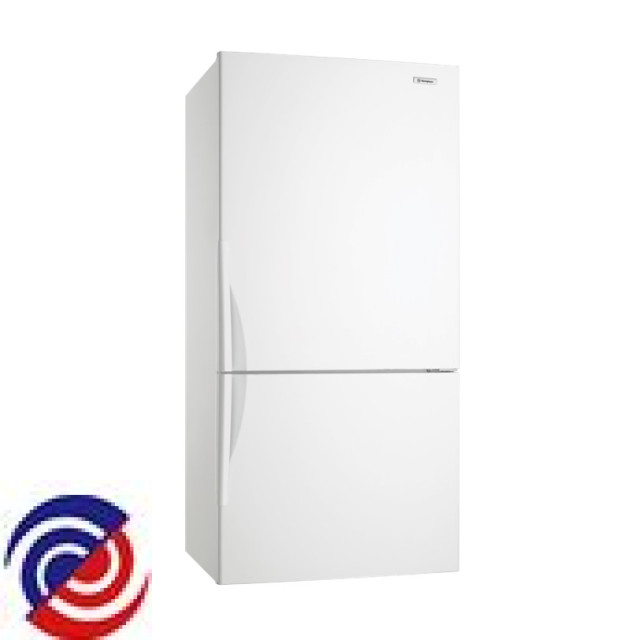

WBM5100WB
WESTINGHOUSE — Fridge
Parts for WBM5100WB
.JPG)
W0018080 HEATER DEFROST
W0018090 BIN FULL WIDTH
W0018096 BIN HALF WIDTH
.JPG)
W0018109 COVER HINGE RH
W0018222 FUSE THERMAL ASSY
W0018275 BIN CRISPER REAR
W0018334 FACIA ASSY BIN FZR
W0018655 BIN UPPER FZR
W0019131 SCREW COUNTER SUNK THIMBLE
$4.50
W0020709 HOLDER BOTTLE WHT
$10.00
W0034671 TRAY ICE CUBE
.JPG)
W0083263 STOP DOOR
W0085297 RELAY PTC STARTER
$55.00
.JPG)
W0085600 CAP LEG
$12.90
W0085609 LEG STABILISING
W0086637 HOSE DRAIN (SLIT 130MM)
$11.90
.JPG)
W0086638 BLADE FAN
.JPG)
W0086775 SWITCH LAMP
W0086833 WESTINGHOUSE FRIDGE DOOR BOTTOM HINGE PLATE R/H
W0086834 HINGE PLATE BOT LH BLACK ASSY
$34.50
W0086839 PAN DRAIN RJ422V
W0087029 BIN UTILITY LH 790
$67.90
W0087161 TRAY EGG
W0087213 HINGE TOP RH
W0087214 HINGE TOP LH
.JPG)
W0087302 TIMER DEFROST 8HR ROHS 7 MINUT
.JPG)
W0087327 THERMOSTAT DEFROST TERM
.JPG)
W0087361 THERMOSTAT CONTROL
W0087464 ROLLER REAR GREY
W0087741 LAMP 25W SES BLUE 240V E14
W0088144 BADGE WESTINGHOUSE
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0018042 BRACKET FAN MOTOR
$7.00
W0018049 CLIP SELF ADHESIVE
$9.00
W0018078 SHROUD FAN MOULDED
$16.30
W0018125 COVER HINGE LH
$12.95
W0018126 RUNNER LH
W0018166 GROMMET FAN MOTOR
$16.45
W0018170 GROMMET COMPRESSOR
W0018253 CAP CORNER WHT
$17.05
W0018277 FACIA ASSY CRISPER
W0018279 RUNNER TRAY FZR
$12.20
W0018292 SUPPORT CENTRE
$14.90
W0018293 RAIL BIN RH FZR
$14.00
W0018294 RAIL BIN LH FZR
$14.05
W0018298 COVER HANDLE RH TOP LH BOT
$13.90
W0018299 COVER HANDLE LH TOP RH BOT
$13.90
W0018301 BAFFLE AIR RETURN
$15.40
W0018328 DOOR ASSY FIP FC RH WBM5100WB
$370.70
W0018329 DOOR ASSY FZR RH WBM5100WB
$230.00
W0018377 SCREW #8 X 7.5 EBM4307SC
$4.50
W0081199 TIE CABLE 140MM LONG
W0081263 PIN COMPRESSOR MTG RS652M*6
W0081396 CAP SNAP C195F
W0082523 RIVET
W0082722 FOAM TAPE RJ393V
W0082742 CAP SCREW WHT
W0083235 CLIP-HEATER-ALUMINIUM BJ414Q
W0083869 PLUG DRAIN WHT
W0084342 TAPE (9MM 3M TAPE)
W0084491 SEAL BYPASS PLASTIC N410F
W0084558 DAMPER NOISE
W0084749 CLAMP-CORD BJ385T
W0085299 BOX TERMINAL
W0085300 TERMINAL COVER RP342
W0085461 KNOB LOCK
W0085462 LOCK LATCH
W0085501 EPS AIR CURTAIN BJ384V
W0085502 BAFFLE CASING
$4.80
W0085533 DOOR DAIRY RH RJ523V
W0085534 DOOR DAIRY LH RJ523V
W0085595 HOUSING AIR CURTAIN
W0085599 SPACER ROLLER STRIKESIDE RJ393
W0085624 M/F SEALING NB380J
W0085702 ROLLER ADJUSTABLE RJ393V
W0085866 LAMPHOLDER & HARNESS RJ393V
W0085947 PLUG SCREW
$3.90
W0086010 BIN BOTTLE RJ523V
W0086013 FINGERS BOTTLE
W0086053 THIMBLE FILLER ASSY CLOSED
W0086056 THIMBLE CAM ASSY CLOSED RJ393V
W0086075 EPS HOUSING CONTROL REAR BJ384
W0086339 SCREW M4 X 8 MUSH RJ393V
W0086350 GRILLE AIR
W0086395 KNOB CONTROL
$16.00
W0086399 SHIELD LIGHT BJ384V
W0086444 SHIELD TIMER NB380J
W0086447 CAP
$12.90
W0086558 RUNNER CENTRE
W0086579 TAPE FOAM SEALING SBM3800MA
W0086607 SCREW 6GA 3/4 PAN PH BJ384V
W0086608 CORD SERVICE INSULATED
W0086648 SHELF FC 699.92MM X X386.89MM
W0086654 VENT AIR CURTAIN
$46.20
W0086700 STRAINER DRAIN TUBE NB380J
W0086703 LENS LIGHT
W0086763 GASKET CONTROL REAR LOWER
W0087168 PAN DRAIN
$24.95
W0087190 OVERLOAD T0366 GVT44
W0087325 CAPAC 4*0UF 400V WIRED CLIP
W0087383 EVAPORATOR ASSY
W0087399 MOTOR FAN EVAP 5W ROHS ETM4407
W0087402 SCREW 8/32 X 3/8 ETM3600WB
W0087403 CLIP MOUNTING COMPRESSOR
W0087405 SCREW 12/14 16MM ETM3600WB
W0087406 SCREW-HINGE/CAM-BTM ETM3600WB
$4.50
W0087407 SCREW 8/32 X 1/2THREAD FORMING
W0087409 SCREW EVAP COVER 8 X 1/2
$4.00
W0087410 SCREW DELI RUNNER RJ393V
W0087411 SCREW HINGE CENTRE
$4.50
W0087412 SCREW ETM3600WB
W0087416 SCREW 8 X 1/2 T/F ETM3600WB
W0087417 NUT ETM3600WB
W0087422 LOCK WASHER ESE6108WA
W0087457 HARNESS TIMER SBM3800MA
W0087477 HINGE CENTRE N280J WHITE
W0087587 GASKET CONTROL REAR LOWER
W0087594 BASE PLATE COMP ASSY STM5200WA
W0087656 GASKET DOOR FZR
W0087658 GASKET ASSY OBM F/C 510L
W0087720 COVER EVAP WTM5200PA
W0087727 LID CRISPER ASSY
W0087730 HEAT SHIELD EVAP COVER
W0087738 TROUGH DRAIN ASSY BJ513V *10
W0087769 COM 134A GTT66 ELECTROLUX
W0087771 TRAY FREEZER 790W W/HOUSE
W0087779 RAIL EXTENSION SLIDE ASSY FZR
W0087788 TWIST & SERVE CARRIAGE ASSY
W0087792 BIN ICE
W0087794 SCOOP ICE
W0087822 SHAFT ROLLER
$7.00
W0087838 DOOR ASSY FIP FC LH WH WBM5100
W0087840 DOOR ASSY FZR LH WH WBM5100WB
W0088047 BAFFLE MF WBM4000SB
W0088054 BIN DAIRY
W0088084 RUBBER BUMPER UNION FC
W0088154 INSULATION COVER EVAP ASSY
W0088156 COVER EVAP ASSY WBE5100SB
W0088453 BIN FZR LOWER
W0134832 TAPE-FOAM SEAL18X4 14M/RLL.
W0163904 KNOB ICE B6565WTB2800WA-XAU
W0166429 SPRING ICE CUBE TRAY
