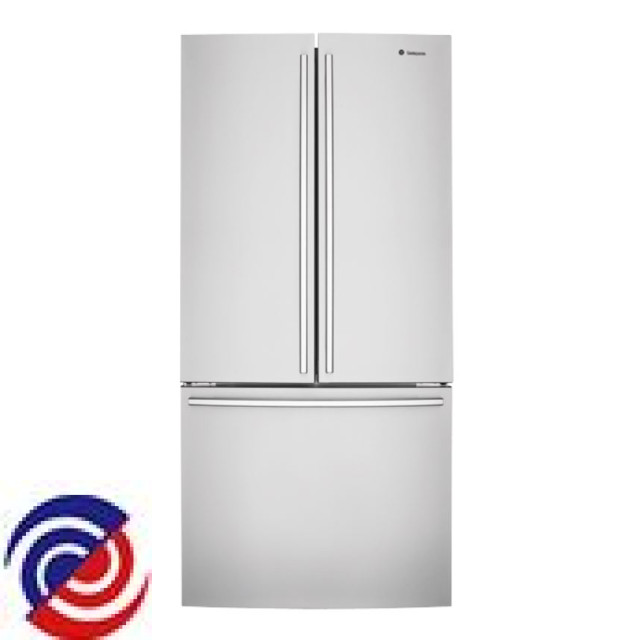

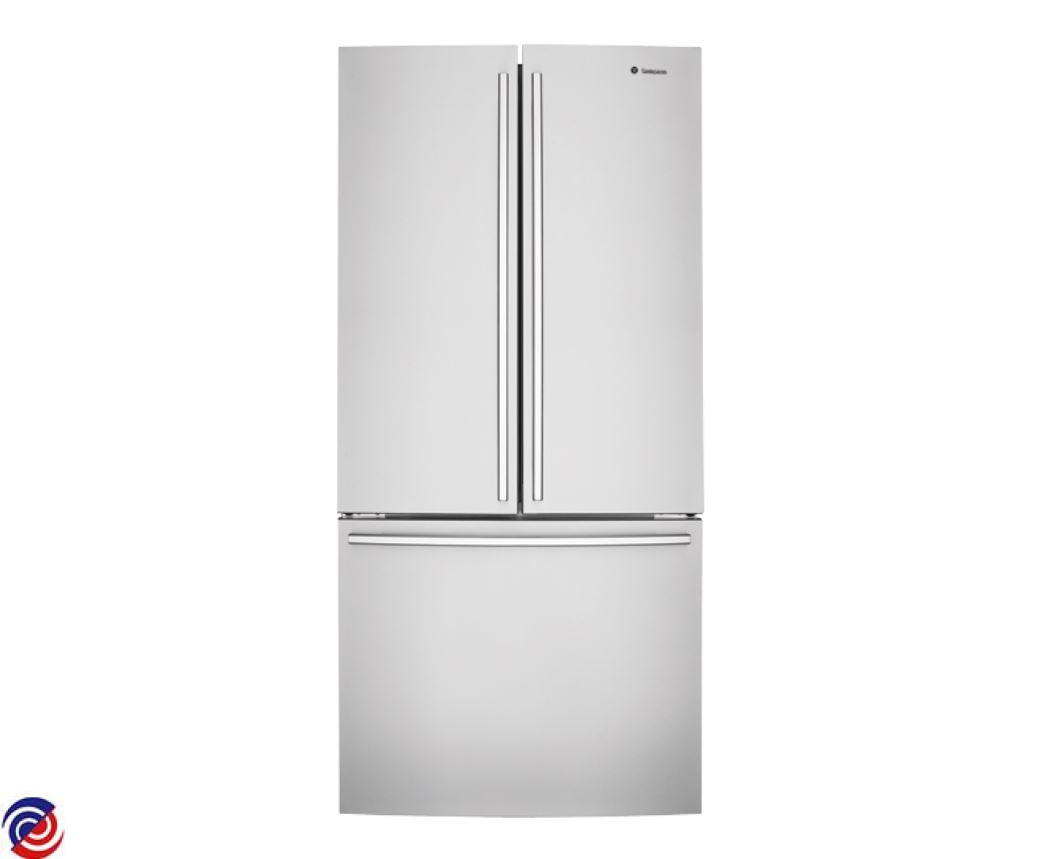

WHE5100SA — 925042642 00
WESTINGHOUSE — Fridge

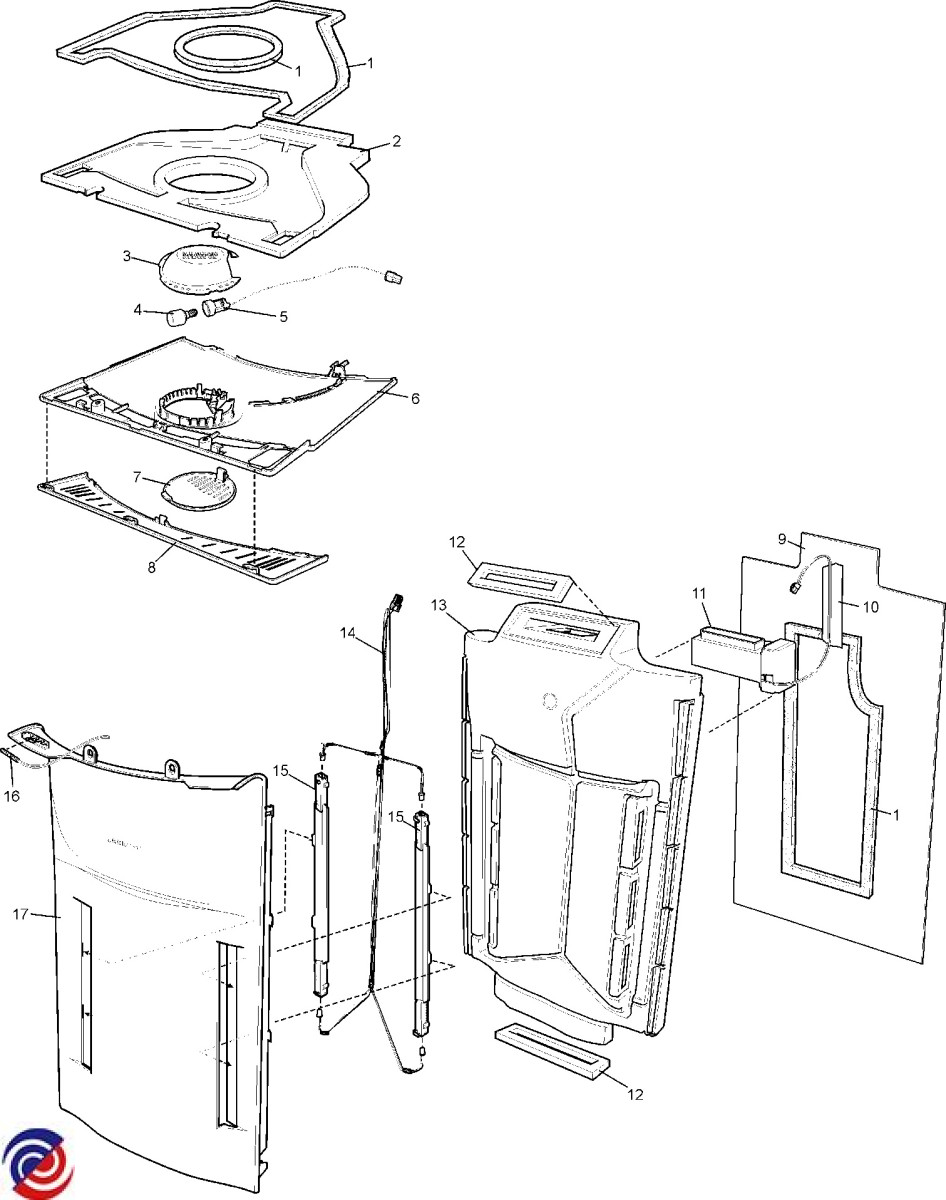

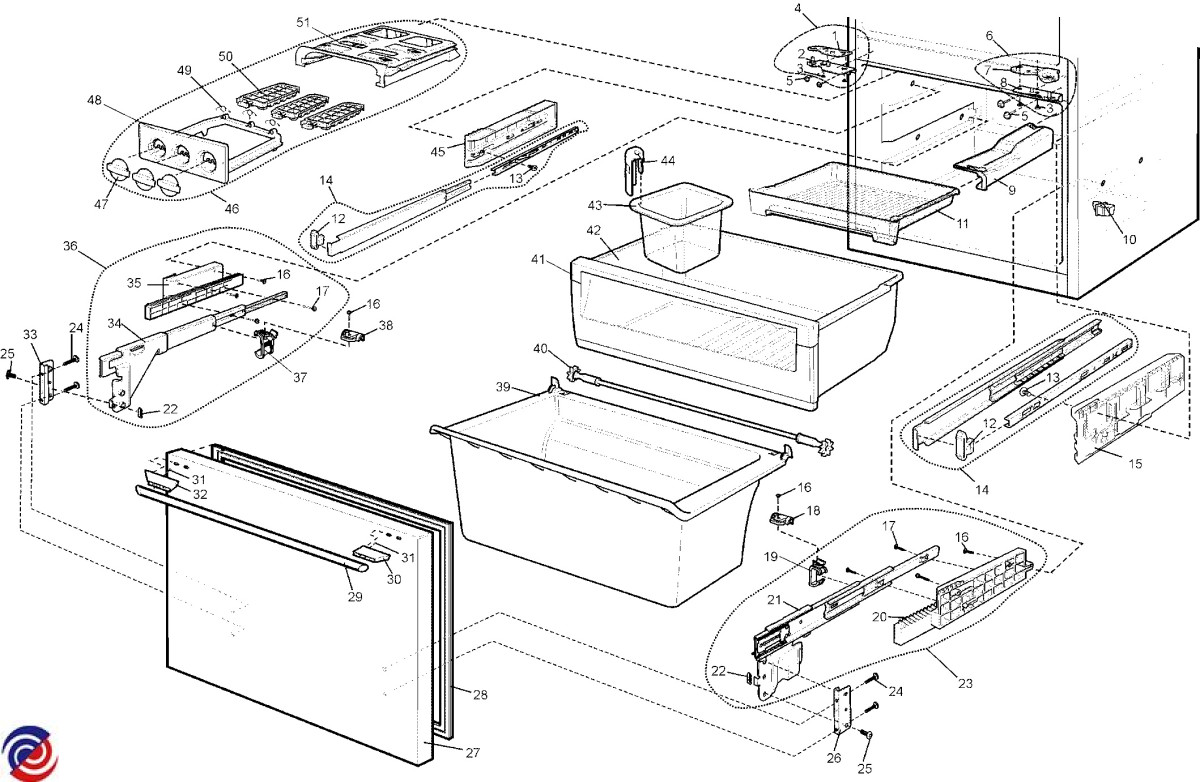

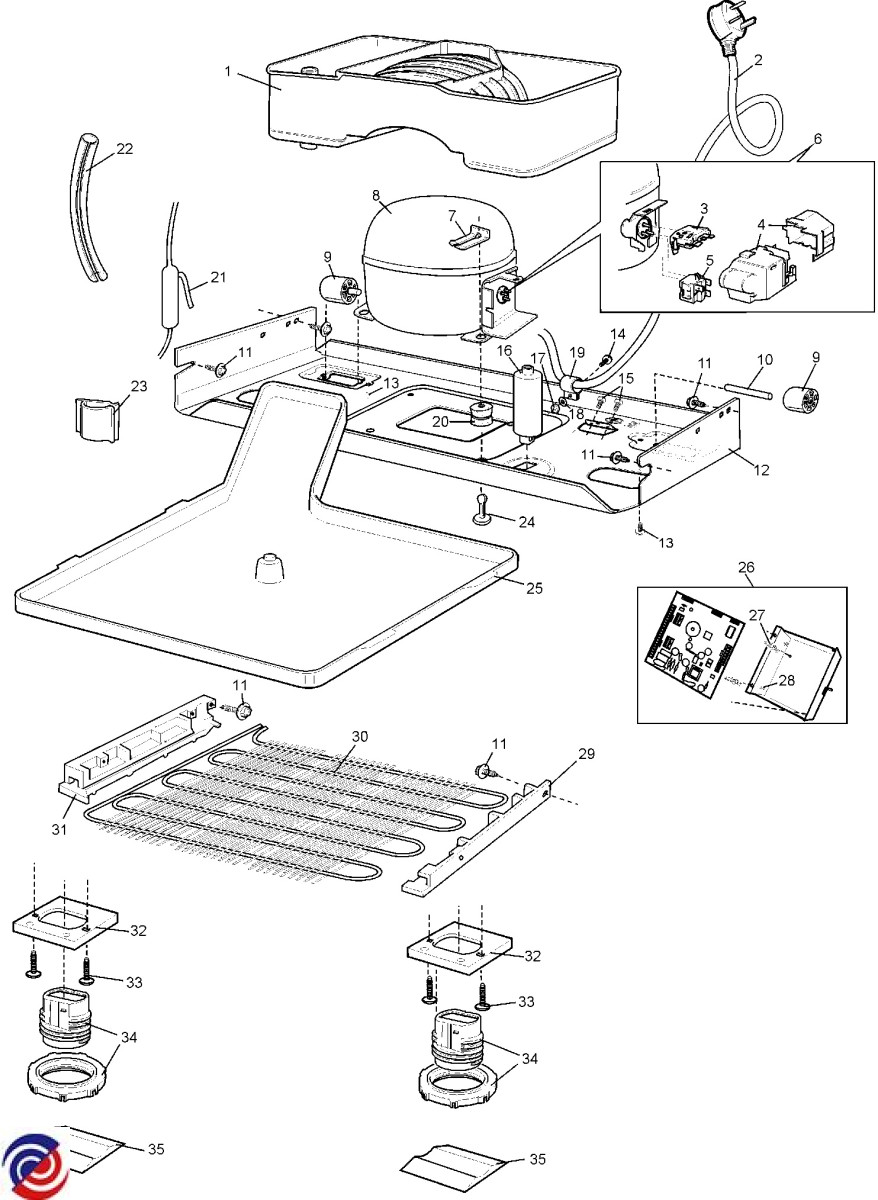

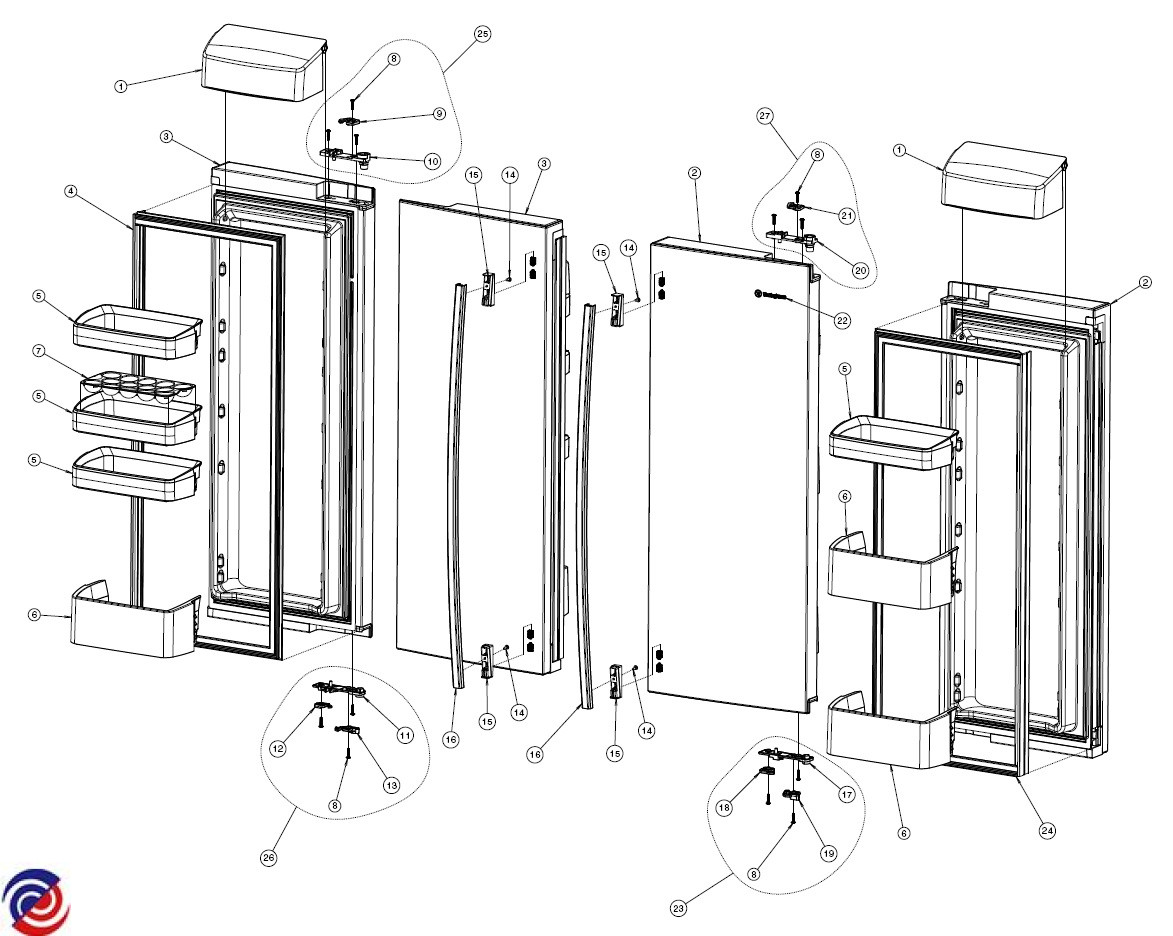

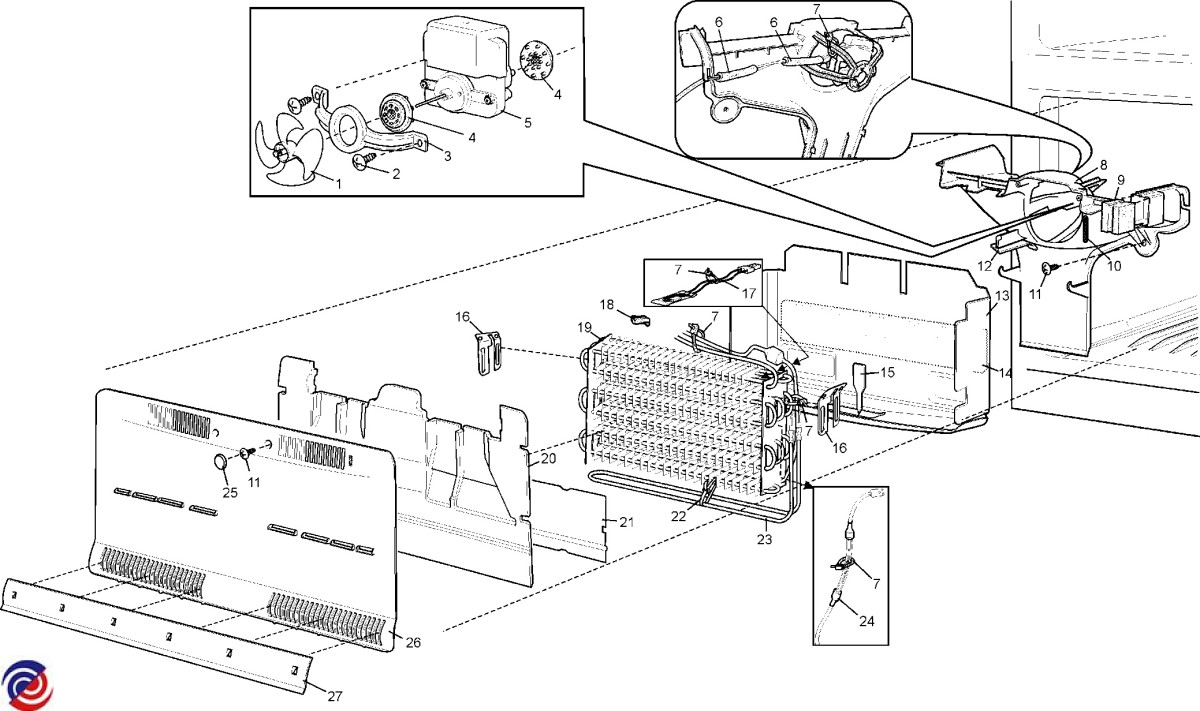

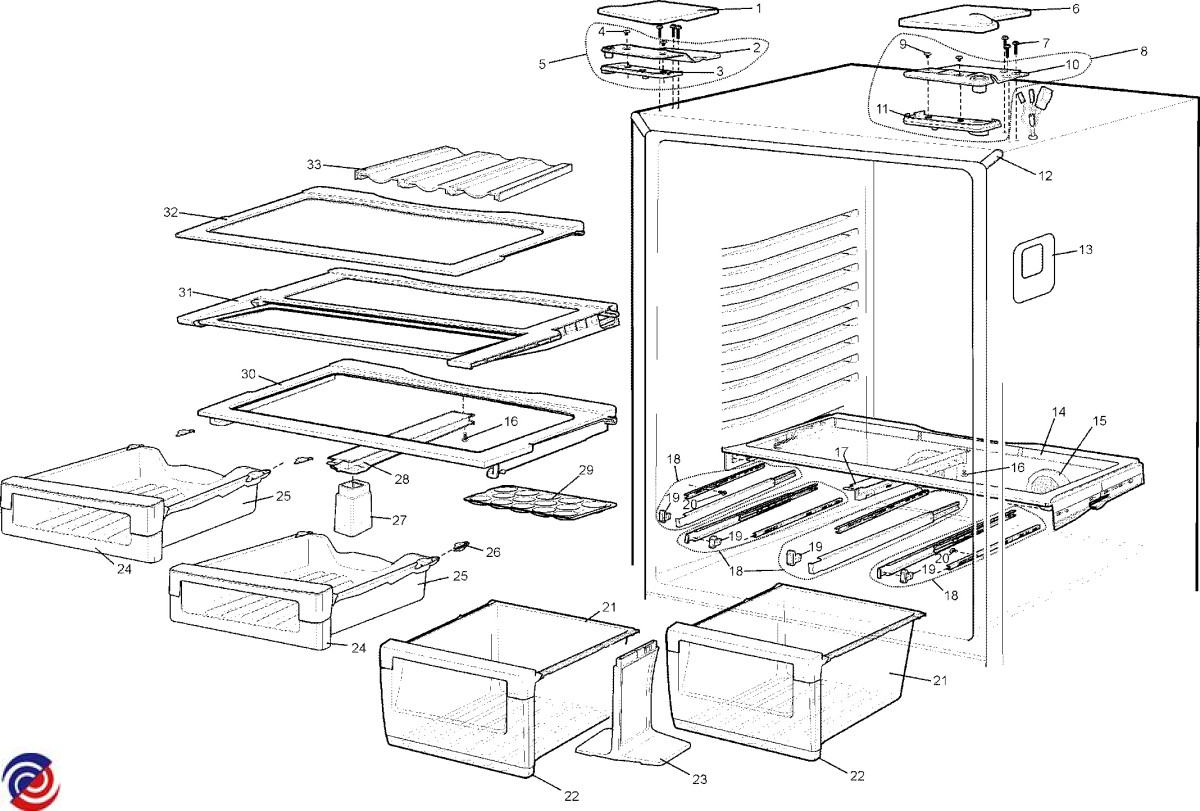

Parts for WHE5100SA
.JPG)
W0018097 BIN HALF WIDTH
W0018275 BIN CRISPER REAR
W0018334 FACIA ASSY BIN FZR
.JPG)
W0018405 SWITCH REED
.JPG)
W0018406 MAGNET REED SWITCH
W0018565 WESTINGHOUSE FRIDGE BOTTLE BIN SHELF
.JPG)
W0018582 BADGE NAMEPLATE
W0034671 TRAY ICE CUBE
W0086637 HOSE DRAIN (SLIT 130MM)
$11.90
.JPG)
W0086775 SWITCH LAMP
W0087161 TRAY EGG
W0087464 ROLLER REAR GREY
W0087741 LAMP 25W SES BLUE 240V E14
W0088106 STOP SLIDE
W0088199 HEATER DEF & DTT R600A 790W
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0018042 BRACKET FAN MOTOR
$7.00
W0018049 CLIP SELF ADHESIVE
$9.00
W0018078 SHROUD FAN MOULDED
$16.30
W0018166 GROMMET FAN MOTOR
$16.45
W0018170 GROMMET COMPRESSOR
W0018254 CAP CORNER GREY SYD1212A
$23.80
W0018268 SHIELD LIGHT WFM3000PB
$12.95
W0018277 FACIA ASSY CRISPER
W0018279 RUNNER TRAY FZR
$12.20
W0018292 SUPPORT CENTRE
$14.90
W0018293 RAIL BIN RH FZR
$14.00
W0018294 RAIL BIN LH FZR
$14.05
W0018301 BAFFLE AIR RETURN
$15.40
W0018377 SCREW #8 X 7.5 EBM4307SC
$4.50
W0018410 PAN DRAIN
$21.85
W0018414 BIN FZR LOWER
$49.95
W0018422 COVER HINGE LH
$12.90
W0018423 COVER HINGE RH
$12.90
W0018471 SCREW, 8 X 1/2, TF FLANGE
$4.00
W0018477 EVAPORATOR HEAT SHIELD COVER
$16.50
W0018493 HINGE TOP ASSY LH
$24.85
W0018494 HINGE TOP ASSY RH
$24.85
W0018495 HINGE ASSY BTM LH
$34.75
W0018496 HINGE LOWER ASSY RH
$34.75
W0018497 HINGE SPRING BTM RH WHE5100SA
W0018504 SCREW, ST3 9 X 20 WHE5100SA
W0018505 BRACKET FZR IDP ADJUSTMENT LH
$9.90
W0018506 BRACKET FZR IDP ADJUSTMENT RH
$9.90
W0018514 SHAFT & PINION ASSY FZR
$43.90
W0018530 BLADE FAN
W0018538 CLIP FOR DRAWER SLIDE ASSY LH
$8.75
W0018561 END CAP ASSY DOOR TOP LH
$23.60
W0018562 END CAP ASSY DOOR TOP RH
$23.60
W0018563 CAM ASSY LH
$26.15
W0018566 DOOR DAIRY
W0018597 HARNESS ADAPTOR
$17.60
W0079509 SPACER RJ505EA
W0081199 TIE CABLE 140MM LONG
W0081263 PIN COMPRESSOR MTG RS652M*6
W0081816 GASKET (6MM TESSA TAPE) BJ414Q
W0082722 FOAM TAPE RJ393V
W0083235 CLIP-HEATER-ALUMINIUM BJ414Q
W0084491 SEAL BYPASS PLASTIC N410F
W0084558 DAMPER NOISE
W0084749 CLAMP-CORD BJ385T
W0085468 EPS HOUSING CONTROL REAR BJ383
W0085494 INSULATION EVAP COVER RJ523V
W0085599 SPACER ROLLER STRIKESIDE RJ393
W0085624 M/F SEALING NB380J
W0085663 BRACKET PRE COOLER RH RJ423V
W0085664 BRACKET PRE COOLER LH RJ423V
W0085665 PRE COOLER 790 X 612MM RJ523V
W0085668 TRAY DEFROST WATER RJ393V
$28.75
W0085702 ROLLER ADJUSTABLE RJ393V
W0085947 PLUG SCREW
$3.90
W0086004 SENSOR INSULATION
W0086350 GRILLE AIR
W0086359 SHELF ASSY SPLIT FC
W0086579 TAPE FOAM SEALING SBM3800MA
W0086648 SHELF FC 699.92MM X X386.89MM
W0086654 VENT AIR CURTAIN
$46.20
W0086700 STRAINER DRAIN TUBE NB380J
W0086763 GASKET CONTROL REAR LOWER
W0087334 PAD STOP SKID ROLLER
W0087402 SCREW 8/32 X 3/8 ETM3600WB
W0087403 CLIP MOUNTING COMPRESSOR
W0087405 SCREW 12/14 16MM ETM3600WB
W0087406 SCREW-HINGE/CAM-BTM ETM3600WB
$4.50
W0087407 SCREW 8/32 X 1/2THREAD FORMING
W0087408 SCREW NO8 X 3/4 PAN HD ETM3600
W0087409 SCREW EVAP COVER 8 X 1/2
$4.00
W0087410 SCREW DELI RUNNER RJ393V
W0087411 SCREW HINGE CENTRE
$4.50
W0087412 SCREW ETM3600WB
W0087416 SCREW 8 X 1/2 T/F ETM3600WB
W0087417 NUT ETM3600WB
W0087422 LOCK WASHER ESE6108WA
W0087555 BAFFLE MOTORISED ESE6108WA
W0087559 SCREW. M4 X 10 PAN HEAD
W0087594 BASE PLATE COMP ASSY STM5200WA
W0087688 TRAY EGG
W0087720 COVER EVAP WTM5200PA
W0087738 TROUGH DRAIN ASSY BJ513V *10
W0087771 TRAY FREEZER 790W W/HOUSE
W0087779 RAIL EXTENSION SLIDE ASSY FZR
W0087788 TWIST & SERVE CARRIAGE ASSY
W0087794 SCOOP ICE
W0087809 BIN ICE
W0087822 SHAFT ROLLER
$7.00
W0087918 LID CRISPER ASSY WITH RAILS
W0088073 HOUSING CONTROL ASSY REAR
W0088084 RUBBER BUMPER UNION FC
W0088147 EVAPORATOR R600A WHE5000SA
W0088159 COM R600A EMB66CLC EMBRACO
W0088182 CORD SERVICE INSULATED R600A
W0088186 CAPAC 4UF 400V 2 WIRE CLIP IN
W0088228 KIT ELECTRICS EMB66CLC
W0088231 COVER EVAP ASSY EBM5107SC
W0088385 RACK WINE
W0088403 LENS LIGHT WBE5100SC
W0088480 DOOR LOCK SPRING BTM RH
W0088486 BIN FZR UPPER
W0088498 LAMPHOLDER & HARNESS WBE5100S
W0088510 SLIDE ASSY FZR RH
W0088525 SCREW M8 P1 25 X 16MM HEX
$6.25
W0088553 PINION CLIP COVER ASSY RH
W0088607 DOOR ASSY DRAW WHE5100SA-D
W0088608 DOOR FOAMED FC LH WHE5000SA
$290.40
W0088609 DOOR FOAMED FC RH WHE5000SA
$390.40
W0088611 CAP ASSY LOWER RHS
$34.85
W0088614 HANDLE ASSY FZR DOOR WHE5100SA
W0088622 BOARD DISPLAY ASSY
W0088678 GASKET FC DOOR LH WHE5000SA
W0088679 GASKET FC DOOR RH WHE5000SA
W0088680 BOARD/BOX CONTROL ERF2500++
W0088682 MOTOR FAN
W0088685 GASKET DOOR FZR
W0134832 TAPE-FOAM SEAL18X4 14M/RLL.
W0163904 KNOB ICE B6565WTB2800WA-XAU
W0166429 SPRING ICE CUBE TRAY
