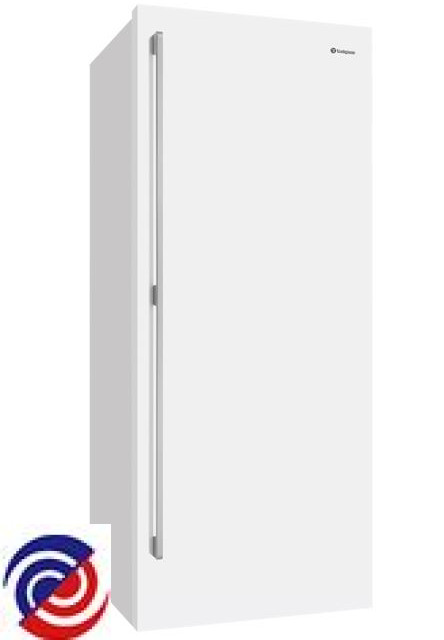

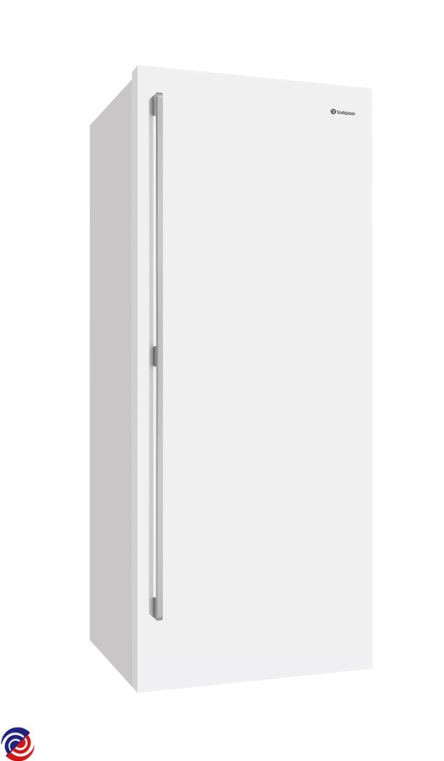

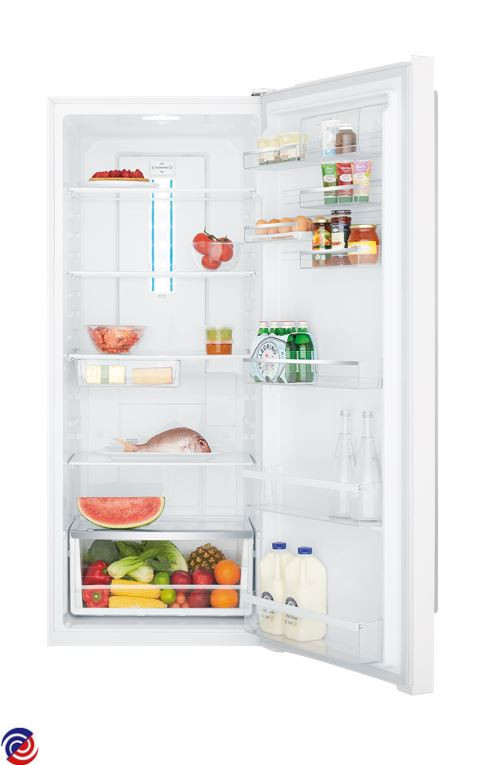

WRB5004WA — 925060033 00
WESTINGHOUSE — Fridge
Parts for WRB5004WA
.JPG)
W0018582 BADGE NAMEPLATE
W0020667 PCBA 3 LEDS CLUSTER GALAGA
W0027096 BOARD G SSLB WBE4500SA
$179.85
W0027222 TUBE PROCESS
$19.15
W0027373 MOTOR FAN DC 3W
W0027433 CAPACITOR 4UF
$14.90
W0027439 SCREW TRILOB M5X16
$4.50
W0027522 COVER SCREW
$4.50
W0027560 GROMMET COMPRESSOR
$11.50
W0027562 CLAMP NTC EVAPORATOR
W0027610 CLAMP COMPRESSOR
$4.50
W0029453 DRAWER CRISPER BODY TF70
W0029559 HEATER RAD DEF R600 240V BF70W
W0029694 SHAFT ROLLER FRONT WTB4600
$7.60
W0029699 FOOT BASE THREAD
$8.75
W0029700 ROLLER FOOT
$17.10
W0029701 FOOT LEVER
W0030101 HANDLE BRACKET KIT SD
W0030498 HARNESS-ASSY SENSOR FZR DEFROS
W0030876 KIT DOOR REVERSAL
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0018679 ROLLER WHEEL
$7.20
W0020669 LENS 3 LEDS CLUSTER GALAGA
$26.80
W0027228 SCREW PF AB 3.5X1.27X19 PFZ PF
$4.50
W0027411 BLADE FAN,NAT
$32.25
W0027428 POWERCORD REFRIGERATOR AU
W0027441 SCREW TRUSS 4.2X13
W0027443 SEAL FOAM 6X8
$7.70
W0027553 VALVE DRAIN ASSY BF
$184.20
W0027579 RAIL DOOR SUPPORT 70W WHT
$8.10
W0027605 GASKET SD 70
W0029309 HINGE TOP RIGHT
$8.65
W0029340 MULTIFLOW ASSY TF AU
W0029361 HANDLE POLE SD PINOT
W0029395 BIN DOOR LOCKABLE TF70 SEA ASY
$22.20
W0029402 BIN DOOR LOCKABLE BODY TF70 EL
$22.20
W0029403 BIN DOOR DAIRY LID 70 EL-ART
$13.30
W0029408 DOOR BIN FLEX 1/2 TF70W EL
$85.00
W0029417 DOOR BIN FC SHALLOW 70 EL
W0029422 BIN DOOR FC BOTTLE TF70W EL
W0029434 TRAY EGG 70W
W0029445 SHELF FC TF70W
W0029449 SHELF FC TF70W WH ASSY
$84.60
W0029464 DIVIDER DRAWER TF WH ART
W0029466 COVER TOP HINGE RIGHT WHT
$4.50
W0029513 PCB ERF1600 PROGRAMED WRB5004
W0029535 BEARING AUTO CLOSER R TF WHT
$8.80
W0029567 BEARING HINGE FZR TOP CLOSED
$8.15
W0029572 TRAY EVAP DRAIN BM/SD 70W
$16.50
W0029597 PAN DRAIN DYN CON
W0029603 REAR HOUSING PCB COVER
$164.80
W0029604 REAR HOUSING PCB ADAPTER
W0029615 DRAWER CRISP FRONT TF70 WH ASY
W0029695 COVER FOOT LEFT HINGE WHITE
$4.50
W0029708 FOOT LEFT ASSY
$20.10
W0029740 DRAWER DELI FC HALF WH ASSY
$77.25
W0029773 DISPLAY UI WH 1ZONE INTL ASY
W0029799 GROMMET FAN PANA DC FAN
$16.05
W0029808 DUCT EPS EVAP TOP ALL SD
$8.90
W0029809 DUCT EPS EVAP BOTTOM ALL SD
$11.15
W0029810 BRACKET SUPPORT FAN MOUNT SD
$24.95
W0029817 RETAINER CLIP
$4.50
W0029820 EPS FZ AIR STOPPER
$5.00
W0029844 TUBE CORRUGATE SD
$4.50
W0029874 FAN SHROUD DC ASSY SD
$105.75
W0029875 COVER EVAPORATOR ASSY SD RF
$130.00
W0029877 COVER EVAPORATOR LID SD 70
$5.00
W0029925 CRISPER GASKET 70
$11.40
W0029929 COMPRESSOR WANBAO EYD40L
$330.00
W0029935 COVER CRISPER SD70W WEST ASSY
W0030113 SPACER 3 TURN HEATER
$4.50
W0030162 COVER PIN WHITE
W0030164 DRAIN PAN SD & HEATER TUBE ASY
W0030255 DOOR SPARE RF WRB5004WA
W0030287 EVAPORATOR FF BF70
$95.75
W0030334 TERMINAL COVER EYD40L
$24.95
W0030335 TERMINAL BLOCK EYD40L
$37.35
W0087410 SCREW DELI RUNNER RJ393V
W0147520 SWITCH DOOR
$26.50
W0147552 ROLLER REAR WTB4600WA RAYONG
$7.20
W0147553 SHAFT ROLLER
W0154012 DOOR BIN FINGER TF70W WH
W0154026 LENS COVER BLUE ASSY
$27.50
W0273847 HINGE BASE ASSY RIGHT WITH ADJ
W0273901 SHELF FC SHORT WH WRB5004WA
$84.60
W0275465 COVER TOP CABINET WHT WRB5004
$29.05
