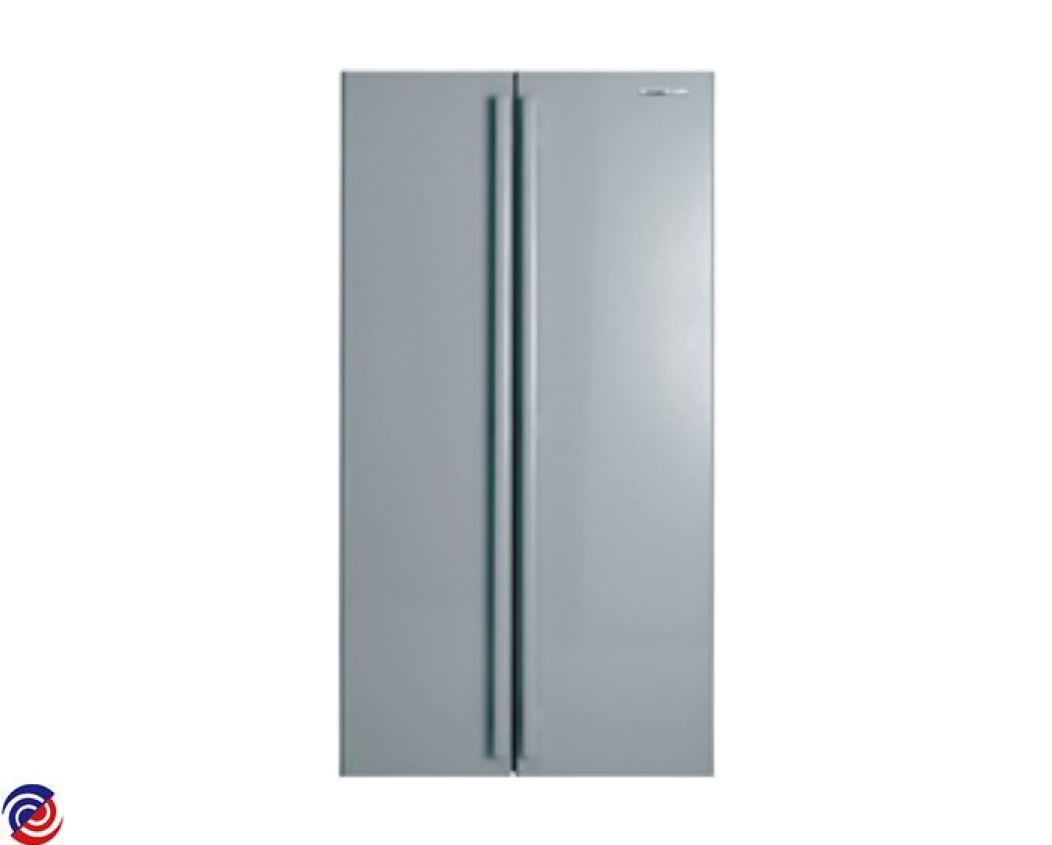

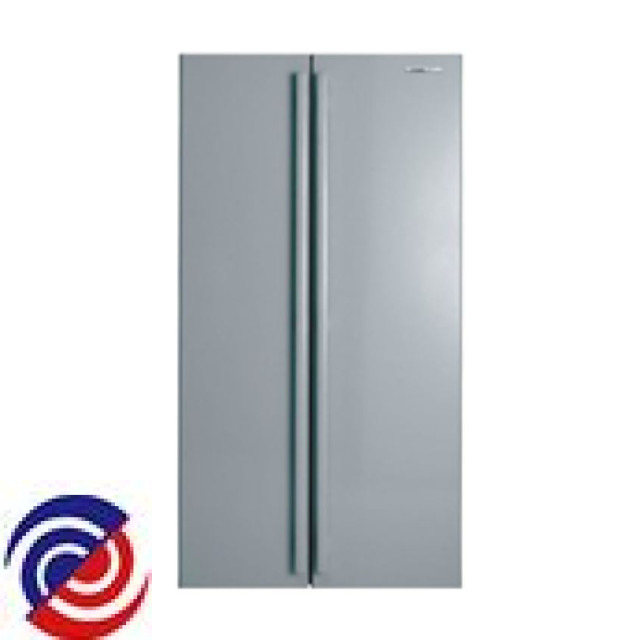

WSE6100SA*03
WESTINGHOUSE — Fridge

W0018107 LENS LIGHT

W0018132 INSERT PEDESTAL HANDLE

W0018157 BIN DOOR FREEZER

W0018158 BIN FULL WIDTH SHALLOW

W0018159 DOOR DAIRY

$79.00

W0018160 BIN BOTTLE

W0018161 BIN DELI

W0018162 DRAWER STORE SAFE

$40.90

W0018163 FINGERS BOTTLE

W0018167 GASKET CONTROL HOUSING

W0018171 BIN STORE SAFE

W0018204 FACIA BIN CRISPER

W0018229 HEATER DEFROST

$86.00

W0081301 ROLLER ADJUSTABLE RS652G

W0082733 STARTER DEVICE PTC EMBRACO

W0084662 CAM DOOR STOP FC

W0084747 TAPE 3M ALUM FOIL 35M RL 50MM

W0085616 LAMP 25W SES E14 HD BLUE 240V

W0086080 LAMP 40W SES E14

W0086083 BAFFLE KIT MOTORISED

W0086775 SWITCH LAMP

W0087161 TRAY EGG

W0087199 BIN CRISPER UPPER POSITION

W0087216 HANDLE ASSY FZR SS

W0087223 SWITCH OVERLOAD PROTECT

$50.00

W0087324 CAPAC 5UF 400V 2WIRES CLIP

W0087327 THERMOSTAT DEFROST TERM

W0087464 ROLLER REAR GREY

W0087539 PEDESTAL HANDLE SS

W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL

W0018049 CLIP SELF ADHESIVE

$9.00

W0018060 GASKET CONTROL HOUSING ROUND

$103.95

W0018155 TRAY ICE CUBE

$10.00

W0018164 LENS LIGHT CONTROL HOUSING

W0018170 GROMMET COMPRESSOR

W0018207 RIVET ESE6977SC

$0.40

W0018210 CONDENSER & TAILS

$109.90

W0018214 PAN DRAIN

$24.90

W0018235 FUSE THERMAL & HARNESS

W0018254 CAP CORNER GREY SYD1212A

$23.80

W0018274 NUT M5 NYLOC

$4.50

W0079509 SPACER RJ505EA

W0080603 SCREW-STOP-DOOR RJ522Q

W0081199 TIE CABLE 140MM LONG

W0081263 PIN COMPRESSOR MTG RS652M*6

W0081816 GASKET (6MM TESSA TAPE) BJ414Q

W0083235 CLIP-HEATER-ALUMINIUM BJ414Q

W0084092 EXTRUSION PLASTIC 97MM

W0084342 TAPE (9MM 3M TAPE)

W0084558 DAMPER NOISE

W0084619 STICKER MAX 25 WATTS N280J

W0084654 SCREW HINGE CENTRE N520SF

W0084678 SWITCH LAMP/FAN

W0084745 COVER LIGHT SWITCH WSE6070

W0084749 CLAMP-CORD BJ385T

W0085077 SCREW BJ385T

W0085461 KNOB LOCK

W0085462 LOCK LATCH

W0085580 SKID CRISPER DELI BIN RJ393V

W0085634 HOUSING LIGHT RJ393V

W0085640 LAMPHOLDER ASSY RJ393V

W0085866 LAMPHOLDER & HARNESS RJ393V

W0085867 COVER ELECTRICAL EMB ECU60

$32.00

W0086053 THIMBLE FILLER ASSY CLOSED

W0086229 HEAT SHIELD LIGHT REAR

W0086339 SCREW M4 X 8 MUSH RJ393V

W0086396 SCREW & WASHER RS645V

W0086414 NAMEPLATE WHOUSE OPHIR

W0086447 CAP

$12.90

W0086549 SHELF FZR

W0086560 GASKET FC WSE6070WA

W0086562 GASKET FZR WSE6070WA

W0086563 DOOR ASSY FIP FC SS WSE6070SA

W0086564 THIMBLE CAM ASSY CLOSED

W0086565 DOOR ASSY FIP FZR SS WSE6100SA

W0086573 EPS HOUSING CONTROL WSE6100

W0086574 HOUSING CONTROL WSE6100

W0086581 END CAP HANDLE SS

W0086602 HINGE ASSY TOP LH

W0086603 HINGE ASSY TOP RH

W0086623 SEAL BY PASS

W0086641 BASKET FZR MIDDLE

W0086642 PANEL FRONT FZR BASKET

W0086643 BASKET FREEZER LOWER COATED

W0086644 SHELF ASSY GLASS FRZ

W0086651 SHELF FZR SHALLOW

W0086652 SHELF ASSY DELI

W0086660 RUNNER STORE SAFE LH

$14.90

W0086661 RUNNER STORE SAFE RH

$14.90

W0086673 BIN ICE

W0086721 ROLLER SHELF

W0086780 BOLT WSE6070WA

W0086814 CAM LH WSE6070WA

W0086815 CAM RH WSE6070WA

W0086843 NUT NYLOC M8 WSE6070WA

W0087000 HINGE ASSY BOTTOM LH WSE6070WA

W0087001 HINGE ASSY BOTTOM RH WSE6070WA

W0087184 TROUGH DRAIN WSE6070WA

W0087226 BLADE ASSY FAN SSM6100WA

W0087248 SCREW 8 - 32 * 3/8 PAN HD PHIL

W0087275 SHELF FC

W0087298 CHANNEL DRAINAGE

W0087310 MOTOR FAN EVAP WSE6070SA

W0087372 WINE RACK ESE6107SA

W0087377 HOTPLATE HEAT SINK DRAIN PAN

W0087384 CORD SERVICE INSULATED

W0087393 MOTOR CONDENSER & FAN & SHROUD

W0087402 SCREW 8/32 X 3/8 ETM3600WB

W0087403 CLIP MOUNTING COMPRESSOR

W0087405 SCREW 12/14 16MM ETM3600WB

W0087407 SCREW 8/32 X 1/2THREAD FORMING

W0087408 SCREW NO8 X 3/4 PAN HD ETM3600

W0087409 SCREW EVAP COVER 8 X 1/2

$4.00

W0087412 SCREW ETM3600WB

W0087416 SCREW 8 X 1/2 T/F ETM3600WB

W0087417 NUT ETM3600WB

W0087418 SCREW 8 X 19 T/CT TBT

$5.50

W0087466 SCREW PEDESTAL

$1.90

W0087500 COVER HINGE LH

W0087501 COVER HINGE RH

W0087506 BIN CRISPER LOWER BASE

W0087509 EVAPORATOR & ELECT KSM6100WB

W0087543 COM 134A EGYS100 EMBRACO

$445.00

W0087546 BASEPLATE COMPRESSOR

W0087600 DISPLAY CONTROL WSE6100PA *03

W0087608 CTRL BRD/BOX BUZZER ASSY

W0087610 HARNESS ELECTRONIC DISPLAY

W0087615 COVER SENSOR FZR

$19.65

W0087671 SHIELD LIGHT KTM3900MB

W0087675 HARNESS COMPRESSOR

W0087707 COVER MACHINE COMPARTMENT

W0087750 WASHER SLINGER NYLON

W0087822 SHAFT ROLLER

$7.00

W0087921 COVER EVAPORATOR ESE6107SA

$39.00

W0087923 UPPER AIR DUCT ESE6107SA

$77.00

W0095269 BRACKET SUPPORT

W0096083 RUBBER MOUNTING CONDENSER

W0096105 FAN SHROUD WSE6070WA

W0096106 BRACKET FAN MOTOR

W0096116 GROMMET FAN MOTOR

W0096321 CLIP-DRYER PLASTIC HEYCO #3330
