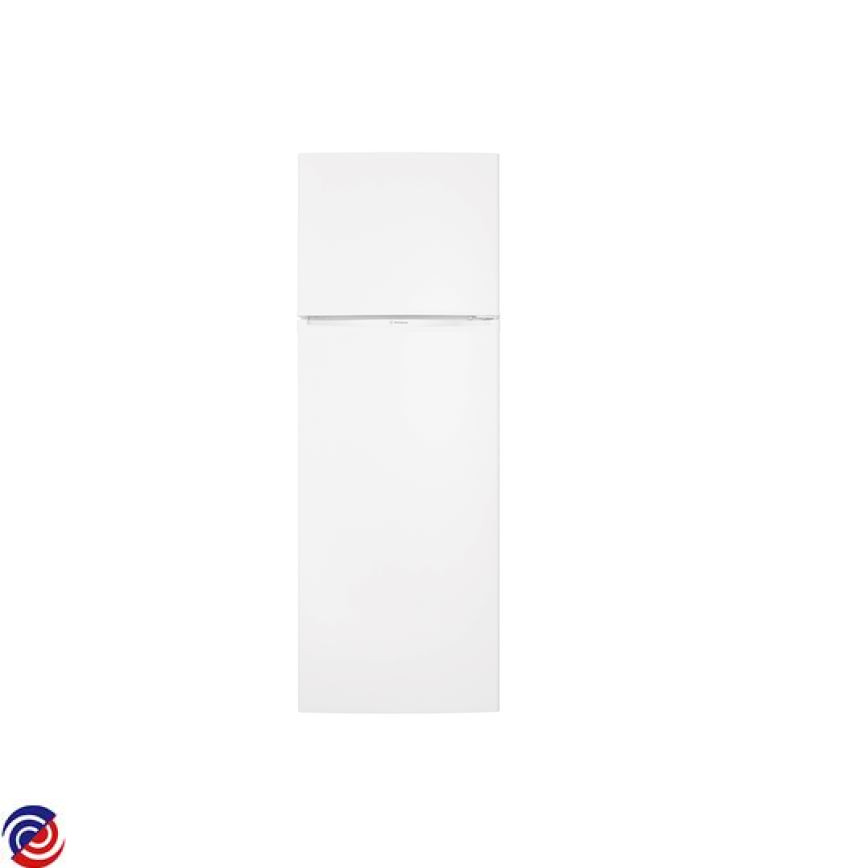

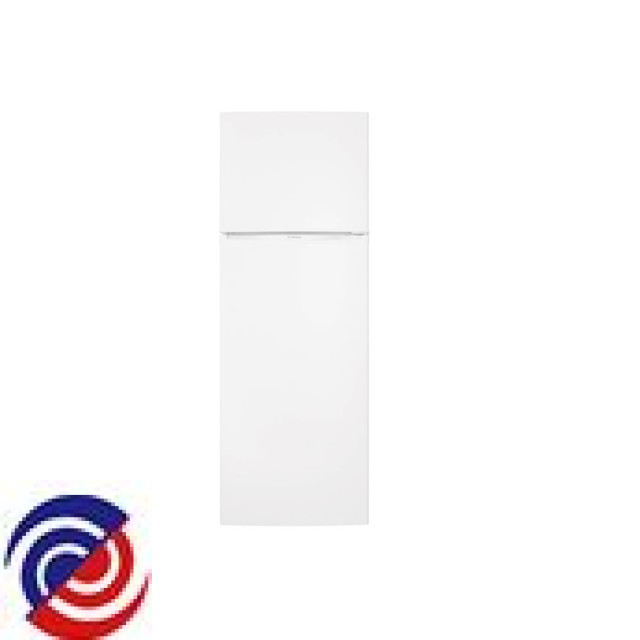

WTM3300WB*01
WESTINGHOUSE — Fridge
Parts for WTM3300WB*01
W0018079 HEATER DEFROST
W0018095 BIN DOOR FZR
$50.00
W0018098 BIN HALF WIDTH
.JPG)
W0018109 COVER HINGE RH
W0018129 BIN DELI SHALLOW
W0018179 CONTROL HUMIDITY
$8.00
W0018222 FUSE THERMAL ASSY
W0018465 CAPAC 4UF 400V WIRED CLIP
$11.70
.JPG)
W0018581 ROLLER ADJUSTABLE
$40.00
W0020709 HOLDER BOTTLE WHT
$10.00
W0034671 TRAY ICE CUBE
.JPG)
W0083263 STOP DOOR
.JPG)
W0085600 CAP LEG
$12.90
W0085609 LEG STABILISING
W0086637 HOSE DRAIN (SLIT 130MM)
$11.90
.JPG)
W0086638 BLADE FAN
.JPG)
W0086775 SWITCH LAMP
W0086833 WESTINGHOUSE FRIDGE DOOR BOTTOM HINGE PLATE R/H
W0087213 HINGE TOP RH
.JPG)
W0087302 TIMER DEFROST 8HR ROHS 7 MINUT
.JPG)
W0087327 THERMOSTAT DEFROST TERM
.JPG)
W0087368 THERMOSTAT - BLUE (ROHS)
$73.40
.JPG)
W0088096 MOTOR FAN EVAP
W0088487 STOP RAIL DELI BIN
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0018042 BRACKET FAN MOTOR
$7.00
W0018049 CLIP SELF ADHESIVE
$9.00
W0018081 SHROUD FAN MOULDED RJ393V
W0018166 GROMMET FAN MOTOR
$16.45
W0018170 GROMMET COMPRESSOR
W0018180 LID CRISPER
W0018193 TRAY EGG
$11.95
W0018228 PLUG END CAP WHITE WTM2800WB-X
W0018243 HOLE PLUG WTM2900WB-X
W0018252 GASKET DOOR FC
$87.90
W0018253 CAP CORNER WHT
$17.05
W0018258 PAN DRAIN EMBRACO EMY65
W0018383 GASKET LAMP SEALING
$7.70
W0020710 RUNNER SHELF FZR LH
$14.30
W0020711 RUNNER SHELF FZR RH
$14.90
W0020713 SCREW FZR SHELF WTM2800PB-X
$4.50
W0078982 STICKER WATTAGE 40W RS662V
W0081199 TIE CABLE 140MM LONG
W0081263 PIN COMPRESSOR MTG RS652M*6
W0081396 CAP SNAP C195F
W0082523 RIVET
W0082722 FOAM TAPE RJ393V
W0083235 CLIP-HEATER-ALUMINIUM BJ414Q
W0083869 PLUG DRAIN WHT
W0084491 SEAL BYPASS PLASTIC N410F
W0084558 DAMPER NOISE
W0084749 CLAMP-CORD BJ385T
W0085286 INSULATION EVAP COVER N280J
W0085293 EVAPORATOR COVER RJ282V
W0085458 DOOR DAIRY RH RJ282V
W0085460 DOOR DAIRY LH RJ282V
W0085499 SHELF FC 505.47MM X 334.79MM
W0085518 BIN CAN RJ282V
W0085590 RUNNER DELI SHALLOW RH
W0085654 ROLLER CRISPER LID
W0085947 PLUG SCREW
$3.90
W0086012 BIN BOTTLE RJ282V
W0086053 THIMBLE FILLER ASSY CLOSED
W0086056 THIMBLE CAM ASSY CLOSED RJ393V
W0086131 COVER TOGGLE LOCK SR300B
W0086339 SCREW M4 X 8 MUSH RJ393V
W0086352 RUNNER DELI SHALLOW LH
$11.90
W0086441 GASKET DEL TOP N280J
W0086579 TAPE FOAM SEALING SBM3800MA
W0086607 SCREW 6GA 3/4 PAN PH BJ384V
W0086608 CORD SERVICE INSULATED
W0086770 EVAPORATOR ASSY WTM2900WA
W0086791 BASE PLATE COMPRESSOR
W0086801 BIN CRISPER RP372V
W0087334 PAD STOP SKID ROLLER
W0087402 SCREW 8/32 X 3/8 ETM3600WB
W0087403 CLIP MOUNTING COMPRESSOR
W0087405 SCREW 12/14 16MM ETM3600WB
W0087406 SCREW-HINGE/CAM-BTM ETM3600WB
$4.50
W0087407 SCREW 8/32 X 1/2THREAD FORMING
W0087409 SCREW EVAP COVER 8 X 1/2
$4.00
W0087410 SCREW DELI RUNNER RJ393V
W0087411 SCREW HINGE CENTRE
$4.50
W0087412 SCREW ETM3600WB
W0087416 SCREW 8 X 1/2 T/F ETM3600WB
W0087417 NUT ETM3600WB
W0087425 DOOR ASSY FC WTM3300WB-X
$209.00
W0087431 DOOR ASSY FZR RH WTM3300WB-X
W0087477 HINGE CENTRE N280J WHITE
W0087634 GASKET DOOR FZR
W0087676 TROUGH DRAIN ASSY WTM2800PB-X
W0087686 COM 134A EMY65 EMBRACO
W0087723 PTC STARTER
W0087724 COVER ELECTRICAL EMY65 EMBRA
W0087733 SHIELD LIGHT
W0087742 LAMP 40W SES 240V T25
W0087800 TRAY ICE CUBE ASSY
W0088407 TRAY DRIP CONTROL HOUSING TOP
W0088414 COVER EVAPORATOR ASSY
$40.00
W0088430 ROLLER REAR GREY
W0088431 SHAFT ROLLER
W0088466 SPACER ROLLER STRIKESIDE
W0088488 BOTTLE FINGER WTB2800
W0088495 BIN DAIRY
$54.90
W0088498 LAMPHOLDER & HARNESS WBE5100S
W0096151 SHELF ASSY FZR
$54.90
W0096154 BIN ICE
$55.00
W0134824 TAPE TESSA MOL 4761
W0134832 TAPE-FOAM SEAL18X4 14M/RLL.
W0163904 KNOB ICE B6565WTB2800WA-XAU
W0166429 SPRING ICE CUBE TRAY
