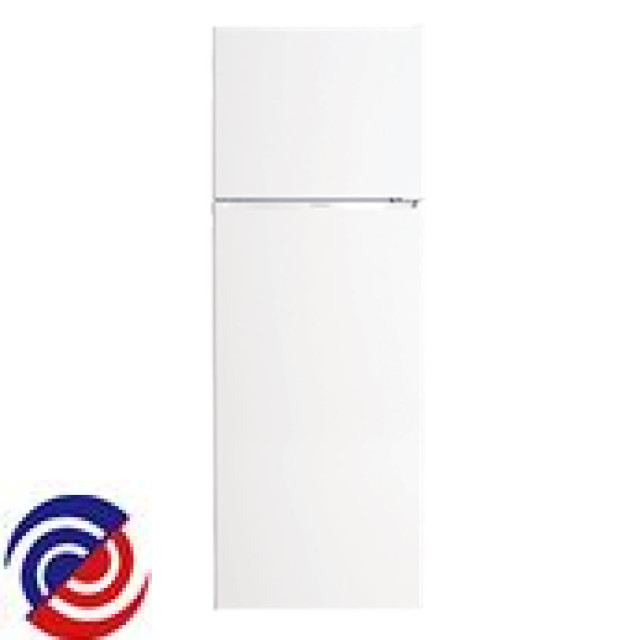

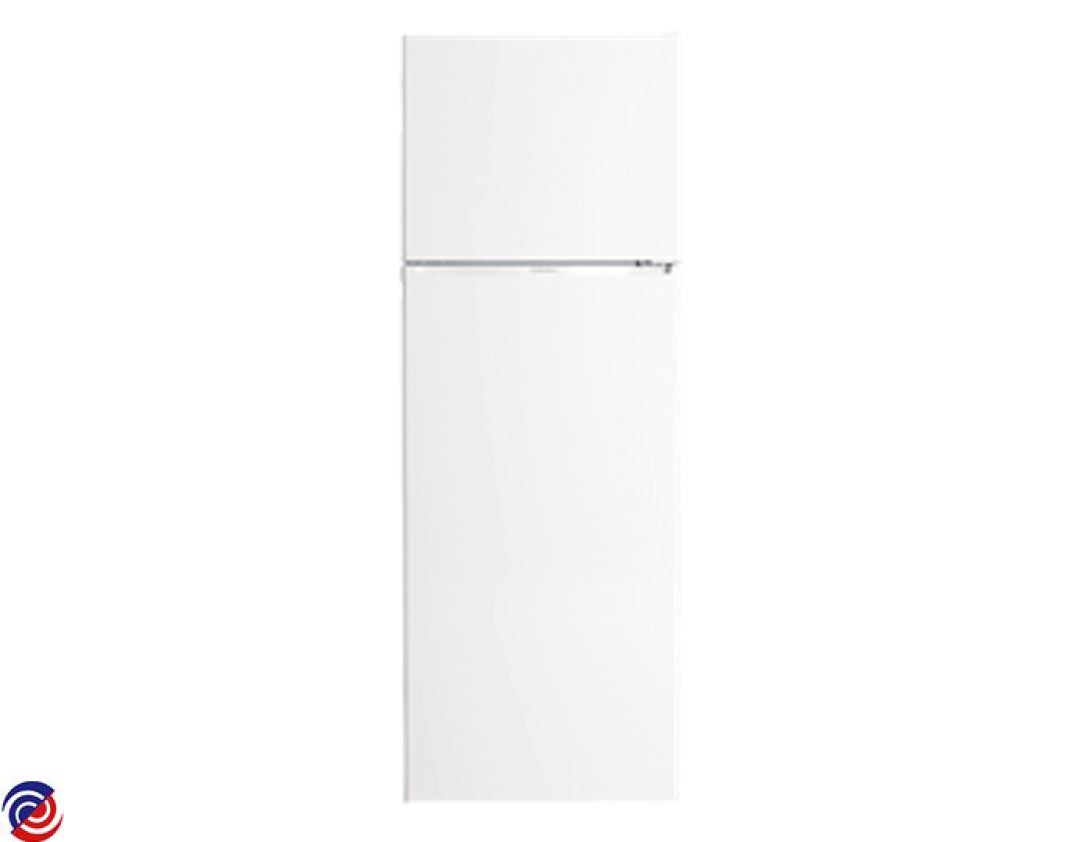

WTM3300WB-X
WESTINGHOUSE — Fridge
Parts for WTM3300WB-X
W0018079 HEATER DEFROST
W0018095 BIN DOOR FZR
$50.00
W0018098 BIN HALF WIDTH
W0018102 BIN CRISPER ASSY LARGE
.JPG)
W0018109 COVER HINGE RH
W0018129 BIN DELI SHALLOW
W0019131 SCREW COUNTER SUNK THIMBLE
$4.50
W0026769 SCRAPER DEFROST
.JPG)
W0083263 STOP DOOR
W0085297 RELAY PTC STARTER
$55.00
.JPG)
W0085600 CAP LEG
$12.90
W0085609 LEG STABILISING
W0085616 LAMP 25W SES E14 HD BLUE 240V
W0086637 HOSE DRAIN (SLIT 130MM)
$11.90
.JPG)
W0086638 BLADE FAN
.JPG)
W0086775 SWITCH LAMP
W0086833 WESTINGHOUSE FRIDGE DOOR BOTTOM HINGE PLATE R/H
W0087213 HINGE TOP RH
W0087214 HINGE TOP LH
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0018042 BRACKET FAN MOTOR
$7.00
W0018049 CLIP SELF ADHESIVE
$9.00
W0018081 SHROUD FAN MOULDED RJ393V
W0018125 COVER HINGE LH
$12.95
W0018166 GROMMET FAN MOTOR
$16.45
W0018170 GROMMET COMPRESSOR
W0018228 PLUG END CAP WHITE WTM2800WB-X
W0018243 HOLE PLUG WTM2900WB-X
W0081178 CAP CORNER MODEL C300F/C302F
W0081199 TIE CABLE 140MM LONG
W0081263 PIN COMPRESSOR MTG RS652M*6
W0081396 CAP SNAP C195F
W0082523 RIVET
W0082722 FOAM TAPE RJ393V
W0082728 SPACER-HINGE C300C
W0082742 CAP SCREW WHT
W0083078 WASHER-HINGE-CENTRE RE521Q
W0083101 SHAFT ROLLER
W0083235 CLIP-HEATER-ALUMINIUM BJ414Q
W0083869 PLUG DRAIN WHT
W0084558 DAMPER NOISE
W0084619 STICKER MAX 25 WATTS N280J
W0084749 CLAMP-CORD BJ385T
W0085056 TIMER DEFROST 8HR N520F
W0085158 WASHER ZINC PLATE RJ526V
W0085286 INSULATION EVAP COVER N280J
W0085293 EVAPORATOR COVER RJ282V
W0085299 BOX TERMINAL
W0085300 TERMINAL COVER RP342
W0085340 EPS HOUSING CONTROL REAR RJ362
W0085341 BAFFLE CASING
W0085343 BAFFLE MANUAL CONTROLLED
W0085344 HOUSING CONTROL TOP DEC RJ393V
W0085374 EPS AIR CURTAIN LID RJ393V
W0085375 EPS AIR CURTAIN RJ393V
W0085390 EPS CONTROL DEL AIR RJ362V
W0085458 DOOR DAIRY RH RJ282V
W0085460 DOOR DAIRY LH RJ282V
W0085483 BASE PLATE COMPRESSOR RJ332V
W0085489 SHELF FZR
W0085499 SHELF FC 505.47MM X 334.79MM
W0085518 BIN CAN RJ282V
W0085543 BIN DAIRY RJ282V
W0085559 COVER CRISPER ASSY RJ282V
W0085576 CONTROL HUMIDITY
W0085579 ROLLER ASSY CRISPER LID
W0085580 SKID CRISPER DELI BIN RJ393V
W0085590 RUNNER DELI SHALLOW RH
W0085599 SPACER ROLLER STRIKESIDE RJ393
W0085630 SEALING MF RJ393V
W0085651 SEAL BYPASS PLASTIC
W0085654 ROLLER CRISPER LID
W0085655 HOUSING ROLLER WHEEL RJ393V
W0085685 HOUSING CONTROL REAR RJ362V
W0085702 ROLLER ADJUSTABLE RJ393V
W0085853 SCREW NO 8 X 1/2 PAN HD RJ393V
W0085861 THERMAL FUSE ASSY RJ282V
W0085866 LAMPHOLDER & HARNESS RJ393V
W0085947 PLUG SCREW
$3.90
W0086012 BIN BOTTLE RJ282V
W0086015 BOTTLE FINGER RJ282V
W0086053 THIMBLE FILLER ASSY CLOSED
W0086056 THIMBLE CAM ASSY CLOSED RJ393V
W0086079 SHIELD LIGHT
$6.60
W0086190 OVERLOAD PROTECTOR RJ393V
W0086324 TRIM SHELF FZR 461MM
W0086339 SCREW M4 X 8 MUSH RJ393V
W0086352 RUNNER DELI SHALLOW LH
$11.90
W0086383 THERMOSTAT CONTROL
W0086395 KNOB CONTROL
$16.00
W0086441 GASKET DEL TOP N280J
W0086442 GASKET CONTROL REAR TOP
W0086579 TAPE FOAM SEALING SBM3800MA
W0086588 ICE CUBE ASSY WTM2900WA
W0086608 CORD SERVICE INSULATED
W0086703 LENS LIGHT
W0086770 EVAPORATOR ASSY WTM2900WA
W0086828 HINGE PLATE BOTTOM LH BLACK
W0086872 HEAT SHIELD EVAP COVER
W0087036 GASKET FZR DOLPHIN GREY
W0087042 GASKET FC DOLPHIN GREY
W0087238 COM R134A GVT61 ZANUSSI
W0087257 PAN DRAIN RJ522V
W0087263 COVER EVAPORATOR ASSY
W0087325 CAPAC 4*0UF 400V WIRED CLIP
W0087345 TROUGH DRAIN ASSY STM3000WA
W0087399 MOTOR FAN EVAP 5W ROHS ETM4407
W0087402 SCREW 8/32 X 3/8 ETM3600WB
W0087403 CLIP MOUNTING COMPRESSOR
W0087405 SCREW 12/14 16MM ETM3600WB
W0087406 SCREW-HINGE/CAM-BTM ETM3600WB
$4.50
W0087407 SCREW 8/32 X 1/2THREAD FORMING
W0087409 SCREW EVAP COVER 8 X 1/2
$4.00
W0087410 SCREW DELI RUNNER RJ393V
W0087411 SCREW HINGE CENTRE
$4.50
W0087412 SCREW ETM3600WB
W0087416 SCREW 8 X 1/2 T/F ETM3600WB
W0087417 NUT ETM3600WB
W0087425 DOOR ASSY FC WTM3300WB-X
$209.00
W0087431 DOOR ASSY FZR RH WTM3300WB-X
W0087442 DEFROST TERM THERMO SBM3800MA
W0087457 HARNESS TIMER SBM3800MA
W0087463 ROLLER REAR
W0087477 HINGE CENTRE N280J WHITE
W0134832 TAPE-FOAM SEAL18X4 14M/RLL.
