WTM3900SB — 925042381 00

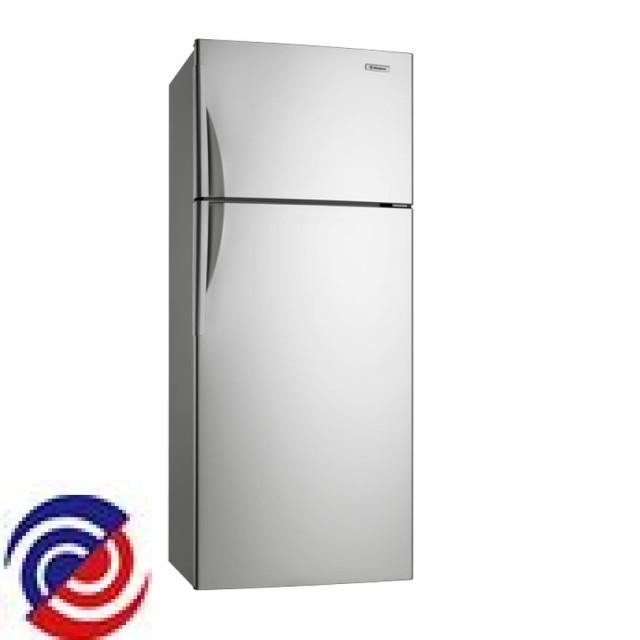

WESTINGHOUSE — Fridge

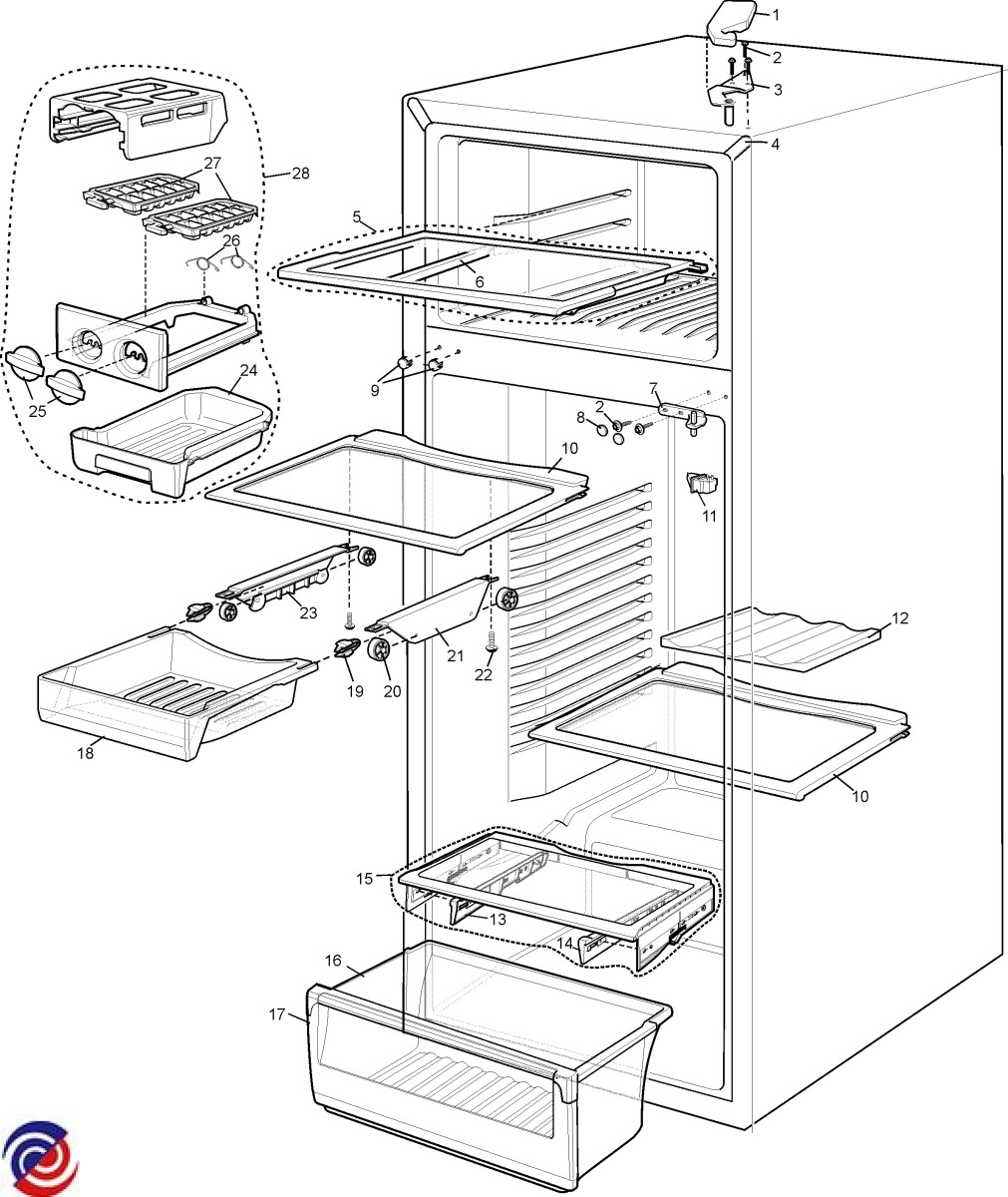

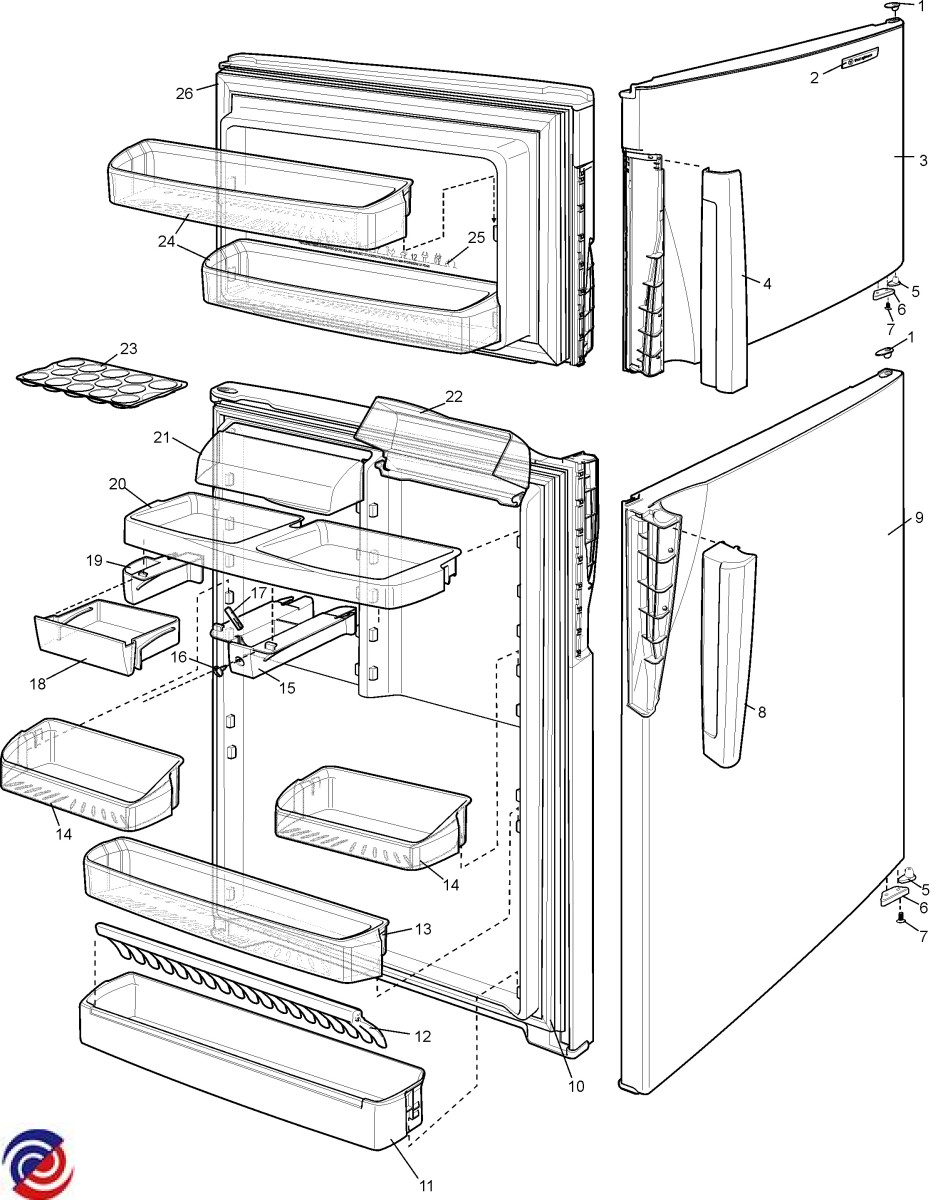

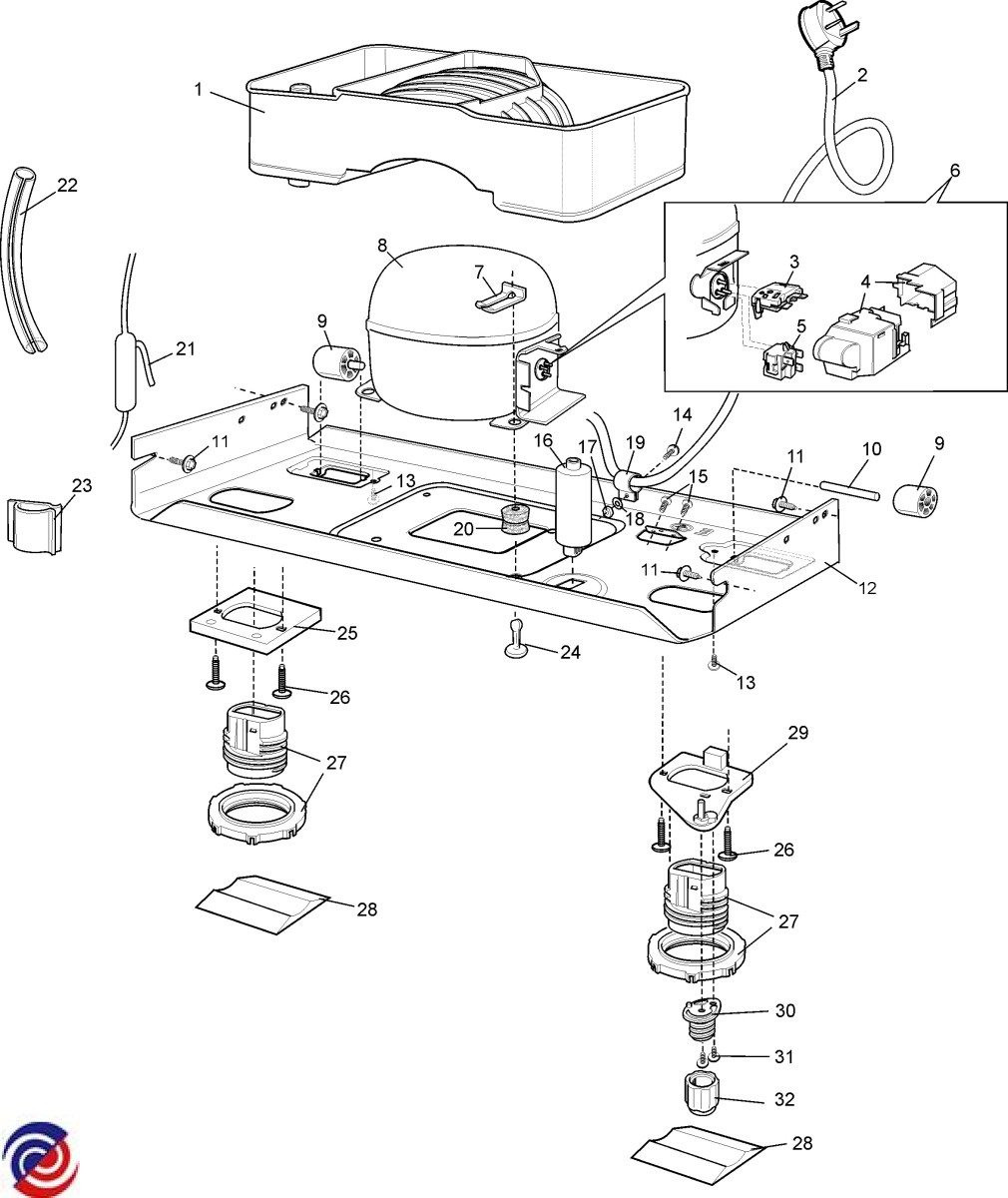

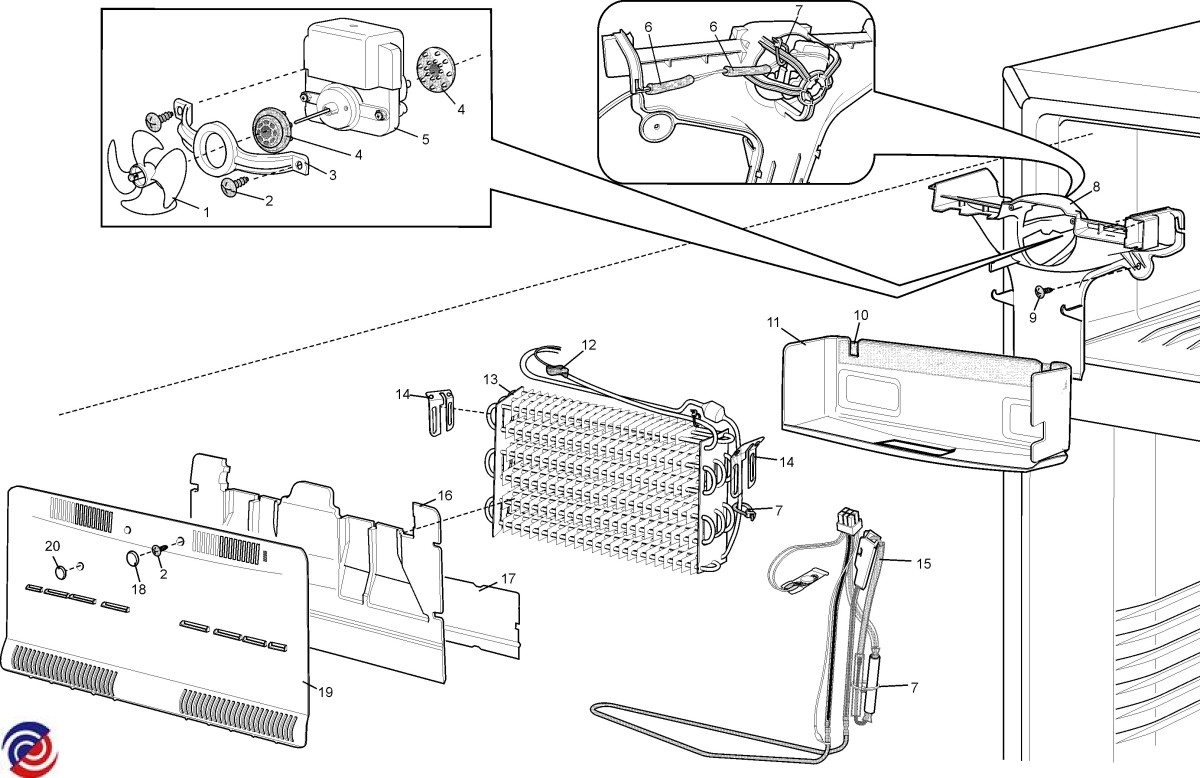

Parts for WTM3900SB
W0018094 BIN DOOR FZR
$51.00
.JPG)
W0018097 BIN HALF WIDTH
W0018129 BIN DELI SHALLOW
W0018281 FACIA ASSY CRISPER
W0018395 COVER HANDLE RH TOP LH BOT
$30.00
W0018396 COVER HANDLE RH BOT LH TOP
$45.85
W0018417 HEATER DEF & DTT R600A 690W
.JPG)
W0018582 BADGE NAMEPLATE
W0019131 SCREW COUNTER SUNK THIMBLE
$4.50
W0034671 TRAY ICE CUBE
.JPG)
W0083263 STOP DOOR
W0085498 SHELF GLASS 599.92 X X344.79MM
.JPG)
W0085600 CAP LEG
$12.90
W0085609 LEG STABILISING
W0086637 HOSE DRAIN (SLIT 130MM)
$11.90
.JPG)
W0086638 BLADE FAN
.JPG)
W0086775 SWITCH LAMP
W0086834 HINGE PLATE BOT LH BLACK ASSY
$34.50
W0087161 TRAY EGG
W0087214 HINGE TOP LH
W0087464 ROLLER REAR GREY
W0087646 GASKET DOOR FC
$90.90
W0087741 LAMP 25W SES BLUE 240V E14
W0087767 WESTINGHOUSE FRIDGE REAR CRISPER BIN 590Wx350Dx263
.JPG)
W0088096 MOTOR FAN EVAP
W0088347 TRAY ICE CUBE ASSY
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0018042 BRACKET FAN MOTOR
$7.00
W0018049 CLIP SELF ADHESIVE
$9.00
W0018081 SHROUD FAN MOULDED RJ393V
W0018092 BIN CAN
W0018126 RUNNER LH
W0018166 GROMMET FAN MOTOR
$16.45
W0018170 GROMMET COMPRESSOR
W0018233 COVER HINGE LH
$12.65
W0018254 CAP CORNER GREY SYD1212A
$23.80
W0018383 GASKET LAMP SEALING
$7.70
W0018624 PAN DRAIN WANBAO ETZ110
$21.10
W0081199 TIE CABLE 140MM LONG
W0081263 PIN COMPRESSOR MTG RS652M*6
W0082722 FOAM TAPE RJ393V
W0083869 PLUG DRAIN WHT
W0084558 DAMPER NOISE
W0084749 CLAMP-CORD BJ385T
W0085278 INSULATION EVAP COVER RJ393V
W0085341 BAFFLE CASING
W0085343 BAFFLE MANUAL CONTROLLED
W0085376 AIR CURTAIN RJ393V
W0085390 EPS CONTROL DEL AIR RJ362V
W0085461 KNOB LOCK
W0085462 LOCK LATCH
W0085538 DOOR DAIRY LH RJ393V
W0085580 SKID CRISPER DELI BIN RJ393V
W0085599 SPACER ROLLER STRIKESIDE RJ393
W0085630 SEALING MF RJ393V
W0085654 ROLLER CRISPER LID
W0085702 ROLLER ADJUSTABLE RJ393V
W0085947 PLUG SCREW
$3.90
W0086011 BIN BOTTLE RJ393V
W0086014 FINGERS BOTTLE
W0086053 THIMBLE FILLER ASSY CLOSED
W0086056 THIMBLE CAM ASSY CLOSED RJ393V
W0086078 RUNNER CENTRE
$55.00
W0086339 SCREW M4 X 8 MUSH RJ393V
W0086441 GASKET DEL TOP N280J
W0086579 TAPE FOAM SEALING SBM3800MA
W0086996 SHIELD LAMP
W0087023 HOUSING CONTROL TOP
W0087025 AIR CURTAIN
W0087026 AIR CURTAIN LID
W0087030 BIN UTILITY LH 690
W0087175 GASKET DELIVERY FRONT
W0087189 LENS LIGHT FT527SA
W0087334 PAD STOP SKID ROLLER
W0087402 SCREW 8/32 X 3/8 ETM3600WB
W0087403 CLIP MOUNTING COMPRESSOR
W0087405 SCREW 12/14 16MM ETM3600WB
W0087406 SCREW-HINGE/CAM-BTM ETM3600WB
$4.50
W0087407 SCREW 8/32 X 1/2THREAD FORMING
W0087409 SCREW EVAP COVER 8 X 1/2
$4.00
W0087410 SCREW DELI RUNNER RJ393V
W0087411 SCREW HINGE CENTRE
$4.50
W0087412 SCREW ETM3600WB
W0087416 SCREW 8 X 1/2 T/F ETM3600WB
W0087417 NUT ETM3600WB
W0087418 SCREW 8 X 19 T/CT TBT
$5.50
W0087422 LOCK WASHER ESE6108WA
W0087496 HINGE DOOR CENTRE GREY
W0087497 CAP SCREW GREY
W0087593 BASE PLATE COMP ASSY STM4200W
W0087642 GASKET DOOR FZR
W0087706 SHELF ASSY FZR
$55.00
W0087721 COVER EVAP WTM4200PA
W0087735 TROUGH DRAIN WTM4200PA
W0087822 SHAFT ROLLER
$7.00
W0087877 DOOR ASSY FIP FZR LH SS WTE420
W0087968 LID CRISPER ASSY WITH RAILS
W0088005 EVAP ASSY R600A ETM4200SC
W0088044 RUNNER DELI SHALLOW LH
W0088055 BIN DAIRY
$54.95
W0088107 DOOR ASSY FIP FC LH WTM3900SB
W0088180 LAMPHOLDER & HARNESS FZR
$44.90
W0088182 CORD SERVICE INSULATED R600A
W0088186 CAPAC 4UF 400V 2 WIRE CLIP IN
W0088230 CTRL BRD ERF450 & KIT ASSY
W0088415 COVER EVAPORATOR ASSY
W0088653 SEAL BY PASS WTM5200
W0088782 COVER COMPRESSOR
$14.90
W0088913 COMPRESSOR KIT-WANBAO ETZ110
W0163904 KNOB ICE B6565WTB2800WA-XAU
W0166429 SPRING ICE CUBE TRAY
W0171308 ICE CUBE BOX WTB2800WA-XAU
