WWT1154DCWA — 913041201 01

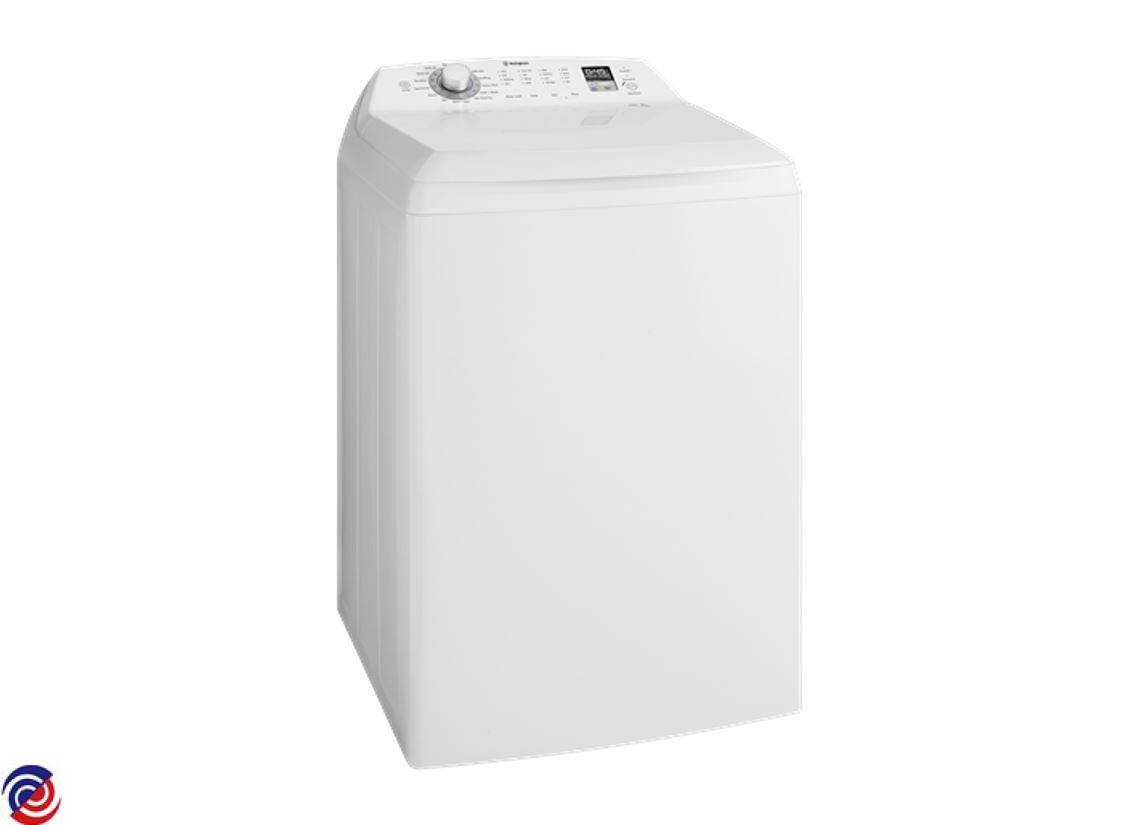

WESTINGHOUSE — Washing Machine

Parts for WWT1154DCWA

W0011399 LEG LEVELLING & PAD ASSY
W0012745 GREASE NULON L90 125G TUBE
$79.00
W0013691 HOSE DRUM TO PUMP TALL BOY
W0016323 SWITCH LID
W0016343 SIMPSON TOP LOAD WASHING MACHINE ROD SUSPENSION KIT OF 4
$119.50
W0016354 HOSE DRAIN
W0016361 AGITATOR
W0016363 CAP AGITATOR
W0016402 VALVE INLET ASSY HOT
W0016405 LOCK LID ASSY 1550MM
W0027032 SIMPSON WASHING MACHINE SELECTOR BOARD
W0029234 VALVE INLET TRIPLE COLD
W0029290 LINK, BRAKE MOTOR
$5.70
W0029471 DRAWER DISPENSER-LARGE
W0029489 SENSOR PRESSURE
W0030462 DAMPER LID - RH
W0030746 ACTUATOR CLUTCH 220V
W0037509 PLATE SUPPORT DRUM SPIN
W0043643 TUBE AIR BOWL TO PRESS SWITCH
W0044076 NUT - BLANK
W0056543 SIMPSON WESTINGHOUSE TOP LOADER WASHER DRAIN PUMP
W0060102 SIMPSON TOP LOADER WASHING MACHINE BAG FILTER ASSY SP095 0564257398
W0060242 TOOL AGITATOR SCREW LONG
$96.75
W0060454 WASHING MACHINE HOSE ASSY INLET COLD BLUE
W0060456 WASHING MACHINE HOSE ASSY INLET HOT RED
W0073334 LEVER KNOCK OFF
W0073439 FRAME FILTER/BAG
W0110636 CAP ROD SUSPENSION
W0114522 SEAL WATER INLET VALVE
$9.90
W0147162 FILTER HOSE INLET RUBBER
$8.45
W0281678 DET HOUSING ASSY COMPLETE
W0296514 SIMPSON TOP LOADER WASHING MACHINE MOTOR CONTROL PCB A04725004
W0296529 PCBA UI LOW END DG ASSY NDT
No image available
W0012524 SCREW M6 X 10MM HEX TT W/HD SS
$4.50
No image available
W0012786 SCREEN DETERGENT DISPENSER
$8.35
No image available
W0012787 RING BALANCE ASSY
No image available
W0016336 SCREW 1/4-10 X 28
$4.50
No image available
W0016340 BRACKET DAMPER
No image available
W0016352 COVER HINGE LH LGE
No image available
W0016353 COVER HINGE RH LGE
No image available
W0016355 GROMMET PANEL TOP
$19.55
No image available
W0029233 INSERT VALVE HOT & COLD
$13.55
No image available
W0029390 SCREEN SOFTENER DISPENSER
$14.45
No image available
W0030127 LID ASSEMBLY WITH LATCH
$199.70
No image available
W0030138 RETAINER SCREEN DISPENSER
$6.20
No image available
W0030147 KNOB ASSEMBLY WHITE
No image available
W0030157 GASKET USER INTERFACE
$12.75
No image available
W0030461 DAMPER LID - LH
No image available
W0030623 SEAL CONTROL PANEL
$30.50
No image available
W0030624 CLIP HOLDER PIPE
No image available
W0035585 CLAMP SUPPORT PLATE TUB SPIN
No image available
W0035590 CLAMP TUBE AIR
No image available
W0038190 COVER PUMP
No image available
W0038196 COVER HARNESS
$11.90
No image available
W0044120 NUT M5 X 0.8
No image available
W0046425 CLIP SPEED
No image available
W0046434 CLIP WIRING
No image available
W0046546 SLEEVE HARNESS
No image available
W0047519 SCREW M6 X 20MM HH SS
$4.50
No image available
W0047525 SCREW NO 10 16 X 1/2 PAN HD
No image available
W0047526 SCREW ST 10 X 1/2 HEX W/HD
No image available
W0047534 SCREW EARTH
No image available
W0049253 GASKET DRUM TO PLATE
No image available
W0050273 GREASE STAMINA RL2 75 ML
No image available
W0056360 PROTECTOR TUBE AIR
No image available
W0061305 PAD LEVELLING LEG
$9.30
No image available
W0065423 SCREW M8 X 30 MM SS SKT
No image available
W0141419 CLAMP HOSE (22 38 H541)
No image available
W0274360 HOOK OUTLET HOSE
No image available
W0275704 CUSHION PCB CONNECTOR
No image available
W0282257 CLAMP HOSE
$4.50
No image available
W0296275 COVER OUTER BOWL & SEAL ASSY
No image available
W0296505 PANEL TOP LARGE W LOCK
No image available
W0296548 CABLE POWER CORD TL AU
No image available
W0296591 GEARBOX & SEAL ASSY 6.4:1 DG
$482.55
No image available
W0359427 MOTOR ASSEMBLY-DG-PM 450W
No image available
W0361802 PCBA Main Board EWX14 11kg
No image available
W0361806 PANEL CONTROL ASSEMBLY WWT1154
$160.00
No image available
W0361847 WIRING HARNESS MB DG-TOP
No image available
W0361969 SCREW M6*12 HEX
$4.50
No image available
W0362133 FRAME HOUSING
$6.35
